7MBR30VKC060-50 IGBT Module
The 7MBR30VKC060-50 is an Insulated Gate Bipolar Transistor (IGBT) module from Fuji Electric's V Series, designed for industrial and commercial power electronics applications. It operates at 600V and 30A, providing low collector-emitter saturation voltage (V_CEsat) to reduce power loss and improve system efficiency. Its compact M728 package allows easy PCB mounting for space-efficient designs.
The module includes an integrated converter diode bridge and dynamic brake circuit, which reduces component count and simplifies circuit design. It supports a maximum junction temperature of 175°C and an operating range from -40°C to 125°C, making it suitable for environments with demanding thermal requirements. The module is RoHS-compliant, meeting environmental standards.
This IGBT module is suitable for inverters, NC servos, and uninterruptible power supplies (UPS). Its design allows reliable performance and stable operation in various industrial applications.
Key Specifications
| Specification | Value |
|---|---|
| Type | IGBT Module |
| Series | V Series (6th Generation) |
| Voltage Rating (V_CES) | 600V |
| Current Rating (I_C) | 30A |
| Maximum Junction Temperature (T_j max) | 175°C |
| Operating Temperature Range (T_stg) | -40°C to 125°C |

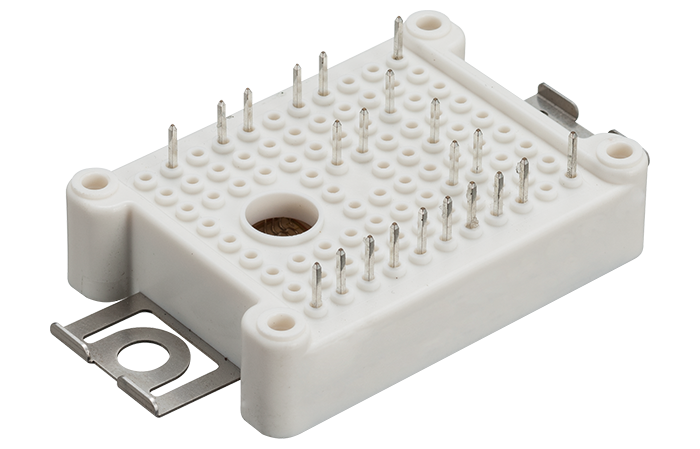

| Package Type | M728 |
| Mounting Type | PCB Mount |
| Weight | 25g |
| Compliance | RoHS |
For detailed technical information, please refer to the Fuji Electric datasheet.
