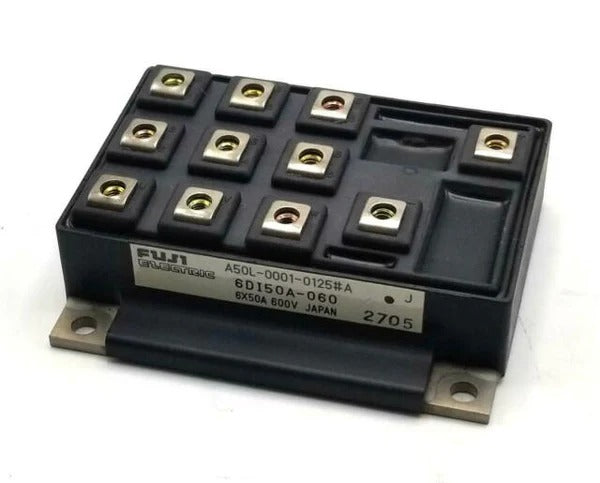

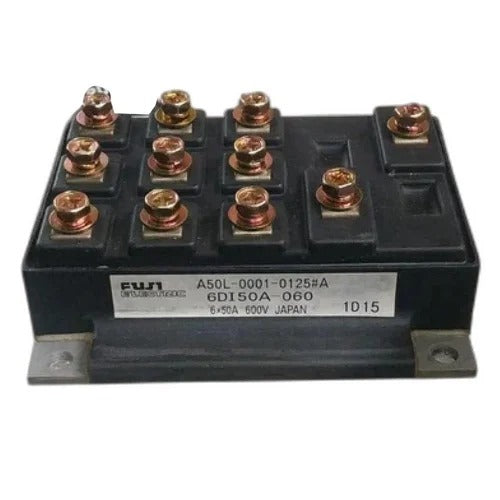

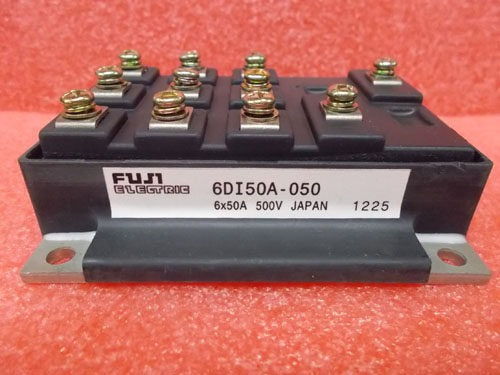

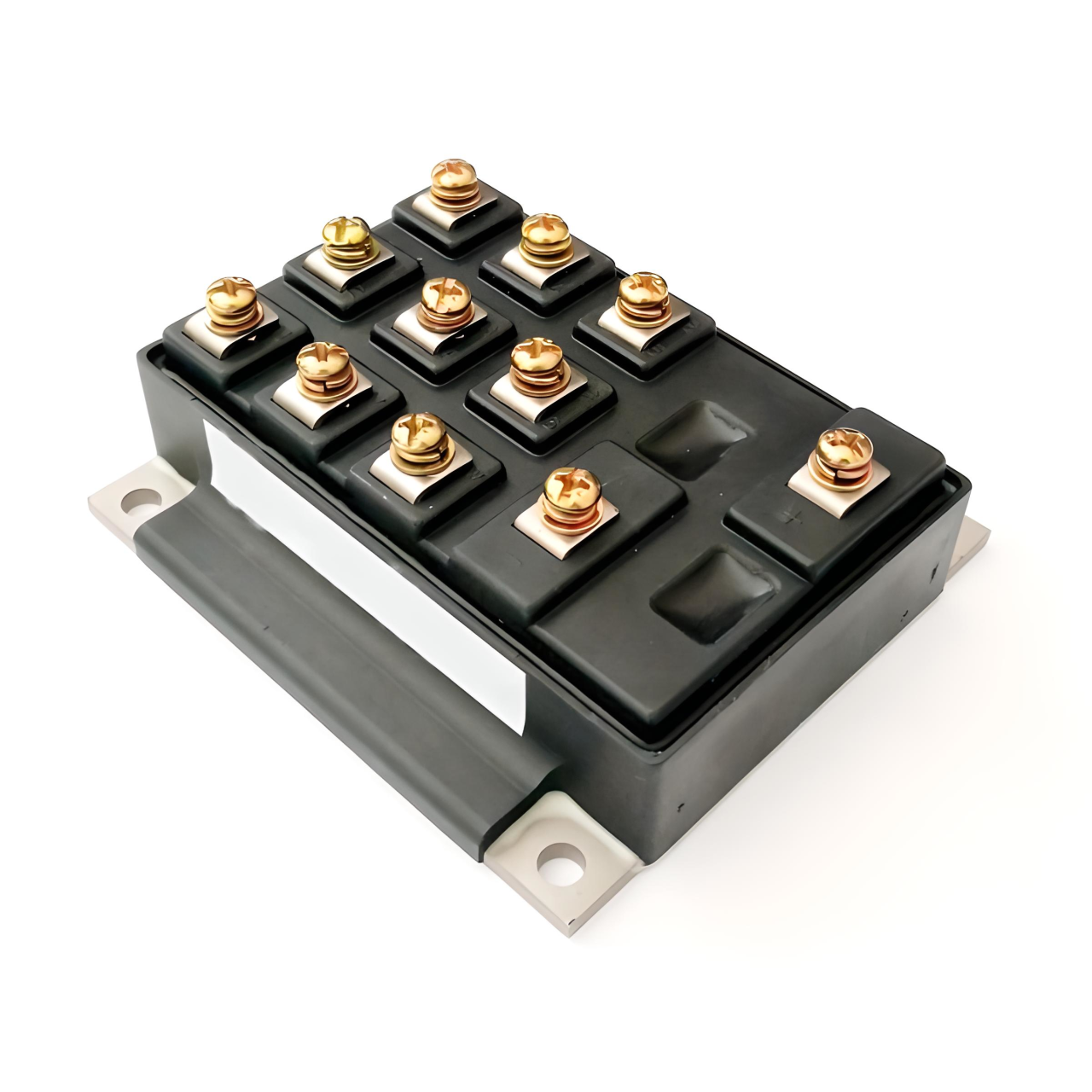

6DI50A-050 Fuji IGBT Module
The 6DI50A-050 from Fuji Electric is a rugged and efficient IGBT module meant for industrial and commercial power electronics tasks. It offers high arm short-circuit capability, excellent DC current gain, and includes freewheeling diodes. Its insulated case makes it easier to mount safely without needing extra insulation, while the electrical characteristics help reduce losses in heavy switching environments.
With low saturation voltage (VCE(sat)) and optimized switching behavior, the 6DI50A-050 delivers enhanced efficiency especially in applications that run continuously or under frequent switching cycles. Its durability comes from Fuji’s manufacturing and its ability to handle thermal stress and high current loads without performance degradation.
Used in inverters, motor drives, UPS systems, industrial automation, and other applications where dependable power switching is needed, this module is well suited for both new equipment designs and replacements of existing modules. Its balance of performance, durability, and cost makes it a worthwhile component for engineers and system integrators.
Key Specs
| Parameter | Specification |
|---|---|
| Manufacturer | Fuji Electric |
| Part Number | 6DI50A-050 |
| Device Type | IGBT Module |
| Arm Short-Circuit Capability | High |
| DC Current Gain | High |
| Included Diodes | Freewheeling Diodes |
| Package Type | Insulated Case |
| Typical Applications | Inverters, Motor Drives, UPS, Industrial Automation |
| VCE(sat) | Low (optimized for low conduction loss) |
| Switching Performance | Designed for frequent switching cycles |
| Thermal Handling | Good thermal stability under load |
| Insulation Requirements | Built-in insulation reduces additional insulation needs |
| Compliance | Fuji standards; datasheet confirms test limits |
For more detailed information, please refer to the Fuji 6DI50A-050 Datasheet PDF
