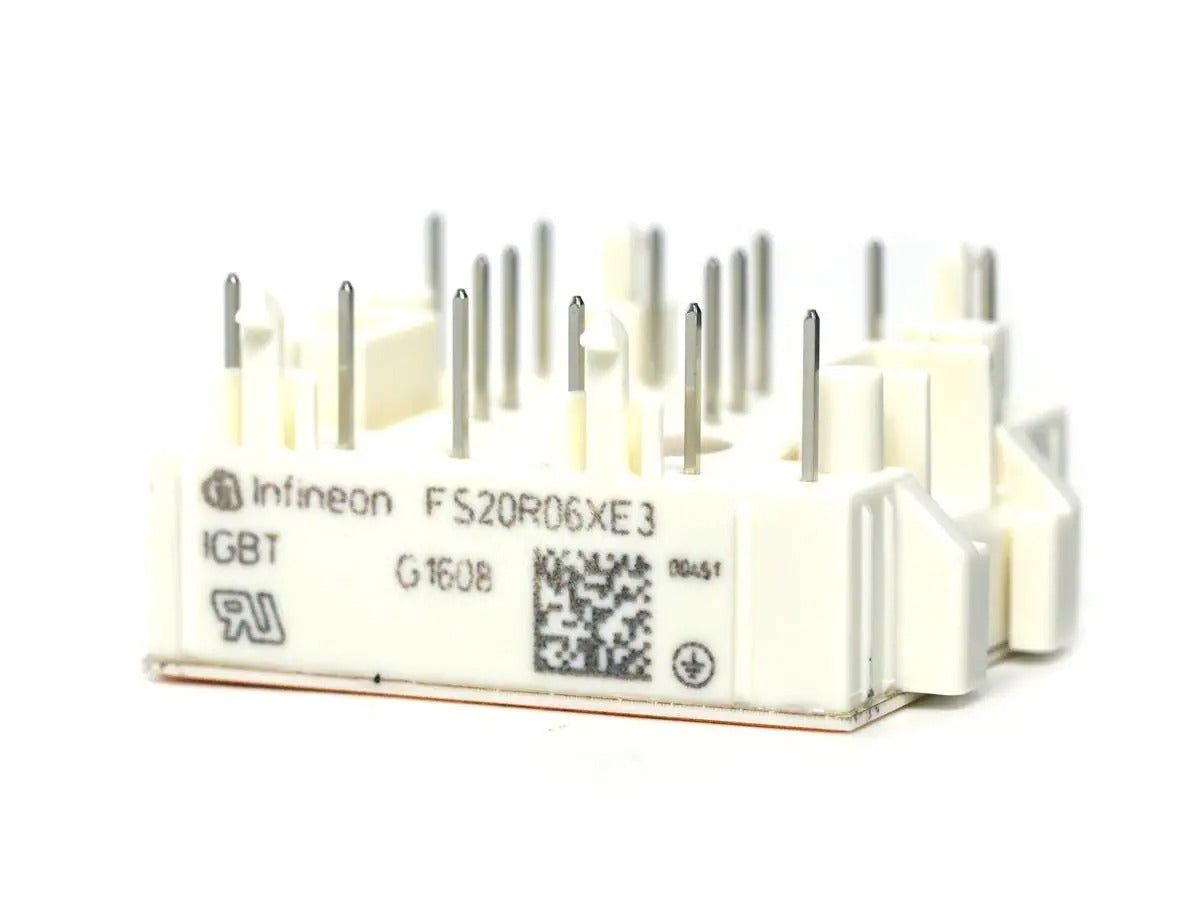

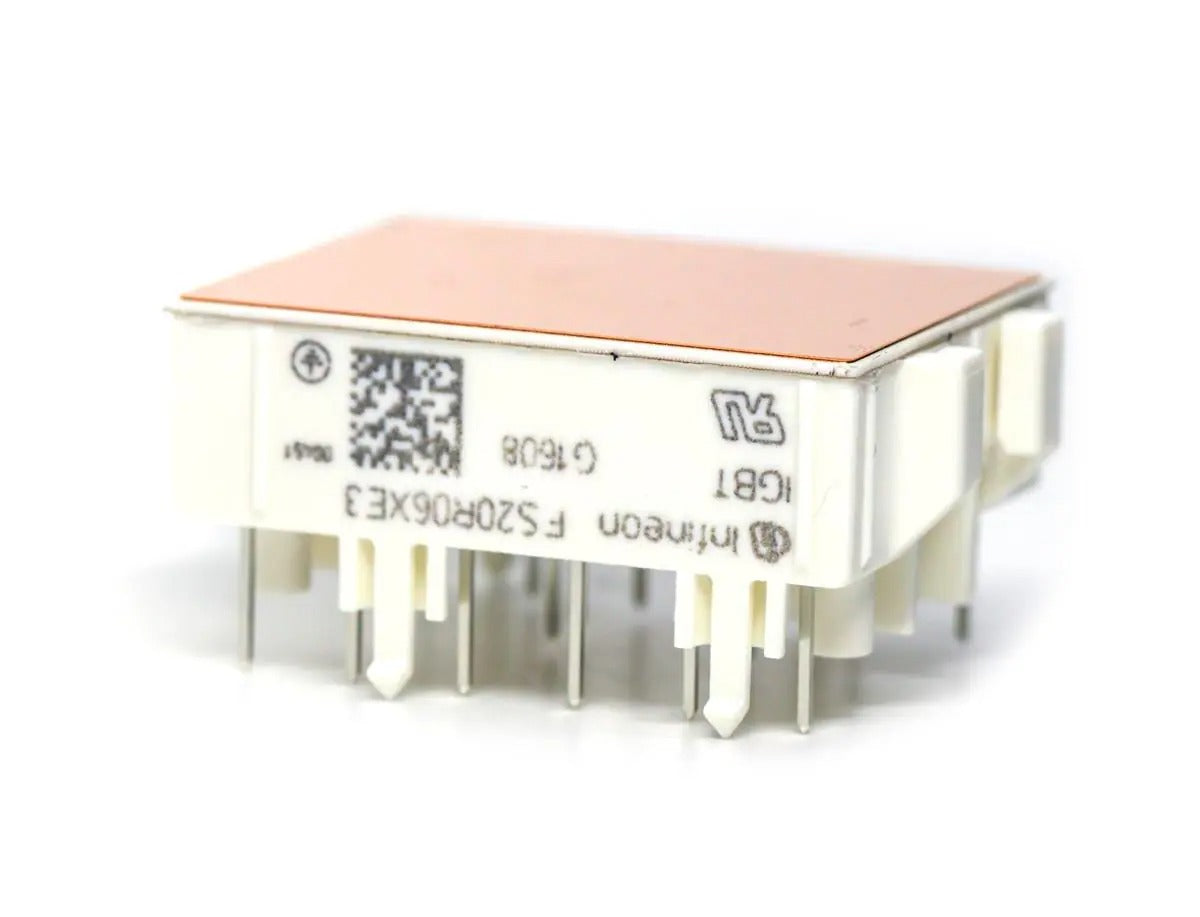

FS20R06XE3 IGBT Module
The FS20R06XE3 is an IGBT (Insulated Gate Bipolar Transistor) module designed for stable switching performance in industrial and commercial power electronics. With a collector-emitter voltage rating of 600 V and a continuous collector current of 26 A at 25 °C, it provides a balanced solution for medium-power applications.
Built on silicon IGBT technology, the module supports reliable operation across a wide temperature range of -40 °C to +150 °C. Its design ensures consistent electrical behaviour and robust thermal performance, making it suitable for environments where long-term reliability is important.
The FS20R06XE3 is typically used in motor drives, inverter systems, UPS equipment, renewable energy converters, and automation systems. With low switching losses and a six-pack configuration, it allows efficient power handling and integration into compact system designs.
Key Specs
| Specification | Value / Description |
|---|---|
| Module Type | IGBT Module (N-Channel) |
| Collector-Emitter Voltage (V<sub>CEo</sub>) | 600 V |
| Continuous Collector Current (25 °C) | 26 A |
| Technology | Silicon (Si) IGBT |
| Operating Temperature Range | -40 °C to +150 °C |
| Package / Case | Module, tray packaging |
| Configuration | 6-pack IGBT module |
| Part Status | Discontinued / End of Life |
