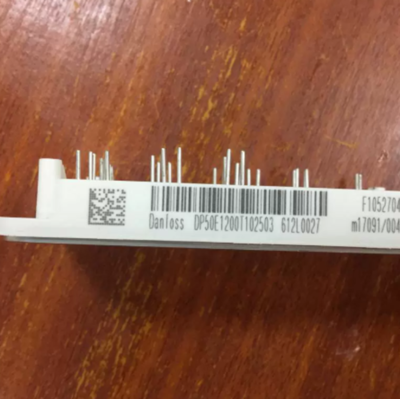

DP50E1200T102503 — Danfoss IGBT Module
The DP50E1200T102503 is a rugged Danfoss IGBT power module engineered for high-efficiency power conversion in industrial and commercial systems. Built on the DP50 family platform, this module is specially specified for 1200 V class applications and is designed to deliver dependable switching performance and thermal stability in demanding environments such as motor drives, renewable-energy inverters, and industrial converters. The part is a genuine Danfoss product and is listed as RoHS-compliant by major distributor datasheets.
Designed with real-world reliability in mind, the DP50E1200T102503 provides the electrical ratings and package features system designers need to balance conduction losses, switching speed, and thermal management. Typical listings and datasheet extracts for the DP50/DP50D family show a 1200 V collector-emitter voltage rating and a 50 A class nominal collector current for the DP50 1200-V variants, making this module suitable where mid-power, high-voltage switching is required. Its packaging and thermal footprint are optimized for chassis mounting and straightforward integration into three-phase half-bridge and inverter topologies.
Choosing the DP50E1200T102503 gives system builders the benefits of reduced switching losses, long-term durability under thermal cycling, and compatibility with a wide range of power-semiconductor driver and protection schemes. These attributes make it a practical choice for applications requiring consistent performance over long operating cycles — for example, variable-frequency drives, solar and wind inverters, UPS systems, and traction or on-board converters. For precise electrical characteristics, thermal limits, pinout drawings and recommended mounting/assembly instructions, please consult the official Danfoss datasheet linked below.
Key specs
| Parameter | Value |
|---|---|
| Part number | DP50E1200T102503 |
| Manufacturer | Danfoss (Danfoss Silicon Power / Semikron-Danfoss family) |
| Rated collector–emitter voltage (V_CES) | 1200 V. |
| Nominal collector current (I_C class) | 50 A class (DP50 series 50 A family). |
| Product type | IGBT module (DP50 family) |
| RoHS | Lead free / RoHS compliant (as listed by distributors). |
| Typical applications | Motor drives, solar/wind inverters, UPS, industrial converters |
| Mounting | Chassis / module mounting (standard DP50 footprint — refer to datasheet outline) |
