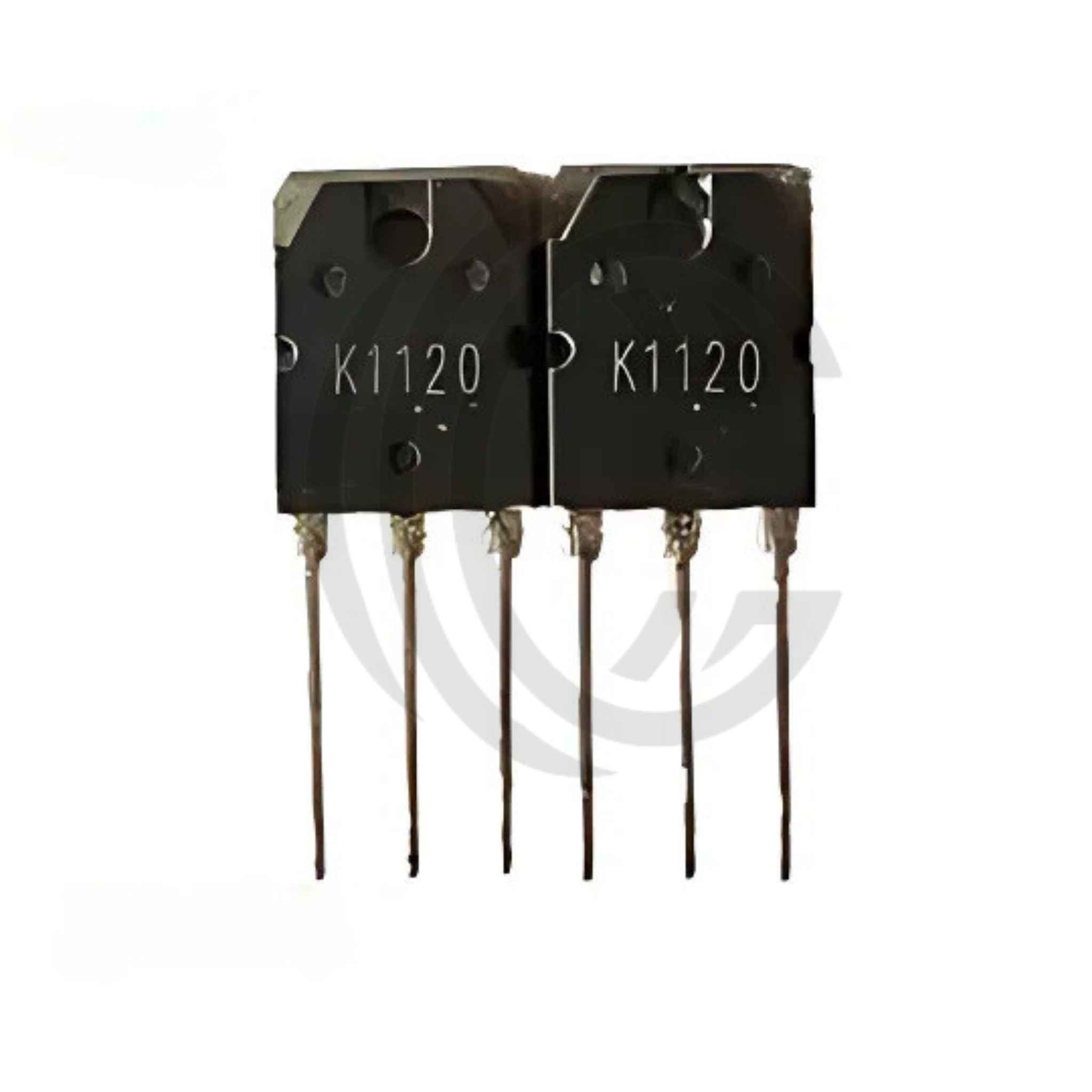

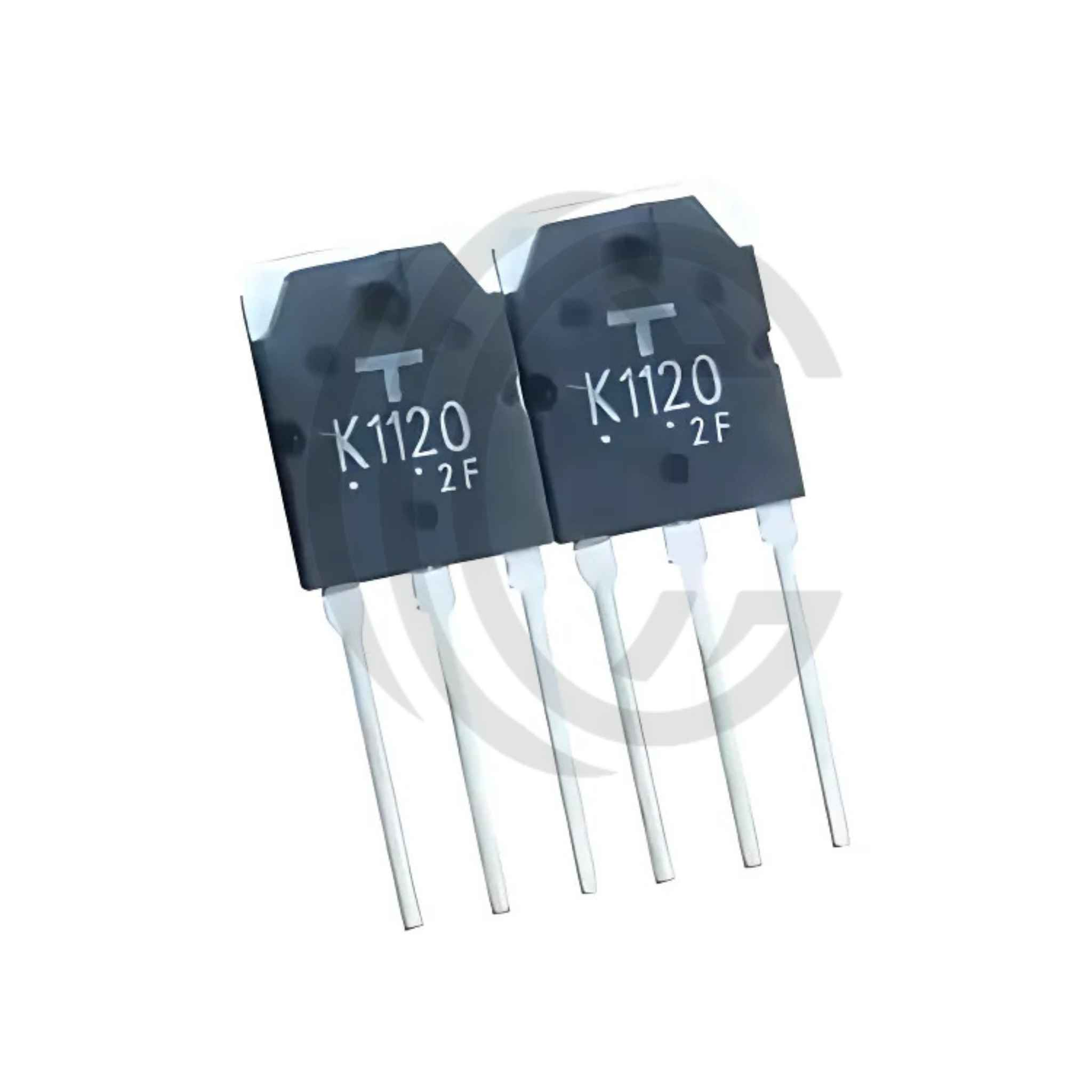

K1120 MOSFET 600V 10A – High-Voltage N-Channel Transistor in TO-220F Package
The K1120 MOSFET is a high-voltage N-channel power transistor designed for efficient switching in circuits up to 600V. It supports a continuous current of 10A, making it ideal for high-power systems. This component performs well in inverters, electric vehicle chargers, solar energy systems, and motor control units.
Its fast switching speed improves efficiency in high-frequency operations. The TO-220F package offers excellent thermal performance, keeping the device stable in demanding environments. With low on-resistance and strong avalanche durability, this transistor ensures reliable operation and long service life.
The K1120 operates over a wide temperature range of -55°C to 150°C. It is built to handle voltage spikes, helping protect sensitive components in your design. This makes it a trusted choice for industrial automation, renewable energy, and telecom applications.
Engineers choose the K1120 for its simple integration, high efficiency, and durability under tough working conditions. Whether you're building a power supply or a solar inverter, this MOSFET provides consistent results.
Key Specs Voltage Rating: 600V Current Rating: 10A Continuous Type: N-Channel Package: TO-220F R\DS(on)\: Low Operating Temp: -55°C to 150°C Applications: Solar Inverters, EV Chargers, UPS, Power Supplies
