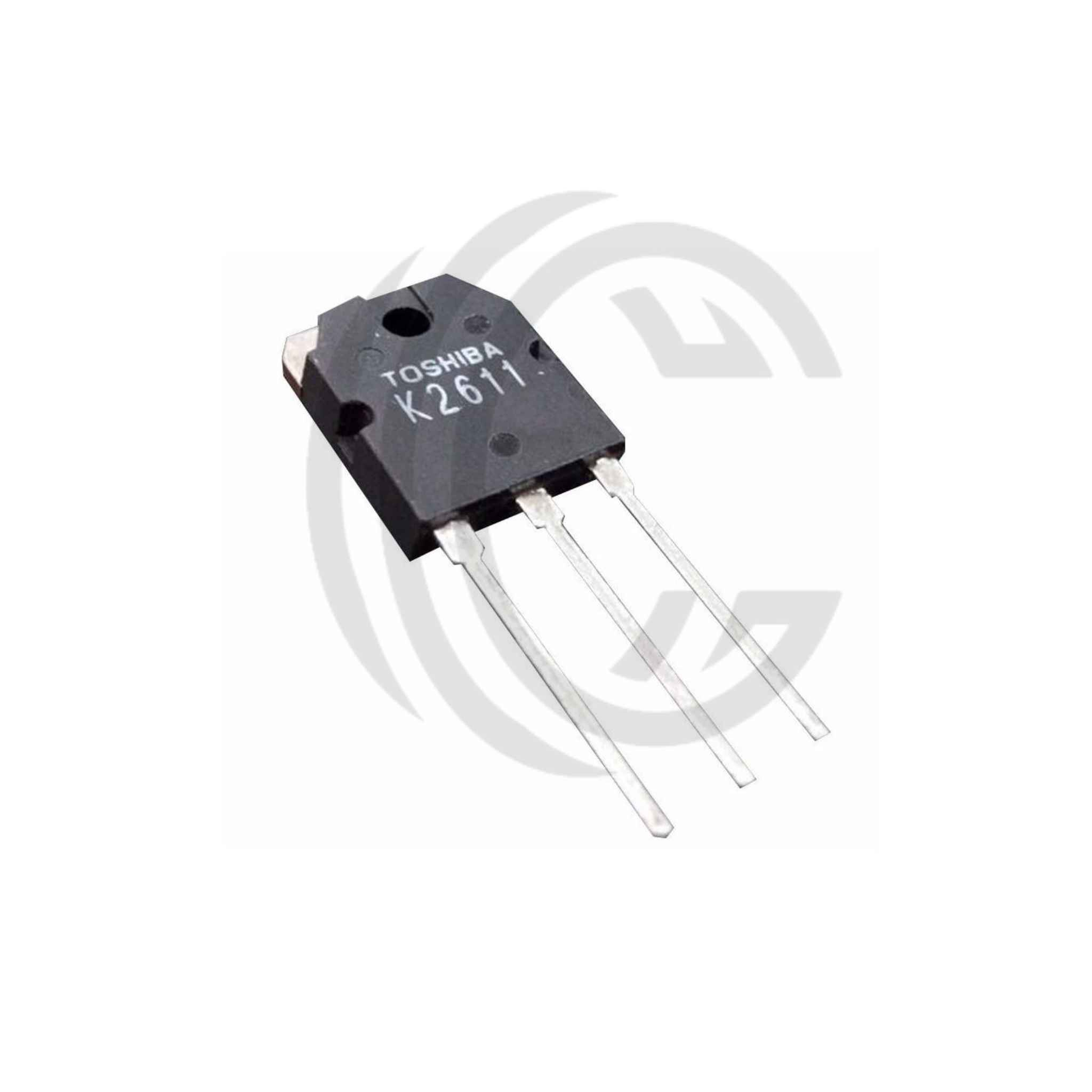

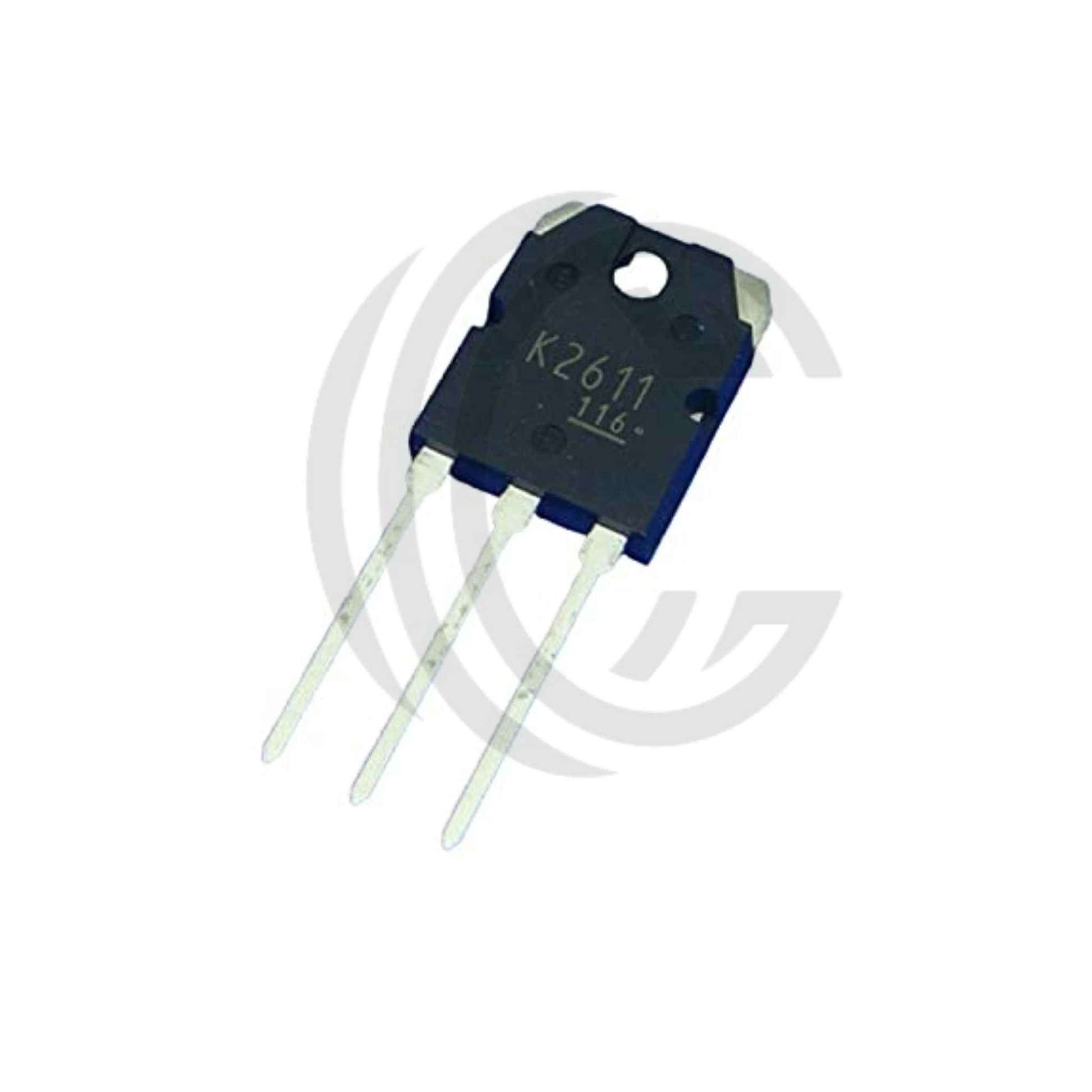

2SK2611 900V 9A Silicon N Channel Transistor
Regular price
Rs.150.00
Sale price
Rs.170.00
2SK2611 MOSFET is a high-voltage N-channel power MOSFET rated at 900V and 9A, manufactured by Toshiba. Engineered for fast switching and low on-resistance, it is ideal for DC-DC converters, relay drivers, LED drivers, and high-voltage switching circuits. With a low RDS(on) of 1.1Ω at 10V, it minimizes conduction losses and enhances energy efficiency in demanding industrial and renewable energy applications.
The TO-3PN package ensures excellent thermal management and mechanical stability, while its high avalanche ruggedness protects against voltage spikes. Designed to operate across a wide temperature range (-55°C to 150°C), the 2SK2611 MOSFET offers long-term reliability for power-critical systems.

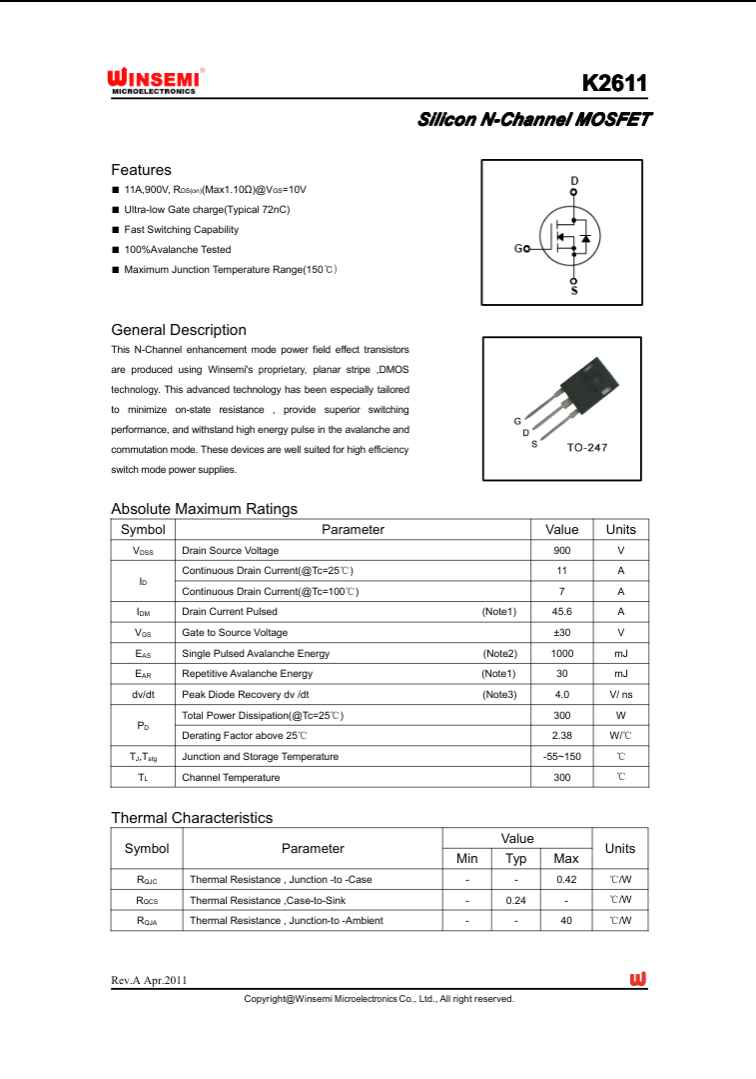

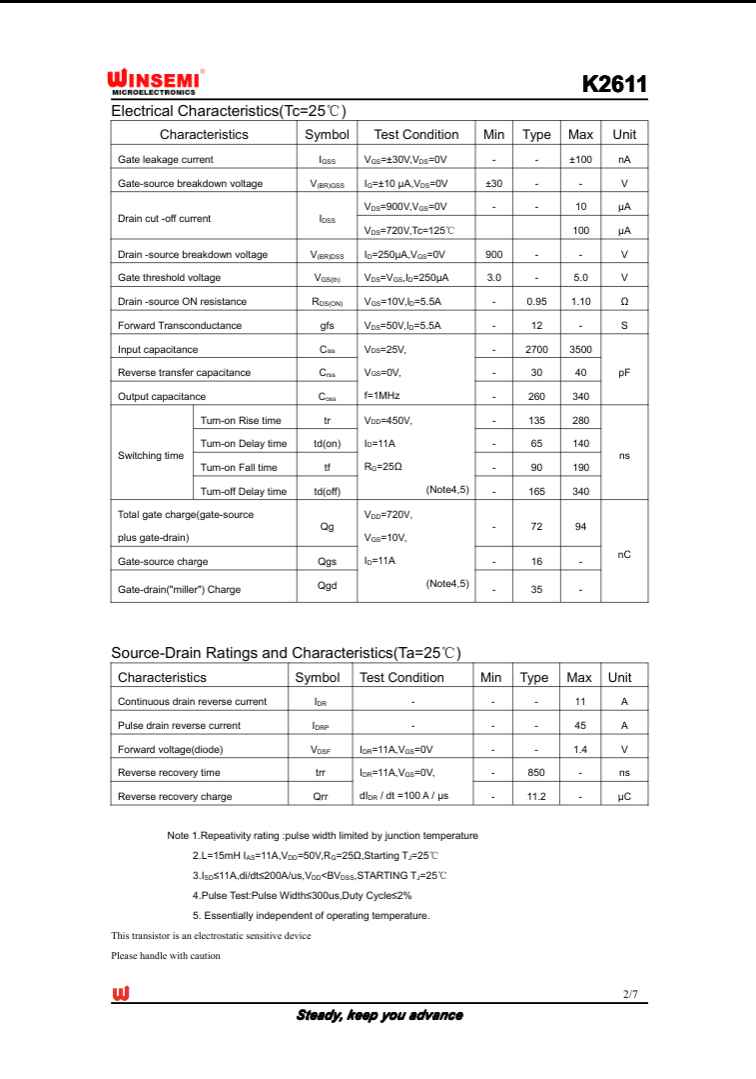

Key Specs Voltage Rating: 900V Current Rating: 9A Continuous Type: N-Channel MOSFET Package: TO-3PN On-Resistance: 1.1Ω Max @ V\GS\ = 10V Operating Temp: -55°C to 150°C Avalanche Energy: High Applications: DC-DC Converters, Motor Drives, LED Drivers, Relay Drivers Brand: Toshiba
