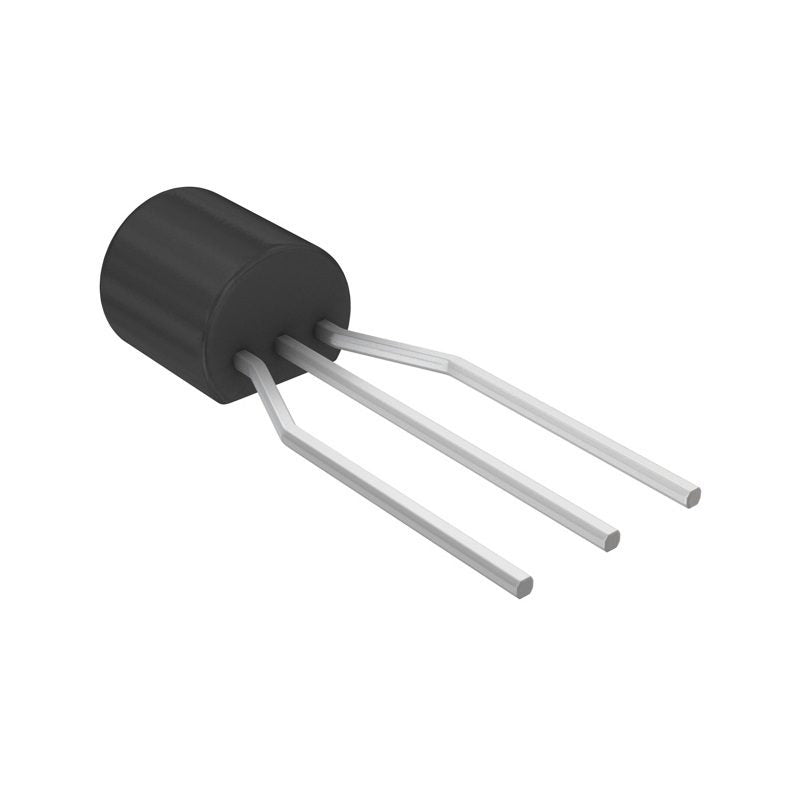

2SC2655 NPN Transistor
The 2SC2655 is a NPN silicon transistor in a TO‑92L package, designed for power electronics applications. It supports a collector current of 2 A and a collector‑emitter voltage of 50 V, suitable for switching and amplifier circuits. Its design provides stable operation under various loads, making it suitable for industrial and commercial electronics.
The transistor offers a low saturation voltage (VCE(sat) ≈ 0.5 V) and a transition frequency of 100 MHz, enabling efficient switching and high-speed performance. With a DC current gain (h_FE) of 120@1.5 A, 2 V, it maintains reliable amplification in current-driven circuits while minimizing power loss.
The 2SC2655 can operate in a temperature range of –55 °C to +150 °C with a power dissipation rating of 0.9 W, providing dependable operation in demanding environments. It is suitable for amplifier stages, motor-drive circuits, and other industrial applications. For detailed electrical parameters and characteristics, please refer to the Toshiba datasheet here.
Key Specifications
| Parameter | Symbol | Value |
|---|---|---|
| Transistor Type | — | NPN Silicon |
| Maximum Collector‑Emitter Voltage | V_CEO | 50 V |
| Collector Current (Continuous) | I_C | 2.0 A |
| Collector Power Dissipation | P_C | 0.9 W |
| Collector Cutoff Current | I_CBO | ≤ 1 µA (at V_CB = 50 V) |
| DC Current Gain (h_FE) | h_FE | 120 (at I_C = 1.5 A, V_CE = 2 V) |
| Saturation Voltage | V_CE(sat) | ≤ 0.5 V (at I_C = 1 A) |
| Transition Frequency | fₜ | 100 MHz |
| Package | — | TO‑92L |
| Operating Temperature Range | T_J | –55 °C to +150 °C |
For more detailed information, please refer to the Toshiba datasheet here.
