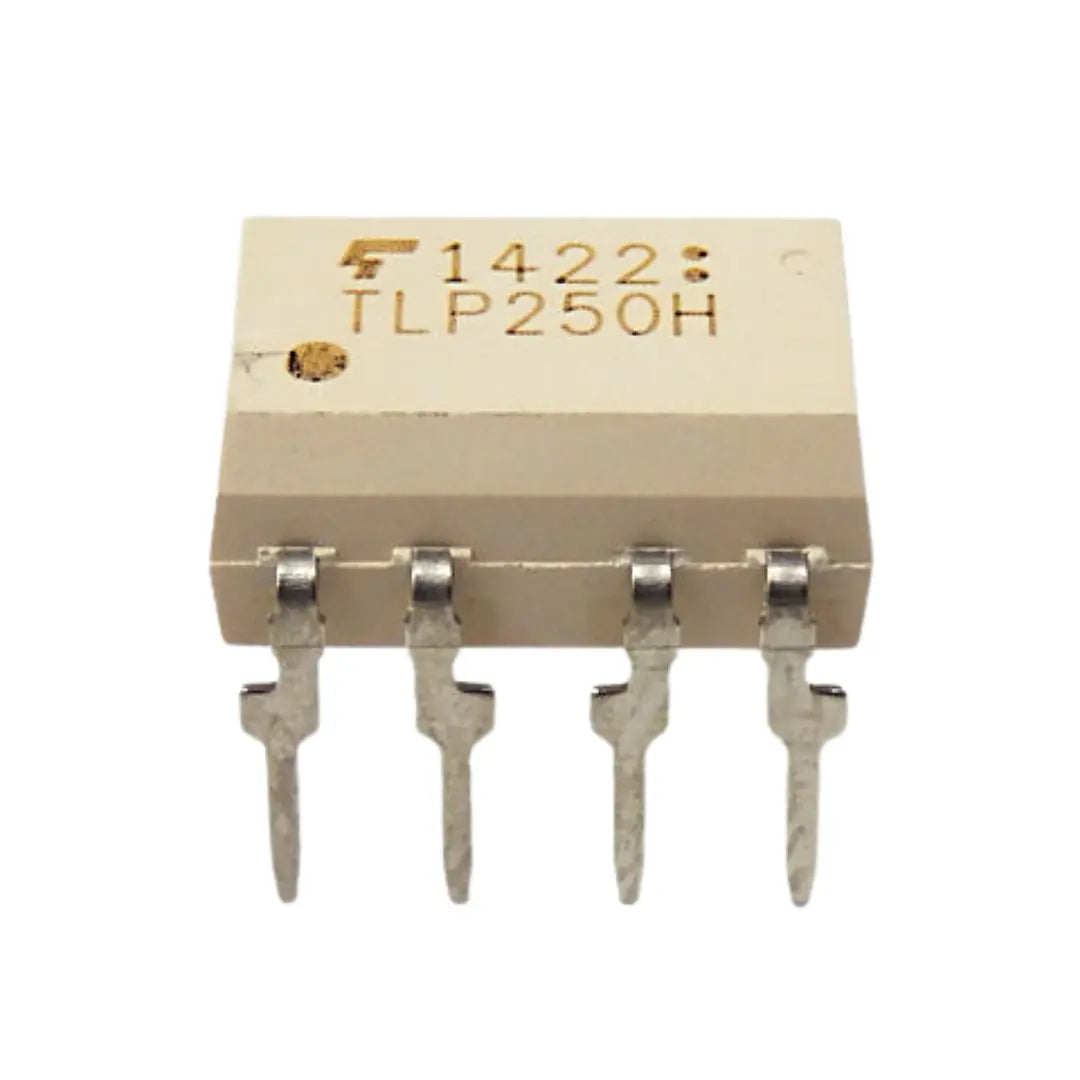

TLP250 Optocoupler DIP & SMD 5000Vrms Isolation for Gate Drive

TLP250 Optocoupler – 5000Vrms Isolation, High-Speed Gate Driver (DIP & SMD Package)

TLP250 Optocoupler is a high-speed optoisolator designed to drive IGBTs and MOSFETs directly in high-voltage systems. It supports data rates up to 1 Mbps with an isolation voltage of 5000Vrms, ensuring secure signal transfer in power electronics. Available in both DIP-8 and SMD packages, it allows flexible mounting options for various industrial designs, including motor control, EV chargers, inverters, and solar energy systems.

Built for durability, the TLP250 operates reliably across wide temperature ranges and withstands EMI and voltage transients. Its compact form and efficient transistor output reduce the need for external components. This optocoupler is suited for automation, renewable energy, and high-frequency switching applications. Minimum order quantity: 10 pieces.

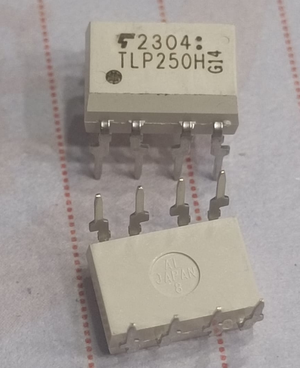

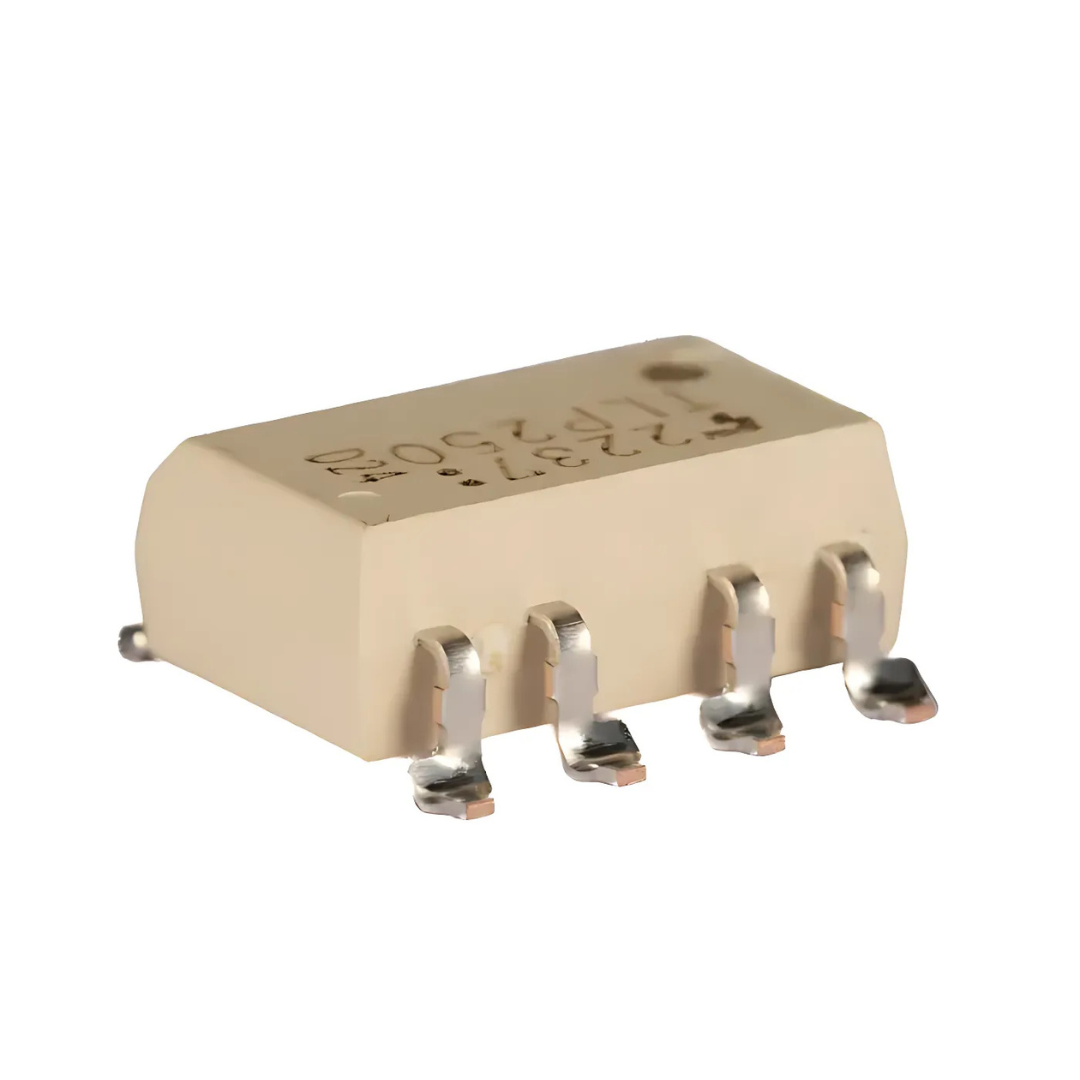

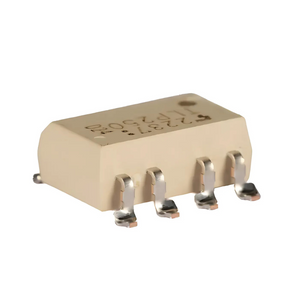

Key Specs Isolation Voltage: 5000Vrms Data Rate: Up to 1 Mbps Output Type: Transistor Gate Driver Packages: DIP-8 and SMD Applications: Motor Drives, Solar Inverters, EV Chargers, IGBT/MOSFET Control Operating Temperature: Industrial Grade MOQ: 10 Pieces Features: EMI Resistance, Low Heat, High Reliability
