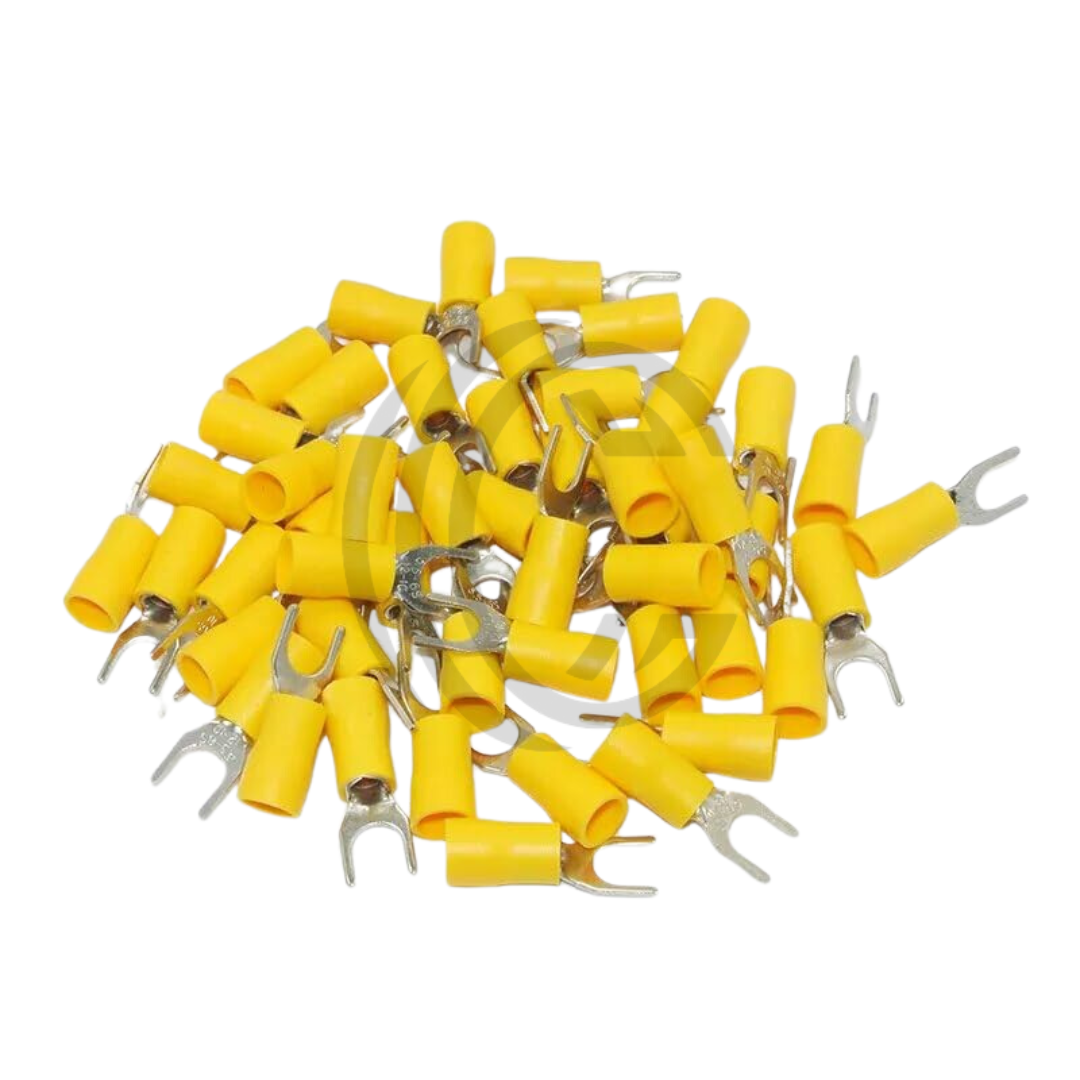

SV5.5‑5 Yellow Fork Lug Connector

SV5.5‑5 12–10 AWG M5 Vinyl-Insulated Fork Spade Terminal

The SV5.5‑5 is a vinyl-insulated fork (spade) electrical terminal suitable for 12–10 AWG (4–6 mm²) wiring and designed to fit an M5 or #10 stud. The copper contact is enclosed in a yellow PVC insulation sleeve to ensure durability, corrosion resistance, and safety in fixed wiring applications, including automotive, industrial, and panel-board connections. Rated for up to 19 A continuous current, this fork-type terminal enables secure crimped attachment and easy mating with screw or clamp terminal blocks.

Manufactured to meet RoHS compliance, SV5.5‑5 is available in bulk packaging and is commonly used in control panels, junction boxes, battery assemblies, and machinery wiring.

Key Specs Wire Gauge: 12–10 AWG (4–6 mm²) Stud Size: M5 / #10 Max Current Rating: ~19 A Contact Material: Copper Insulation Material: Vinyl (PVC), yellow color Terminal Type: Fork (spade) style, insulated Mounting Method: Crimp Color: Yellow (indicates 12–10 AWG range) Series: SV vinyl‑insulated spade terminals by K.S. Terminals / connectAR Packaging: Bulk quantities (e.g. 500/2000 pieces per pack) Compliance: RoHS / lead‑free

Features Vinyl-insulated fork terminal designed for 12–10 AWG wire with secure M5 (#10) stud connection. The copper fork provides reliable conductivity, while the yellow PVC insulation offers mechanical protection and electrical isolation. Crimp-style termination ensures a durable, vibration-resistant connection suitable for panel wiring, battery cable splicing, and industrial control systems. Rated for up to 19 A current, SV5.5‑5 offers corrosion-resistant performance and is RoHS compliant.
