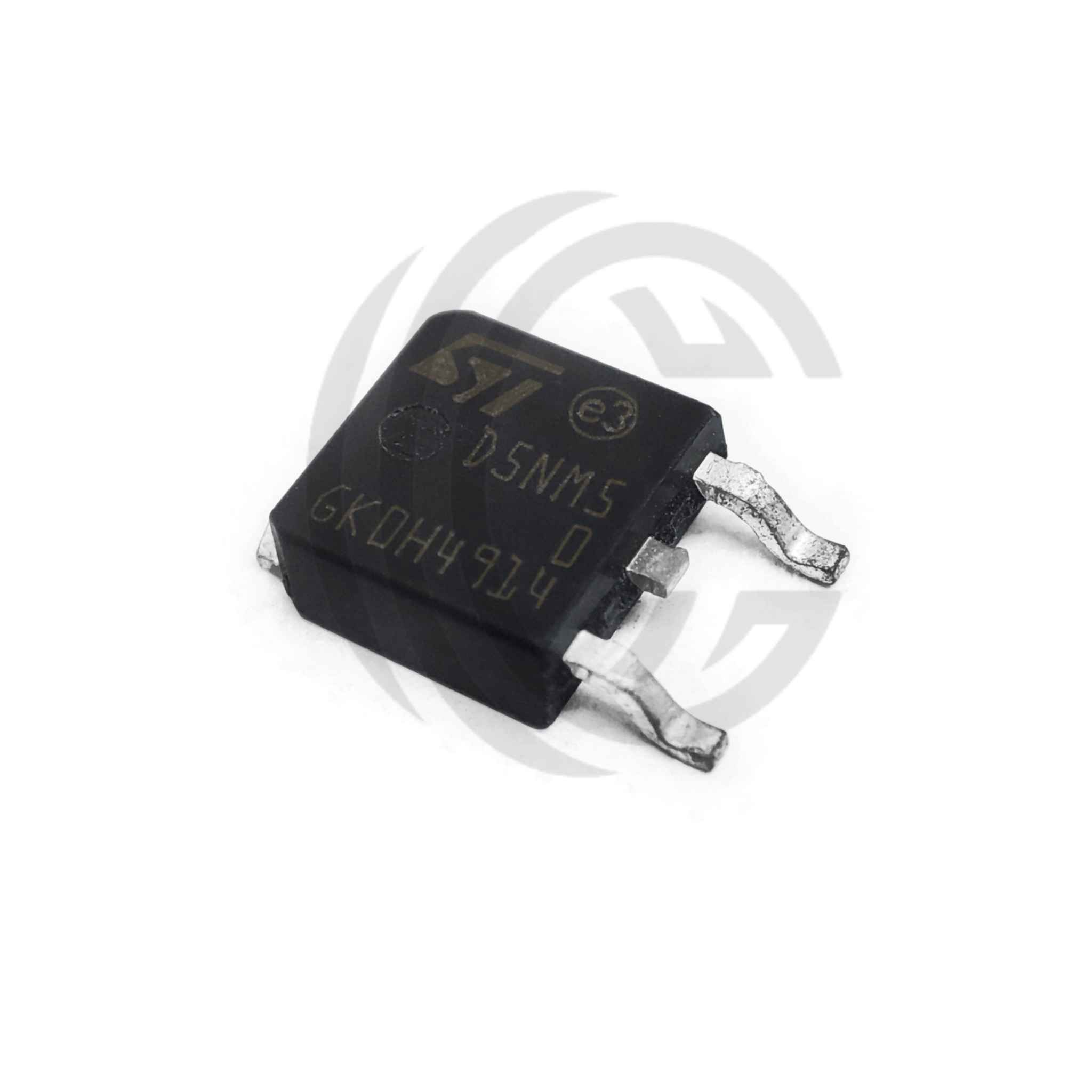

STD5NM50 electronic component transistor with three metal leads

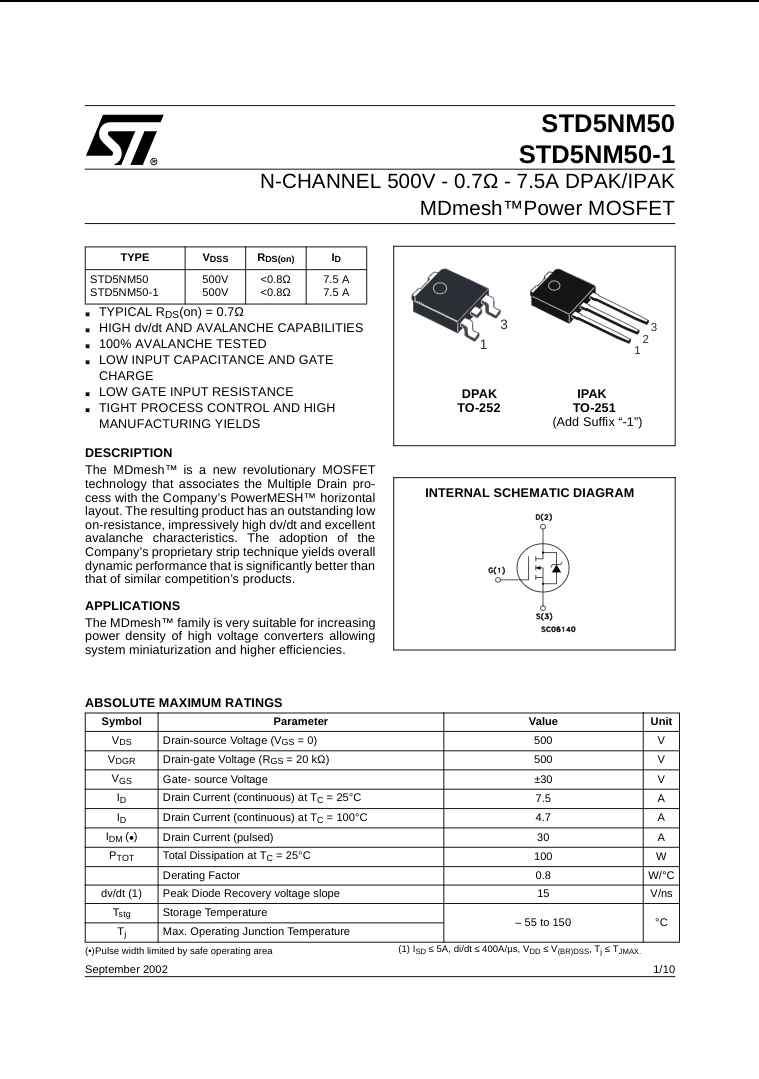

STD5NM50 N-channel 500V 7.5A Power MOSFET datasheet by The Component Centre showing specifications and internal schematic

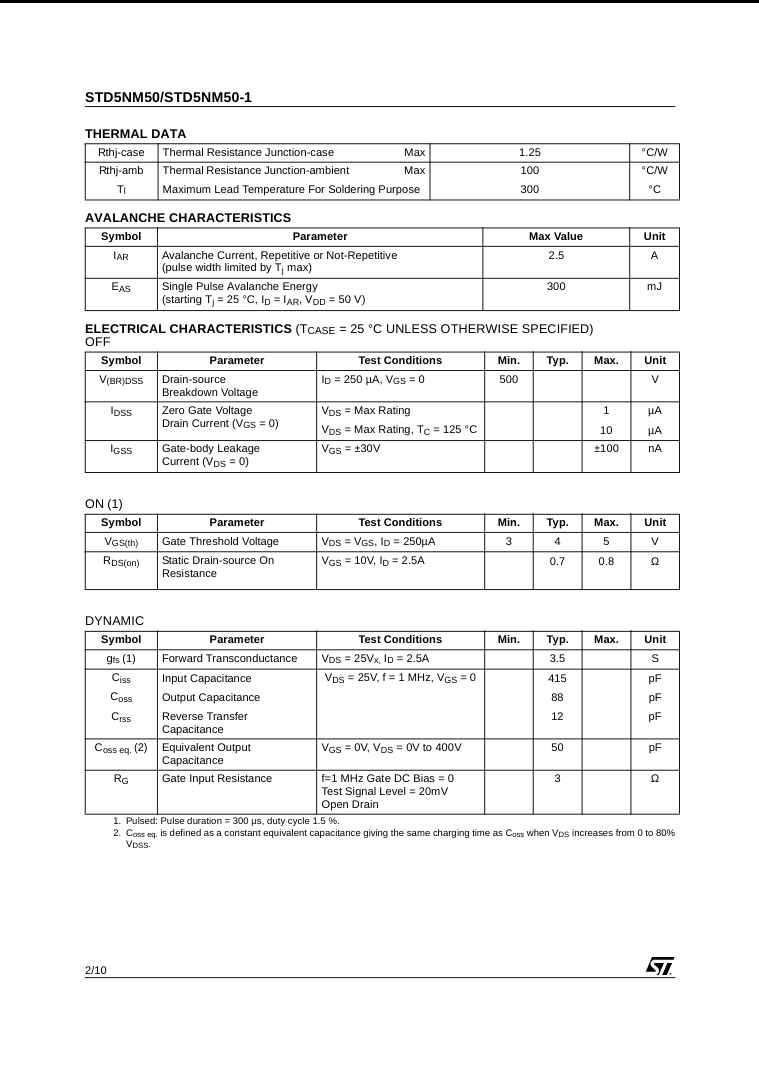

Datasheet image showing electrical and thermal characteristics of STD5NM50 transistor

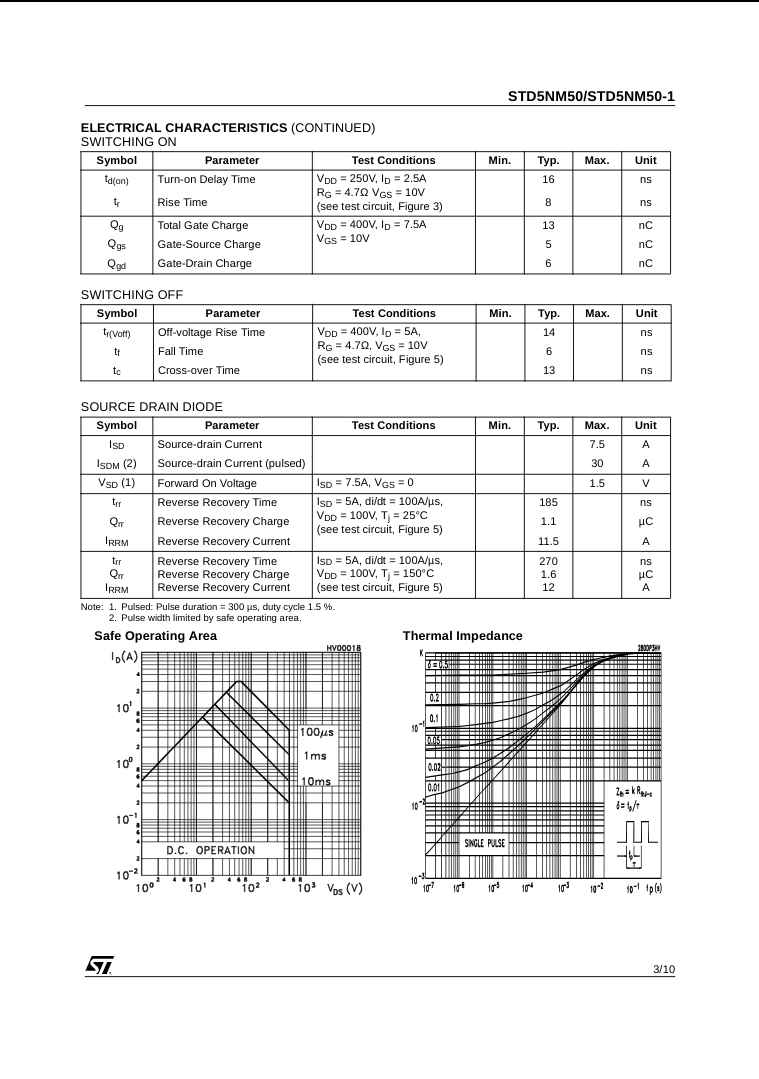

Electrical characteristics and thermal impedance chart for STD5NM50 transistor

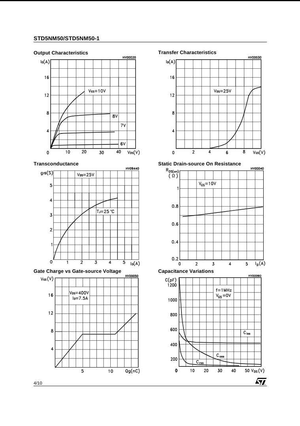

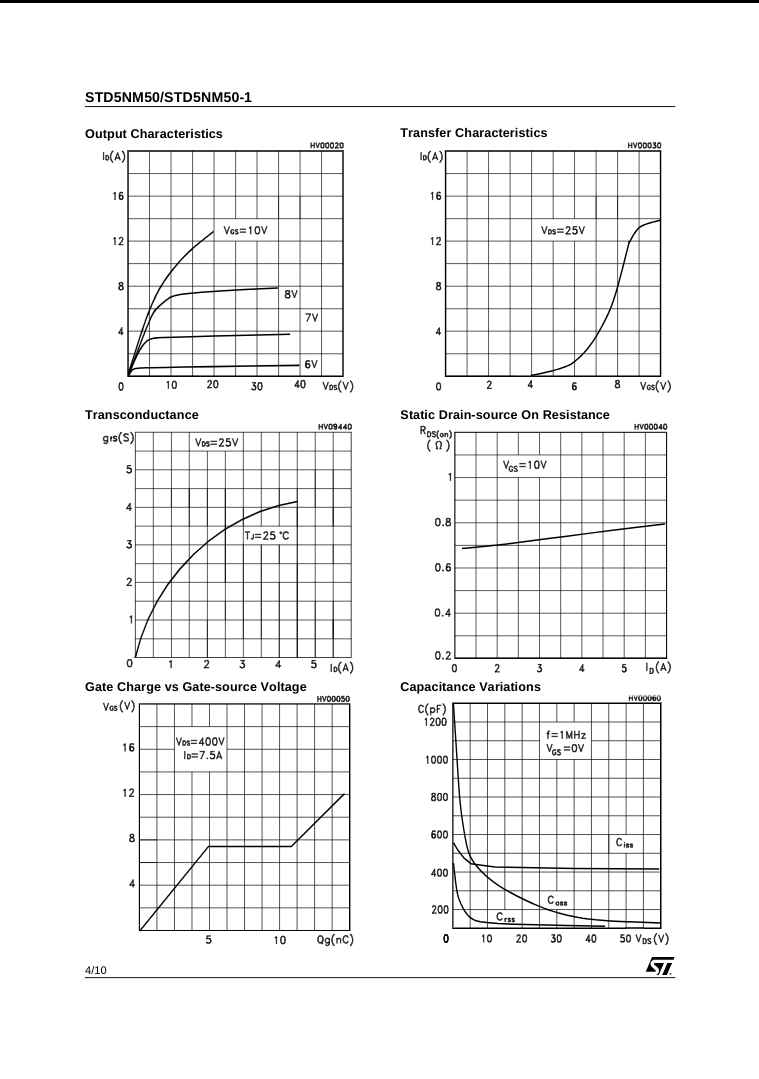

Technical datasheet graphs detailing electrical characteristics of STD5NM50 transistor

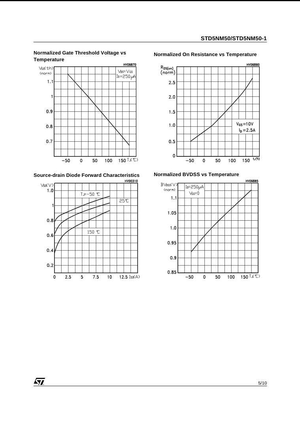

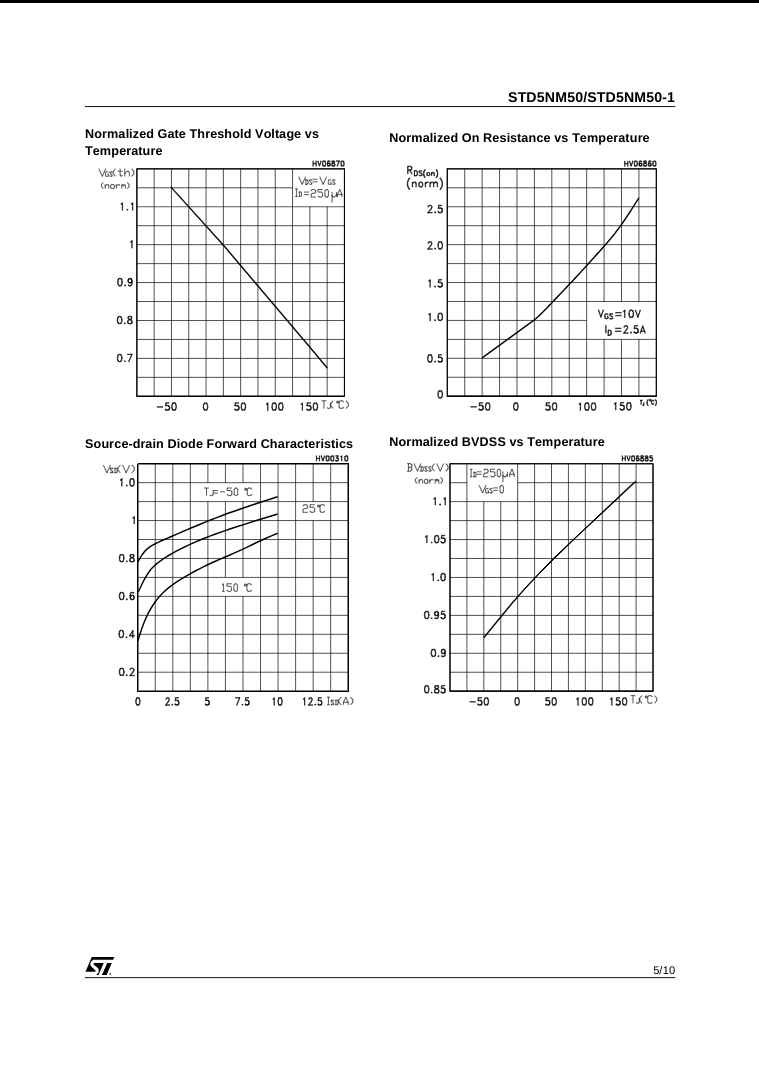

Technical performance graphs for STD5NM50 showing voltage, resistance, diode forward characteristics, and BV DSS versus temperature

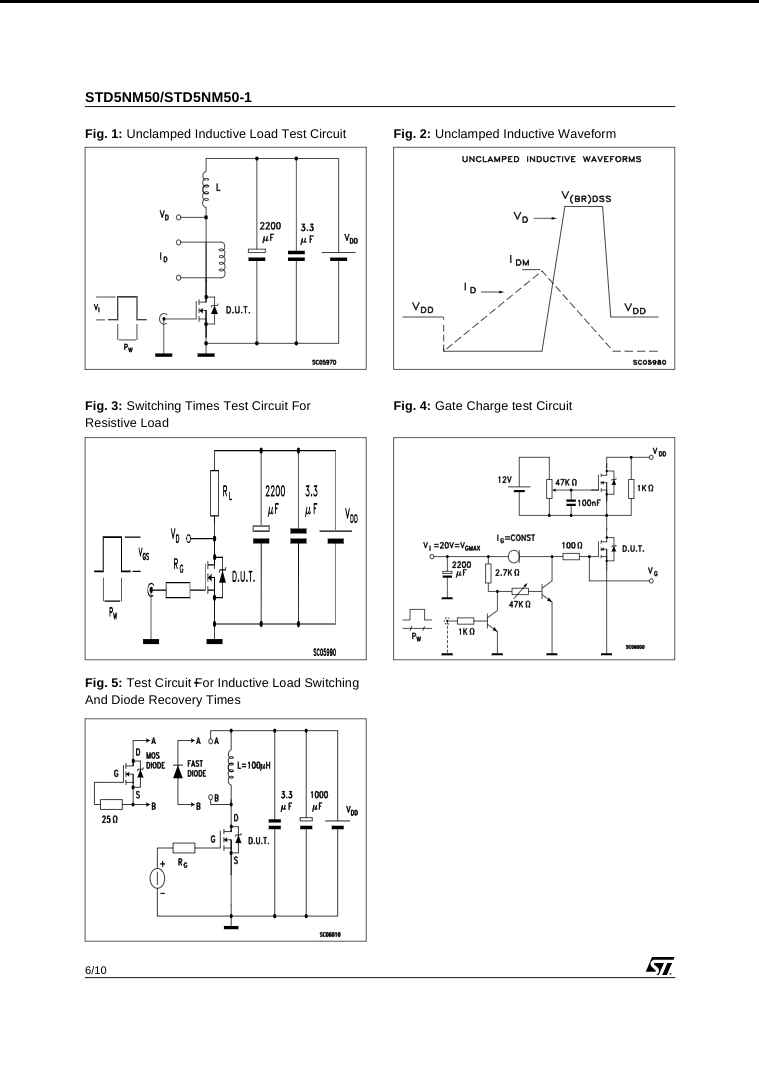

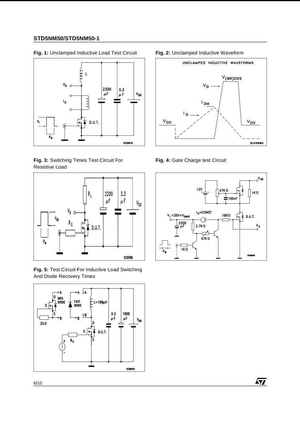

Technical schematic diagrams for STD5NM50 transistor test circuits and inductive load waveforms

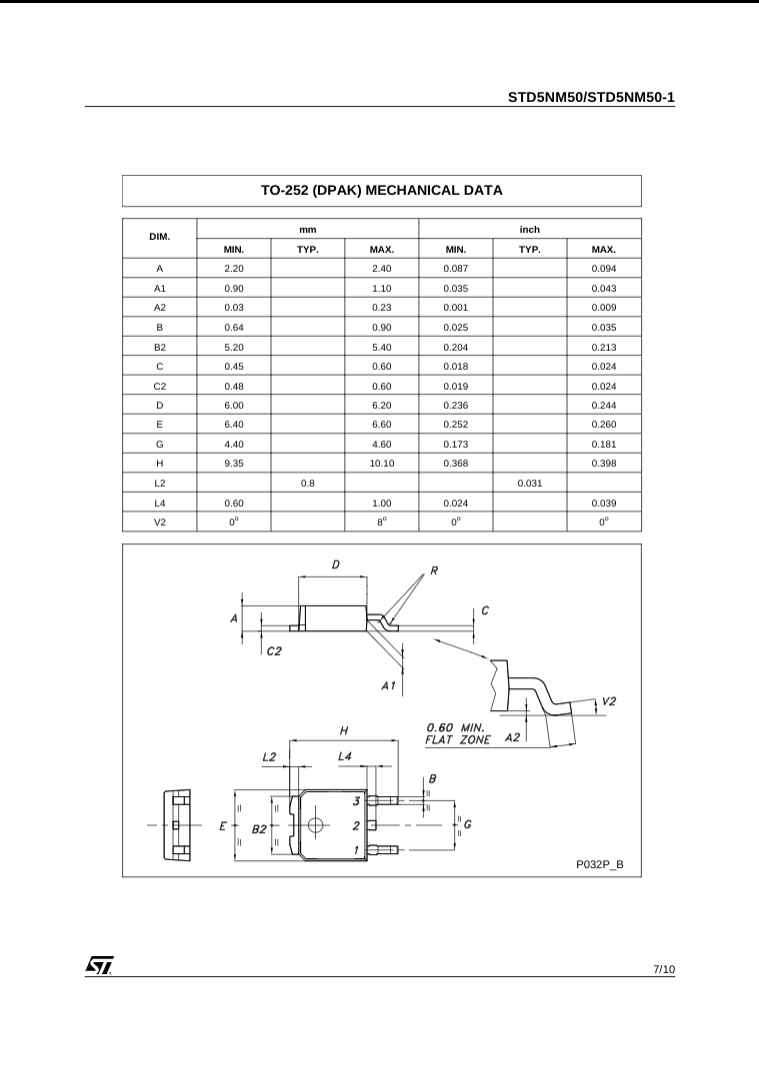

Technical mechanical drawing and dimensions of STD5NM50 semiconductor component

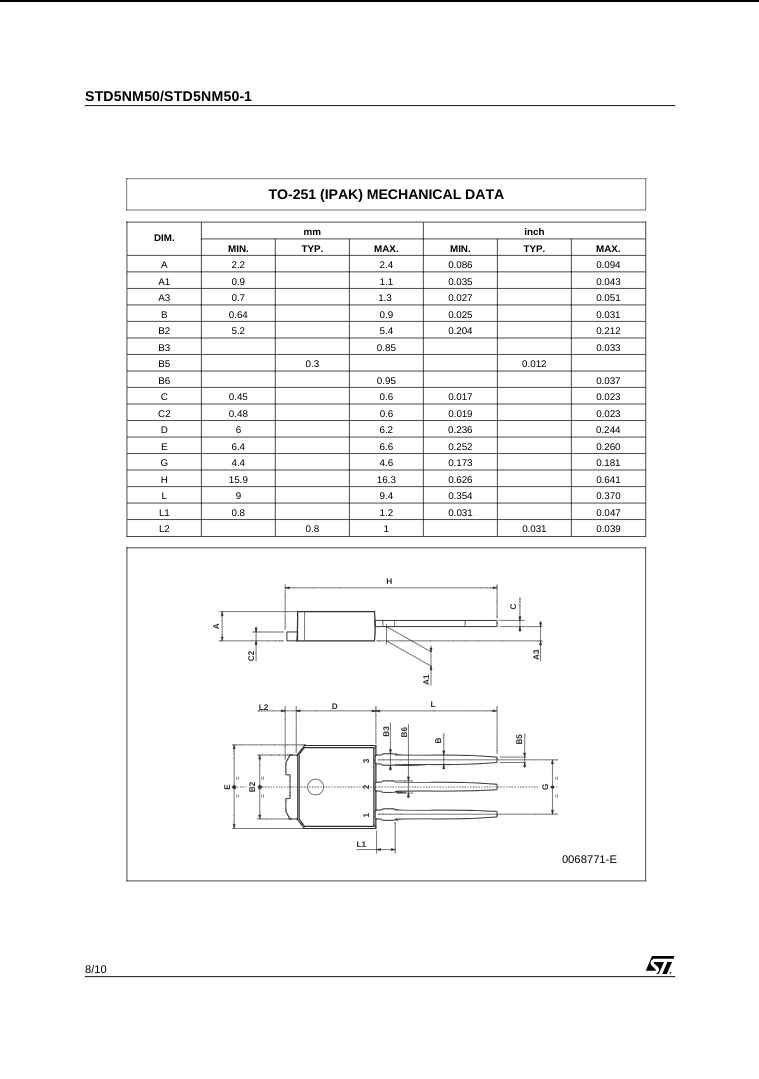

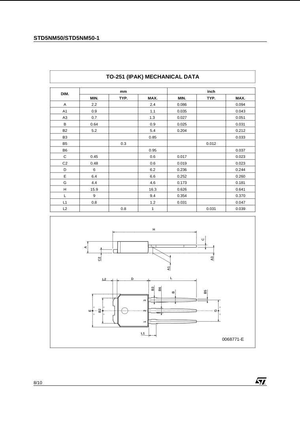

Technical drawing and mechanical dimensions of STD5NM50 transistor component in TO-251 package
Technical drawing and mechanical data sheet for STD5NM50 electronic component
STD5NM50 electronic component transistor with three metal leads
STD5NM50 N-channel 500V 7.5A Power MOSFET datasheet by The Component Centre showing specifications and internal schematic
Datasheet image showing electrical and thermal characteristics of STD5NM50 transistor
Electrical characteristics and thermal impedance chart for STD5NM50 transistor
Technical datasheet graphs detailing electrical characteristics of STD5NM50 transistor
Technical performance graphs for STD5NM50 showing voltage, resistance, diode forward characteristics, and BV DSS versus temperature
Technical schematic diagrams for STD5NM50 transistor test circuits and inductive load waveforms
Technical mechanical drawing and dimensions of STD5NM50 semiconductor component
Technical drawing and mechanical dimensions of STD5NM50 transistor component in TO-251 package
Technical drawing and mechanical data sheet for STD5NM50 electronic component

STD5NM50 N-Channel 500V 7.5A MOSFET

Sale price Rs.150.00
In stock
Add to Wishlist Add to Compare
Frequently Bought Together
STD5NM50 electronic component transistor with three metal leads
This item: STD5NM50 N-Channel 500V 7.5A MOSFET
Sale price Rs.150.00
Green printed circuit board held by hand for 5KVA power supply from The Component Centre
5KVA Solar Inverter PCB with Original TLP350H Optocoupler
Regular price Rs.3,700.00 Sale price Rs.3,500.00
Reel of TLP350H electronic components from The Component Centre in black and blue plastic packaging
Toshiba TLP350H 3750Vrms Gate Driver Optocoupler
Regular price Rs.210.00 Sale price Rs.185.00
Total price:
Regular total price Rs.4,060.00 PKR Sale total price Rs.3,835.00 PKR

Guarantee Safe Checkout

Visa
Mastercard
Google Pay
PayPal
Estimate delivery times 3-5 days (Pakistan-wide)
STD5NM50 electronic component transistor with three metal leads

STD5NM50 N-Channel 500V 7.5A MOSFET

Rs.150.00

STD5NM50 500V 7.5A N-Channel Power MOSFET – DPAK/IPAK by STMicroelectronics

STD5NM50 is a high-efficiency N-Channel MOSFET rated at 500V and 7.5A, developed by STMicroelectronics. Built on advanced MDmesh technology, this transistor delivers low on-resistance (0.7Ω), fast switching, and low gate charge (13nC), making it ideal for power conversion in high-voltage environments. Its robust avalanche and dv/dt capabilities ensure long-term reliability in demanding applications.

This power transistor is optimized for SMPS, motor control systems, DC-DC converters, and telecom power supplies. Housed in a compact DPAK or IPAK package, it offers strong thermal performance and saves board space in industrial and automotive designs.

Engineers prefer the STD5NM50 for its efficiency, low switching losses, and durability under stress. It performs well in solar inverters, battery chargers, industrial automation, and high-frequency switching circuits.

Key Specs Voltage Rating: 500V Current Rating: 7.5A Technology: N-Channel, MDmesh Package: DPAK / IPAK On-Resistance: 0.7Ω Gate Charge: 13nC Rise Time: 8ns Applications: SMPS, Motor Drives, DC-DC Converters, Telecom, Solar Inverters Brand: STMicroelectronics Compliance: RoHS & Pb-Free
