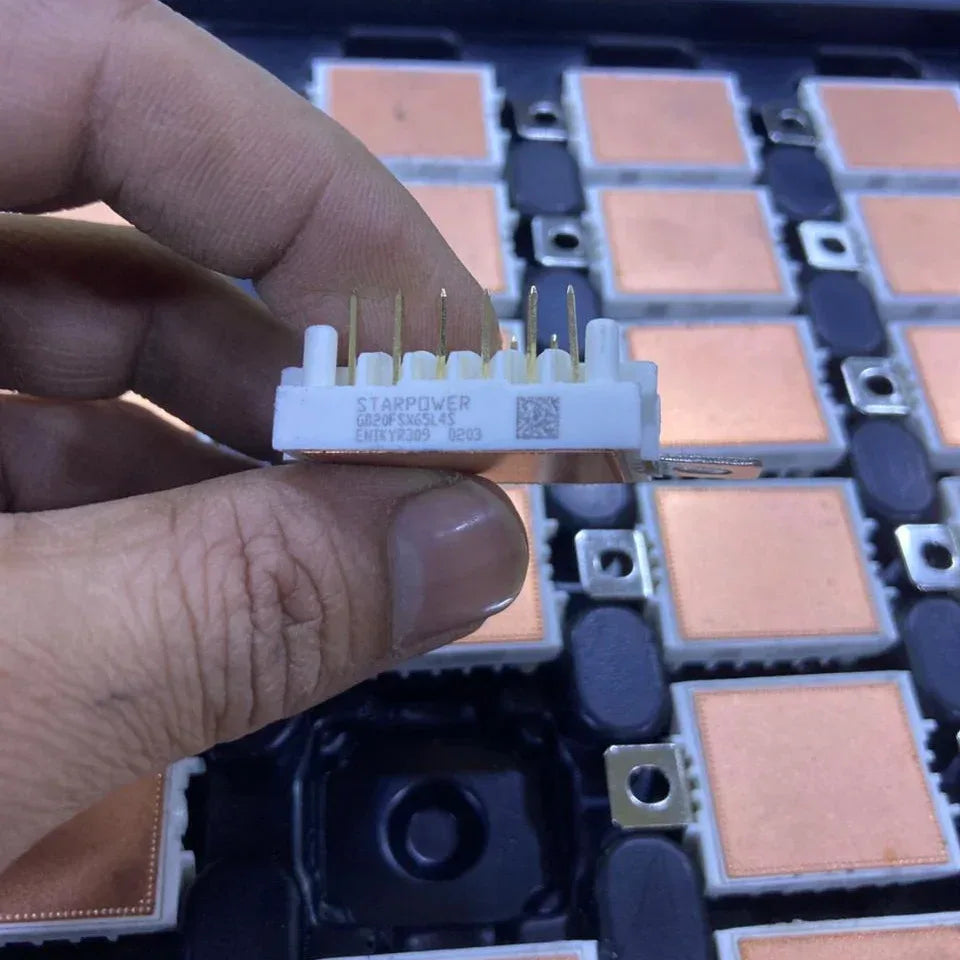

StarPower GD20FSX65L4S 650V 20A IGBT Module
Regular price
Rs.4,500.00
Sale price
Rs.5,000.00
StarPower GD20FSX65L4S
The StarPower GD20FSX65L4S is a 650V IGBT power module used in industrial and commercial power electronics systems. It supports high-current operation with a continuous collector current rating of 20A, and is suitable for applications such as inverters, motor drives, servo systems, and UPS units. This module uses Field Stop Trench IGBT technology, which helps reduce conduction losses and improve overall system efficiency.
The GD20FSX65L4S has a gate-emitter voltage range of ±20V and a saturated collector-emitter voltage (VCE(sat)) between 1.45V and 1.9V, helping lower switching losses and heat generation. It also provides a short-circuit withstand time of 6µs and a maximum junction temperature of 175°C, making it suitable for demanding thermal and load conditions. These characteristics support stable operation and long service life in harsh environments.
In power conversion systems, the GD20FSX65L4S is used where reliability and efficiency are required. It is commonly used in motor drive inverters, servo amplifiers, and UPS systems where continuous high-power switching is needed. The module’s electrical ratings and ruggedness make it suitable for industrial automation and commercial power systems.
For more detailed information, please refer to the StarPower datasheet: Download GD20FSX65L4S Datasheet
Key Specs
| Parameter | Specification |
|---|---|
| Manufacturer | StarPower Semiconductor |
| Part Number | GD20FSX65L4S |
| Device Type | IGBT Power Module |
| Collector-Emitter Voltage (VCE) | 650V |
| DC Collector Current | 20A |
| Gate-Emitter Voltage | ±20V |
| VCE(sat) | 1.45V to 1.9V |
| Short-Circuit Withstand Time | 6µs |
| Maximum Junction Temperature | 175°C |
| Package Type | Module (L4.0 family) |
| Typical Applications | Inverters, motor drives, servo systems, UPS |
