Starpower GD200HFL120C2S 1200V, 200A IGBT Module

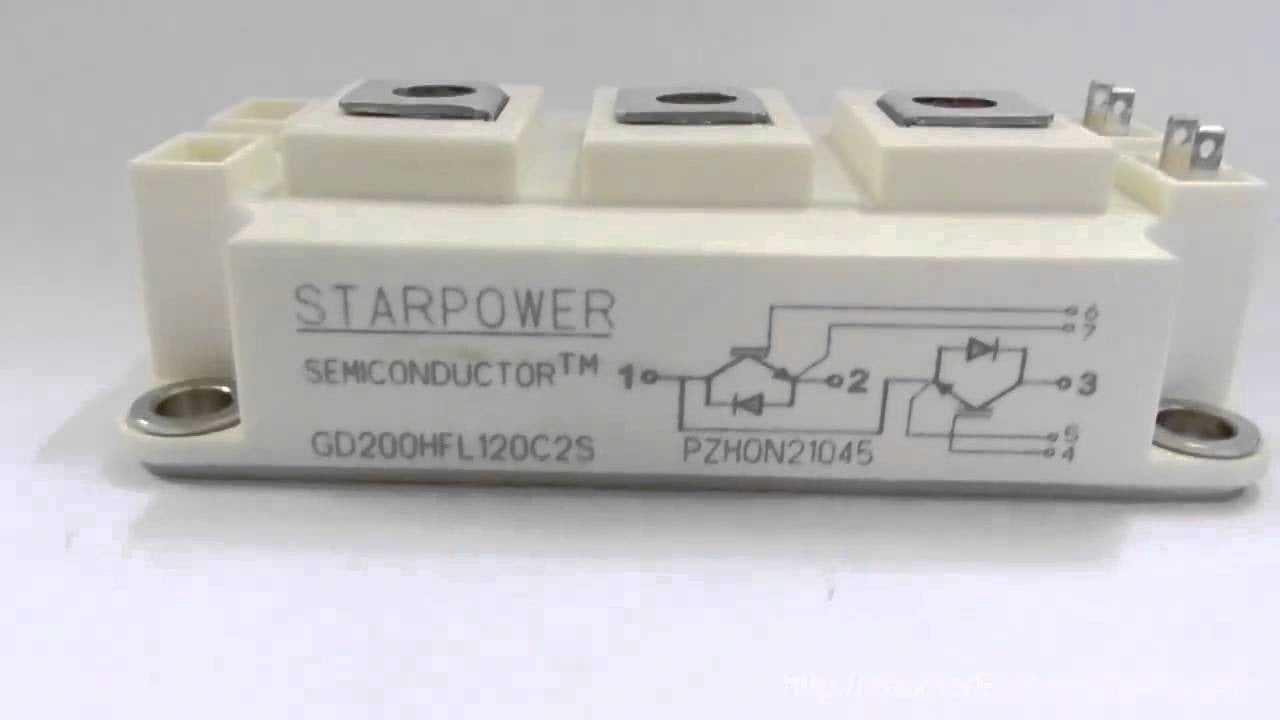

GD200HFL120C2S IGBT Module
The GD200HFL120C2S is a high-density half-bridge IGBT module from Starpower, tailored for industrial and commercial power electronics. Designed for rigorous environments, it handles up to 1200 V collector-emitter voltage and 200 A collector current, providing reliable switching performance in applications like motor drives, inverters, and UPS systems.
Featuring SPT+ IGBT technology, the module boasts low VCE(sat) with a positive temperature coefficient, minimizing conduction losses and enhancing thermal stability. Its 10 µs short-circuit capability, low-inductance packaging, and fast soft-recovery diodes ensure robust and efficient operation.
Constructed with an isolated copper baseplate via DBC technology, the module ensures superior heat dissipation and mechanical durability for long-term reliability. Ideal for modern power electronics, its advanced design supports high power density without sacrificing efficiency or performance.
Key Specifications
| Specification | Value |
|---|---|
| Collector–Emitter Voltage (V_CES) | 1200 V |
| Collector Current (I_C) | 200 A |
| Pulsed Collector Current (I_CP) | 400 A |
| Maximum Power Dissipation (P_C) | 1364 W |
| Short-Circuit Capability | 10 µs |
| Diode Type | Fast soft-recovery |
| Case Baseplate | Isolated copper (DBC technology) |
| Features | Low VCE(sat), low inductance, SPT+ IGBT |
| Typical Applications | Motor Drives, Inverters, UPS Systems |
