Fuji Electric 7MBR25SC120-50 1200V 25A IGBT Module
Guarantee Safe Checkout
Fuji Electric 7MBR25SC120-50 1200V 25A IGBT Module

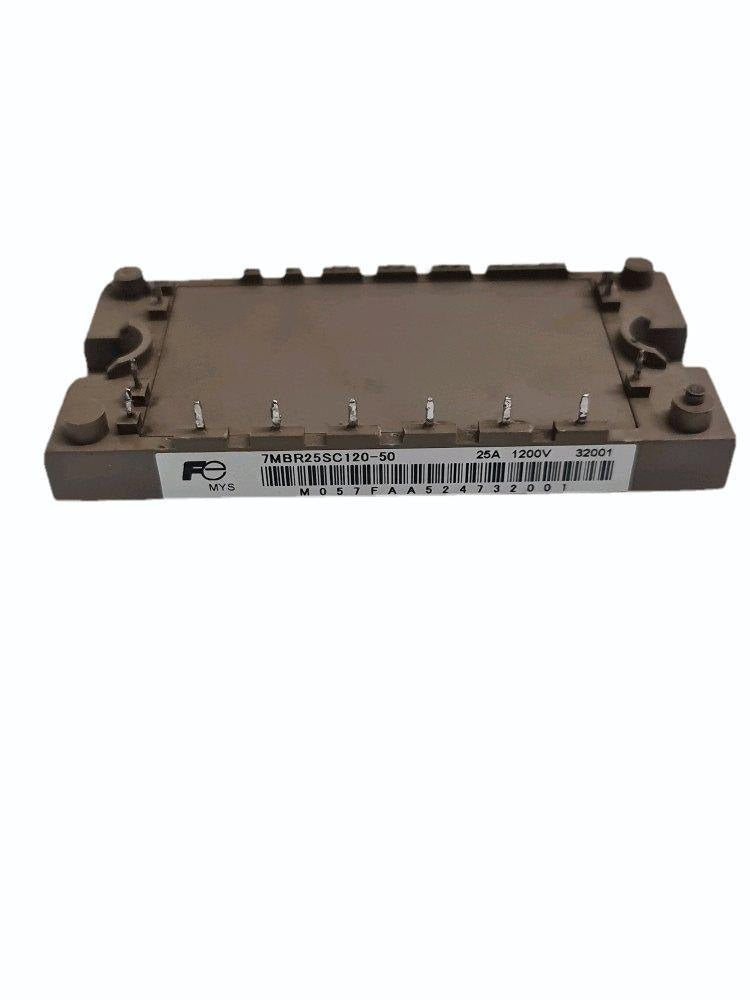

7MBR25SC120-50 IGBT Module
The 7MBR25SC120-50, part of Fuji Electric’s S-series PIM (Power Integrated Module), combines a thyristor-based converter and dynamic braking circuit in a compact PCB-mount package. With a collector-emitter voltage of 1200 V and collector current of 25 A, it supports high-power switching for applications such as motor drives, AC/DC servo amplifiers, and uninterruptible power supplies (UPS).
The module operates with a low VCE(sat), which helps minimize conduction losses and improve efficiency. Its design includes a dynamic braking circuit that supports controlled and safe operation in power conversion systems. The compact form factor allows straightforward integration into different electronic assemblies.
The 7MBR25SC120-50 provides consistent electrical performance under high-voltage and current conditions, making it suitable for industrial applications where reliable switching and current handling are required.
Key Specifications
| Specification | Value |
|---|---|
| Collector-Emitter Voltage (VCE) | 1200 V |
| Collector Current (IC) | 25 A |
| Module Type | PIM (Converter with Thyristor & Brake Circuit) |
| Switching Characteristics | Low VCE(sat) for reduced conduction losses |
| Mounting Type | PCB-Mount Module |
| Application Areas | Motor Drives, Servo Amplifiers, UPS Systems |
| Additional Features | Dynamic Brake Circuit, Compact Structure |
