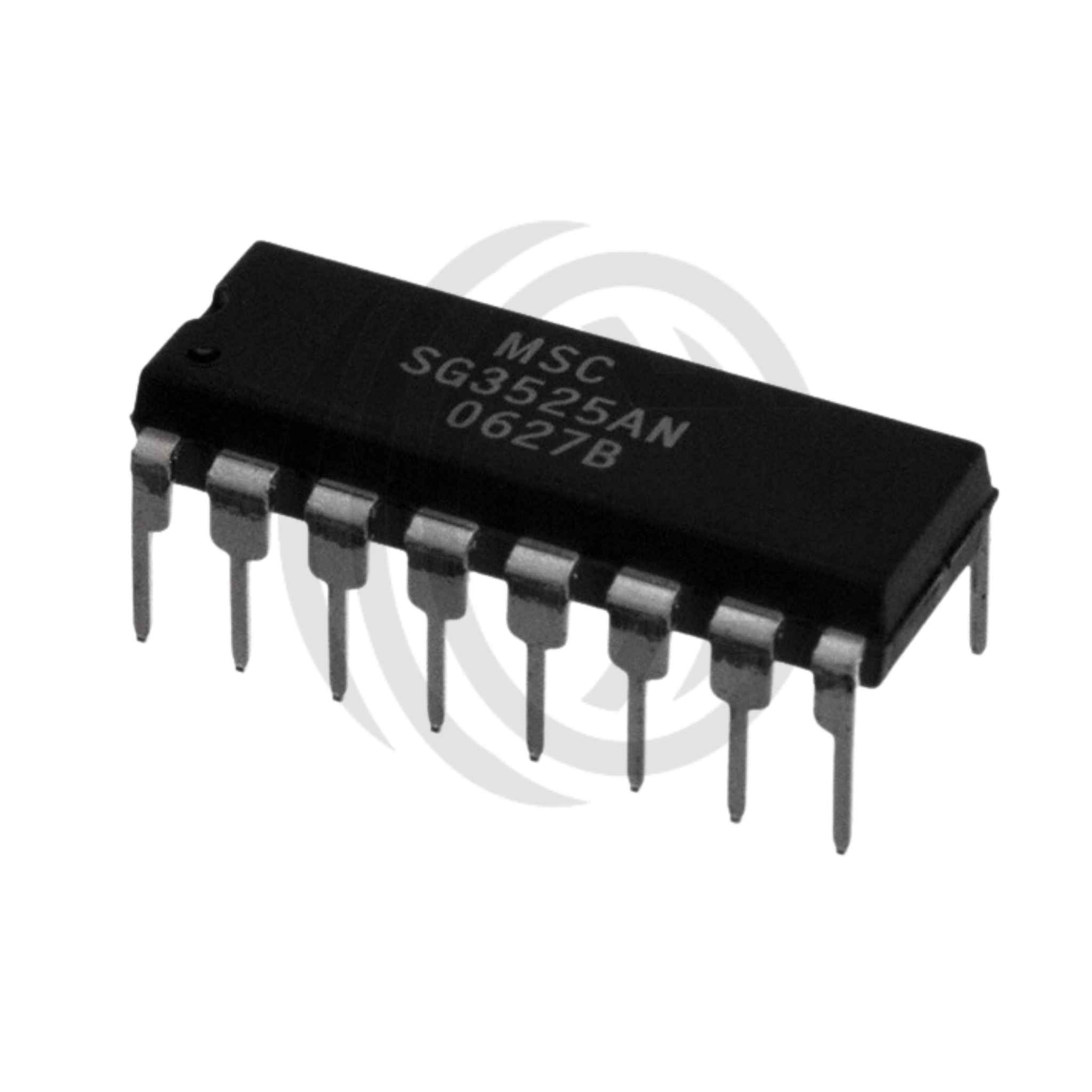

SG3525 KA3525 PWM Controller IC 16-DIP - Available in Pakistan

SG3525 PWM Controller IC 16-DIP is a high-performance integrated circuit designed for efficient switching power supplies, DC-DC converters, motor control circuits, and inverter drives. It offers improved performance with a reduced external component count compared to previous versions, making it a cost-effective solution for various power electronics applications. The on-chip 5.1V reference voltage (±1%) eliminates the need for external resistors, simplifying the design process.

This versatile IC features external synchronization capabilities, allowing multiple units to synchronize or slave to an external clock. It also provides adjustable deadtime control for optimal operation of power switches. The SG3525 ensures safety with input undervoltage lockout, preventing operation below a certain voltage threshold, and pulse-by-pulse shutdown for immediate output turn-off.

The SG3525 IC is available in both DIP-16 and SO-16L packages and is widely used in industries such as automotive electronics, telecommunications, and industrial power systems.

Datasheet attached for detailed specifications.

For bulk orders or further inquiries, Contact us at 0303-5688844.
