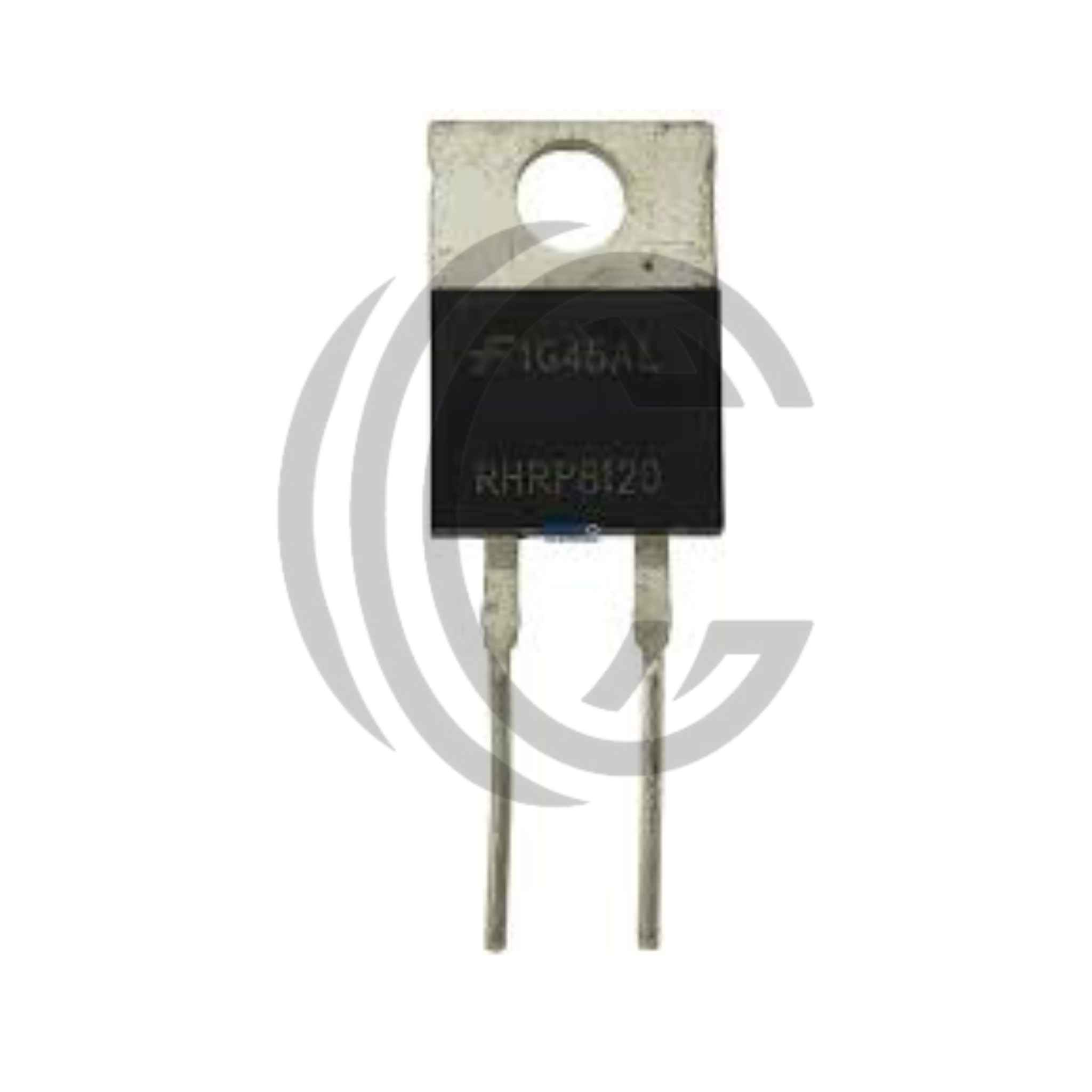

RHRP8120 electronic component transistor with two metal leads and mounting hole from The Component Centre
RHRP8120 electronic component from The Component Centre with metal mounting tab and two leads

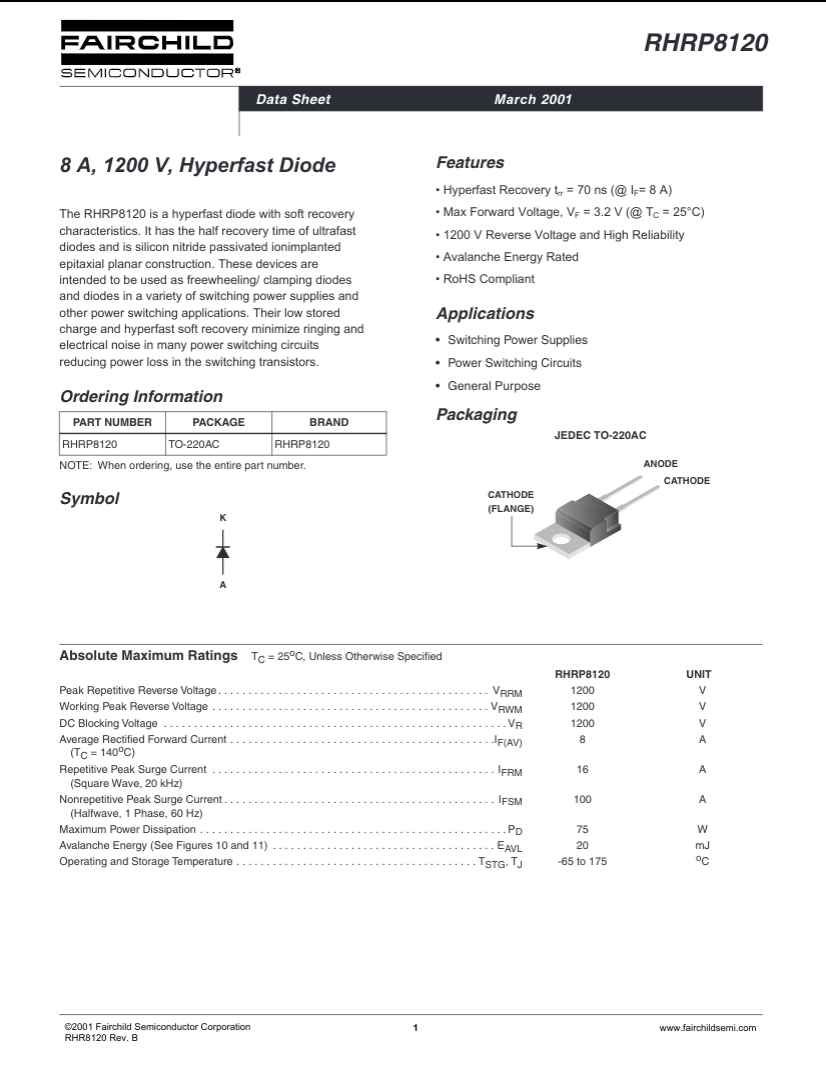

Fairchild Semiconductor RHRP8120 8 amp 1200 volt hyperfast diode datasheet page

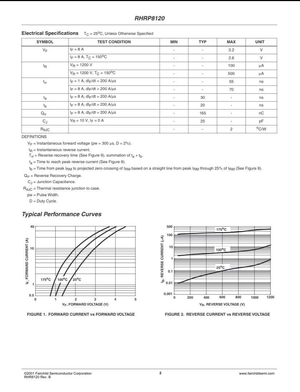

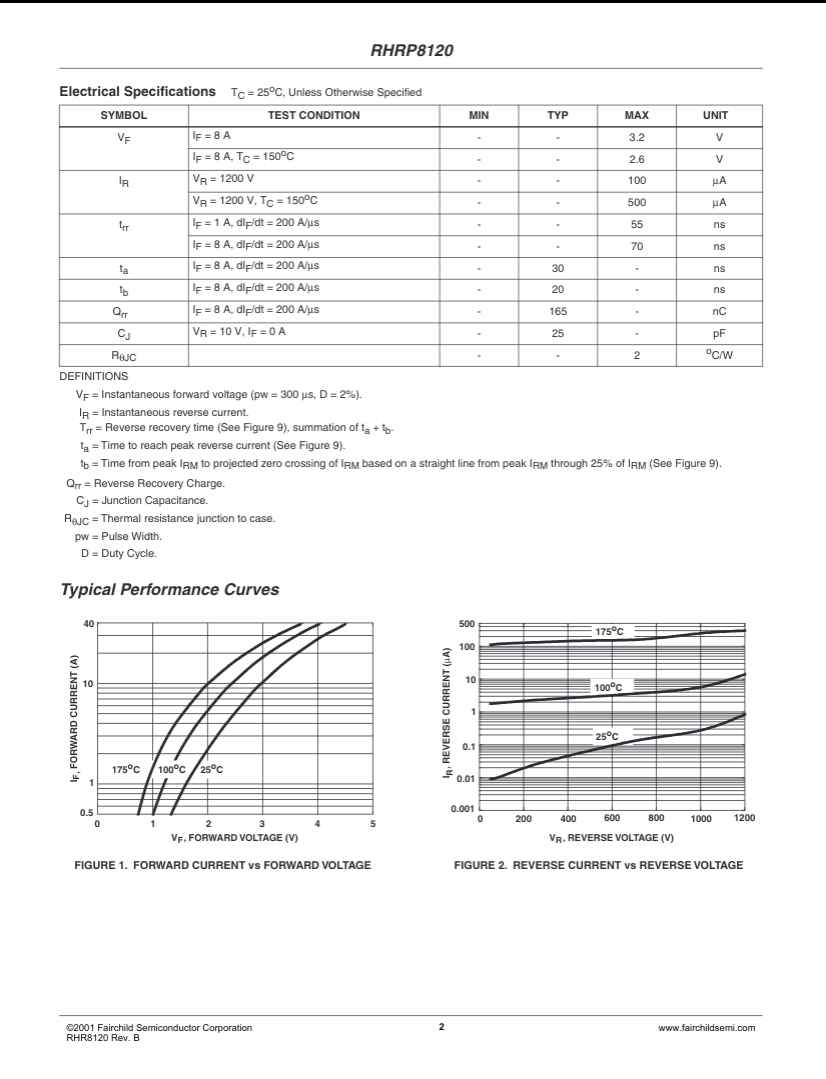

Electrical specifications and performance curves datasheet for RHRP8120 diode with forward and reverse current graphs

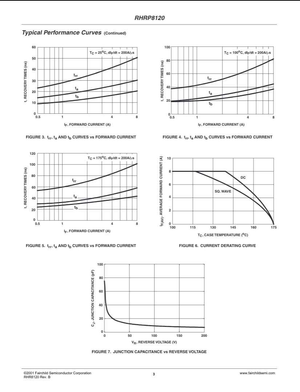

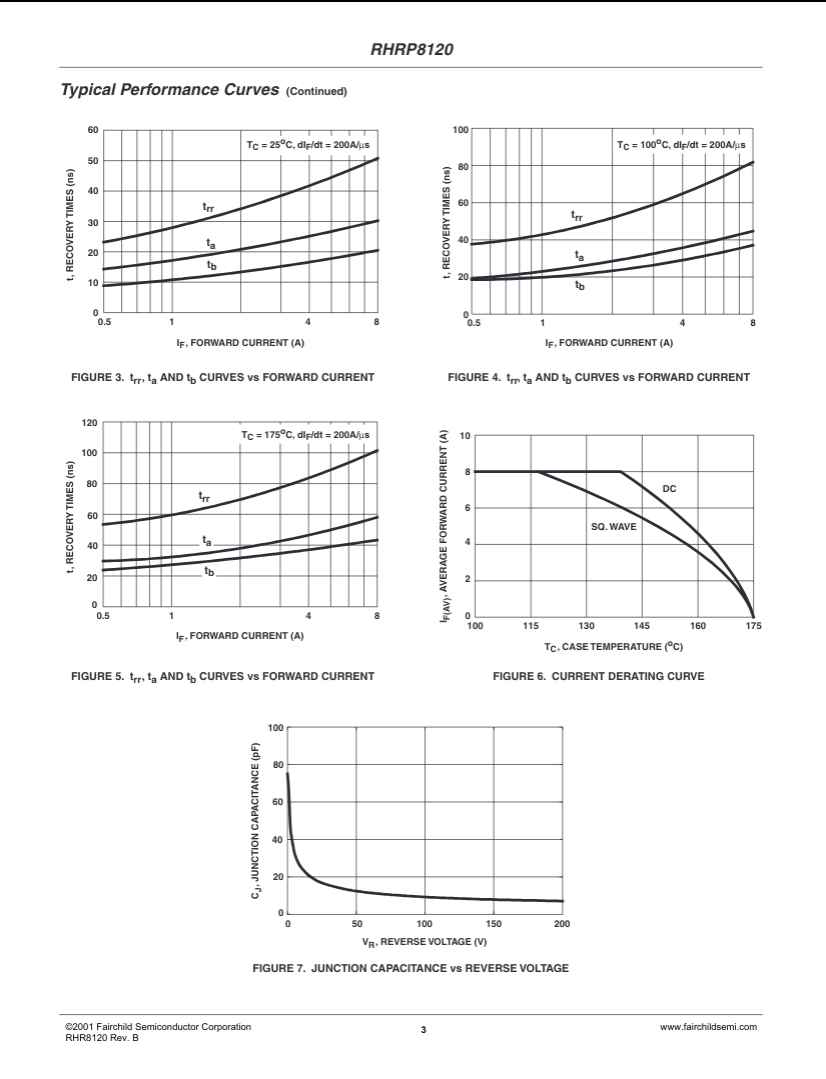

Performance curves and technical graphs for RHRP8120 semiconductor device from The Component Centre

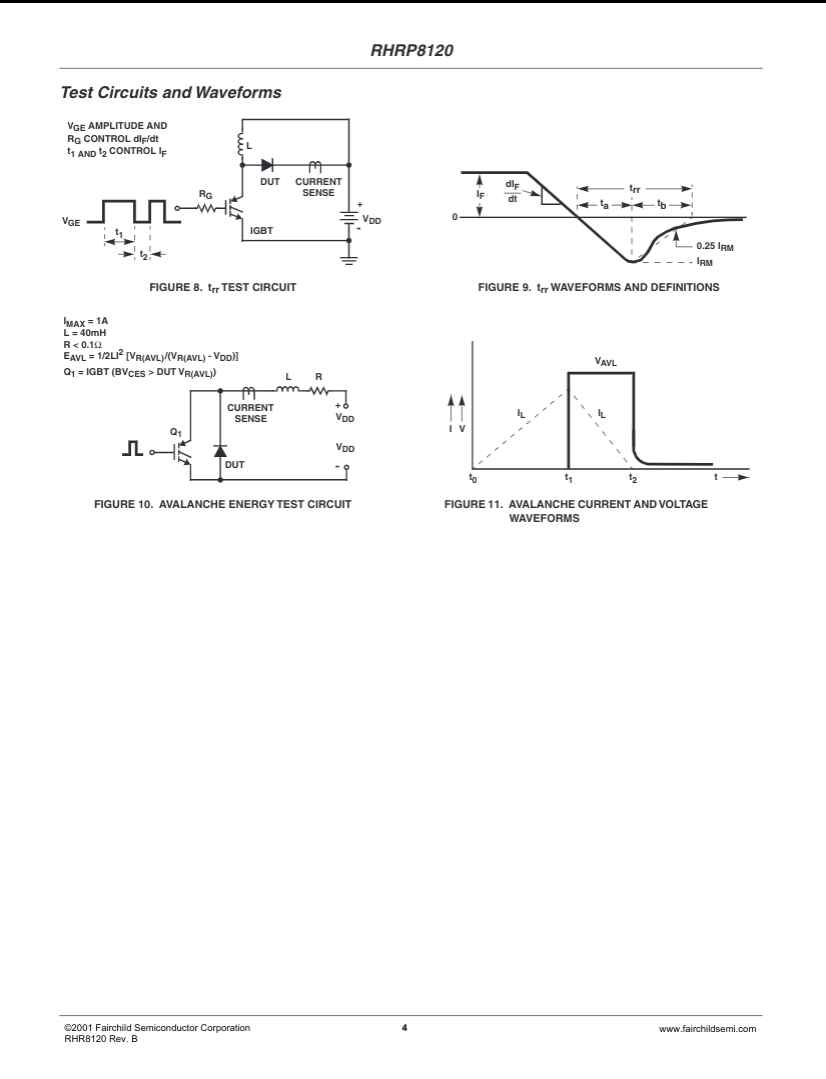

Technical test circuits and waveforms diagram for RHRP8120 showing current sense and avalanche energy tests
RHRP8120 electronic component transistor with two metal leads and mounting hole from The Component Centre
RHRP8120 electronic component from The Component Centre with metal mounting tab and two leads
Fairchild Semiconductor RHRP8120 8 amp 1200 volt hyperfast diode datasheet page
Electrical specifications and performance curves datasheet for RHRP8120 diode with forward and reverse current graphs
Performance curves and technical graphs for RHRP8120 semiconductor device from The Component Centre
Technical test circuits and waveforms diagram for RHRP8120 showing current sense and avalanche energy tests

RHRP8120 Rectifier Diode 8A 1200V

Regular price Rs.155.00 Sale price Rs.150.00
3% OFF
In stock
Add to Wishlist Add to Compare
Frequently Bought Together
RHRP8120 electronic component transistor with two metal leads and mounting hole from The Component Centre
This item: RHRP8120 Rectifier Diode 8A 1200V
Regular price Rs.155.00 Sale price Rs.150.00
Green printed circuit board held by hand for 5KVA power supply from The Component Centre
5KVA Solar Inverter PCB with Original TLP350H Optocoupler
Regular price Rs.3,700.00 Sale price Rs.3,500.00
Reel of TLP350H electronic components from The Component Centre in black and blue plastic packaging
Toshiba TLP350H 3750Vrms Gate Driver Optocoupler
Regular price Rs.210.00 Sale price Rs.185.00
Total price:
Regular total price Rs.4,065.00 PKR Sale total price Rs.3,835.00 PKR

Guarantee Safe Checkout

Visa
Mastercard
Google Pay
PayPal
Estimate delivery times 3-5 days (Pakistan-wide)
RHRP8120 electronic component transistor with two metal leads and mounting hole from The Component Centre

RHRP8120 Rectifier Diode 8A 1200V

Rs.150.00

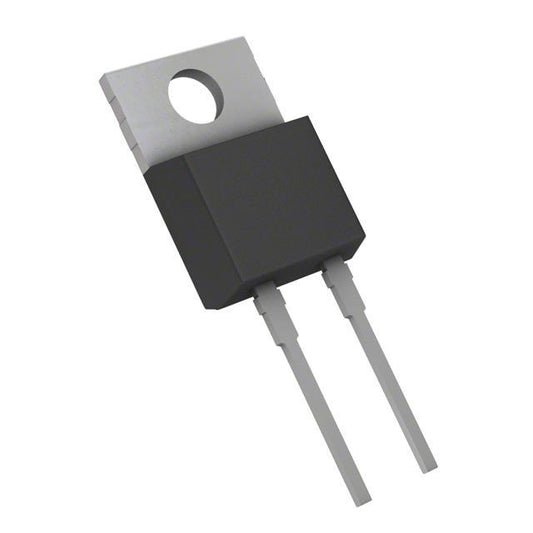

RHRP8120 Hyperfast Rectifier Diode – 1200V, 8A, TO-220AC Package

The RHRP8120 Hyperfast Rectifier Diode delivers ultra-fast recovery, 1200V reverse voltage capability, and 8A forward current—making it a powerful solution for high-frequency switching power supplies, solar inverters, and industrial control systems. Designed for speed and efficiency, it minimizes switching losses in demanding applications that require reliable high-voltage rectification. Housed in a compact TO-220AC package, it ensures thermal stability and long-term durability under continuous operation.

Built for professional-grade performance, the RHRP8120 offers low forward voltage drop and rapid recovery time, reducing energy loss and improving power efficiency in rectification circuits. Whether you’re designing power conversion units, motor drives, or telecom power systems, this diode supports clean switching and consistent operation across a wide temperature range.

Key Specs: – Reverse Voltage: 1200V – Forward Current: 8A – Recovery Time: Hyperfast – Package: TO-220AC – Low forward voltage drop

Applications: Ideal for solar inverters, power factor correction circuits, SMPS, UPS systems, motor drives, and high-efficiency industrial power supplies. Its speed and stability make it a preferred component in renewable energy and telecom equipment requiring low-loss rectification.
