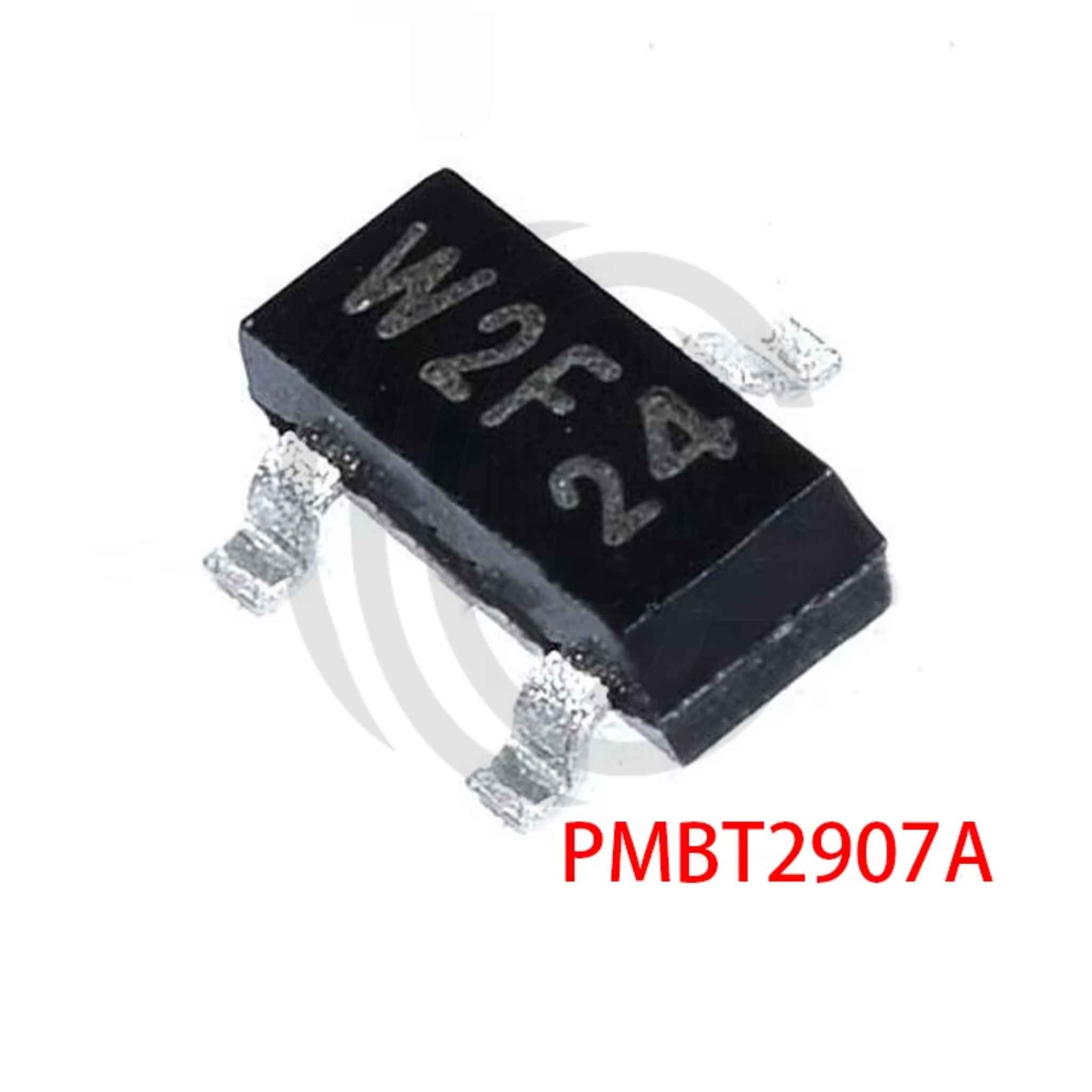

PMBT2907A transistor component with black plastic body and three silver leads from The Component Centre

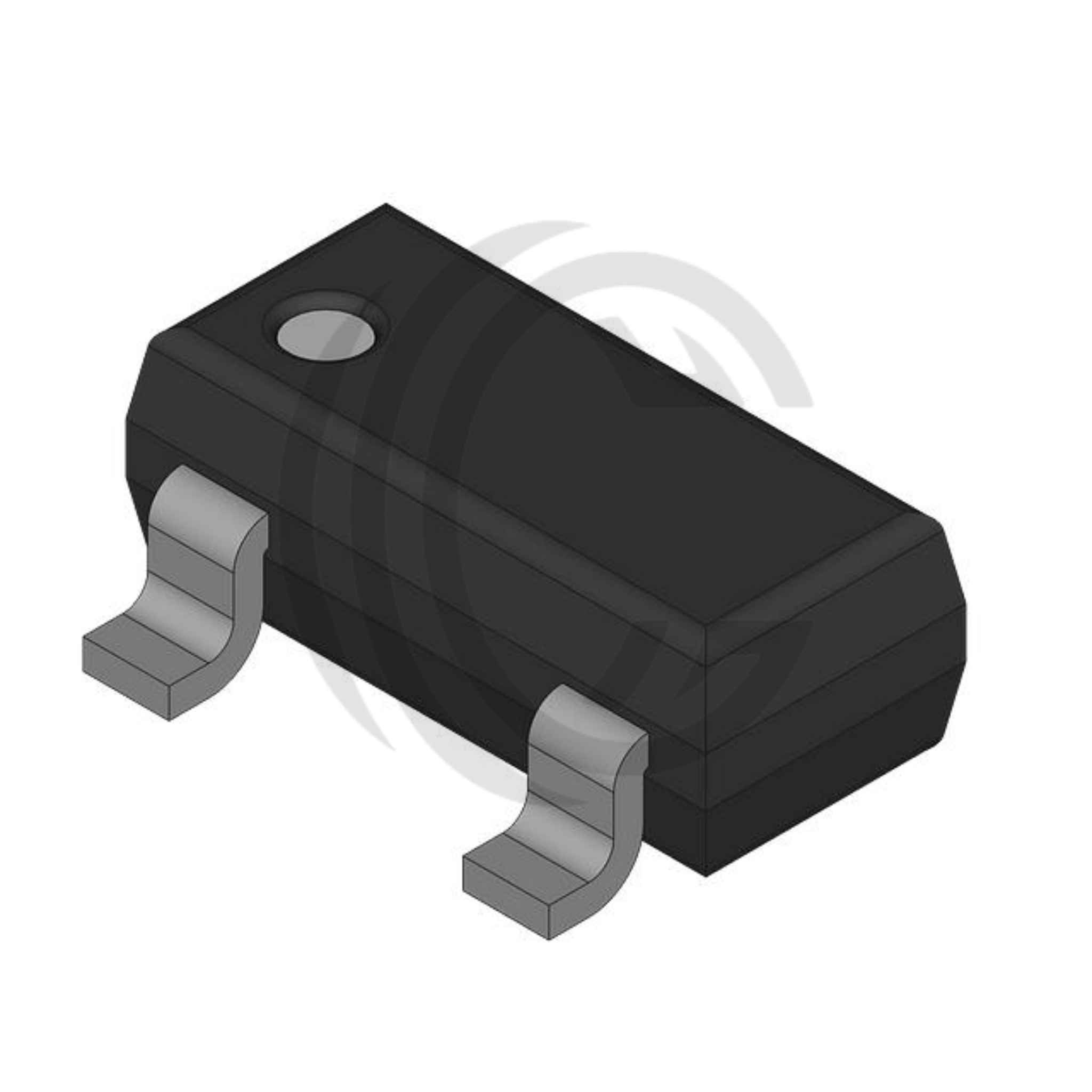

Black surface mount transistor component PMBT2907A with three bent metal leads from The Component Centre

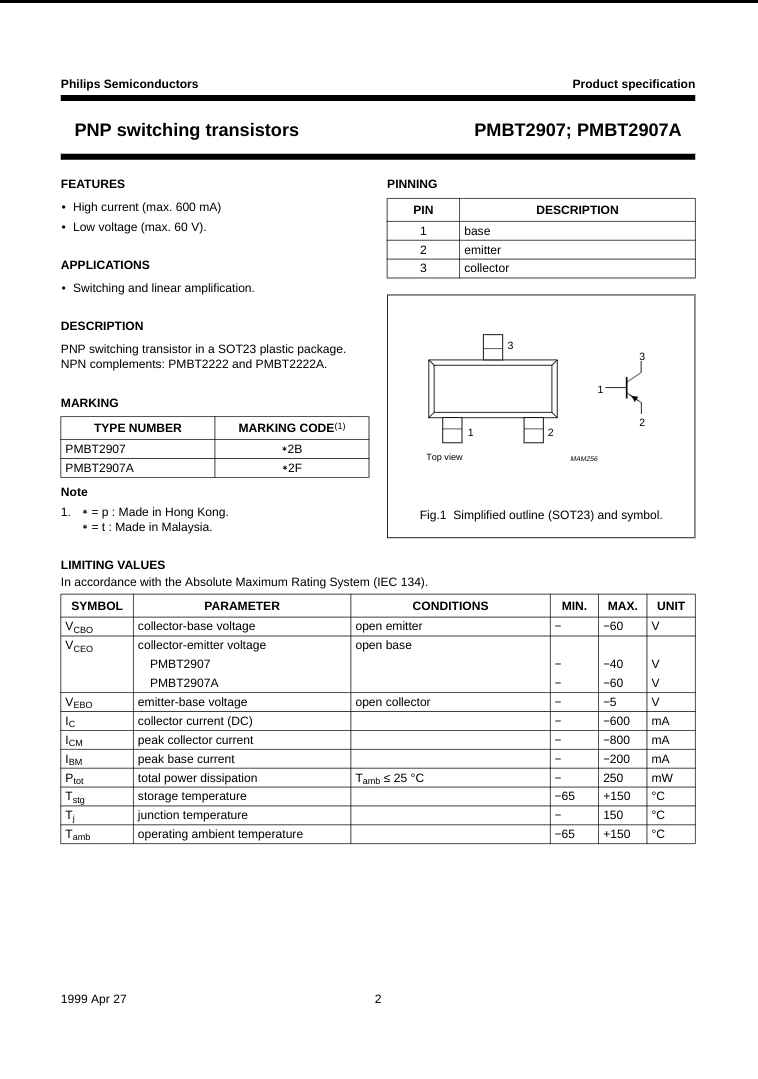

PMBT2907A PNP switching transistor datasheet with features pinning and limiting values

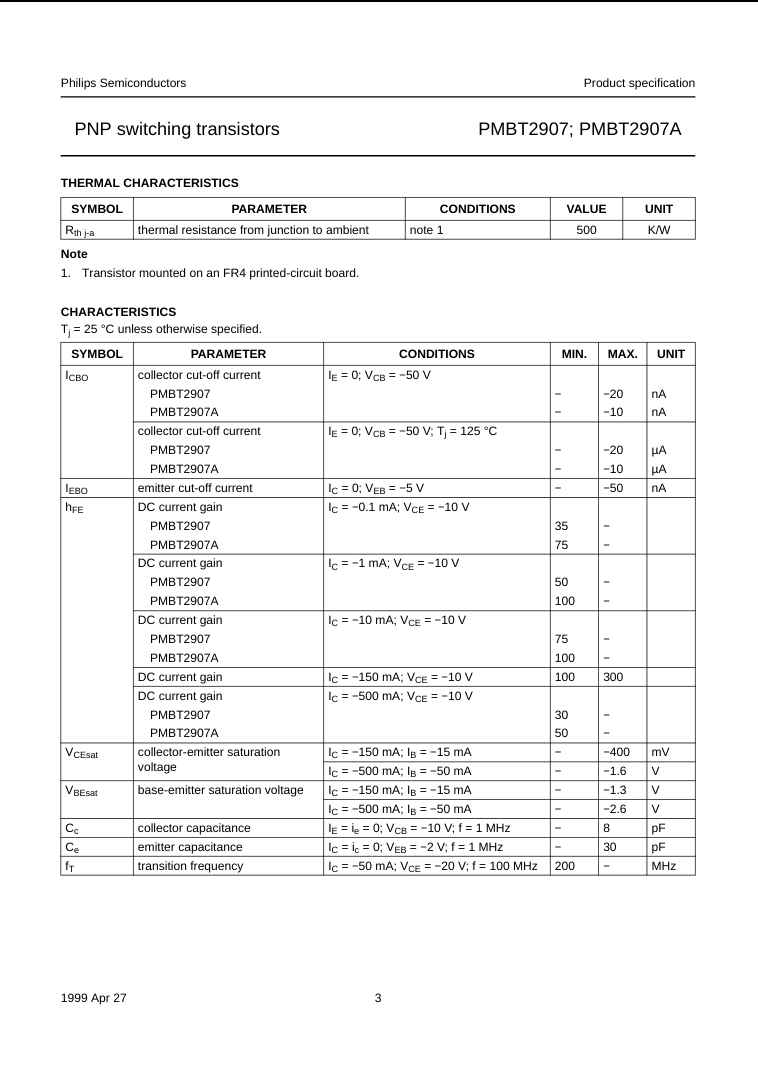

Technical datasheet page showing electrical characteristics and thermal parameters of PMBT2907A PNP switching transistor

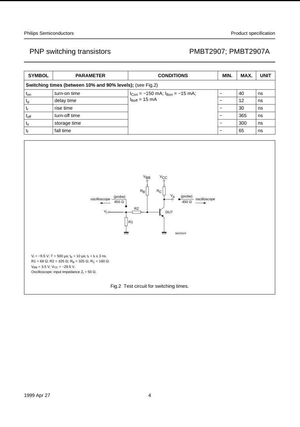

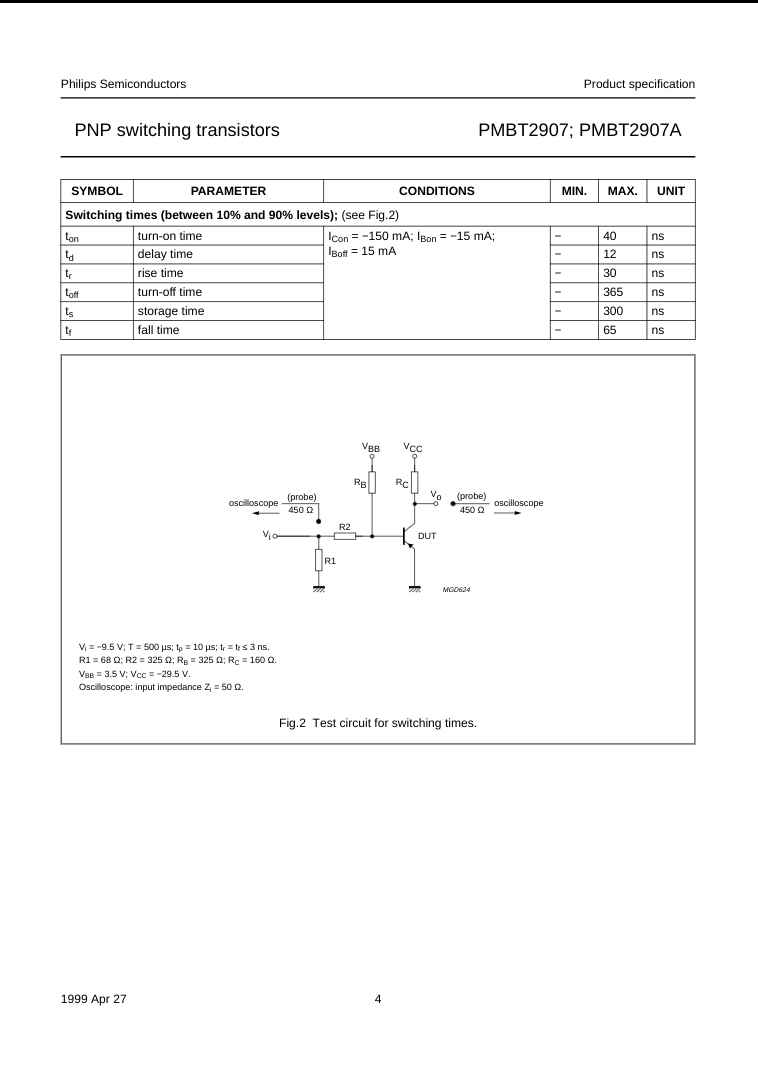

PMBT2907A PNP switching transistor specification sheet with switching time table and test circuit diagram

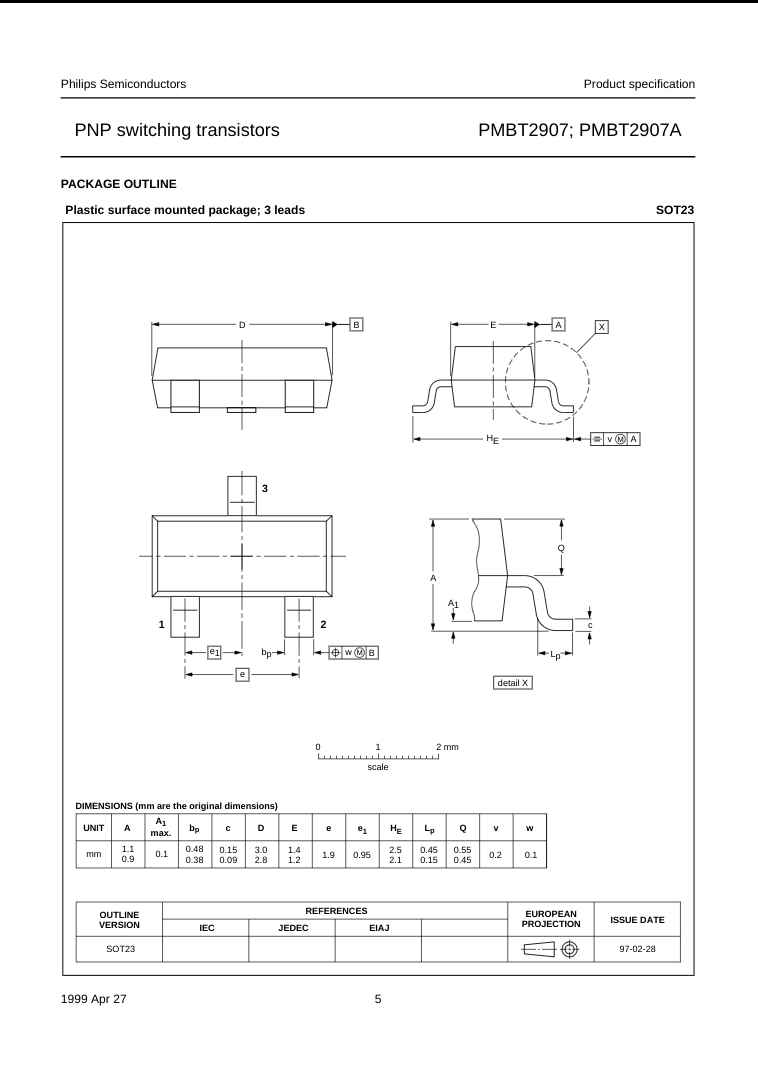

Technical drawing and dimensions of PMBT2907A PNP switching transistor package from The Component Centre
PMBT2907A PNP switching transistors product specification sheet by The Component Centre
PMBT2907A transistor component with black plastic body and three silver leads from The Component Centre
Black surface mount transistor component PMBT2907A with three bent metal leads from The Component Centre
PMBT2907A PNP switching transistor datasheet with features pinning and limiting values
Technical datasheet page showing electrical characteristics and thermal parameters of PMBT2907A PNP switching transistor
PMBT2907A PNP switching transistor specification sheet with switching time table and test circuit diagram
Technical drawing and dimensions of PMBT2907A PNP switching transistor package from The Component Centre
PMBT2907A PNP switching transistors product specification sheet by The Component Centre

PMBT2907A 60V 600mA PNP Transistor SOT-23

Sale price Rs.12.00
In stock
Add to Wishlist Add to Compare
Frequently Bought Together
PMBT2907A transistor component with black plastic body and three silver leads from The Component Centre
This item: PMBT2907A 60V 600mA PNP Transistor SOT-23
Sale price Rs.12.00
Green printed circuit board held by hand for 5KVA power supply from The Component Centre
5KVA Solar Inverter PCB with Original TLP350H Optocoupler
Regular price Rs.3,700.00 Sale price Rs.3,500.00
Reel of TLP350H electronic components from The Component Centre in black and blue plastic packaging
Toshiba TLP350H 3750Vrms Gate Driver Optocoupler
Regular price Rs.210.00 Sale price Rs.185.00
Total price:
Regular total price Rs.3,922.00 PKR Sale total price Rs.3,697.00 PKR

Guarantee Safe Checkout

Visa
Mastercard
Google Pay
PayPal
Estimate delivery times 3-5 days (Pakistan-wide)
PMBT2907A transistor component with black plastic body and three silver leads from The Component Centre

PMBT2907A 60V 600mA PNP Transistor SOT-23

Rs.12.00

PMBT2907A 60V 600mA SOT23 Transistor – PNP Surface Mount by Nexperia PMBT2907A is a compact PNP transistor rated at 60V and 600mA, housed in a SOT23 (TO-236AB) surface-mount package. Designed by Nexperia, it delivers reliable performance in high-current switching and linear amplification. This transistor is AEC-Q101 qualified for automotive use and supports efficient signal processing and power control across demanding environments. With its low saturation voltage and high current gain, the PMBT2907A ensures stable operation in automotive systems, industrial equipment, and consumer electronics.

Thanks to its compatibility with automated tape-and-reel packaging, this component simplifies assembly for large-scale production. Engineers prefer the PMBT2907A for its space-saving footprint, thermal stability, and switching efficiency. Ideal for use in ADAS modules, powertrain systems, LED drivers, and analog circuits, this PNP transistor offers a dependable solution for high-performance electronic applications.

Key Specs Voltage Rating: 60V Current Rating: 600mA Polarity: PNP Package: SOT23 (TO-236AB) Gain (hFE): High DC current gain Saturation Voltage: Low Compliance: AEC-Q101 Qualified Applications: Automotive ADAS, Powertrain, Motor Control, Signal Amplification, Consumer Electronics Brand: Nexperia
