OP07CP
The OP07CP is a precision operational amplifier designed for high-accuracy analog applications in instrumentation, industrial control, and medical systems. With an ultra-low input offset voltage and high open-loop gain, the OP07CP provides stable and precise signal amplification. Manufactured by Texas Instruments, this op-amp is suitable for circuits that require minimal error and consistent performance over time.

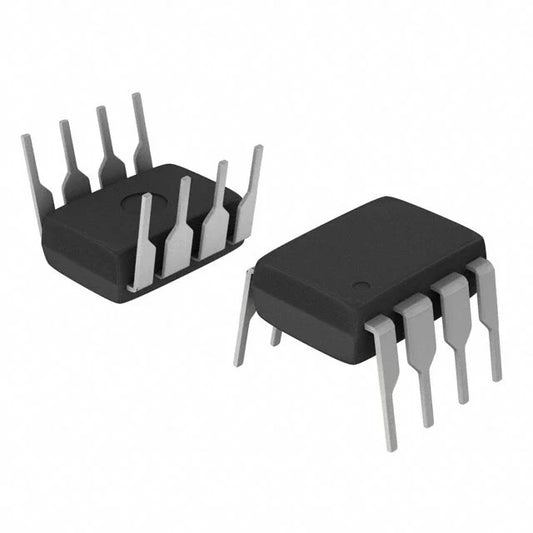

The OP07CP supports a dual supply voltage range of ±3 V to ±18 V, making it compatible with a wide range of designs. Its low input bias current and high common-mode rejection ratio enable reliable operation even in electrically noisy environments. Packaged in an 8-pin PDIP format, it is suitable for standard through-hole PCB layouts and legacy systems. Its accuracy remains consistent across temperature variations, ensuring dependable operation in various industrial and commercial applications.
With a typical open-loop gain of 112 dB and low input noise of 0.6 µV/√Hz at 1 kHz, the OP07CP amplifies weak signals without significant distortion. It is ideal for use in sensors, precision measurement devices, industrial control circuits, and active filters, maintaining stable performance under diverse environmental conditions.

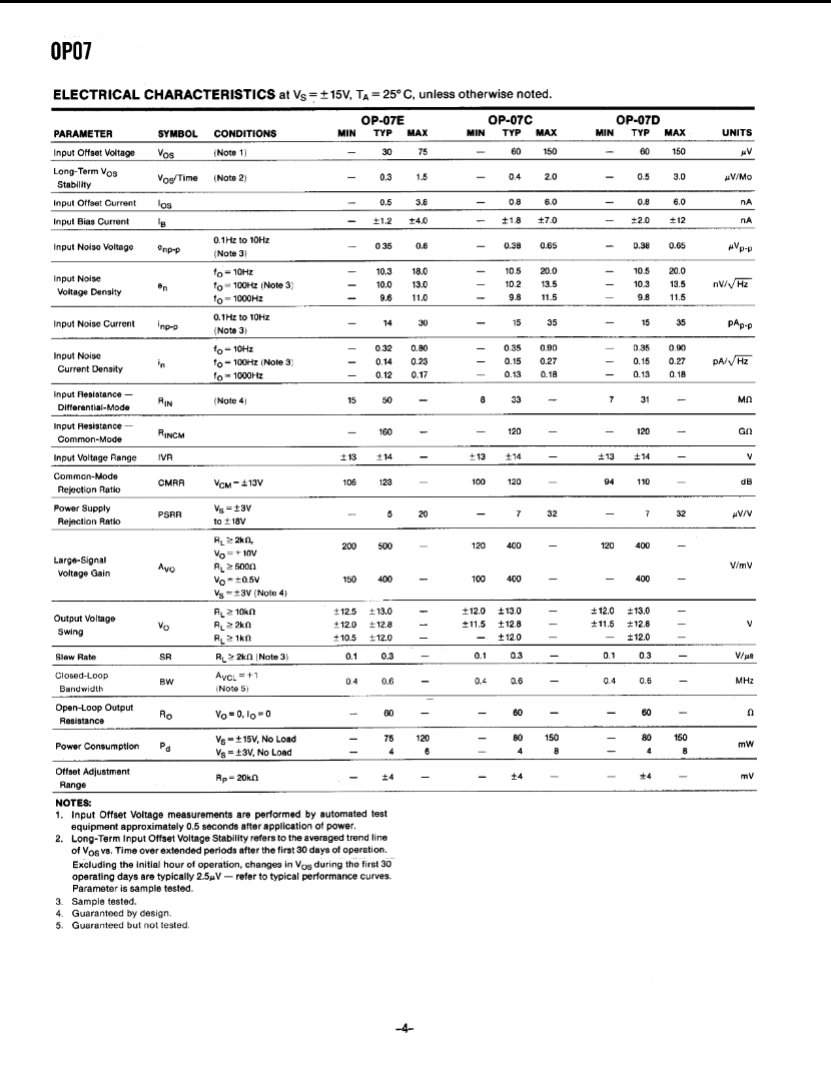

Key Specifications
| Parameter | Specification |
|---|---|
| Input Offset Voltage (typical) | 0.25 mV |
| Supply Voltage Range | ±3 V to ±18 V |
| Open Loop Gain (typical) | 112 dB |
| Input Noise Voltage | 0.6 µV/√Hz at 1 kHz |
| Input Bias Current | ~1.8 nA |
| Common-Mode Rejection Ratio (CMRR) | High |
| Package / Mounting | 8-Pin PDIP (Through-Hole) |
| Operating Temperature Range | 0 °C to 70 °C |
| Applications | Instrumentation, Industrial Controls, Medical Devices |
For more detailed information, please refer to the Texas Instruments datasheet: TI OP07C / OP07CP Datasheet.
