OP07

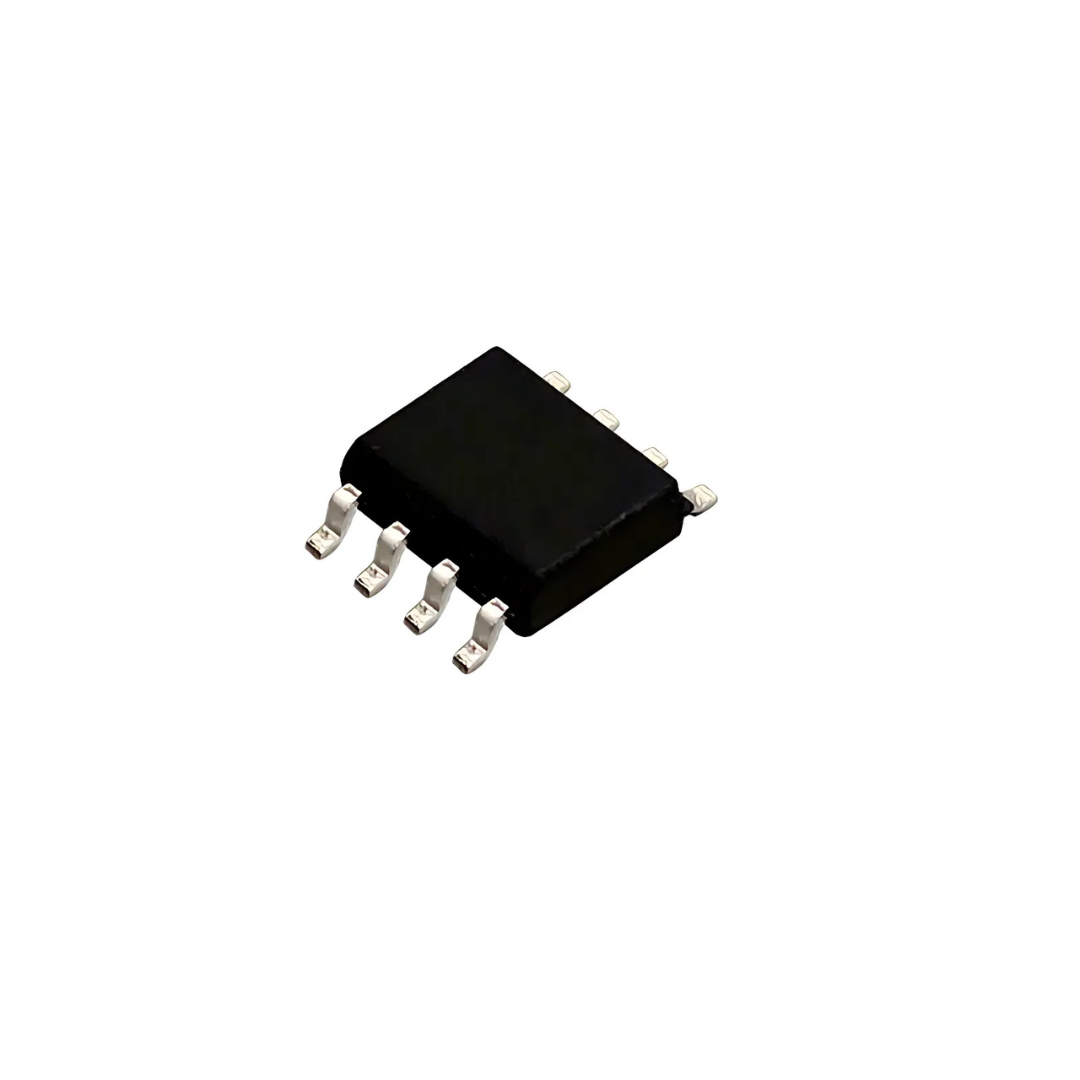

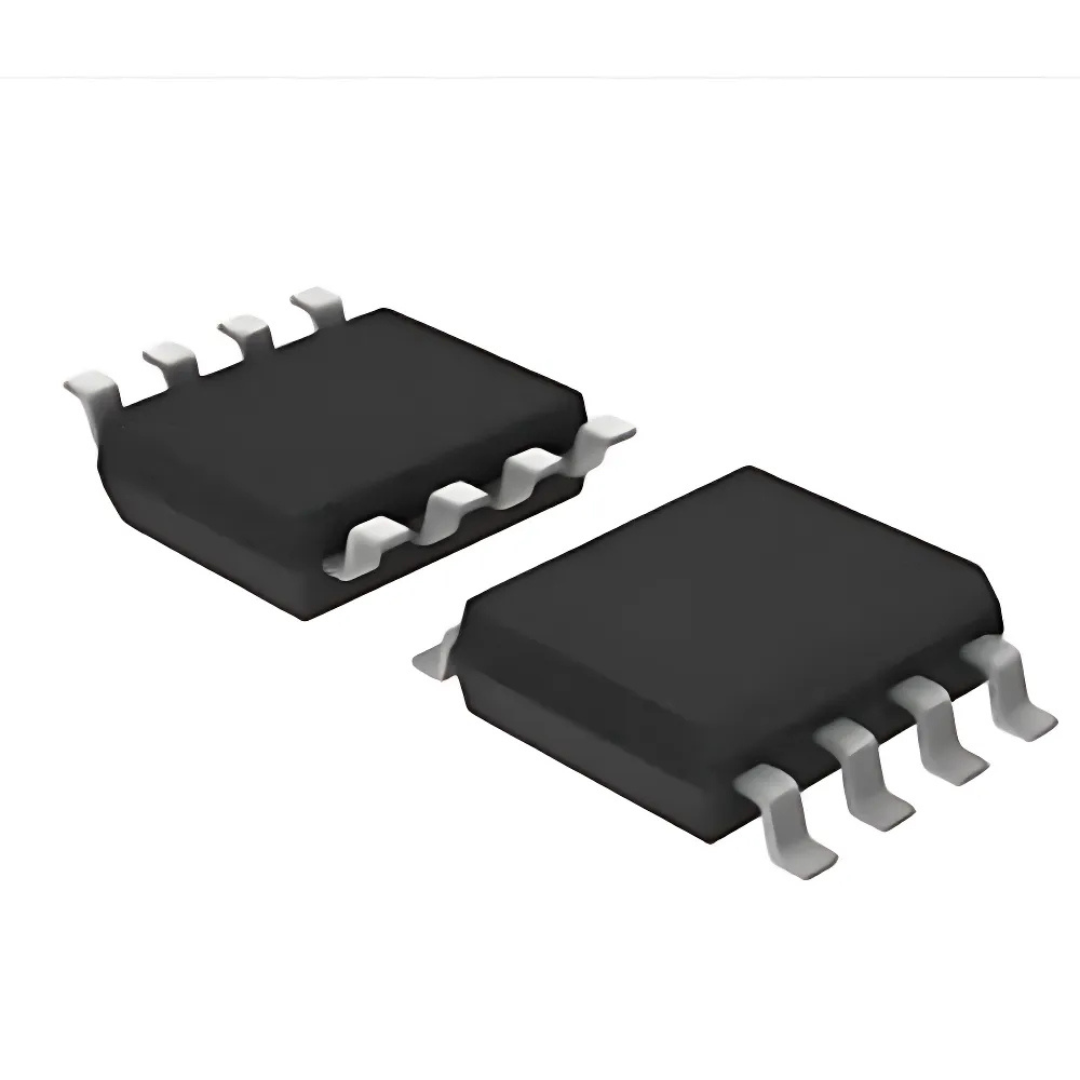

The OP07 SMD IC stands as a benchmark in precision analog electronics, offering exceptional performance, reliability, and versatility — qualities that make it a go‑to choice for high‑accuracy power electronics, instrumentation, and sensor applications. Thanks to its ultralow input offset voltage, minimal bias currents, and high open‑loop gain, OP07 delivers stable, drift‑free amplification, ensuring that even subtle analog signals are processed with fidelity. For engineers and designers seeking dependable performance in industrial or commercial environments, OP07 combines precision, stability, and compactness in a standard 8‑pin SOIC SMD package.
Built to meet rigorous industrial standards, OP07 is optimized for efficiency and long-term reliability. The ultralow offset (as low as 75 µV in the OP07E variant) and low input bias current (±4 nA) minimize measurement error — eliminating the need for external offset nulling in many cases. A high open‑loop gain (200 V/mV) ensures that even modest input differences are amplified cleanly and accurately, making OP07 ideal for instrumentation amplifiers, precision filters, sensor interfaces, and data acquisition modules. Its supply voltage flexibility (±3 V to ±18 V) and wide input range (±13 V or ±14 V typical) give designers the freedom to integrate the op‑amp into a broad spectrum of analog circuits, while its excellent common-mode rejection ratio (CMRR ≈ 106 dB) further enhances signal integrity under varying supply or input conditions.
In industrial and commercial deployments — where long-term stability, drift resistance, and compactness matter — OP07 proves its worth. Its low noise (≈ 0.6 µV p-p) and stable offset over temperature and time (drift as low as 1.3 µV/°C; stability ~1.5 µV per month) help maintain high accuracy in sensor readings, signal conditioning, and precision control loops. Whether used in instrumentation systems, precision voltage references, data acquisition, or sensor-based control circuits, OP07 delivers reliable, consistent performance over extended periods.
For more detailed information, please refer to the Analog Devices datasheet: OP07 Datasheet (Analog Devices)
Key Specs
| Specification | Value |
|---|---|
| Input Offset Voltage (OP07E) | ≤ 75 µV (max) |
| Input Bias Current (OP07E) | ±4 nA typical |
| Open‑Loop Gain (OP07E) | ≈ 200 V/mV |
| Common‑Mode Rejection Ratio (CMRR) | ≈ 106 dB (OP07E) |
| Supply Voltage Range | ±3 V to ±18 V |
| Input Voltage Range | ±13 V (min) to ±14 V (typical) |
| Noise (typical) | ~0.6 µV p‑p maximum |
| Package | 8‑lead SOIC (SMD) / 8‑lead PDIP |
| Temperature Range | 0°C to +70°C (OP07E) / –40°C to +85°C (OP07C) |
| Suitable Applications | Instrumentation, Sensor Interfaces, Voltage References, Data Acquisition, Precision Filters, RTDs, Thermocouples, Control Circuits |
