NCE82H140 82V 140A N Channel MOSFET
Regular price
Rs.150.00
Sale price
Rs.165.00
NCE82H140
The NCE82H140 is an N-Channel trench power MOSFET by NCE Power, designed for high-efficiency and reliable operation in power electronics systems. Rated at 82 V and 140 A, it features a low on-resistance of 4.3 mΩ, enabling reduced conduction losses and efficient high-current switching. Its trench architecture ensures stable performance in demanding applications such as EV powertrains, solar inverters, and motor drive systems.
Capable of 220 W power dissipation and operating at temperatures up to 175 °C, the NCE82H140 is suitable for industrial environments requiring robust thermal handling. Available in TO-220 and TO-263 packages, it allows for straightforward PCB layout and thermal management. Low gate charge and fast switching characteristics support effective energy management in high-frequency circuits.
The MOSFET meets RoHS and Pb-free standards, providing reliable and durable performance for industrial and commercial power systems. Its combination of low conduction loss, fast switching, and high thermal capacity makes it suitable for EV powertrains, solar inverters, UPS systems, and motor control applications.
Key Specifications
| Parameter | Specification |
|---|---|
| Drain‑Source Voltage (Vₙᵈₛ) | 82 V (datasheet link) |
| Continuous Drain Current (Iₒ) | 140 A |
| On‑Resistance (Rₒₙ) | Typ. 4.3 mΩ @ Vᵍₛ = 10 V, 20 A |
| Power Dissipation (P₍D₎) | 220 W |
| Gate Threshold Voltage (Vᵍₛ(th)) | ~3 V @ 250 µA |
| Total Gate Charge (Q₉) | ~158 nC @ Vᵍₛ = 10 V |
| Input Capacitance (Cᵢₛₛ) | ~7.9 nF @ Vₙᵈₛ = 40 V |
| Reverse Transfer Capacitance (Cᵣₛₛ) | ~384 pF @ Vₙᵈₛ = 40 V |
| Pulsed Drain Current (Iₘ) | 480 A |
| Single-Pulse Avalanche Energy (Eₐₛ) | ~1500 mJ |
| Operating Junction Temperature (Tⱼ) | –55 °C to +175 °C |

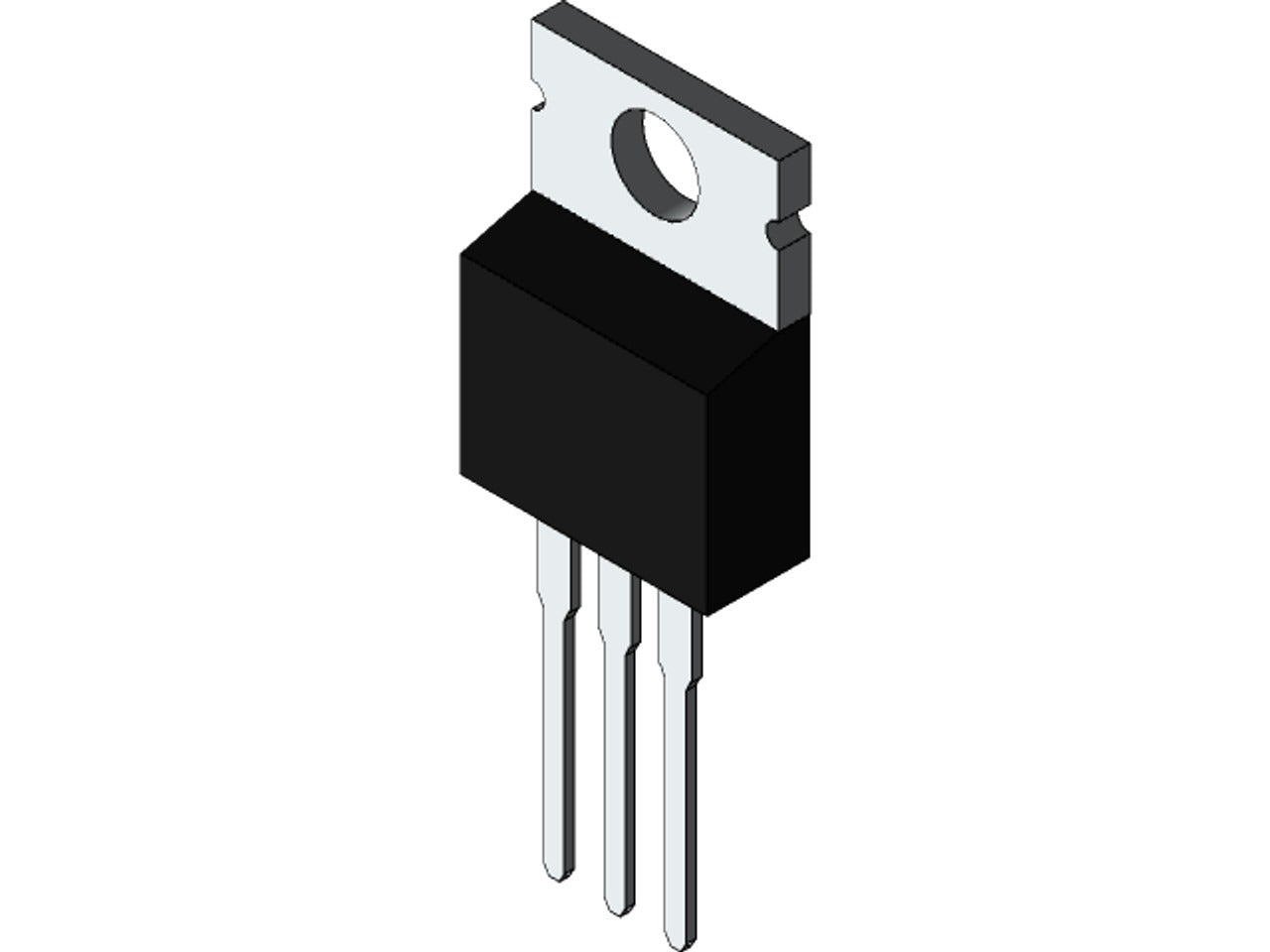

| Package Options | TO‑220‑3L, TO‑263 |
| Compliance | RoHS, Pb-Free |
