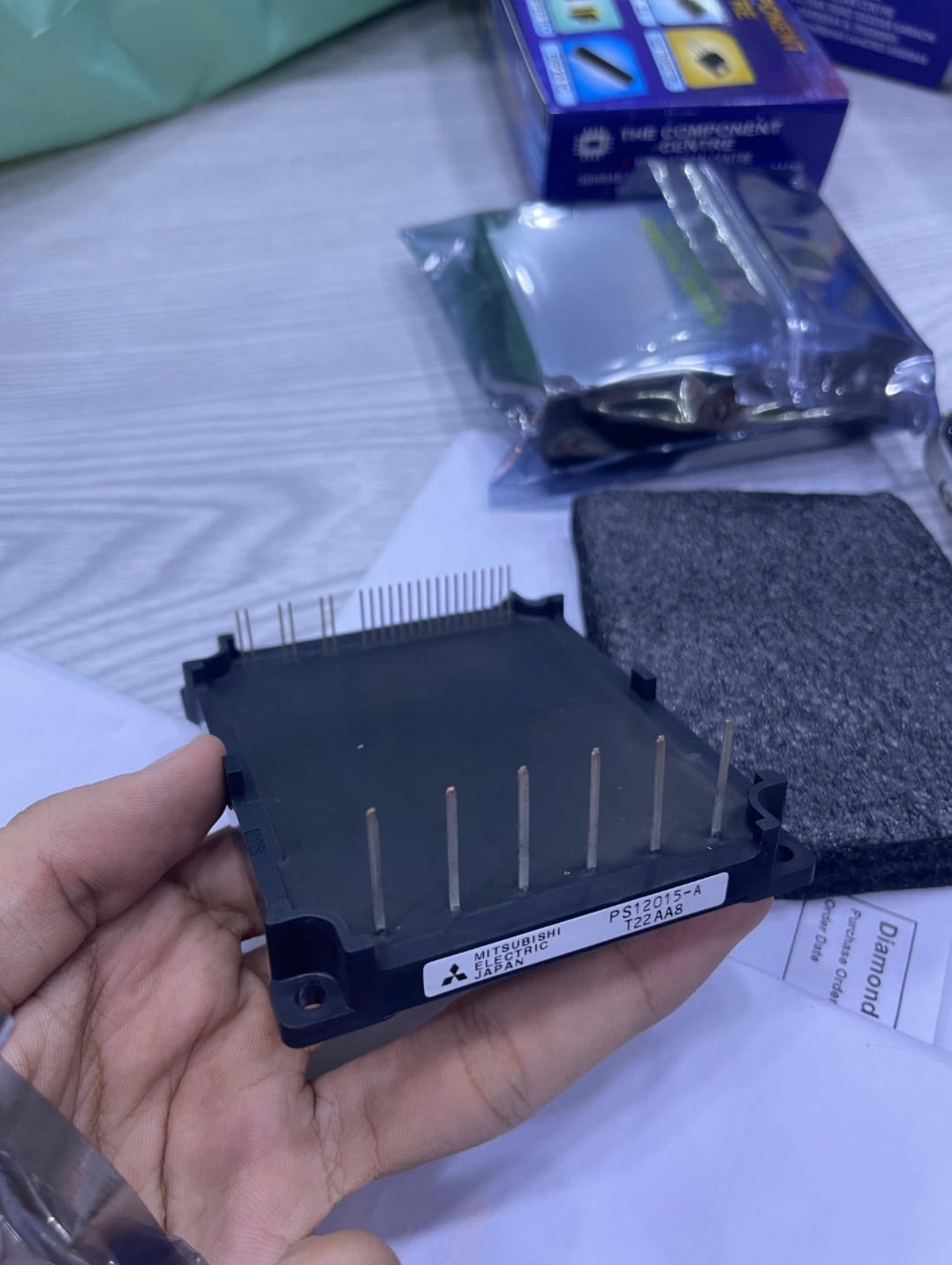

Mitsubishi PS12015‑A

The PS12015‑A is a 3‑phase intelligent power module (IPM) from Mitsubishi, designed for small three-phase inverter systems in the ~1.5 kW / 400 V AC class. It integrates 1200 V IGBT and diode devices in a flat-base insulated package. The module supports a continuous inverter output of 4.8 A (rms) and up to 7.2 A (rms) at 150% overload for 1 minute.

The PS12015‑A includes on-board protections and interfaces: short-circuit protection for P- and N-side IGBTs, under- and over-voltage lockouts, over-temperature protection, three fault outputs (FO1/FO2/FO3), a current-limit warning output (CL), a dynamic-braking circuit, and analogue phase-current feedback. Control inputs use 5 V CMOS/TTL (Schmitt-trigger), and the module uses a bootstrap single-drive supply for the P-side drive.

Electrical and mechanical ratings include an isolation voltage of 2500 Vrms, module case operating temperature –20 °C to +100 °C, storage temperature –40 °C to +125 °C, and a maximum junction temperature of +125 °C. Recommended gate/control supplies are VDH = 15 V, VDL = 5 V, VCIN = 5 V. For detailed pin-out, mechanical drawings, recommended application circuits, and complete electrical characteristics, refer to the Mitsubishi datasheet: PS12015‑A Datasheet (PDF).

Key Specifications

Parameter Value
Part number PS12015‑A
Type / Topology 3‑Phase Application‑Specific Intelligent Power Module (IPM), flat‑base insulated
Blocking voltage (V_CES) 1200 V
Inverter output (I_O) 4.8 A (rms) continuous; 7.2 A (rms) at 150% overload for 1 minute
IGBT element class 15 A class (internal elements)
Isolation voltage 2500 Vrms
Module case operating temperature –20 °C to +100 °C
Storage temperature / Junction max Storage: –40 °C to +125 °C; Junction up to +125 °C
Control / PWM input 5 V CMOS/TTL (Schmitt‑trigger)
Gate / control supply V_DH = 15 V, V_DL = 5 V, V_CIN = 5 V
Protection & signals Integrated SC, OV/UV, OT; fault outputs FO1/FO2/FO3; CL warning; analogue 3‑φ current feedback
Package / mounting Flat‑base insulated module; M3.5 mounting screws
