Minco KF139 600V 100A PCB Screw Terminal Block 19mm Pitch

KF139‑19.0 600 V 100 A PCB Screw Terminal Block – 19 mm Pitch, M5 Screw Terminals by Minco

The KF139‑19.0 screw terminal block delivers dependable current handling up to 100 A and a voltage rating of 600 V AC/DC, making it perfect for high-power PCB distribution in industrial systems. Its generous 19.0 mm pitch supports wire gauges from 18 to 3 AWG (up to 25 mm²), accommodating industrial-grade cabling with ease. Made from flame-retardant PA66 (UL94V-0), the housing ensures durability and safety, while M5 tin-plated terminal screws provide secure and vibration-resistant connections.

Built for through-hole PCB mounting, this module simplifies integration into power electronics, motor controls, solar inverters, telecom rectifiers, and industrial automation panels. Withstanding voltages up to 3,500 V AC per minute and corrosion-resistant plating, it’s engineered for long-term reliability in harsh environments.

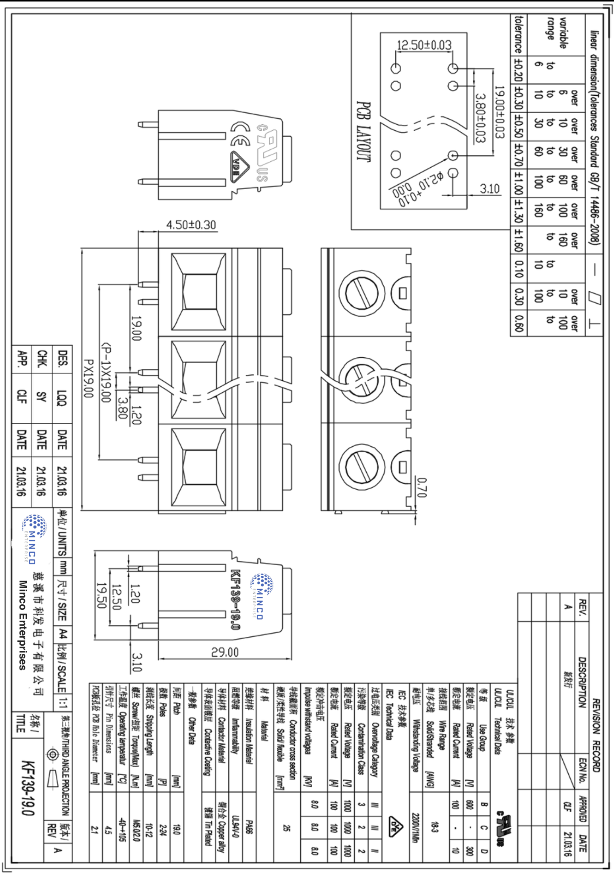

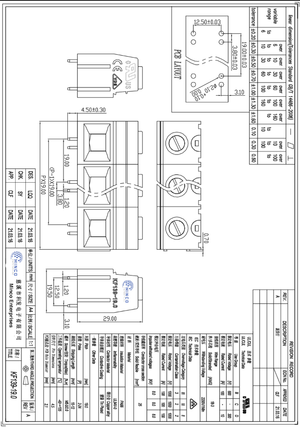

Key Specs – KF139‑19.0 Screw Terminal Block Rated Voltage: 600 VAC / VDC Rated Current: 100 A continuous Withstanding Voltage: 3,500 V AC per minute Wire Size Range: 18–3 AWG (up to 25 mm²) Pitch: 19.0 mm Housing Material: PA66, UL94V-0 flame retardant Termination: M5 screw (tin-plated) Temperature Range: –40 °C to +105 °C Mounting Style: Through-hole PCB Certifications: CE, UL, RoHS, ISO 9001, TUV, REACH Applications: Industrial automation, PCB power distribution, renewable energy systems Brand: Minco
