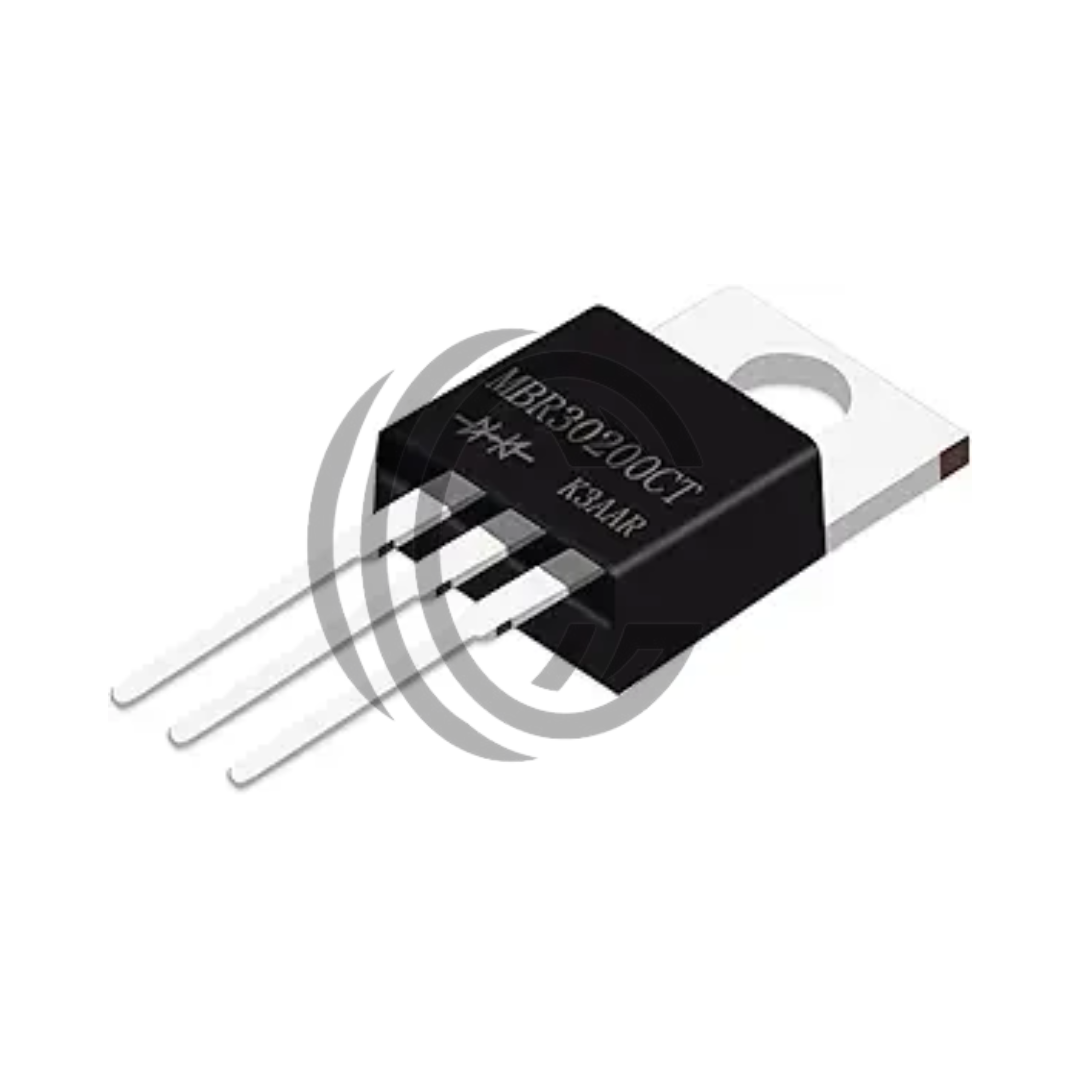

MBR30200CT electronic component diode with three metal leads and black casing from The Component Centre

MBR30200CT 30A 200V Schottky Barrier Diode

Sale price Rs.150.00
In stock
Add to Wishlist Add to Compare
Frequently Bought Together
MBR30200CT electronic component diode with three metal leads and black casing from The Component Centre
This item: MBR30200CT 30A 200V Schottky Barrier Diode
Sale price Rs.150.00
Green printed circuit board held by hand for 5KVA power supply from The Component Centre
5KVA Solar Inverter PCB with Original TLP350H Optocoupler
Regular price Rs.3,700.00 Sale price Rs.3,500.00
Reel of TLP350H electronic components from The Component Centre in black and blue plastic packaging
Toshiba TLP350H 3750Vrms Gate Driver Optocoupler
Regular price Rs.210.00 Sale price Rs.185.00
Total price:
Regular total price Rs.4,060.00 PKR Sale total price Rs.3,835.00 PKR

Guarantee Safe Checkout

Visa
Mastercard
Google Pay
PayPal
Estimate delivery times 3-5 days (Pakistan-wide)
MBR30200CT electronic component diode with three metal leads and black casing from The Component Centre

MBR30200CT 30A 200V Schottky Barrier Diode

Rs.150.00

MBR30200CT 30A 200V Schottky Barrier Diode – TO-220AB Package

The MBR30200CT is a high-performance dual Schottky diode in a common-cathode configuration, rated for 30A average rectified current and 200V reverse voltage. Its low forward voltage drop of approximately 0.9‑1.2 V at 15 A minimizes power loss and heat generation, making it ideal for high-frequency switching power supplies and DC–DC converters. With a surge current capacity of up to 180A (8.3 ms half-sine pulse) and a junction temperature tolerance up to 175 °C, this TO‑220AB packaged diode ensures reliable performance in harsh industrial and automotive environments.

Constructed with high-temperature epoxy encapsulation and a guard ring design, the MBR30200CT offers excellent mechanical durability and moisture resistance. Its rapid switching characteristics (dv/dt ~10,000 V/µs) and low reverse leakage (50 µA at 25 °C, 1 mA at 100 °C) support efficient rectification in LED drivers, battery chargers, and motor control systems.

Key Specs – MBR30200CT Schottky Diode Average Forward Current (I\F(AV)\): 30A (per device at T\c\=105 °C) Reverse Voltage (V\RRM\): 200V Surge Forward Current (I\FSM\): 180A (8.3 ms half-sine wave) Forward Voltage Drop (V\F\): ~0.9V @ 15A, up to 1.2V at 175 °C Reverse Leakage Current (I\R\): ≤50 µA @ 25 °C; ≤1 mA @ 100 °C Junction Temperature (T\j\): –55 °C to +175 °C dv/dt Rating: ~10,000 V/µs Package: TO‑220AB through-hole Applications: Switching power supplies, LED lighting, battery chargers, DC–DC converters Compliance: RoHS and REACH compliant
