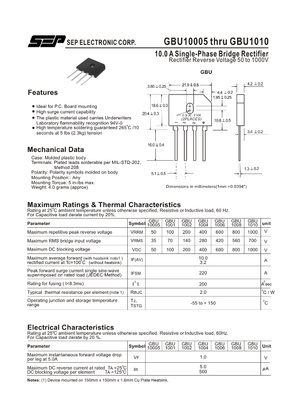

GBU1010 single-phase bridge rectifier diagram with dimensions and electrical specifications from The Component Centre

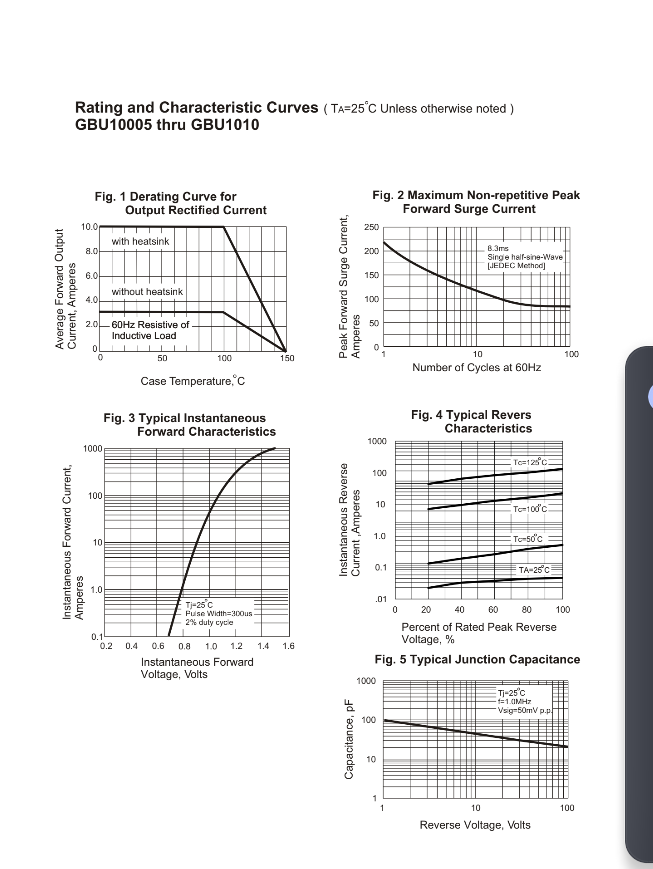

Technical rating and characteristic curves for GBU1010 rectifier diode showing forward current, surge current, reverse characteristics, and junction capacitance graphs
GBU1010 10A 1000V Single Phase Bridge Rectifier The Component Centre
GBU1010 10A 1000V Single Phase Bridge Rectifier

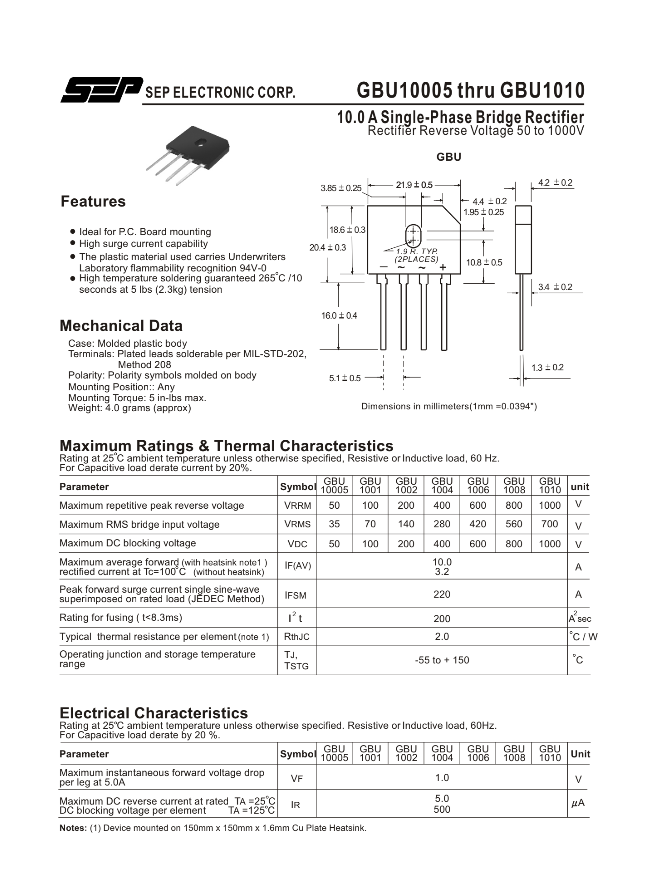

GBU1010 single-phase bridge rectifier diagram with dimensions and electrical specifications from The Component Centre

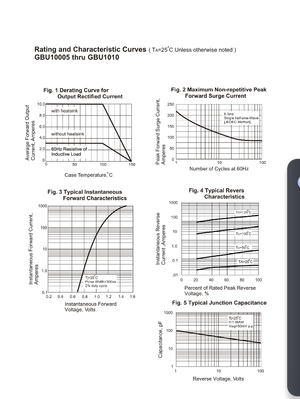

Technical rating and characteristic curves for GBU1010 rectifier diode showing forward current, surge current, reverse characteristics, and junction capacitance graphs

GBU1010 10A 1000V Single Phase Bridge Rectifier

Sale price Rs.75.00
In stock
Add to Wishlist Add to Compare
Frequently Bought Together
GBU1010 10A 1000V Single Phase Bridge Rectifier The Component Centre
This item: GBU1010 10A 1000V Single Phase Bridge Rectifier
Sale price Rs.75.00
Green printed circuit board held by hand for 5KVA power supply from The Component Centre
5KVA Solar Inverter PCB with Original TLP350H Optocoupler
Regular price Rs.3,700.00 Sale price Rs.3,500.00
Reel of TLP350H electronic components from The Component Centre in black and blue plastic packaging
Toshiba TLP350H 3750Vrms Gate Driver Optocoupler
Regular price Rs.210.00 Sale price Rs.185.00
Total price:
Regular total price Rs.3,985.00 PKR Sale total price Rs.3,760.00 PKR

Guarantee Safe Checkout

Visa
Mastercard
Google Pay
PayPal
Estimate delivery times 3-5 days (Pakistan-wide)
GBU1010 10A 1000V Single Phase Bridge Rectifier The Component Centre

GBU1010 10A 1000V Single Phase Bridge Rectifier

Rs.75.00

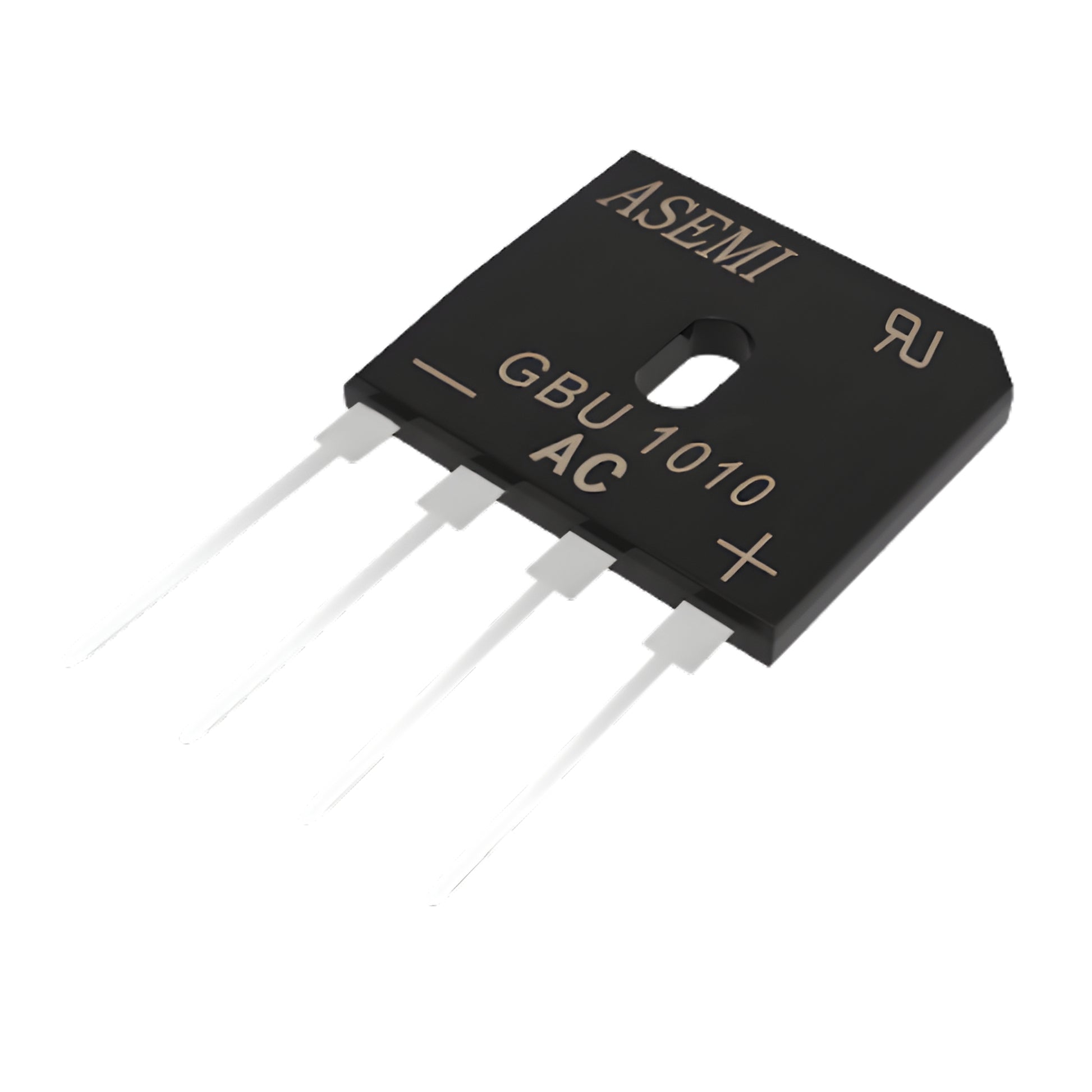

GBU1010 10A 1000V Single Phase Bridge Rectifier – GBU Package

GBU1010 is a single-phase bridge rectifier rated for 1000V reverse voltage and 10A average forward current. Built with a glass-passivated chip, it offers stable rectification performance and reduced forward voltage drop, making it suitable for industrial power conversion systems including HVAC units, inverters, and motor control circuits.

Encased in a compact GBU package, the GBU1010 provides efficient thermal performance and supports direct mounting on printed circuit boards. Its peak surge current capacity reaches 220A, enabling reliable operation under high inrush conditions common in heavy-load equipment. The device is compliant with RoHS 2.0 and halogen-free standards under IEC 61249, and holds UL recognition under file number E230084, ensuring regulatory conformity for global use.

Designed to operate in ambient conditions ranging from -55°C to +150°C, the GBU1010 maintains rectifier integrity across wide temperature variations. It supports single-phase AC to DC conversion in systems such as CNC machines, telecom infrastructure, uninterruptible power supplies, and large home appliances. Its electrical stability and surge endurance make it appropriate for high-voltage, high-current applications requiring consistent rectification.

Key Specs Reverse Voltage Rating: 1000V Forward Current: 10A Continuous Surge Current: 220A Peak Technology: Glass Passivated Package Type: GBU Operating Temperature: -55°C to +150°C Applications: Power Conversion, Industrial Automation, HVAC Units, UPS, CNC Machines Compliance: RoHS 2.0, Halogen-Free (IEC 61249), UL Recognized (E230084)
