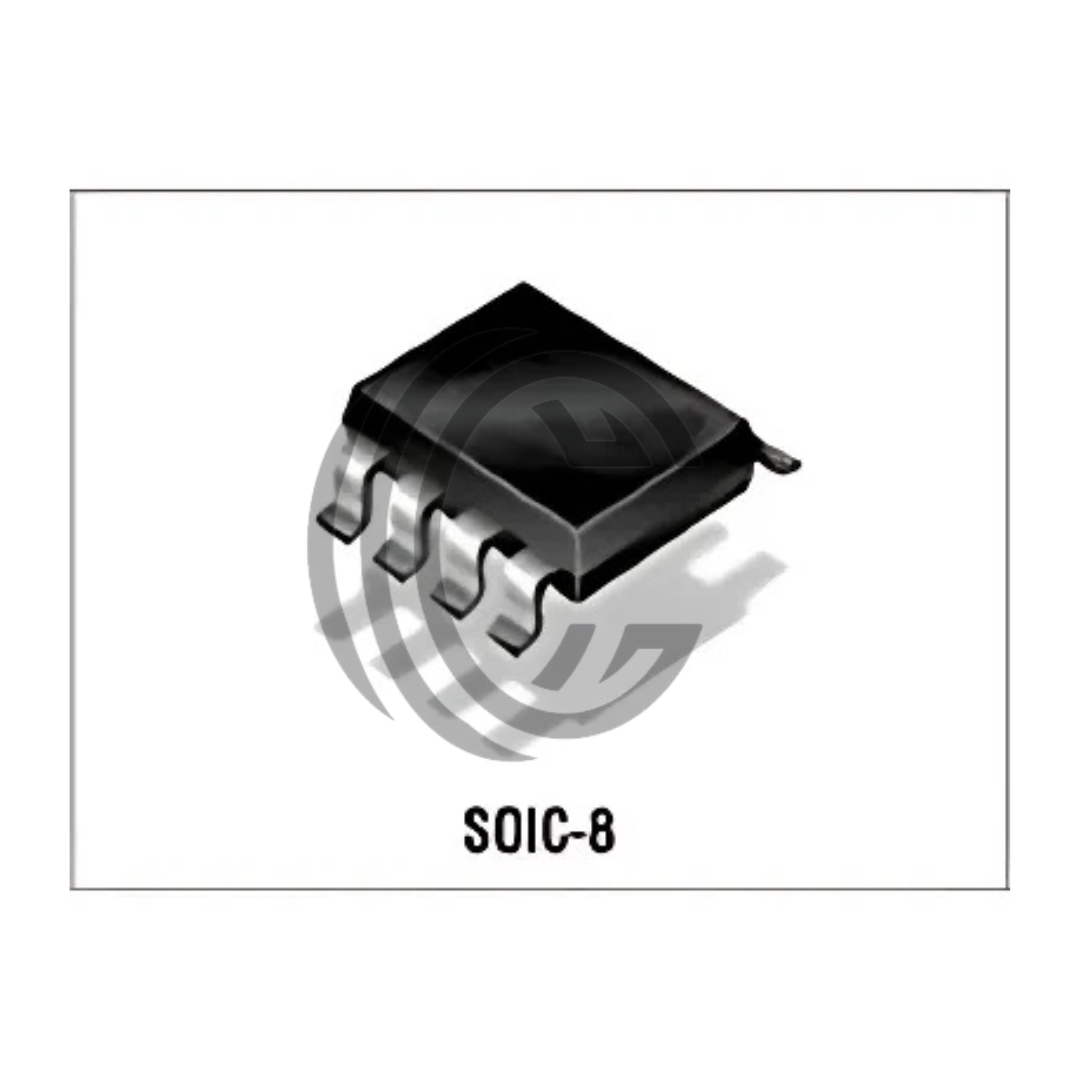

LM358 SOIC-8 package electronic component chip from The Component Centre

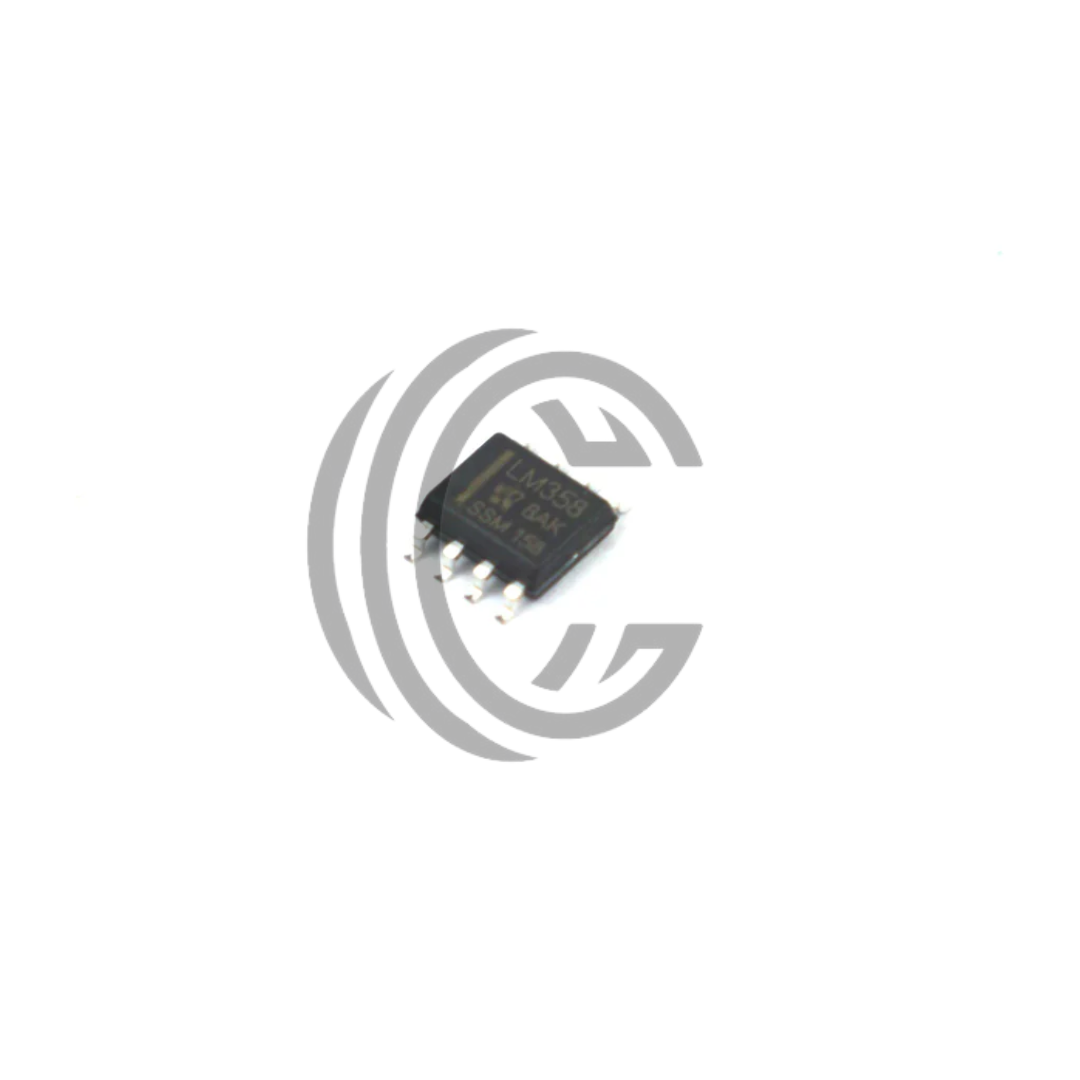

LM358 dual operational amplifier chip from The Component Centre with 8-pin small outline package

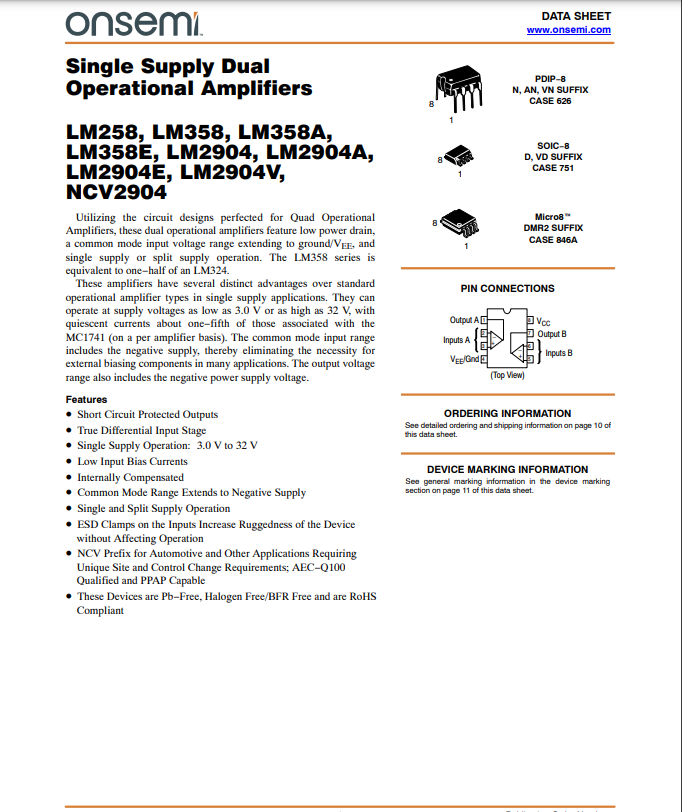

Datasheet page of LM358 single supply dual operational amplifier with pin configuration and features

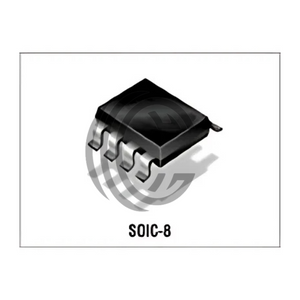

LM358 SOIC-8 package electronic component chip from The Component Centre

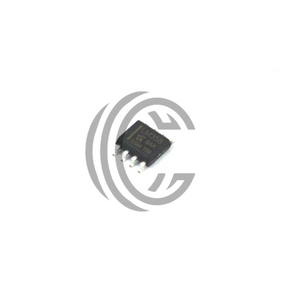

LM358 dual operational amplifier chip from The Component Centre with 8-pin small outline package
Datasheet page of LM358 single supply dual operational amplifier with pin configuration and features

LM358 IC SMD Dual Operational Amplifier

Sale price Rs.25.00
In stock
Add to Wishlist Add to Compare
Frequently Bought Together
LM358 SOIC-8 package electronic component chip from The Component Centre
This item: LM358 IC SMD Dual Operational Amplifier
Sale price Rs.25.00
Green printed circuit board held by hand for 5KVA power supply from The Component Centre
5KVA Solar Inverter PCB with Original TLP350H Optocoupler
Regular price Rs.3,700.00 Sale price Rs.3,500.00
Reel of TLP350H electronic components from The Component Centre in black and blue plastic packaging
Toshiba TLP350H 3750Vrms Gate Driver Optocoupler
Regular price Rs.210.00 Sale price Rs.185.00
Total price:
Regular total price Rs.3,935.00 PKR Sale total price Rs.3,710.00 PKR

Guarantee Safe Checkout

Visa
Mastercard
Google Pay
PayPal
Estimate delivery times 3-5 days (Pakistan-wide)
LM358 SOIC-8 package electronic component chip from The Component Centre

LM358 IC SMD Dual Operational Amplifier

Rs.25.00

LM358 IC SMD Dual Operational Amplifier – SOP-8 Package

LM358 IC SMD is a dual operational amplifier designed for low power and high gain performance in single-supply systems. Built for industrial, automotive, and consumer electronics, this op-amp operates efficiently across a wide voltage range. It features internal frequency compensation, low input bias current, and high voltage gain, making it suitable for precision analog circuits such as transducer amplifiers, DC gain blocks, and sensor interfaces.

The LM358 SMD package eliminates the need for dual ±15V supplies, streamlining designs and saving board space. With a unity gain bandwidth of 1.1 MHz and 100 dB voltage gain, it is ideal for cost-sensitive and space-constrained applications. Housed in the SOP-8 surface-mount package, this IC supports easy integration into automated PCB assembly. Compatible with +5V logic systems, the LM358 IC SMD is widely used in signal conditioning, active filters, and audio circuits.

Key Specs Voltage Rating: 3V to 32V (single supply) or ±1.5V to ±16V (dual supply) Channels: Dual (2 Op-Amps) Gain Bandwidth: 1.1 MHz Voltage Gain: 100 dB Input Bias Current: 20 nA (typical) Output Type: Rail-to-Rail Output Package: SOP-8 (Surface Mount) Temperature Range: 0°C to +70°C Applications: Signal Conditioning, Transducer Amplifiers, Audio Preamps, Active Filters Brand: Generic / ST / ON / Texas Instruments (varies by source) Compliance: RoHS Compliant
