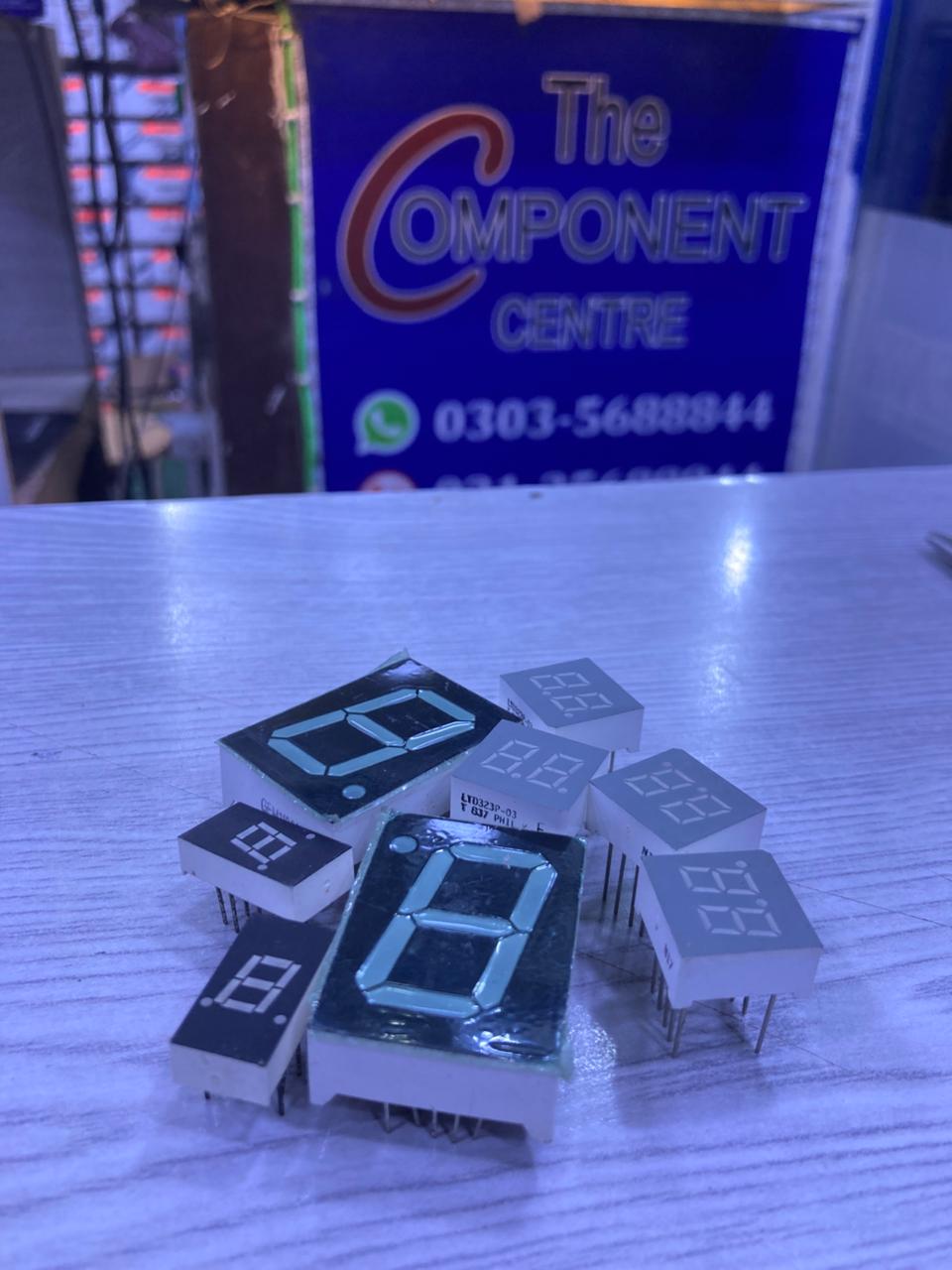

Lite On LTD323P-03 Bright Red 2-Digit 7-Segment LED Display

LTD323P-03 Bright Red 2-Digit 7-Segment LED Display (0.3" / 7.62 mm) — Lite-On

The LTD323P-03 by Lite-On is a compact, bright-red dual-digit 7-segment LED display (0.3" / 7.62 mm digit height) engineered for clear numeric readouts in space-constrained electronic designs. I.C.-compatible and optimized for low power operation, the LTD323P-03 delivers uniform segment brightness and excellent viewing characteristics for panel meters, handheld instruments, consumer appliances, and embedded device dashboards. Built to industry datasheet standards with categorized luminous intensity and robust absolute-maximum ratings, this dual-digit module is ideal for designers needing a reliable, easy-to-drive numeric display with a small PCB footprint.

Key Specs

Part Number: LTD323P-03
Manufacturer: Lite-On Electronics
Display Type: 2-digit, 7-segment (dual digit)
Digit Height: 0.30 in (7.62 mm)
Color: Bright Red (GaP / AlGaAs family per datasheet family options)
Configuration: I.C.-compatible, common anode / multiplex friendly (refer to part datasheet)
Forward Voltage (per segment): typ ~2.0–2.6 V (see datasheet for exact value)
Forward Current (per segment): typical drive up to ~15–20 mA (refer to part rating)
Luminous Intensity: categorized per datasheet (parts are binned for brightness)
Operating Temperature: typically −35 °C to +85 °C (datasheet spec)
Package / Mounting: 10-pin DIP through-hole, PCB mount friendly
Applications: Panel meters, digital clocks/counters, portable instruments, consumer electronics, embedded displays
Compliance & Notes: I.C. compatible; datasheet includes absolute maximum ratings and recommended drive conditions.
