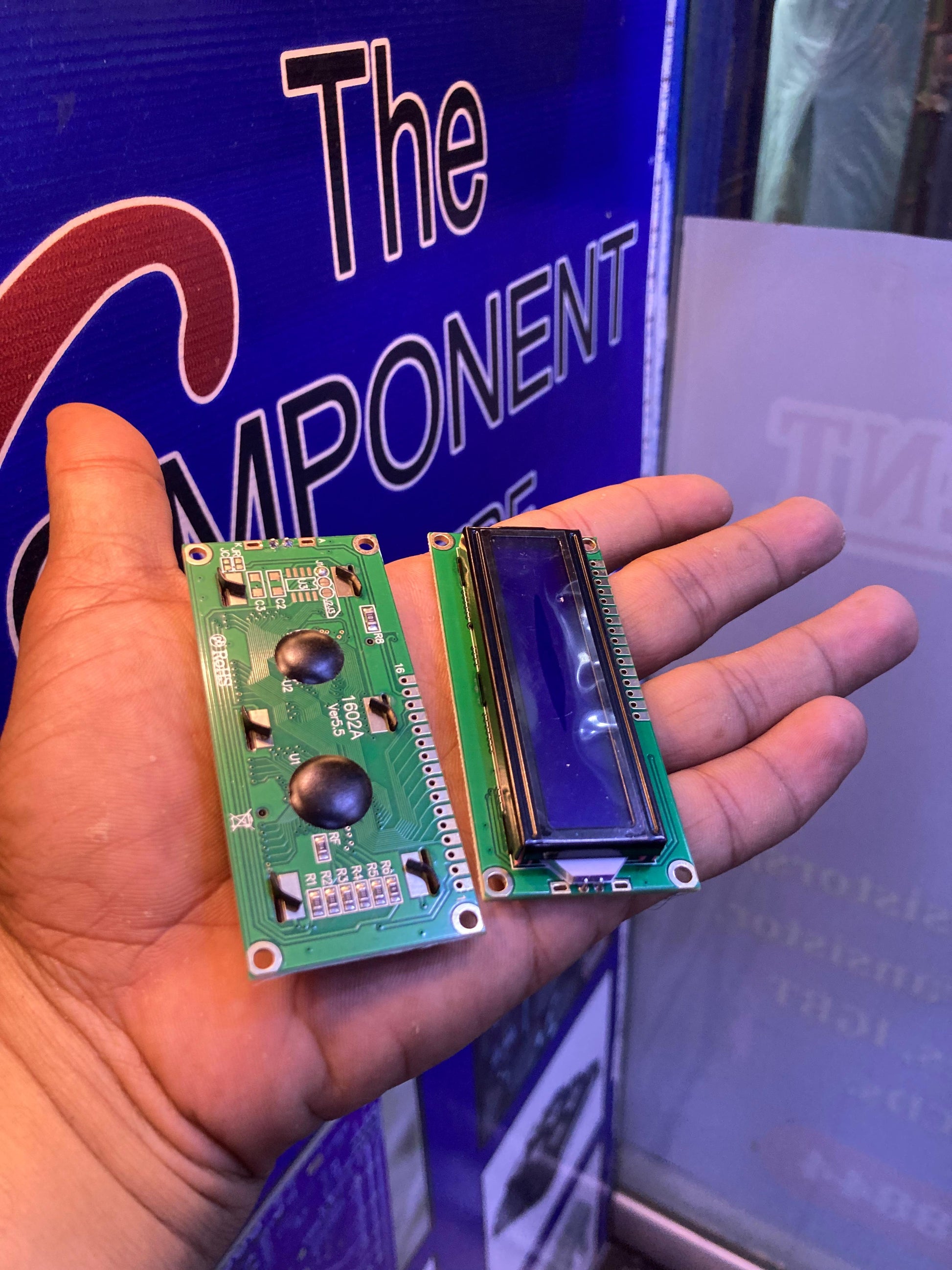

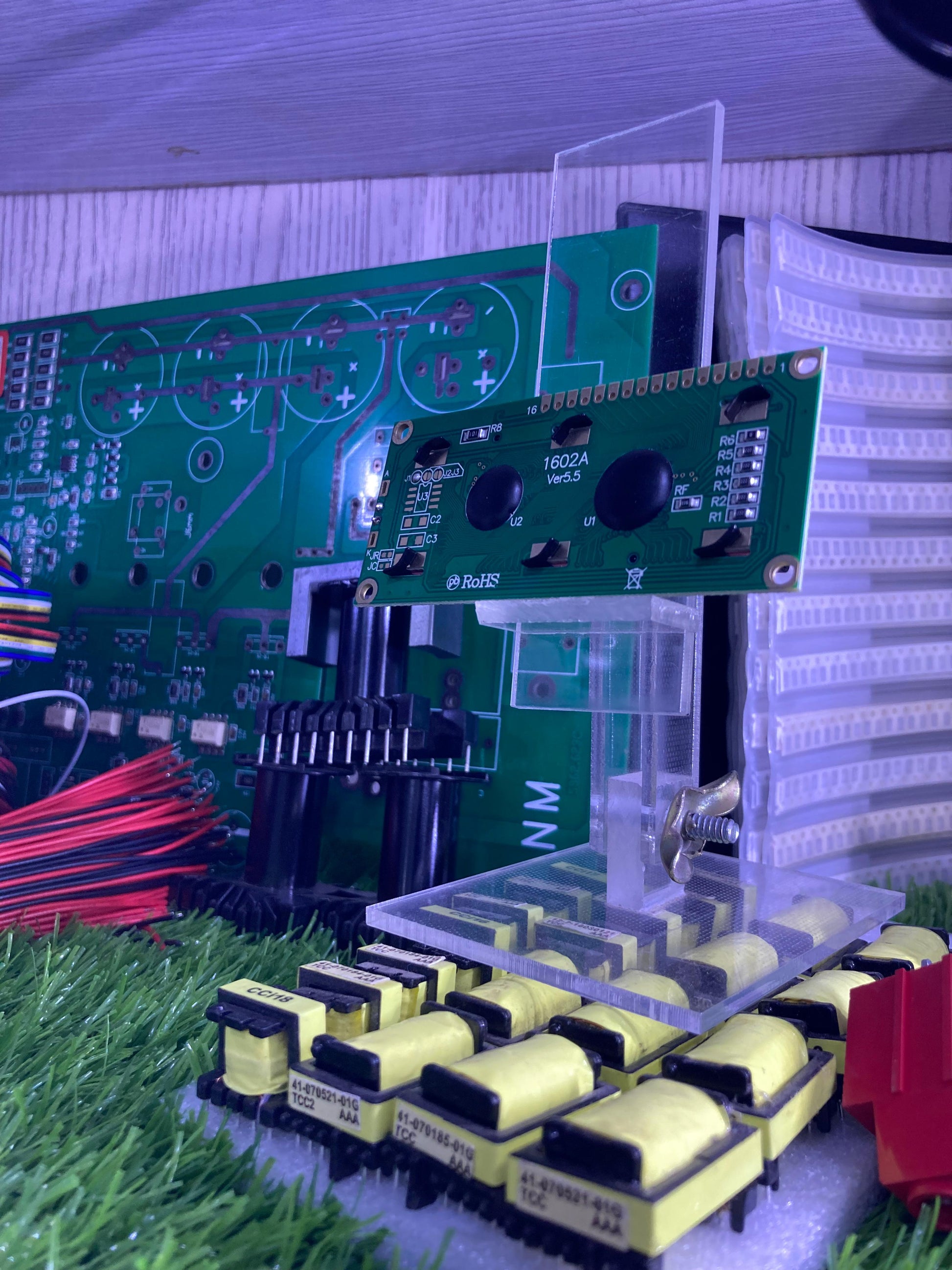

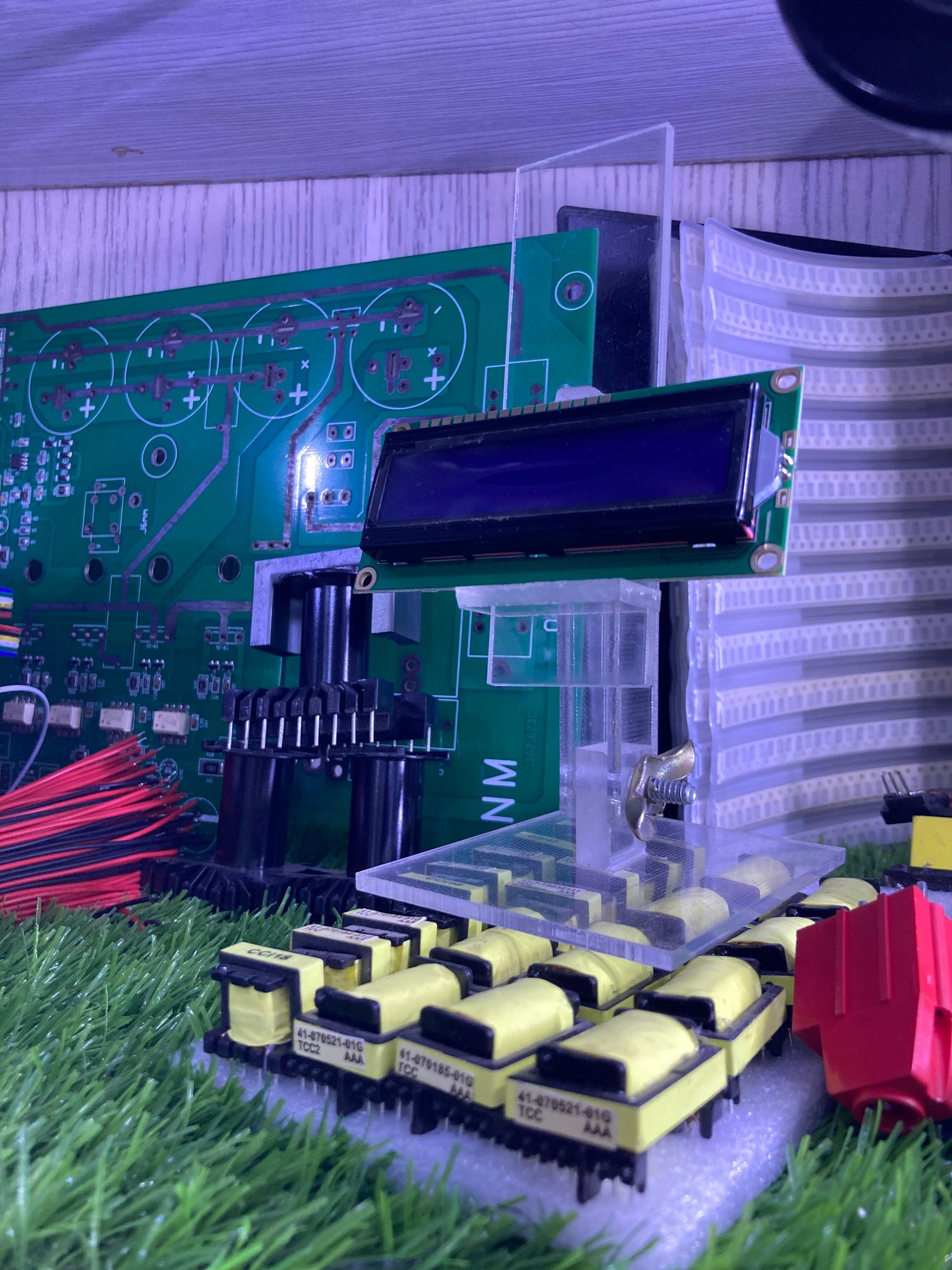

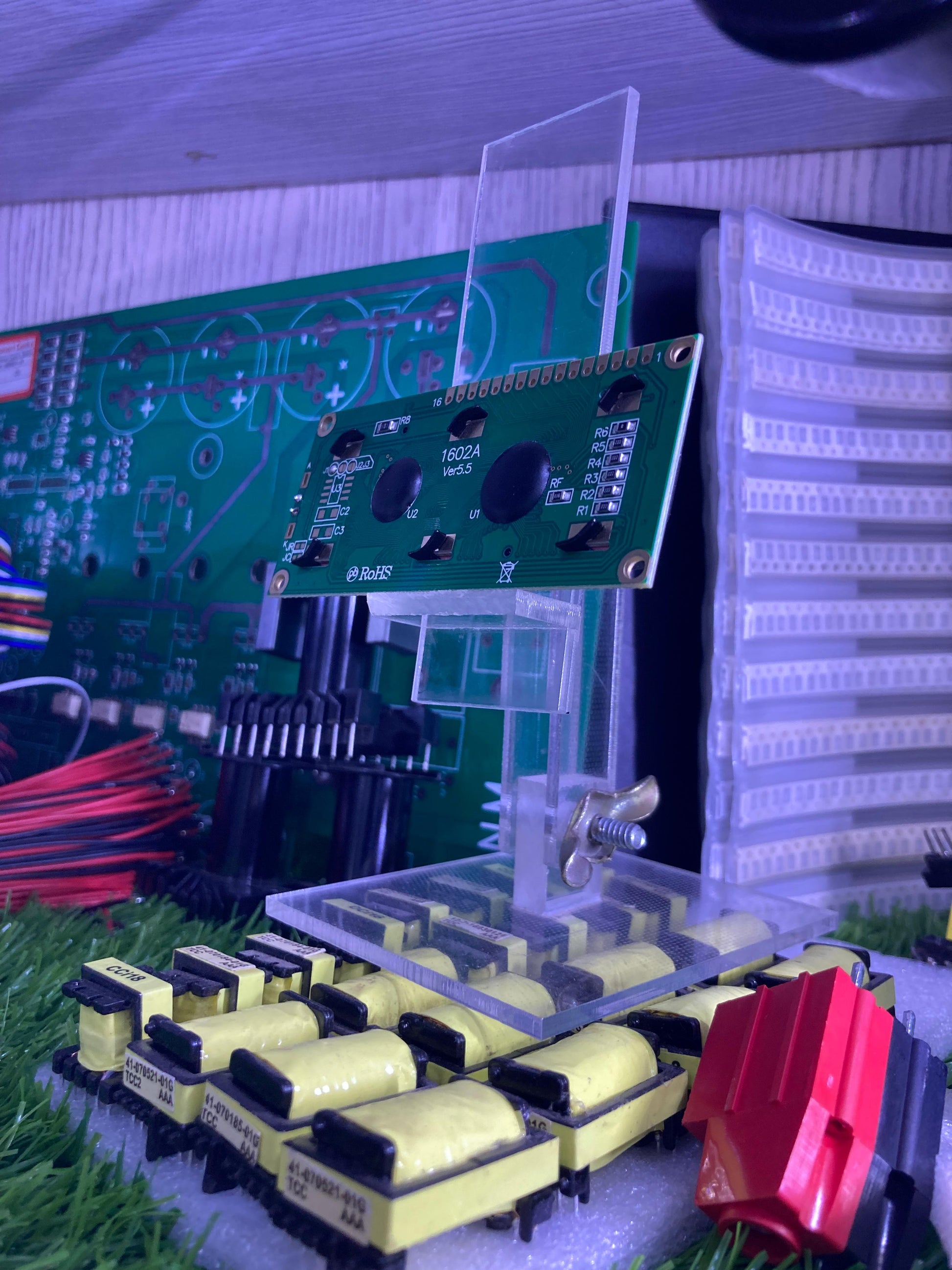

16×2 Blue LCD Display
The 16×2 Blue LCD Display is a compact alphanumeric module that provides white characters on a blue backlight, suitable for instrumentation, control interfaces, and embedded power-electronics designs. Built around common character controllers such as the HD44780 or SPLC780D1, it supports both 4-bit and 8-bit parallel communication and works with Arduino, Raspberry Pi, and a wide range of microcontrollers.
The display requires only a limited number of I/O pins in 4-bit mode, allowing straightforward integration into systems where resources are constrained. Its LED backlight improves visibility in low-light environments, while the COB construction and 5×7 dot matrix character layout help maintain stable readability and consistent performance across standard temperature ranges.
Mechanical dimensions and pin configurations may differ slightly between manufacturers, so consult the appropriate datasheet when defining mounting points, electrical tolerances, or interface timing. Referencing the specific part documentation ensures correct installation and reliable long-term operation.
Key Specifications
| Parameter | Value |
|---|---|
| Display format | 16 characters × 2 lines |
| Character matrix | 5 × 7 dots |
| Controller type | HD44780 / SPLC780D1 compatible |
| Interface | 4-bit or 8-bit parallel |
| Typical I/O (4-bit mode) | 6 pins |
| Operating voltage | 5 V DC |
| Backlight | Blue LED with white characters |
| Viewing angle | 6 o’clock |
| Operating temperature | −20 °C to +70 °C (varies by manufacturer) |
| Construction | COB (Chip-On-Board) |
| Compatibility | Arduino, Raspberry Pi, PIC, 8051, STM32, ESP8266/ESP32 |
