Kyocera AVX PD100KN16 1600V 100A Module

PD100KN16 1600V 100A Diode Module – Kyocera AVX Power Rectifier Module

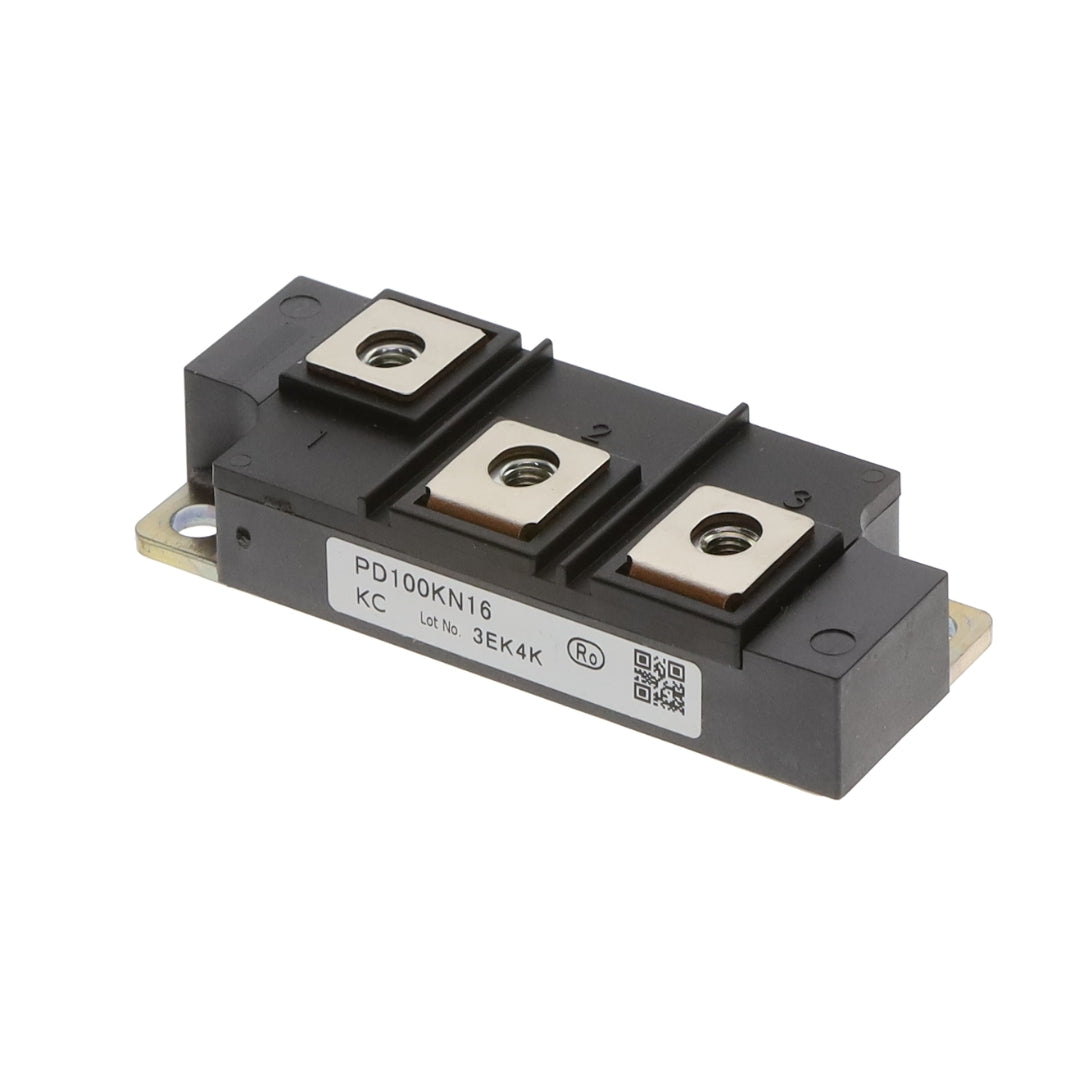

The PD100KN16 is a high-reliability 1600 V, 100 A rectifier diode module from Kyocera AVX. It features a pair of series-connected silicon diodes. This chassis-mounted module simplifies AC-to-DC conversion in industrial power systems.

Designed with an electrically isolated copper baseplate, the PD100KN16 supports efficient heat dissipation and UL-recognized safety standards. It withstands harsh environments with a maximum junction temperature of 150 °C and operational range down to –40 °C.

The module is ideal for use in inverters, UPS systems, battery chargers, industrial automation, and welding power supplies. It handles inrush currents and delivers consistent performance even at elevated temperatures.

Key Specs Voltage Rating: 1600 V repetitive peak reverse voltage (V_RRM) Current Rating: 100 A average forward current Peak Forward Voltage: ~1.54 V @ 320 A (max) Reverse Leakage Current: ≤10 mA @ 1600 V Operating Temperature: –40 °C to +150 °C (junction) Package: Chassis-mount module with isolated copper base Technology: Silicon rectifier diode array (series pair) Applications: Industrial rectifiers, inverters, UPS systems, welding, battery chargers Brand: Kyocera AVX Compliance: RoHS, UL recognized
