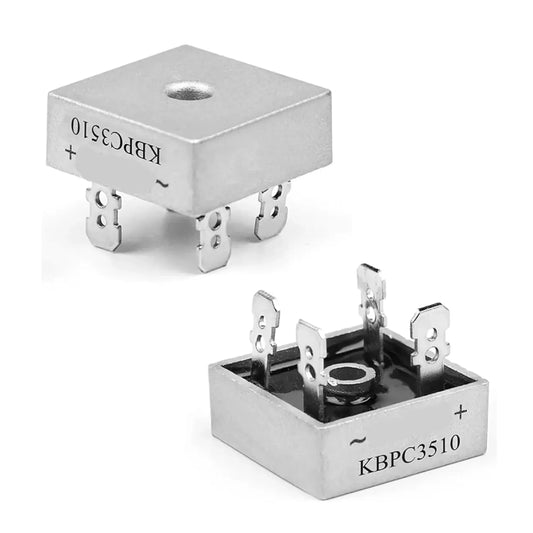

KBPC3510 35A 1000V Bridge Rectifier
Regular price
Rs.150.00
Sale price
Rs.200.00

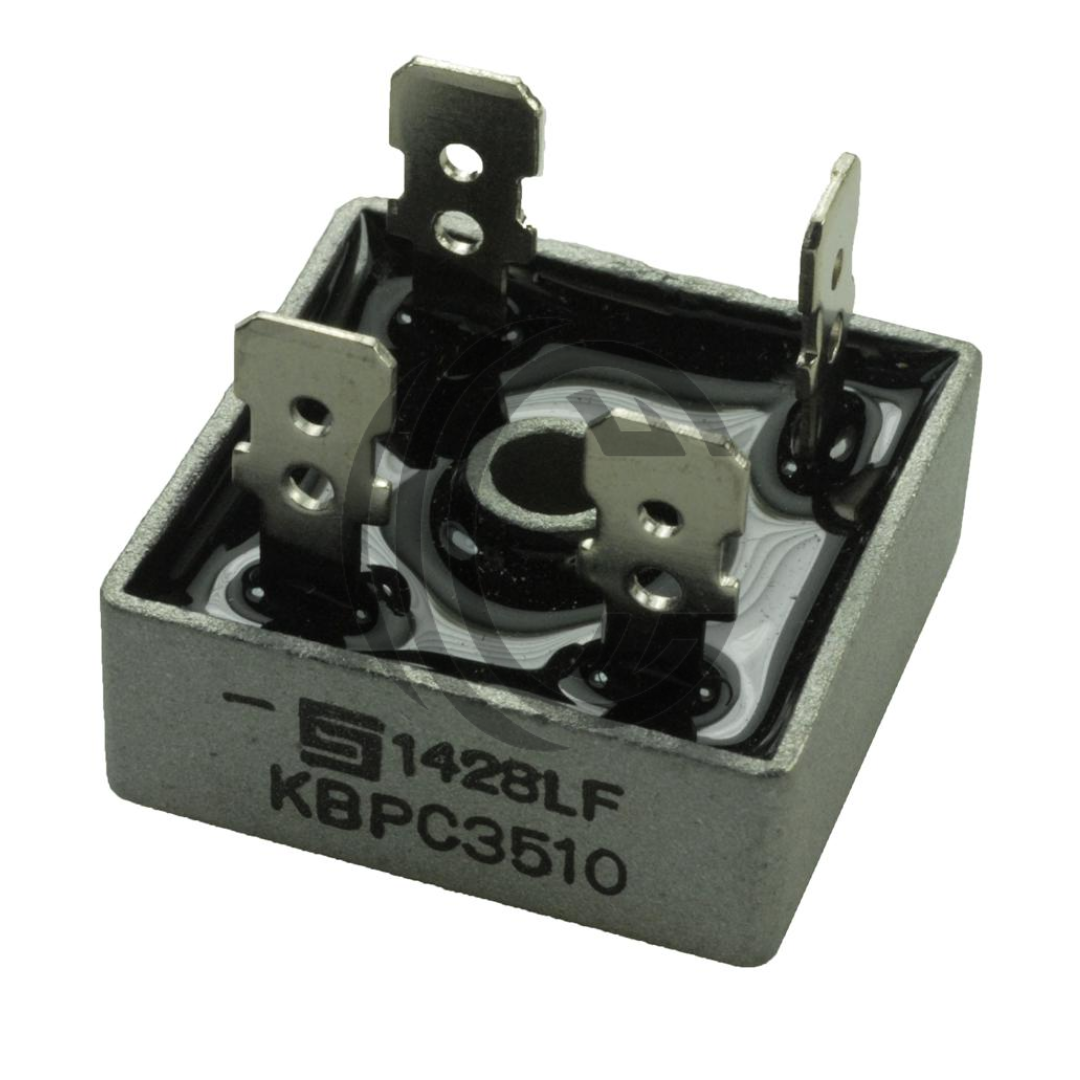

KBPC3510 — 35 A / 1000 V Single Phase Metal Case Bridge Rectifier
The KBPC3510 is a single-phase bridge rectifier designed for AC-to-DC conversion in industrial and commercial power systems. It provides a 35 A average output rating and a 1000 V repetitive peak reverse voltage, housed in a metal case with a mounting hole for secure installation and effective heat transfer. With glass-passivated junctions and a low forward voltage drop, the device supports stable operation in power supplies, LED drivers, motor control units, and battery-charging equipment.
The rectifier is built to handle high surge conditions, supporting up to approximately 400 A non-repetitive surge current (8.3 ms half-sine). Its typical forward voltage of around 1.2 V per diode reduces conduction losses under load. The electrically isolated metal case provides case-to-terminal isolation up to about 2500 V, allowing safe integration into high-voltage assemblies. The thermal resistance of roughly 2.0 °C/W (junction-to-case) enables consistent performance when used with appropriate heatsinking.

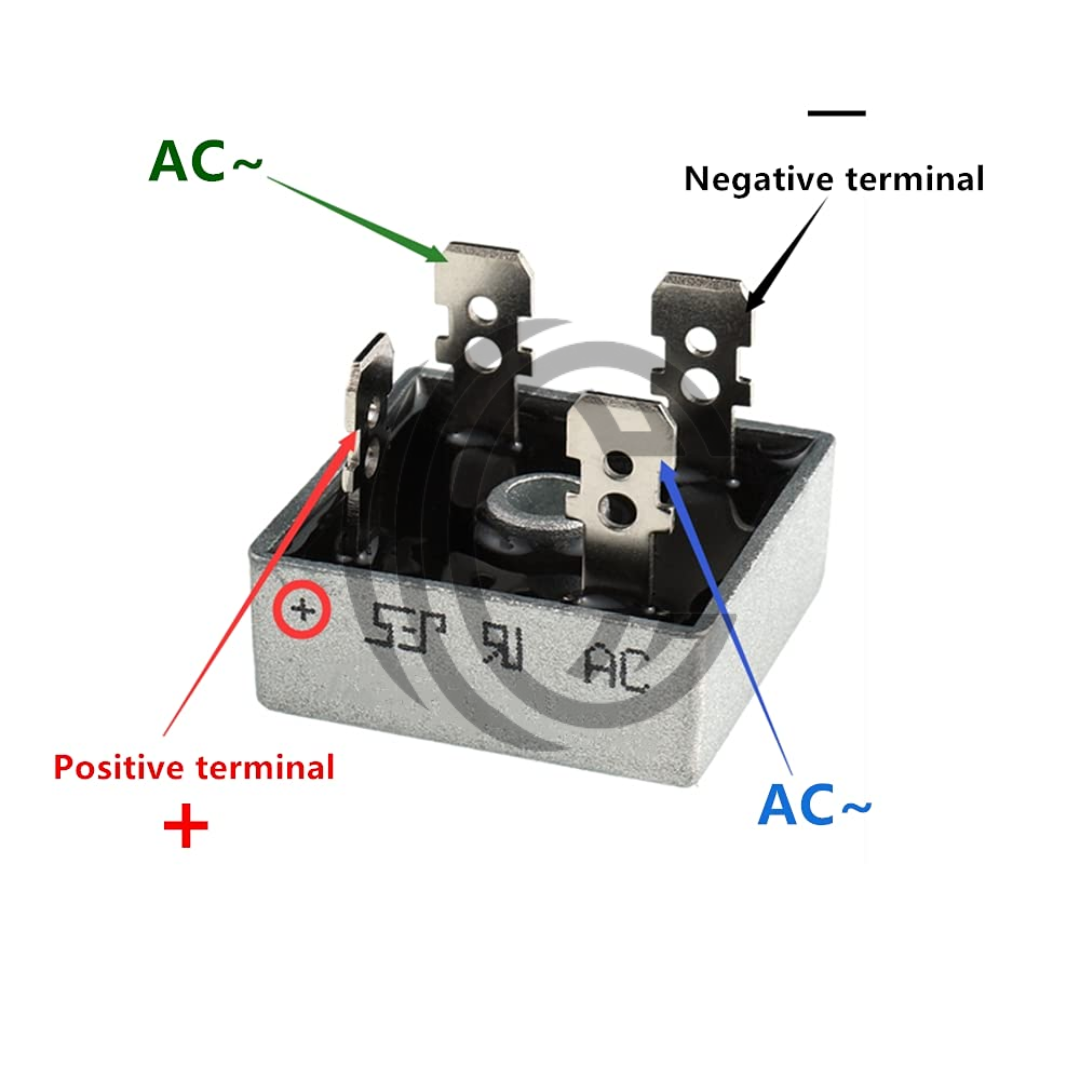

The KBPC3510 is available from multiple global manufacturers, commonly supplied with UL recognition and RoHS conformity. Its 4-pin through-hole configuration supports PCB or screw-mounted installation, making it suitable for general-purpose rectification in automation equipment, instrumentation, and AC-DC power modules.
Key Specifications — KBPC3510
| Parameter | Value |
|---|---|
| Maximum Repetitive Peak Reverse Voltage (VRRM) | 1000 V |
| RMS Input Voltage (VRMS) | 700 V |
| DC Blocking Voltage (VDC) | 1000 V |
| Average Forward Output Current (Iₒ) | 35 A |
| Peak Surge Current (IFSM, 8.3 ms) | 400 A |
| Typical Forward Voltage (per diode) | ~1.2 V |
| Thermal Resistance Junction-to-Case (RθJC) | ~2.0–2.1 °C/W |
| Case-to-Terminal Isolation | ~2500 V RMS |
| Operating Junction Temperature | −55 °C to +150 °C |
| Package Type | Metal-case, 4-pin through-hole |
| Compliance | UL Recognized (varies), RoHS |
