MBR3020CT 30A 20V Dual Schottky Rectifier Diode
Regular price
Rs.250.00
Sale price
Rs.300.00
MBR3020CT 30 A Schottky Barrier Rectifier Diode
The MBR3020CT is a dual Schottky barrier rectifier diode rated at 30 A forward current and 20 V reverse voltage, designed for efficient power rectification. Its low forward voltage drop and fast recovery reduce heat generation and switching losses, making it suitable for high-current circuits. The TO-220AB package ensures effective thermal performance and compact mounting in space-constrained designs.
This diode is suitable for use in power supplies, battery chargers, DC-DC converters, and industrial systems. Its stable characteristics and fast response make it appropriate for UPS systems, solar inverters, motor drives, and automotive power electronics.
With durable construction and reliable performance, the MBR3020CT provides a practical solution for efficient power conversion.
Key Specs of MBR3020CT
| Parameter | Specification |
|---|---|
| Maximum Forward Current (I_F(AV)) | 30 A |
| Maximum Repetitive Reverse Voltage (V_RRM) | 20 V |
| Diode Type / Configuration | Dual Schottky barrier rectifier, common-cathode |

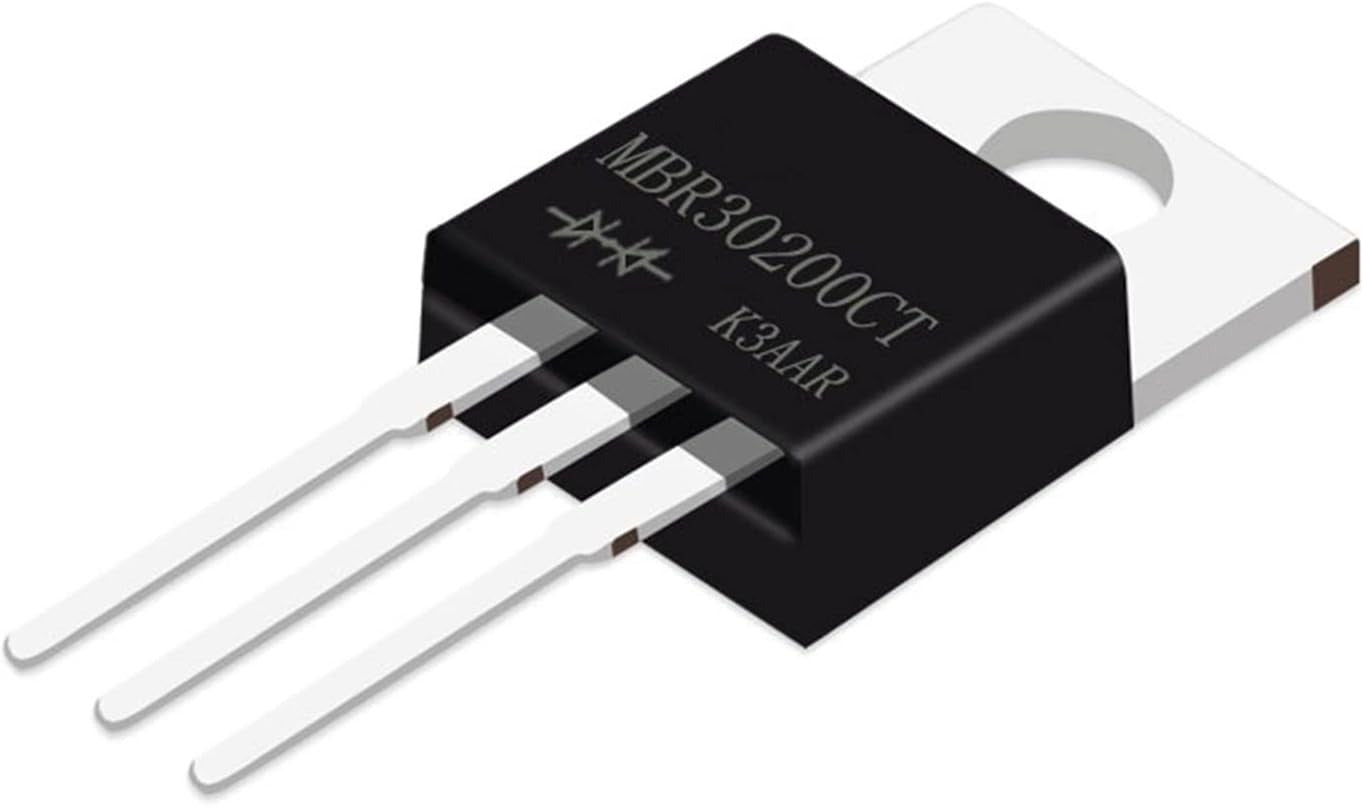

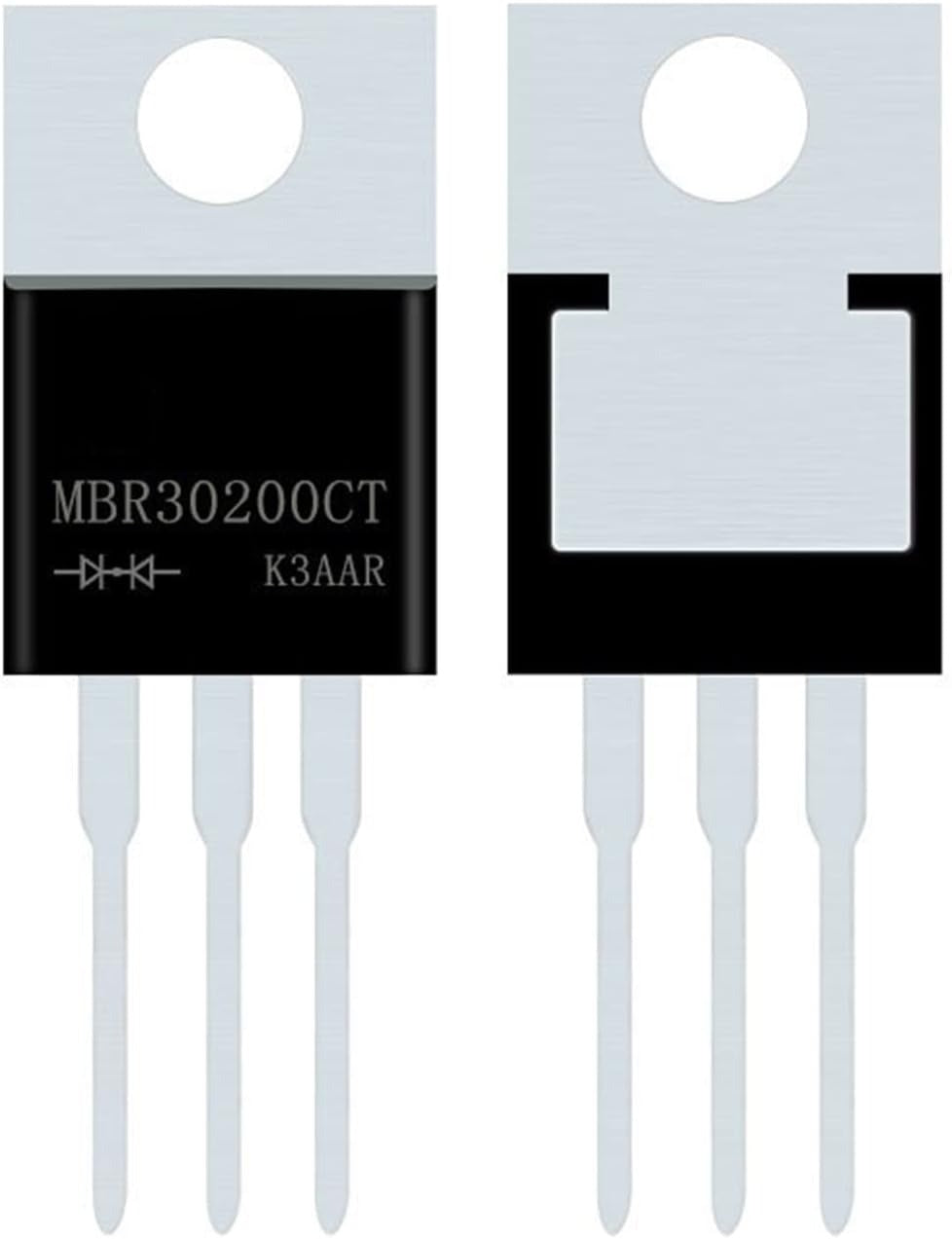

| Package / Case | TO‑220AB molded plastic body |
| Forward Voltage Drop (typical) | Low |
| Reverse Leakage Current | Low leakage at rated conditions |
| Surge / Peak Forward Current | High surge capability |
| Operating / Storage Temperature Range | –55 °C to +150 °C |
| Compliance | RoHS |
| Typical Applications | Power supplies, battery chargers, DC‑DC converters, solar inverters, UPS, motor drives, automotive power systems |

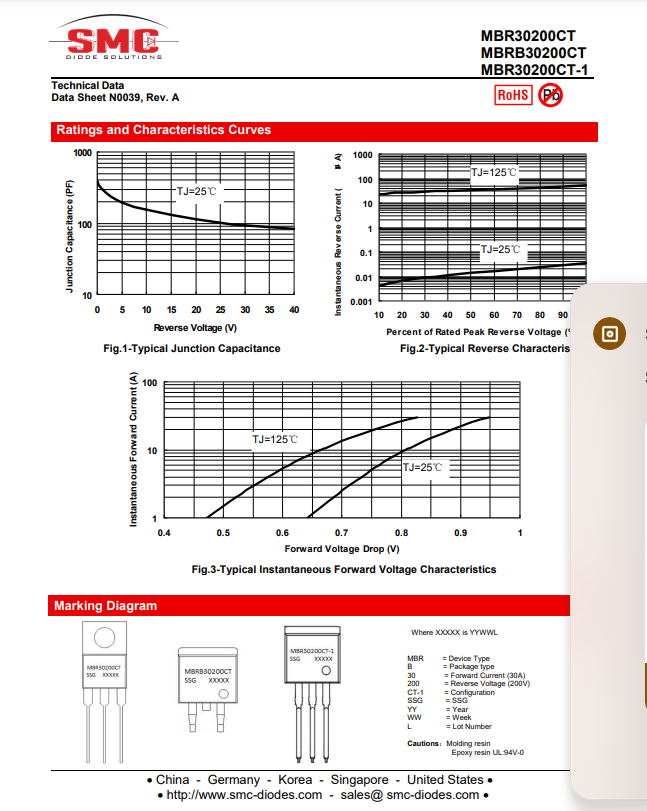

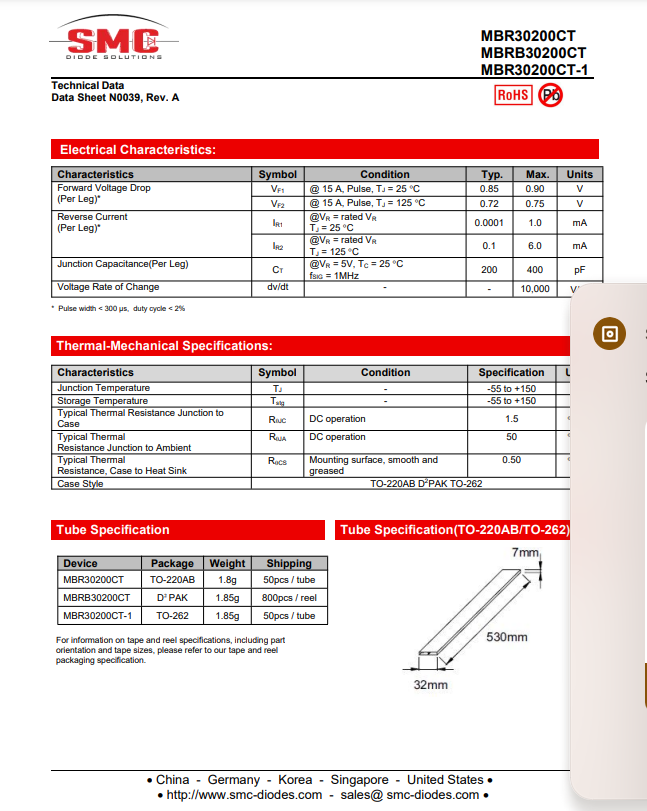

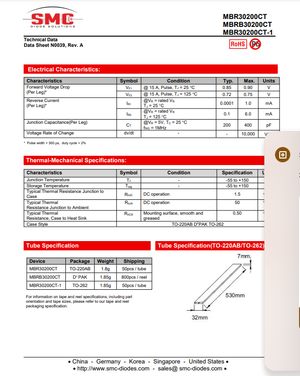

For detailed electrical and thermal characteristics, please consult the MBR3020CT datasheet.
