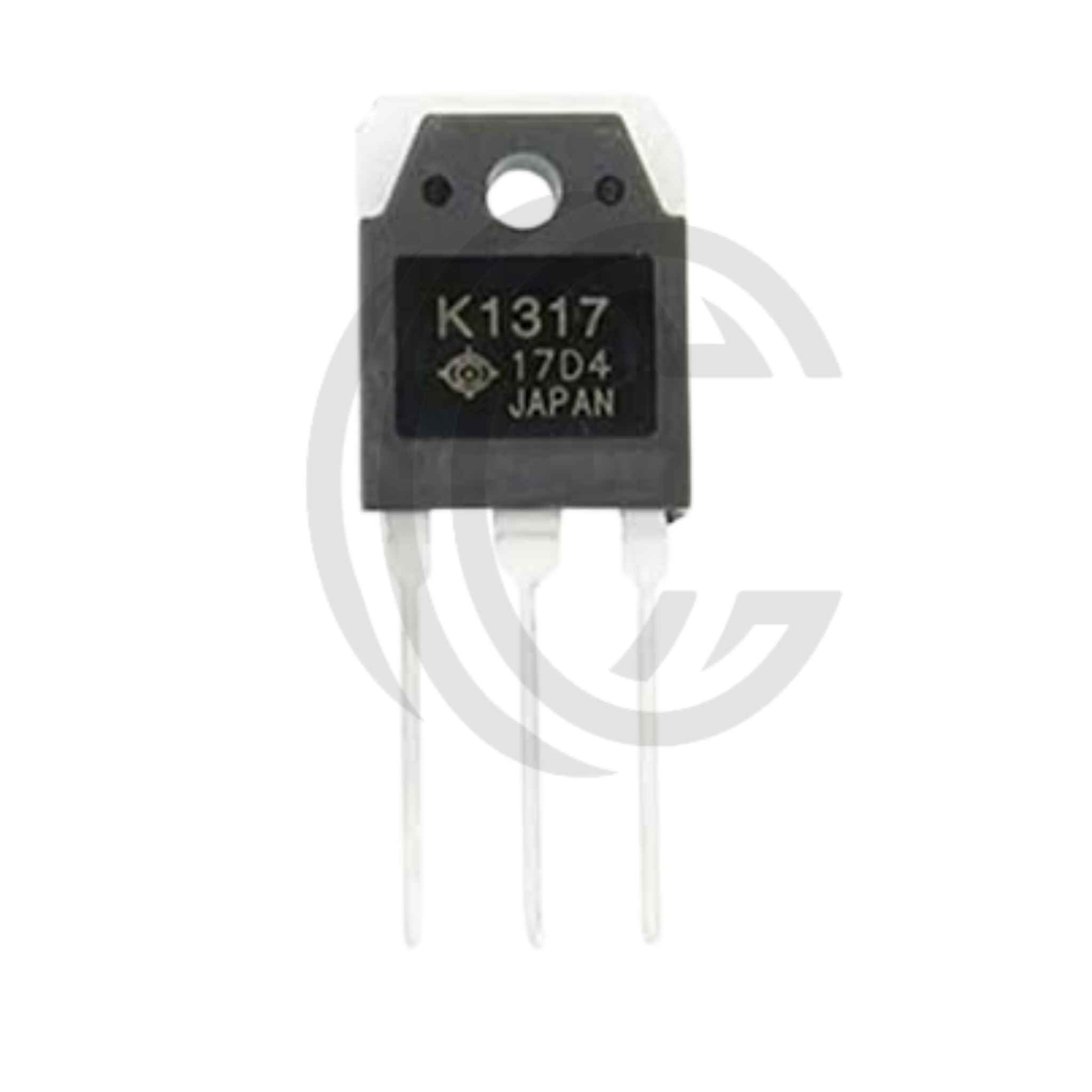

K1317 transistor component with three metal leads for electronic circuit applications

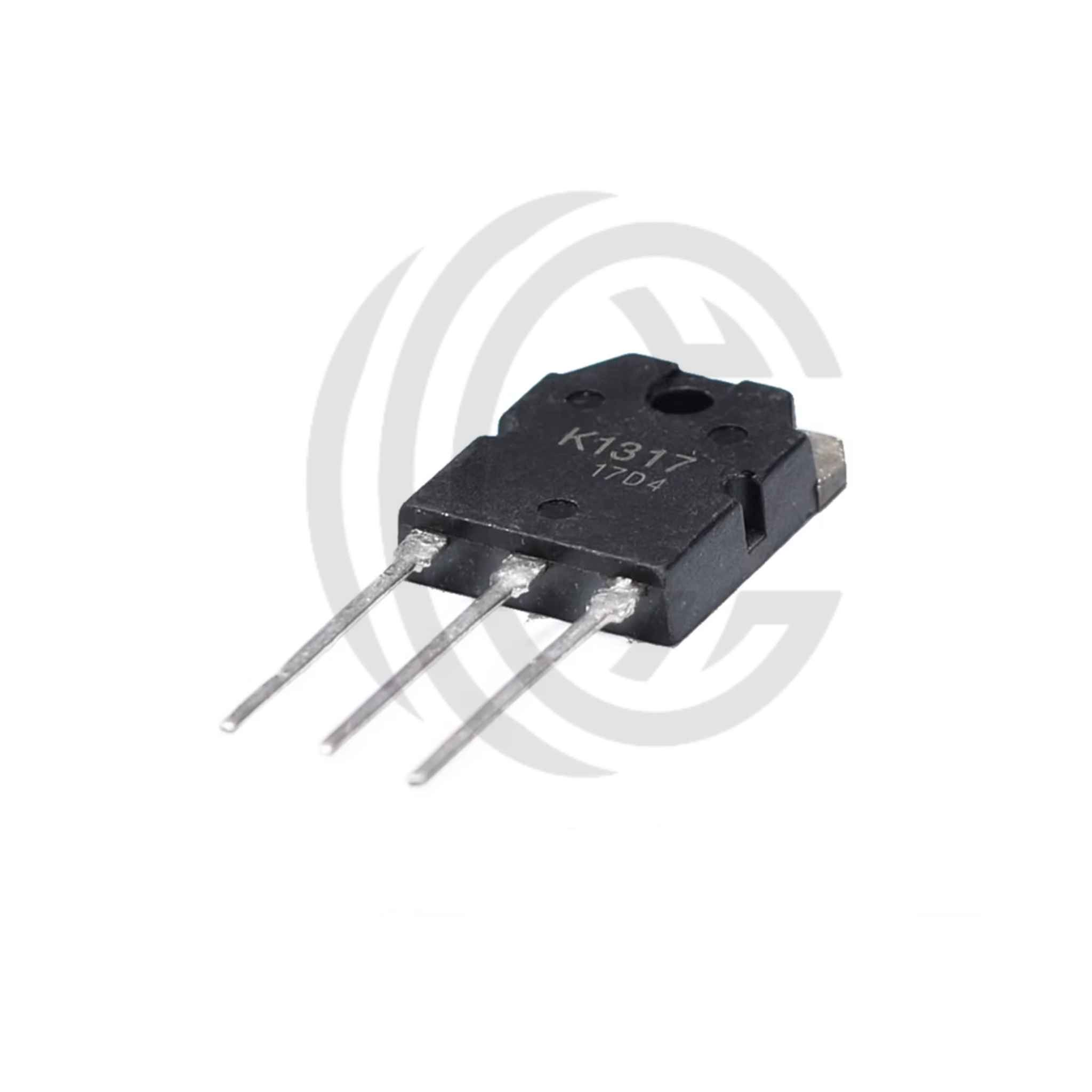

K1317 electronic transistor component with three metal leads and black rectangular body

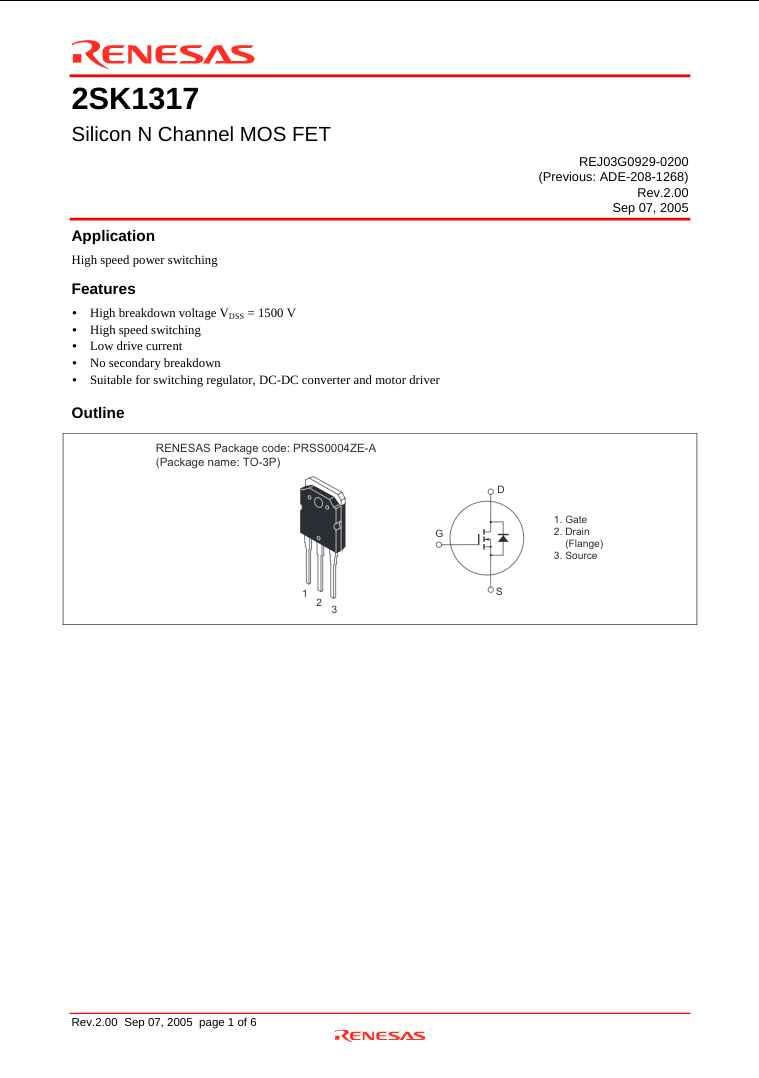

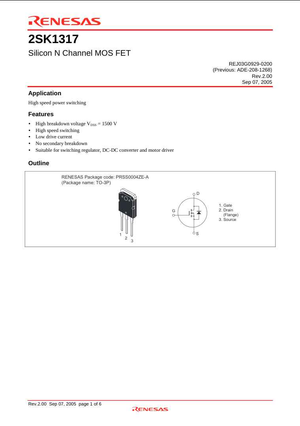

Renesas 2SK1317 Silicon N Channel MOS FET high speed power switching component

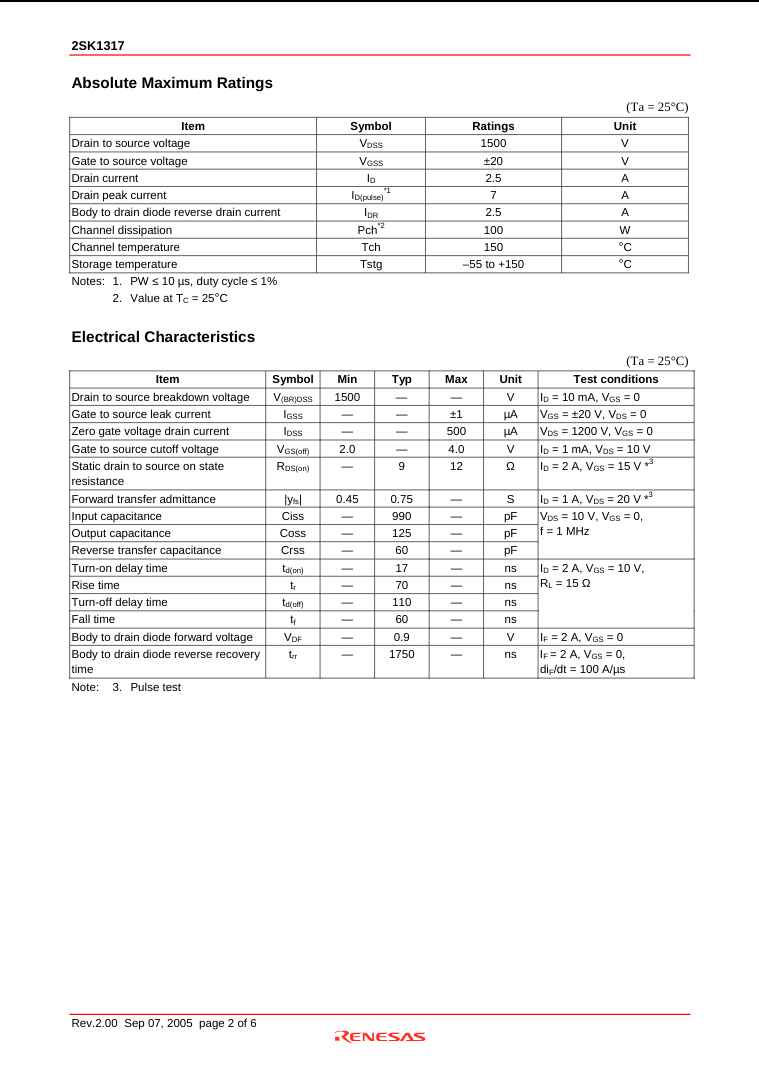

Technical datasheet page showing absolute maximum ratings and electrical characteristics for K1317 semiconductor

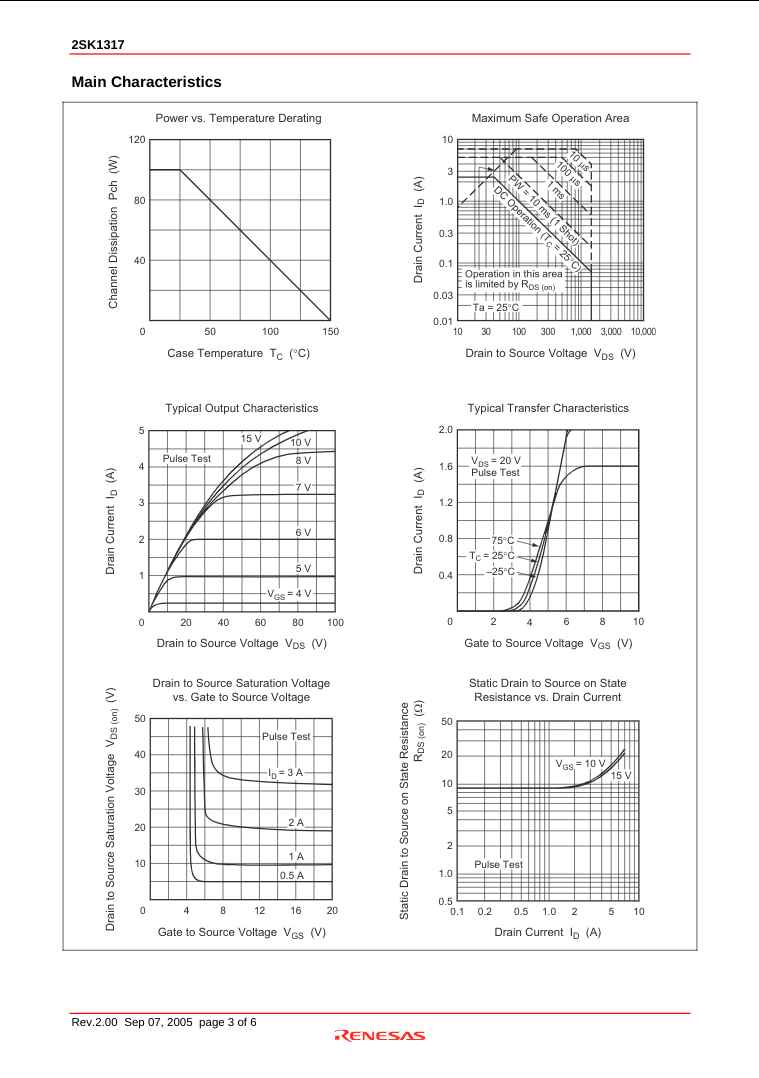

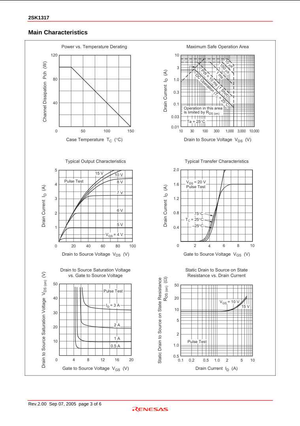

Technical datasheet page showing electrical characteristic graphs for K1317 transistor

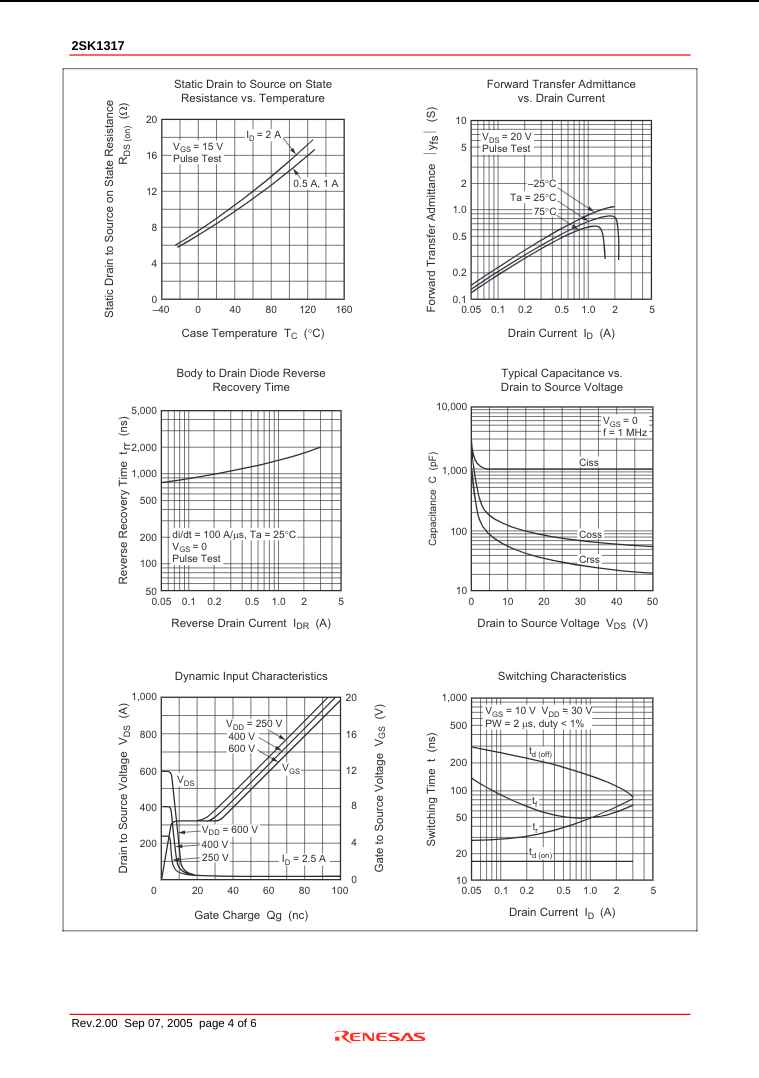

Technical performance graphs and characteristics datasheet for K1317 transistor

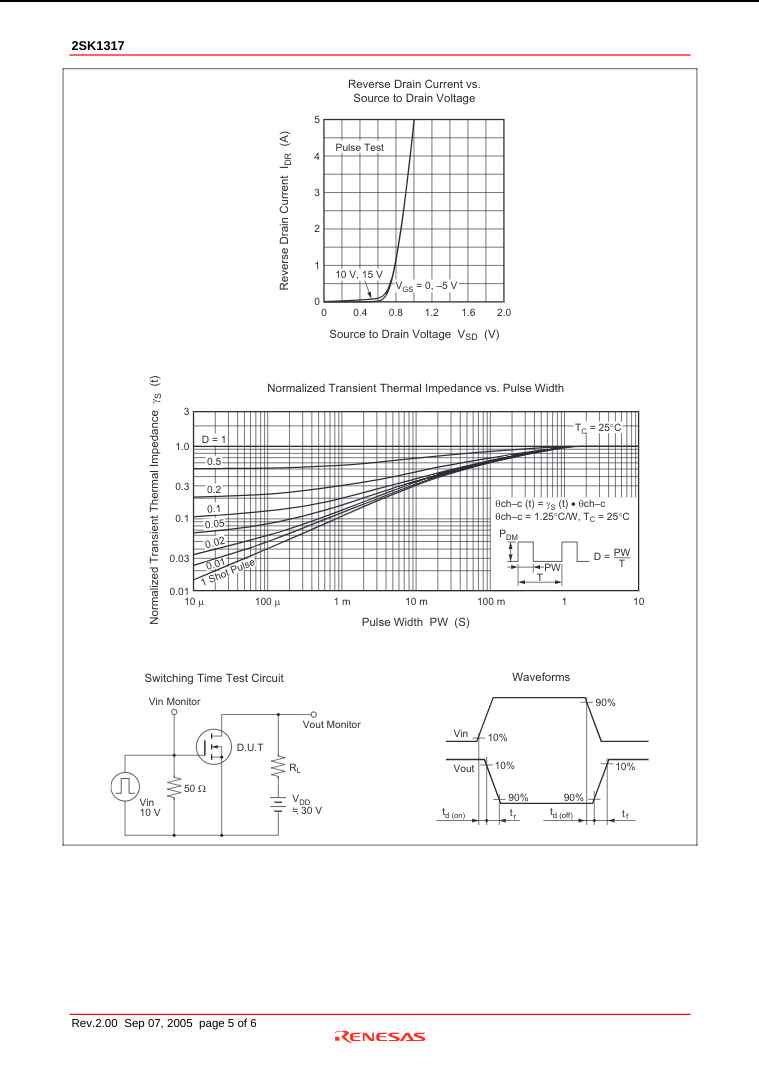

Technical datasheet page displaying graphs and circuit diagrams for K1317

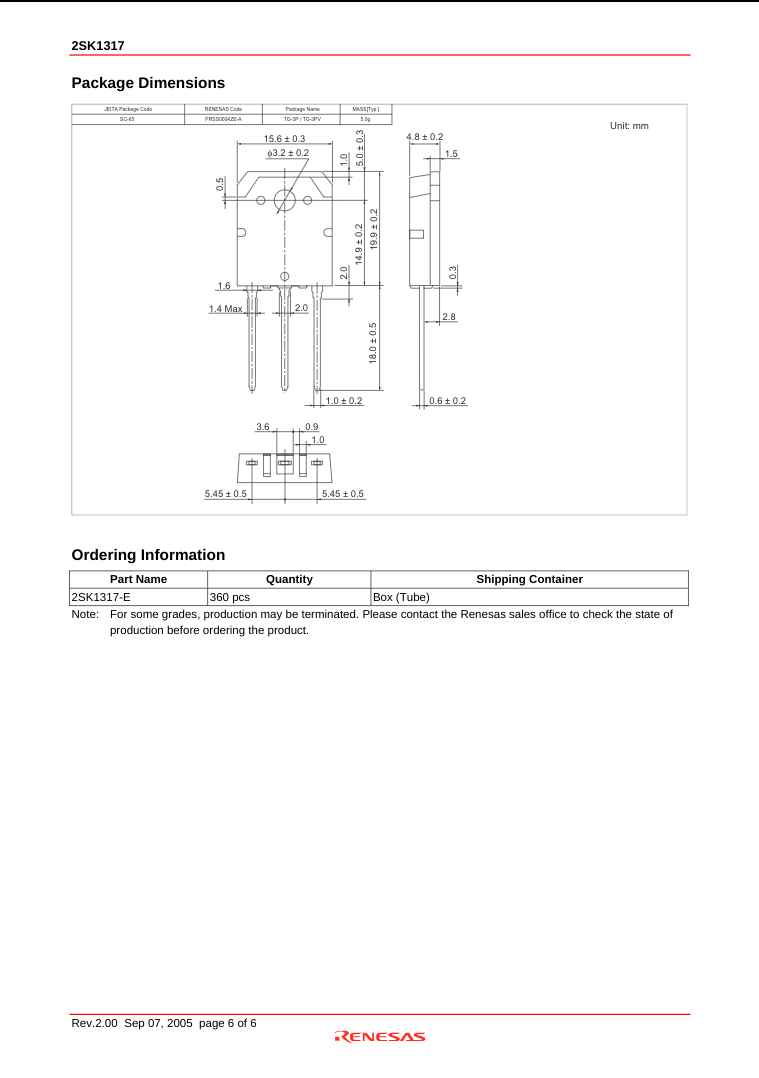

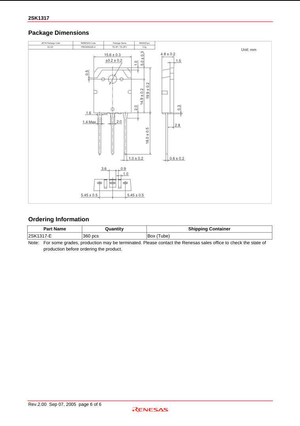

Technical drawing and package dimensions of K1317 electronic component
K1317 transistor component with three metal leads for electronic circuit applications
K1317 electronic transistor component with three metal leads and black rectangular body
Renesas 2SK1317 Silicon N Channel MOS FET high speed power switching component
Technical datasheet page showing absolute maximum ratings and electrical characteristics for K1317 semiconductor
Technical datasheet page showing electrical characteristic graphs for K1317 transistor
Technical performance graphs and characteristics datasheet for K1317 transistor
Technical datasheet page displaying graphs and circuit diagrams for K1317
Technical drawing and package dimensions of K1317 electronic component

K1317 N-Channel 1500V 2.5A MOSFET Transistor

Regular price Rs.270.00 Sale price Rs.250.00
7% OFF
In stock
Add to Wishlist Add to Compare
Frequently Bought Together
K1317 transistor component with three metal leads for electronic circuit applications
This item: K1317 N-Channel 1500V 2.5A MOSFET Transistor
Regular price Rs.270.00 Sale price Rs.250.00
Green printed circuit board held by hand for 5KVA power supply from The Component Centre
5KVA Solar Inverter PCB with Original TLP350H Optocoupler
Regular price Rs.3,700.00 Sale price Rs.3,500.00
Reel of TLP350H electronic components from The Component Centre in black and blue plastic packaging
Toshiba TLP350H 3750Vrms Gate Driver Optocoupler
Regular price Rs.210.00 Sale price Rs.185.00
Total price:
Regular total price Rs.4,180.00 PKR Sale total price Rs.3,935.00 PKR

Guarantee Safe Checkout

Visa
Mastercard
Google Pay
PayPal
Estimate delivery times 3-5 days (Pakistan-wide)
K1317 transistor component with three metal leads for electronic circuit applications

K1317 N-Channel 1500V 2.5A MOSFET Transistor

Rs.250.00

K1317 Transistor 1500V 2.5A – High Voltage N-Channel Power MOSFET

The K1317 transistor is a high-voltage N-channel MOSFET developed by Renesas Technology Corp, built for power switching in industrial electronics. With a drain-source voltage rating of 1500V and a continuous drain current of 2.5A, this component is ideal for high-frequency circuits requiring stable performance and efficient power handling.

Designed for use in DC-DC converters, switching regulators, and motor drivers, the K1317 features fast switching capability and low drive current. Its on-state resistance of 12Ω helps reduce conduction losses in high-voltage circuits. Housed in a TO-3P package, it provides strong thermal and mechanical reliability, simplifying integration into industrial control systems.

With a maximum power dissipation of 100W and output capacitance of 125pF, the K1317 supports precision switching in high-voltage environments. The absence of secondary breakdown improves long-term reliability and operating life in harsh conditions. It is especially suited for automation equipment, renewable energy systems, and high-frequency motor control where durability and performance are essential.

Key Specs Transistor Type: N-Channel MOSFET Drain-Source Voltage: 1500V Continuous Drain Current: 2.5A On-State Resistance: 12Ω Power Dissipation: 100W Output Capacitance: 125pF Package: TO-3P Applications: DC-DC Converters, Motor Control, Renewable Energy, Industrial Automation
