GUO40-16NO1 IXYS

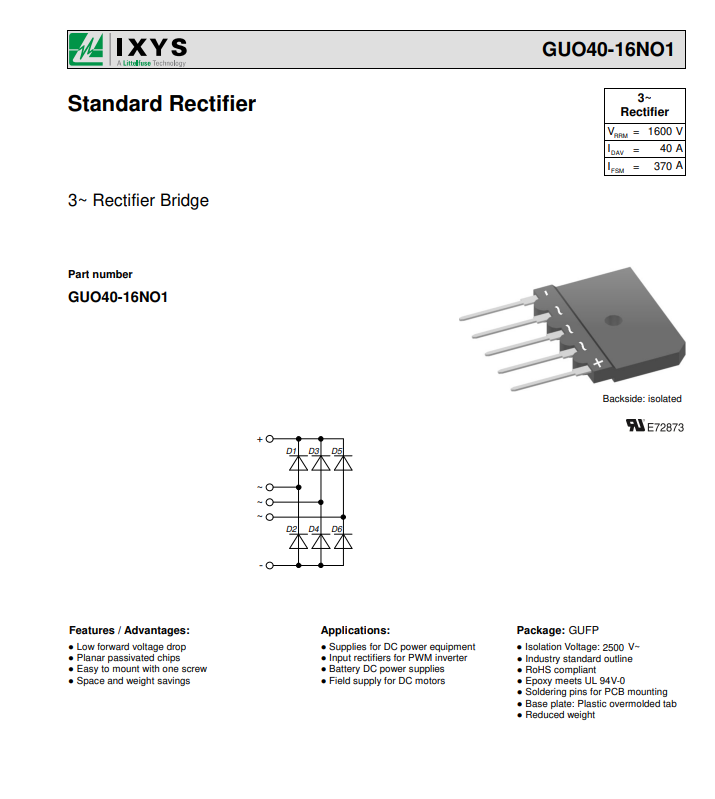

GUO40-16NO1 1600V 40A Three-Phase Bridge Rectifier – GUFP Package by IXYS

The GUO40-16NO1 is a three-phase bridge rectifier rated at 1600V and 40A, manufactured by IXYS. It utilizes planar passivated diode technology to deliver stable blocking voltage and low forward losses. With a surge current capability of up to 370A and a typical forward voltage drop of approximately 1.06V, it supports reliable AC to DC conversion in a range of industrial power systems.

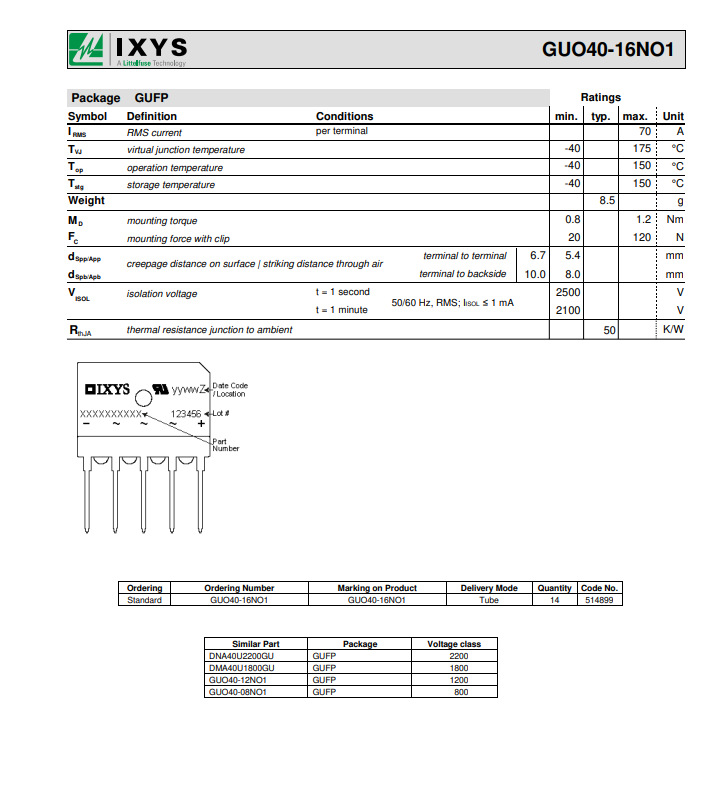

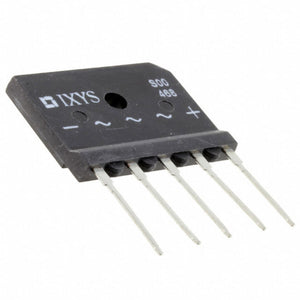

The device is housed in a GUFP through-hole package with a screw-mountable metal base for effective thermal conduction and mechanical stability. It supports operation from –40°C to +150°C and offers electrical insulation up to 2500V AC. The epoxy-encapsulated body meets UL 94V-0 flammability standards. This component is RoHS-compliant and lead-free, making it suitable for environmentally regulated applications including motor control units, rectifiers, UPS systems, and high-power DC supplies.

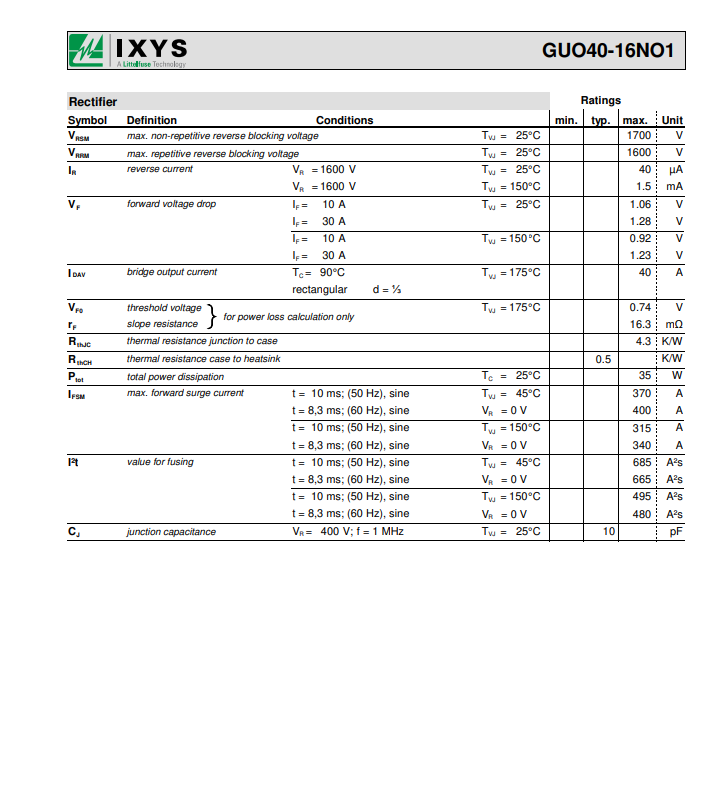

Key Specs Voltage Rating (VRRM): 1600V Current Rating: 40A Continuous Surge Current (IFSM): 370A Package: GUFP (Three-Phase Bridge) Technology: Planar Passivated Diode Forward Voltage Drop (Vf): ~1.06V Operating Temperature: –40°C to +150°C Insulation Voltage: 2500V AC Applications: Motor Drives, Battery Chargers, UPS, DC Power Supplies Brand: IXYS Compliance: RoHS & Pb-Free
