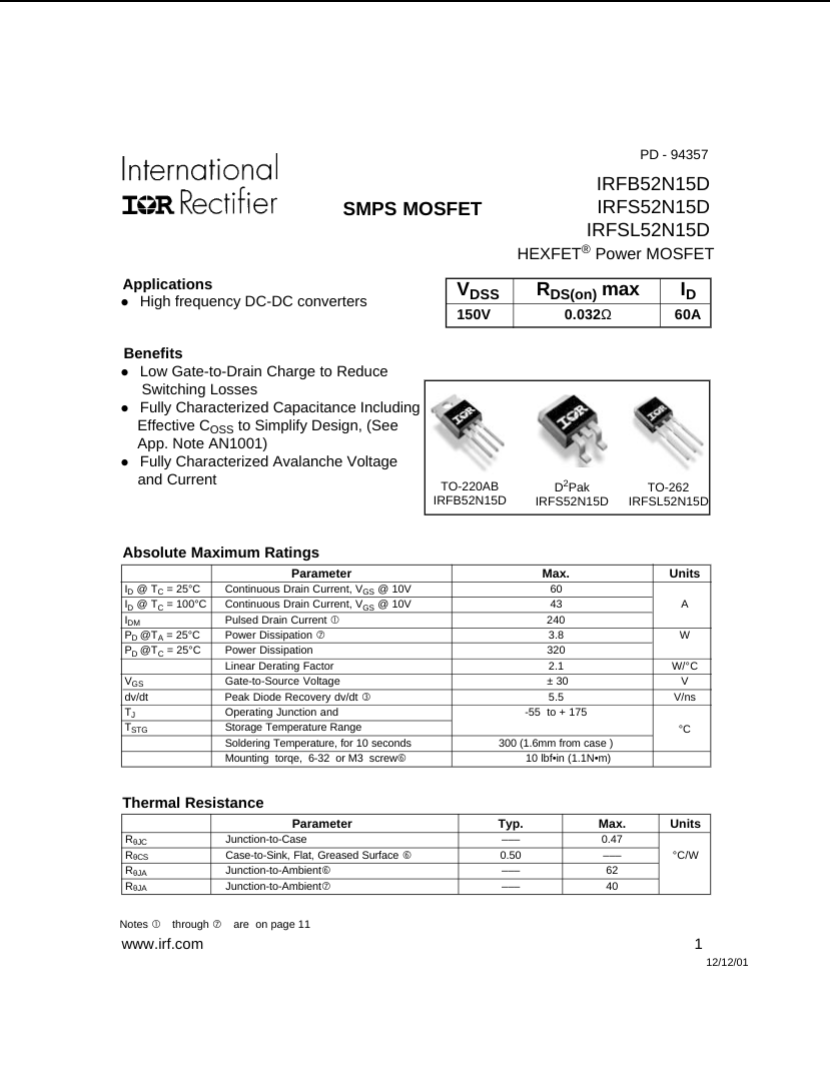

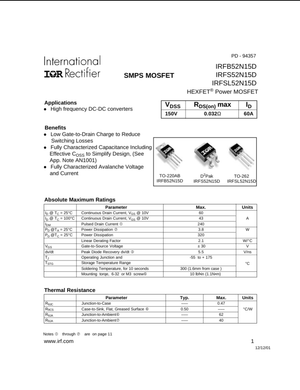

International Rectifier IRFB52N15D IRFS52N15D IRFSL52N15D HEXFET Power MOSFET datasheet with specs and electrical characteristics

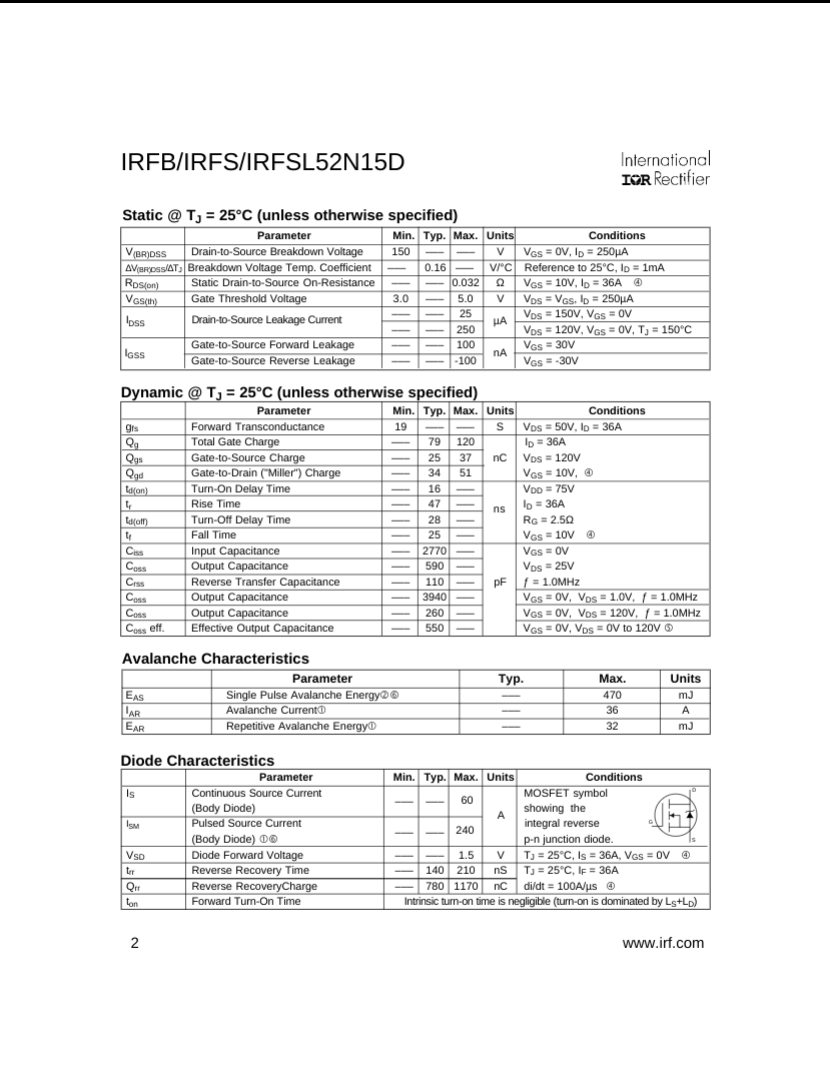

The Component Centre IRFB IRFS IRFSL52N15D International Rectifier datasheet with electrical specifications and diode characteristics

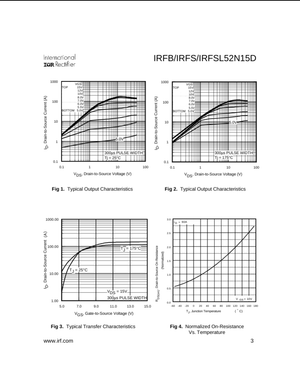

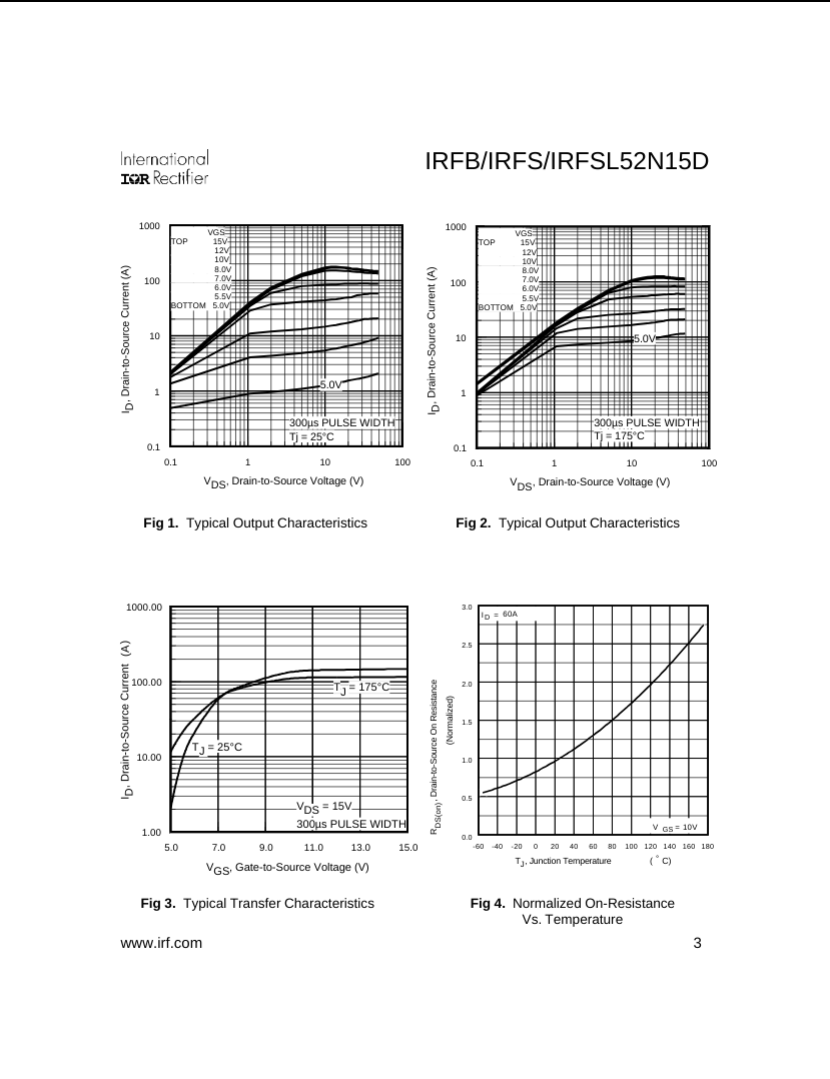

IRFBIRFSIRFSL52N15D transistor typical output and transfer characteristic graphs with Drain-to-Source current and temperature data

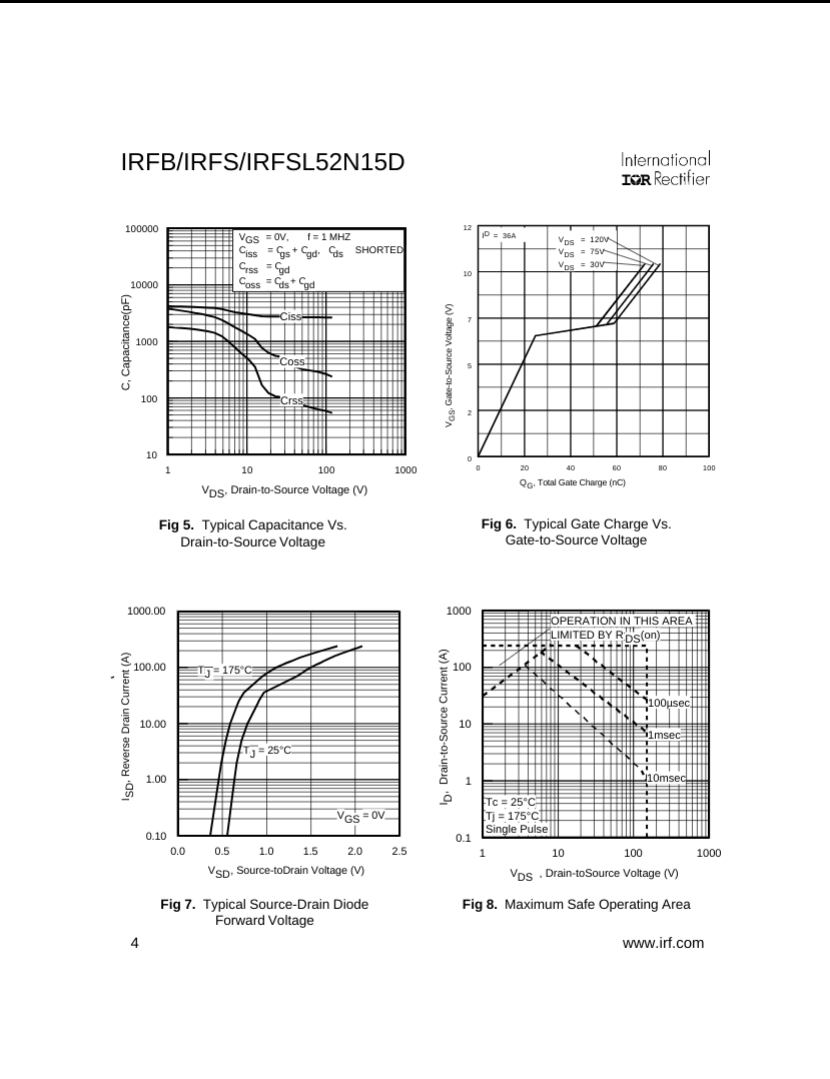

Technical graphs for IRFB IRFS IRFSL52N15D MOSFET showing capacitance, gate charge, diode forward voltage, and maximum safe operating area

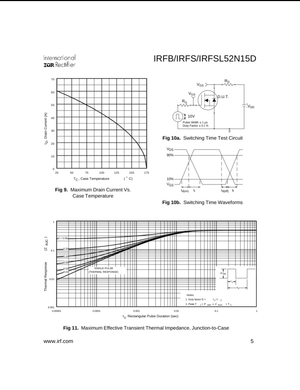

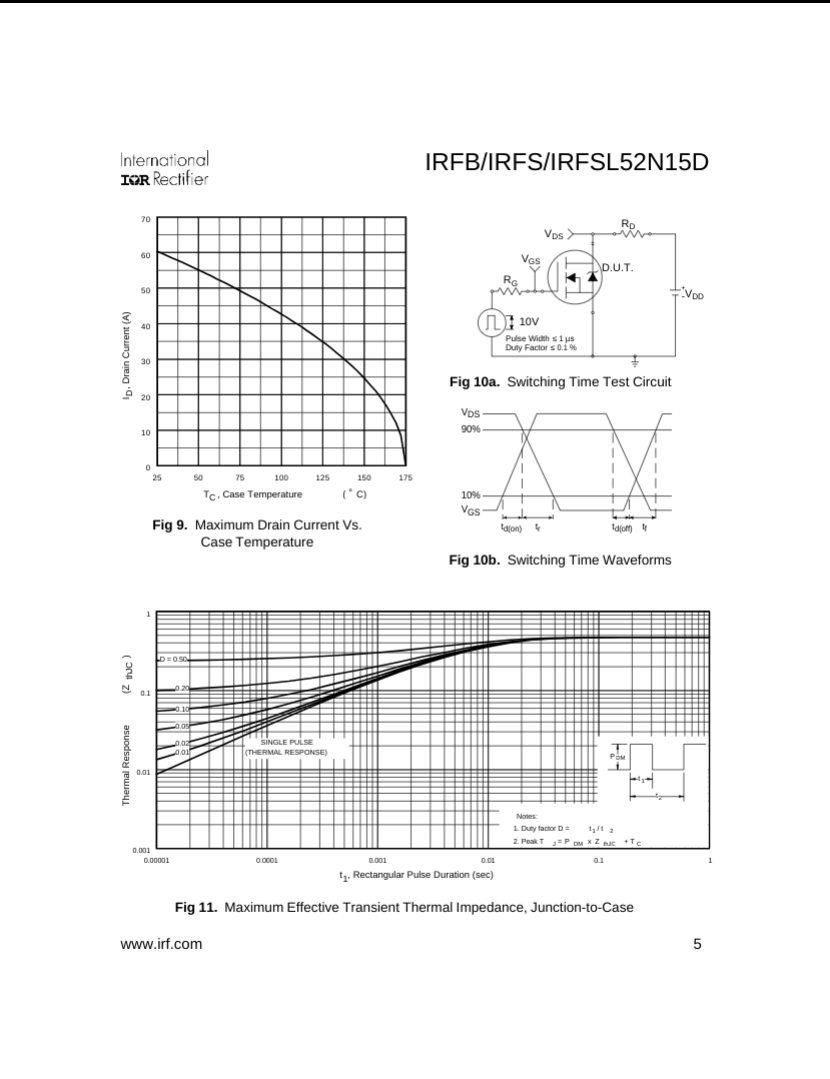

Graphs and circuit diagrams for IRFB IRFS IRFSL52N15D showing maximum drain current vs case temperature and switching time waveforms

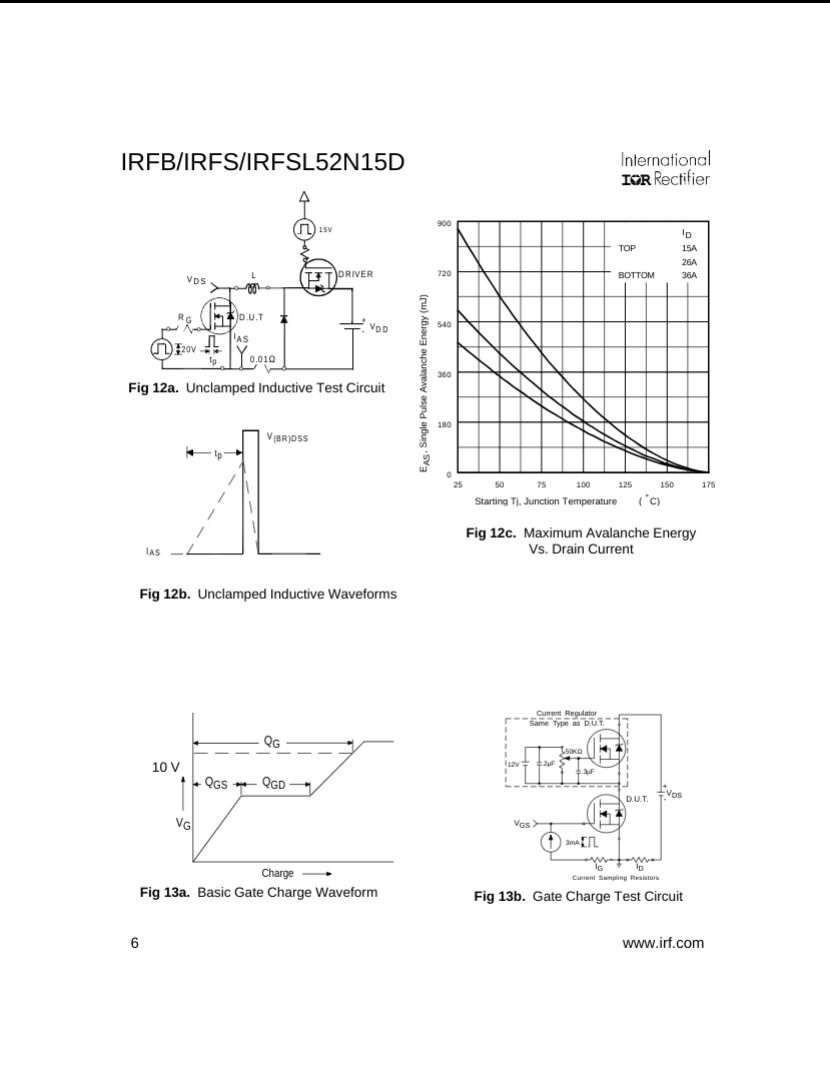

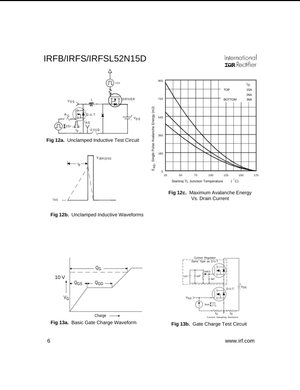

Technical diagrams and graphs for IRFB IRFS IRFSL52N15D MOSFET showing test circuits and waveform charts

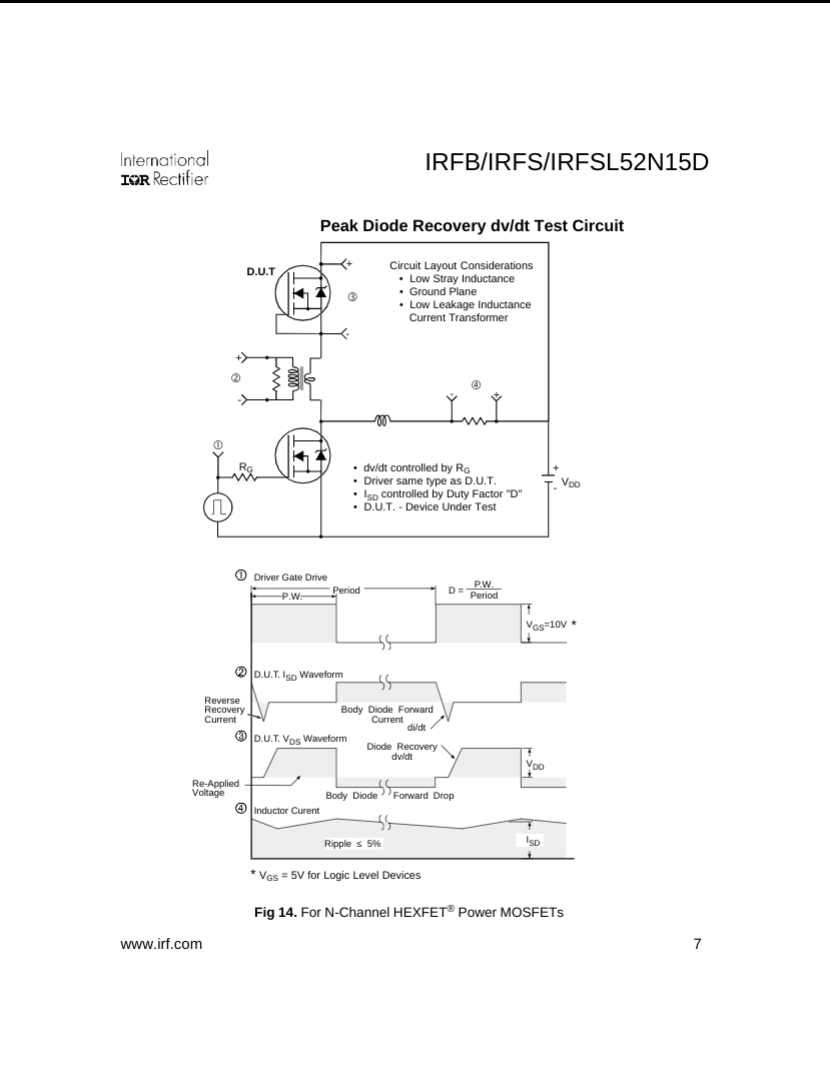

International Rectifier IRFB IRFS IRFSL52N15D peak diode recovery dv dt test circuit schematic diagram

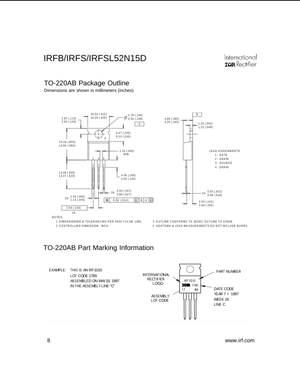

Technical drawing and dimensions of IRFB IRFS IRFSL52N15D TO-220AB package transistor from The Component Centre

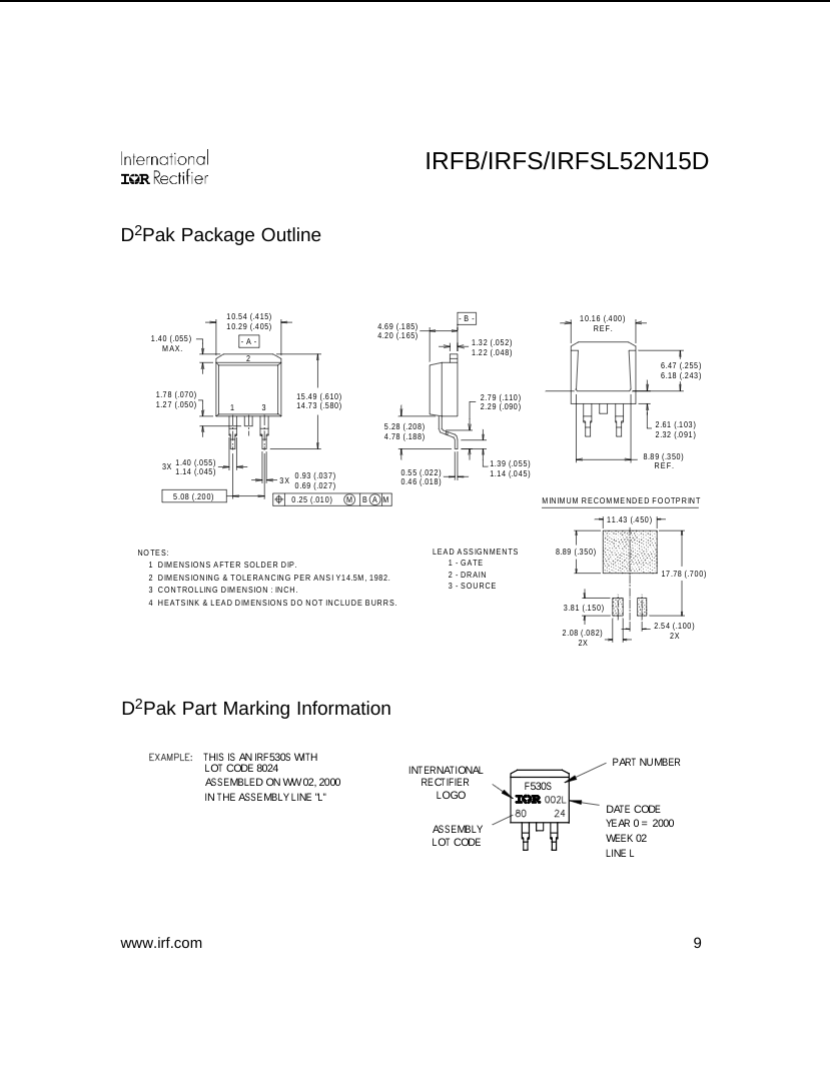

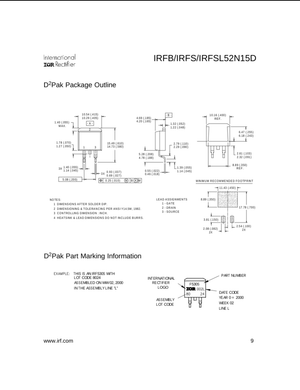

Technical drawing of IRFB IRFS IRFSL52N15D D2Pak power transistor package with dimensions and part marking details

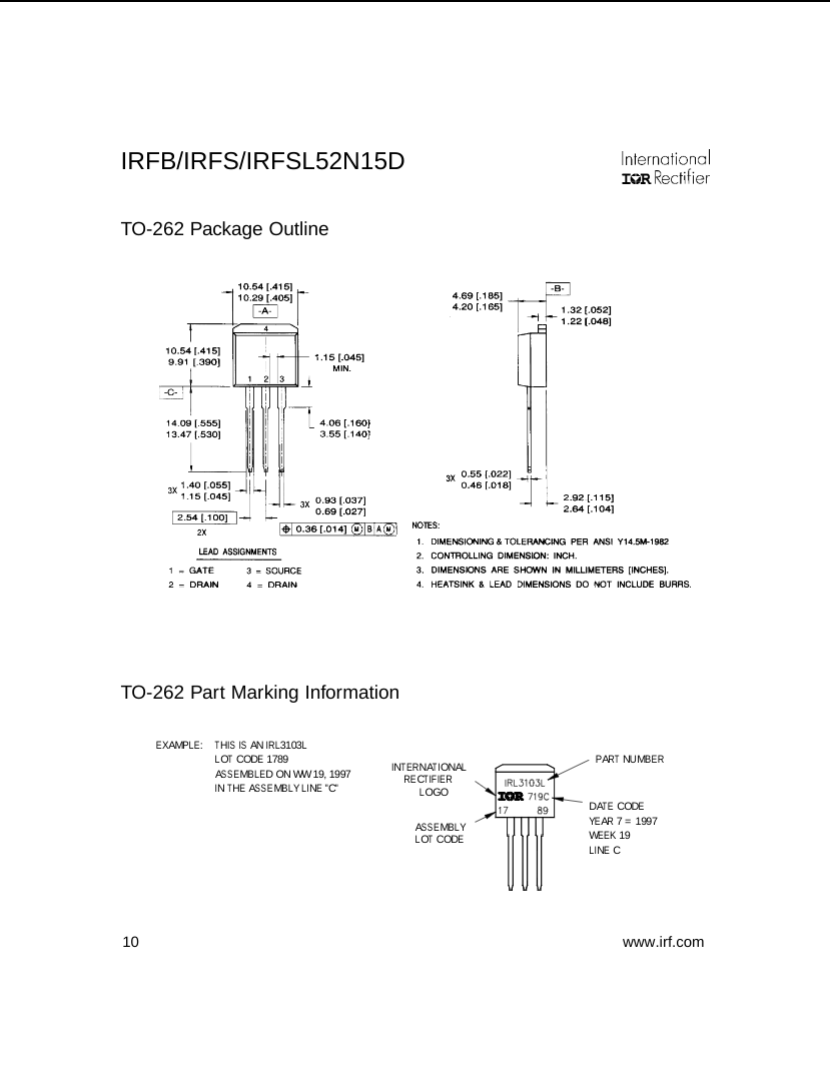

Technical drawing and dimensions of IRFB IRFS IRFSL52N15D TO-262 package transistor from The Component Centre

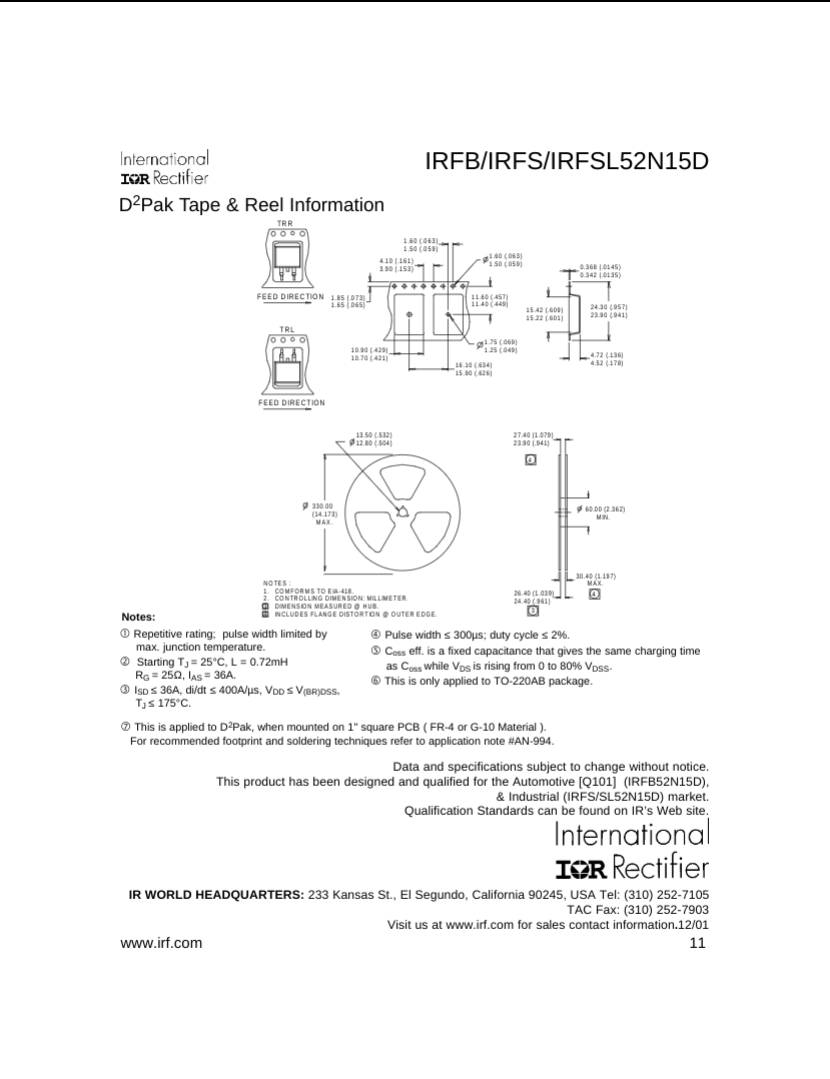

IRFB IRFS IRFSL52N15D D2Pak tape and reel packaging mechanical drawing datasheet
IRFB52N15D 150V N-Channel MOSFET The Component Centre
IRFB52N15D 150V N-Channel MOSFET
International Rectifier IRFB52N15D IRFS52N15D IRFSL52N15D HEXFET Power MOSFET datasheet with specs and electrical characteristics
The Component Centre IRFB IRFS IRFSL52N15D International Rectifier datasheet with electrical specifications and diode characteristics
IRFBIRFSIRFSL52N15D transistor typical output and transfer characteristic graphs with Drain-to-Source current and temperature data
Technical graphs for IRFB IRFS IRFSL52N15D MOSFET showing capacitance, gate charge, diode forward voltage, and maximum safe operating area
Graphs and circuit diagrams for IRFB IRFS IRFSL52N15D showing maximum drain current vs case temperature and switching time waveforms
Technical diagrams and graphs for IRFB IRFS IRFSL52N15D MOSFET showing test circuits and waveform charts
International Rectifier IRFB IRFS IRFSL52N15D peak diode recovery dv dt test circuit schematic diagram
Technical drawing and dimensions of IRFB IRFS IRFSL52N15D TO-220AB package transistor from The Component Centre
Technical drawing of IRFB IRFS IRFSL52N15D D2Pak power transistor package with dimensions and part marking details
Technical drawing and dimensions of IRFB IRFS IRFSL52N15D TO-262 package transistor from The Component Centre
IRFB IRFS IRFSL52N15D D2Pak tape and reel packaging mechanical drawing datasheet

IRFB52N15D 150V 51A N Channel MOSFET

Sale price Rs.140.00
In stock
Add to Wishlist Add to Compare
Frequently Bought Together
IRFB52N15D 150V N-Channel MOSFET The Component Centre
This item: IRFB52N15D 150V 51A N Channel MOSFET
Sale price Rs.140.00
Green printed circuit board held by hand for 5KVA power supply from The Component Centre
5KVA Solar Inverter PCB with Original TLP350H Optocoupler
Regular price Rs.3,700.00 Sale price Rs.3,500.00
Reel of TLP350H electronic components from The Component Centre in black and blue plastic packaging
Toshiba TLP350H 3750Vrms Gate Driver Optocoupler
Regular price Rs.210.00 Sale price Rs.185.00
Total price:
Regular total price Rs.4,050.00 PKR Sale total price Rs.3,825.00 PKR

Guarantee Safe Checkout

Visa
Mastercard
Google Pay
PayPal
Estimate delivery times 3-5 days (Pakistan-wide)
IRFB52N15D 150V N-Channel MOSFET The Component Centre

IRFB52N15D 150V 51A N Channel MOSFET

Rs.140.00

IRFB52N15D MOSFET – 150V 51A N-Channel Power Transistor (TO-220AB)

IRFB52N15D is a 150V N-Channel power MOSFET designed for high-efficiency switching applications in industrial and commercial systems. Manufactured using HEXFET technology, this device offers a low RDS(on) of 32mΩ and supports a continuous drain current of 51A, making it suitable for power circuits where low conduction loss is required. With a total power dissipation of up to 230W and a gate charge of 60nC at 10V, the MOSFET enables fast switching while minimizing gate drive requirements.

The TO-220AB package provides compatibility with standard heatsinking and through-hole assembly, allowing for thermal management in power-dense applications. This MOSFET supports reliable operation in high-frequency DC-DC converters, inverters, motor control systems, and power supply circuits. Its avalanche energy handling and wide safe operating area contribute to stable operation under surge and transient conditions.

IRFB52N15D is suitable for use in power management systems, industrial automation, renewable energy inverters, and automotive control electronics where robust N-Channel MOSFETs are required.

Key Specs Voltage Rating: 150V Current Rating: 51A Continuous Technology: N-Channel, HEXFET Planar Package: TO-220AB On-Resistance: 32mΩ Gate Charge: 60nC @ 10V Power Dissipation: 230W Max Switching: Fast with Avalanche Ruggedness Applications: DC-DC Converters, Motor Drives, Inverters, Power Supplies, Renewable Energy Systems Brand: Infineon Technologies Compliance: RoHS & Pb-Free
