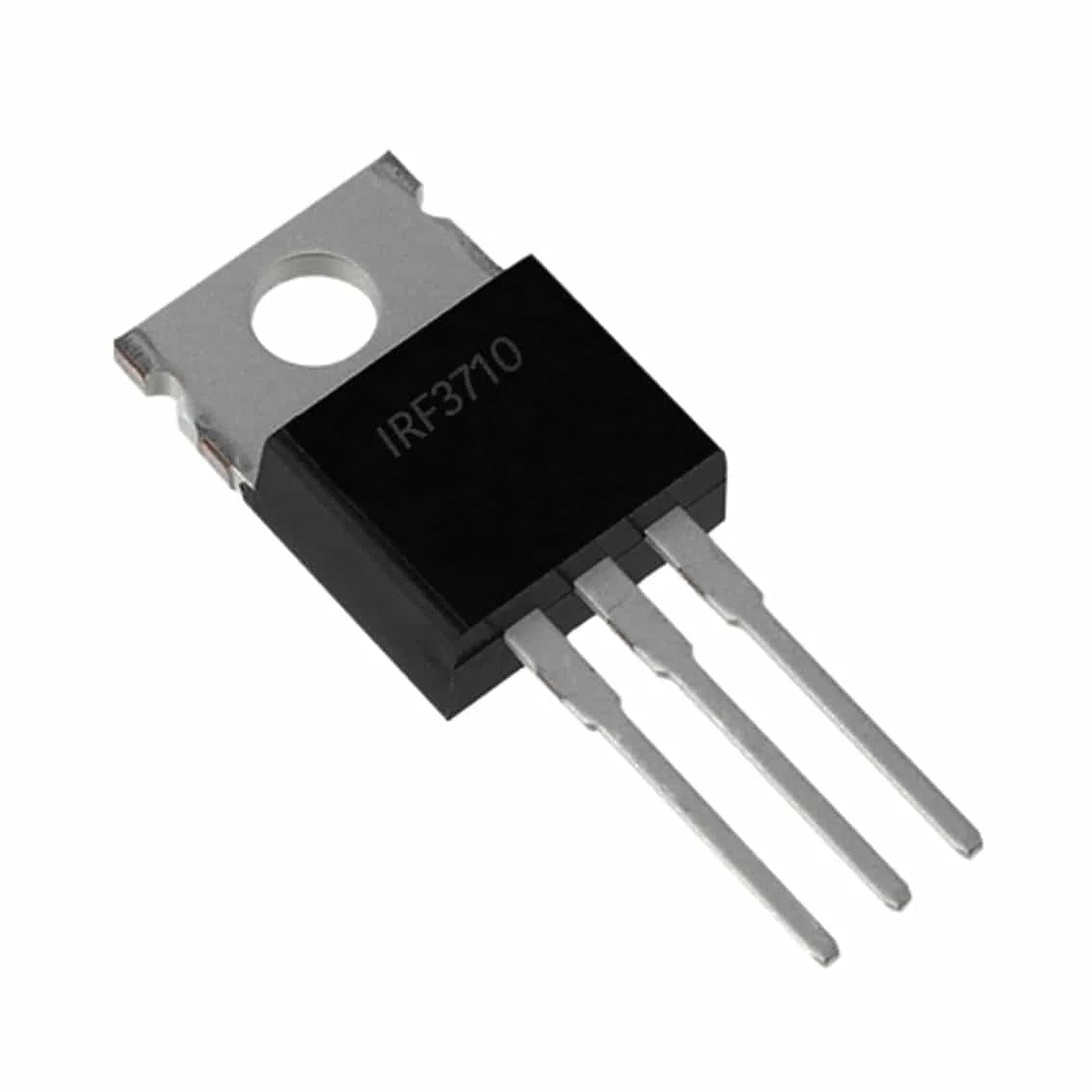

IRF3710 100V 57A N Channel Power MOSFET
Regular price
Rs.150.00
Sale price
Rs.165.00
IRF3710 — 100 V N-Channel Power MOSFET (Infineon)
The IRF3710 is a high-performance N-channel MOSFET designed for fast switching and low conduction loss in power-electronics applications. Rated for 100 V drain-source voltage and a continuous drain current up to 57 A, it has a low on-resistance (RDS(on) ≈ 23 mΩ at VGS = 10 V) and comes in a TO-220 through-hole package that supports heat dissipation and easy board integration. It is suitable for motor drives, DC–DC converters, inverters, and automotive power systems where efficient switching and reliable operation are required.
The device operates over a wide junction temperature range (−55 °C to +175 °C) and has a low total gate charge (typical QG ≈ 86.7 nC at 10 V), which reduces switching losses and gate-drive requirements. Its thermal characteristics allow stable operation in industrial and automotive environments.
The IRF3710 has a standard TO-220 pinout, allowing straightforward integration into existing designs. It is commonly used in renewable energy inverters, industrial drives, and automotive control modules. For detailed specifications, operating conditions, and characteristic curves, consult the Infineon datasheet.
Key Specs
| Parameter | Value |
|---|---|
| Manufacturer | Infineon Technologies |
| Part Number | IRF3710 (IRF3710PbF / IRF3710PBF) |
| V_DS (Drain-Source Voltage) | 100 V |
| I_D (Continuous Drain Current) | 57 A |
| R_DS(on) @ V_GS = 10 V (max) | 23 mΩ |
| Package | TO-220 (through-hole) |
| Total Gate Charge Q_G (typ @ 10 V) | 86.7 nC |
| Gate-Drain Charge Q_GD (typ) | 28 nC |
| Power Dissipation P_tot | 200 W (device dependent) |
| Thermal Resistance RθJC (max) | 0.75 °C/W |
| Operating Junction Temp (T_j) | −55 °C to +175 °C |
| V_GS (Max) | ±20 V |
| Threshold Voltage V_GS(th) | 2.0 – 4.0 V |
| Applications | Motor drives, DC–DC converters, inverters, automotive electronics |
For detailed information, refer to the Infineon datasheet: Infineon IRF3710 Datasheet (PDF).
