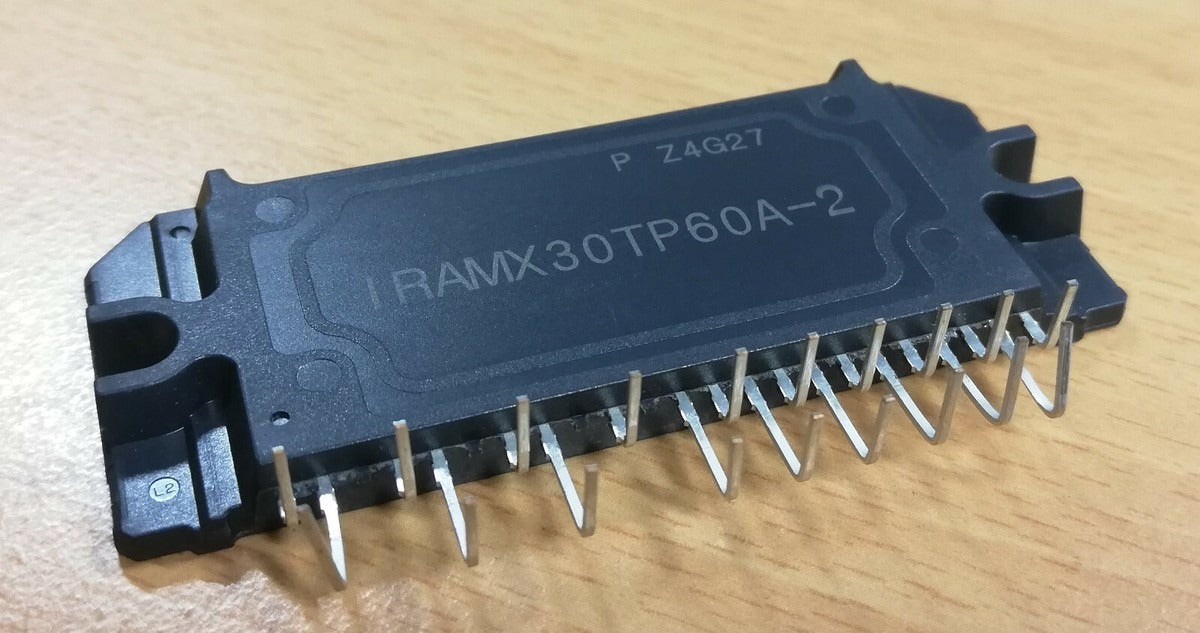

IRAMX30TP60A
The IRAMX30TP60A is an integrated power hybrid IC developed by Infineon (formerly International Rectifier) for efficient three-phase motor drive applications. Designed with a blocking voltage of 600 V and capable of delivering up to 30 A RMS, it combines IGBT switches, bootstrap diodes, and driver circuitry into one compact, isolated package. This integration simplifies design while ensuring stable performance in compressors, HVAC systems, appliances, and light industrial motor drives.
Reliability is a key feature of the IRAMX30TP60A. It includes built-in protection functions such as over-current shutdown, under-voltage lockout, and matched propagation delays, which enhance safety and extend system lifespan. The module also features 2000 VRMS isolation, a high CTI rating, and thermal protection, making it suitable for operation in demanding industrial and commercial environments. With the ability to withstand junction temperatures up to +150 °C, it delivers consistent operation under high load and temperature stress.
Efficiency is optimized through low VCE(on) IGBT technology, reduced switching losses, and support for PWM frequencies up to 20 kHz, ensuring smooth and quiet motor control. Its compact package reduces external component count, lowers cooling requirements, and increases system durability. These features make the IRAMX30TP60A a versatile choice for engineers seeking a reliable motor drive solution that balances performance, efficiency, and long-term durability.
Key Specs
| Specification | Value |
|---|---|
| Manufacturer / Series | Infineon Technologies – IRAMX30TP60A |
| Type | Integrated Power Hybrid IC (3-Phase Motor Drive) |
| Voltage Rating (VCES) | 600 V |
| Continuous Phase Current (TC = 25 °C, 6 kHz) | 30 A |
| Continuous Phase Current (TC = 100 °C, 6 kHz) | 15 A |
| Peak Phase Current | 45 A |
| Maximum PWM Frequency | 20 kHz |
| Power Dissipation (IGBT @ TC = 25 °C) | 41 W |
| Isolation Voltage | 2000 VRMS |
| Junction Temperature (TJ max) | +150 °C |
| Operating Case Temperature (TC) | −20 °C to +100 °C |
| Storage Temperature (TSTG) | −40 °C to +125 °C |
| Package Type | Isolated power IC module |
For more detailed technical information, please refer to the official Infineon datasheet:
IRAMX30TP60A Datasheet (PDF)
