HTB50-TP/SP3 LEM CT Transducer

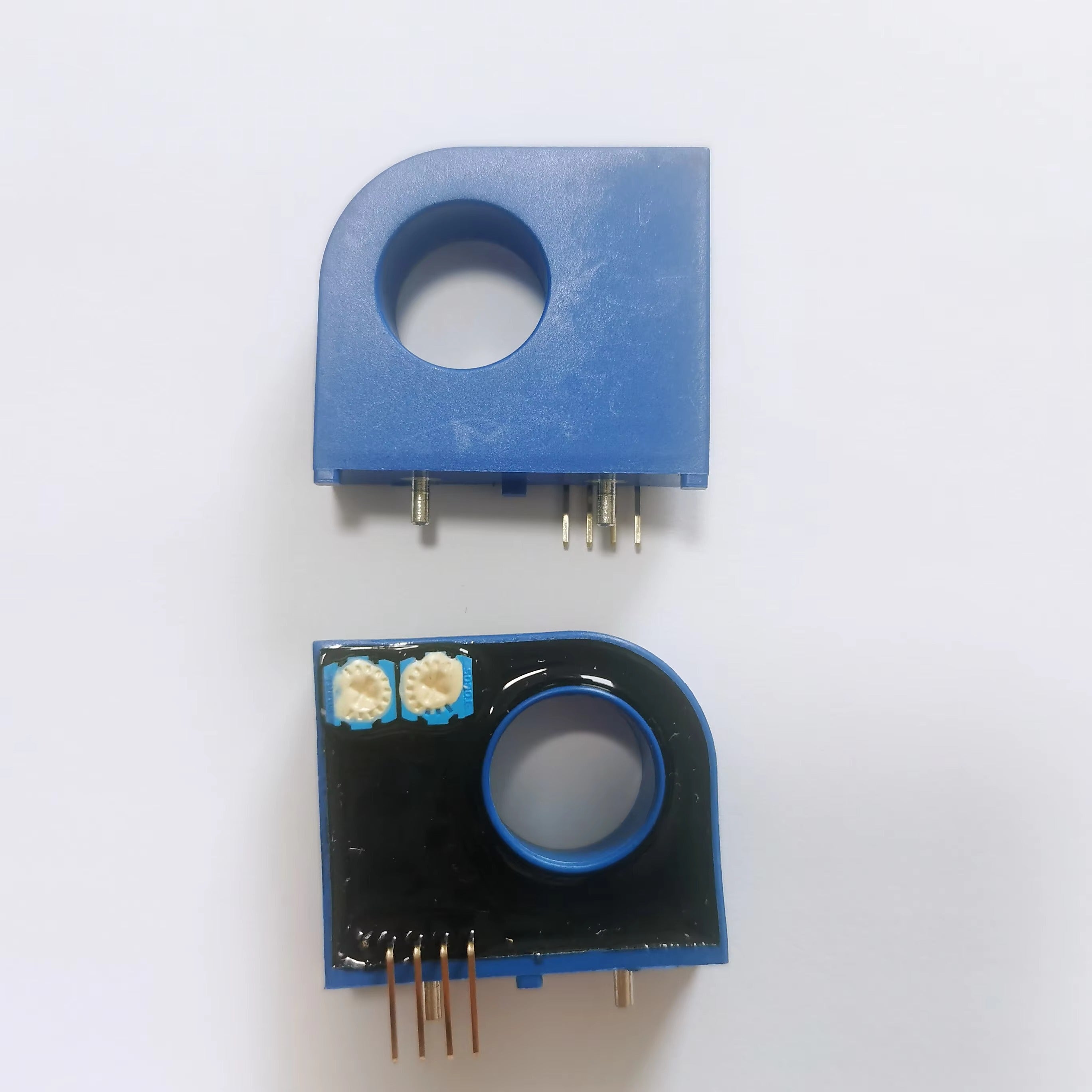

HTB50-TP/SP3 Current Transducer
The HTB50-TP/SP3 is a high-precision current transducer from LEM USA Inc., engineered for accurate and reliable current measurement in industrial and commercial power electronics systems. Utilizing Hall-effect technology, this bidirectional sensor offers a wide measurement range, making it suitable for various applications, including motor drives, inverters, and uninterruptible power supplies (UPS).
Designed for through-hole mounting, the HTB50-TP/SP3 ensures ease of integration into existing systems. Its open-loop configuration allows for precise current monitoring without the need for complex calibration, providing engineers with a straightforward solution for current sensing needs.
Key benefits of the HTB50-TP/SP3 include its compact design, high accuracy, and robust performance under varying environmental conditions. These features make it an ideal choice for applications requiring consistent and reliable current measurement.
Key Specifications
| Specification | Value |
|---|---|
| Measurement Range | ±50 A |
| Output Signal | Analog (typically 0–5 V) |
| Mounting Type | Through-hole |
| Package Type | Module, Single Pass Through |
| Isolation Voltage | 4 kV (UNi Impulse withstand voltage) |
| Compliance Standards | IEC 61010-1, EN 50178 |
| Application Areas | Motor Drives, Inverters, UPS Systems |
