GBU808 800V 8A Bridge Rectifier

GBU808 8 A 800 V Glass-Passivated Bridge Rectifier – GBU Package

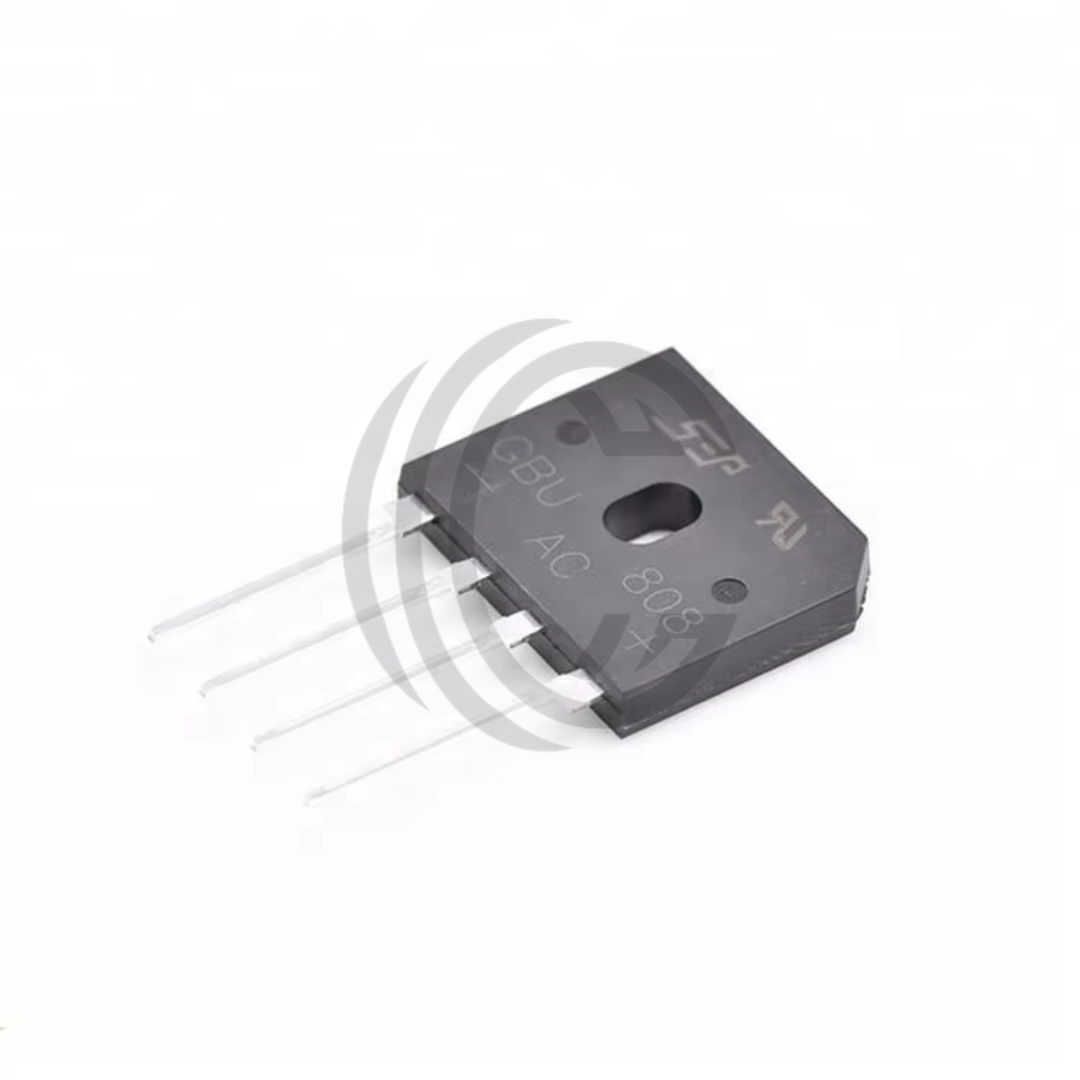

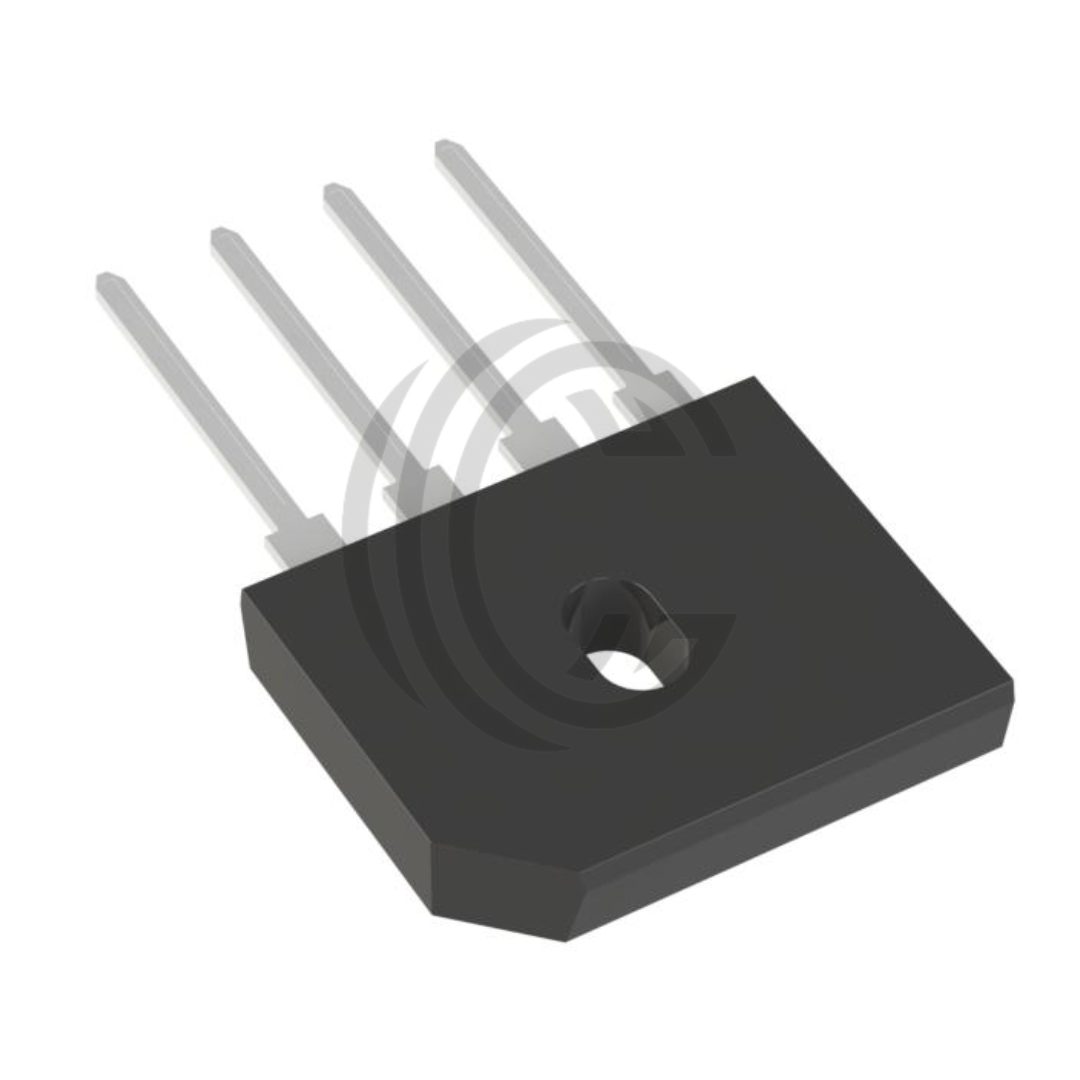

The GBU808 is an 8‑amp, 800‑volt glass‑passivated single‑phase bridge rectifier in a through‑hole GBU package. It provides reliable DC output in AC-to-DC conversion applications like SMPS, motor control units, and power supplies. With a low forward voltage drop (~1 V per element @ 4 A), it helps minimize power loss and maintain efficiency.

This bridge rectifier supports high surge loads up to 200 A and features low reverse leakage (~5 µA @ 800 V). Its molded plastic construction meets UL 94V‑0 flammability standards, and it is RoHS-compliant with lead‑free finish. Operating temperature spans from −55 °C to +150 °C.

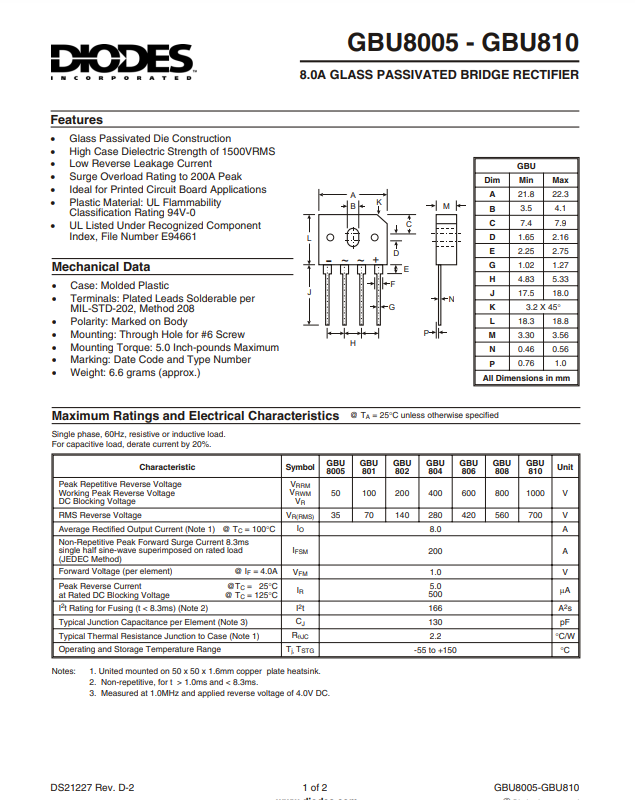

Key Specs Peak Repetitive Reverse Voltage (V\_RRM\): 800 V Average Rectified Current (I\_O\): 8 A Non‑Repetitive Surge Forward Current (I\_FSM\): 200 A (8.3 ms half‑sine) Forward Voltage Drop (V\_F\): ≤ 1 V per element @ 4 A Reverse Leakage Current (I\_R\): ≤ 5 µA @ VRRM Junction Capacitance (C\_J\): ~130 pF per element (@1 MHz) Thermal Resistance (R\_θJC\): ~2.2 °C/W per element Dalincom Operating Temp Range: −55 °C to +150 °C Package: GBU through-hole, molded plastic, solder-pin leads Compliance: UL 94V‑0, RoHS‑compliant, lead‑free finish

Features GBU808 offers high reverse voltage handling and continuous current capacity for general-purpose rectification. It withstands up to 200 A surge current, ensuring reliability under transient conditions. The glass‑passivated die enhances voltage stability and reduces leakage. A low forward voltage drop improves thermal performance and efficiency. Its molded body meets UL 94V‑0 flame safety requirements and supports through-hole mounting via soldered leads.
