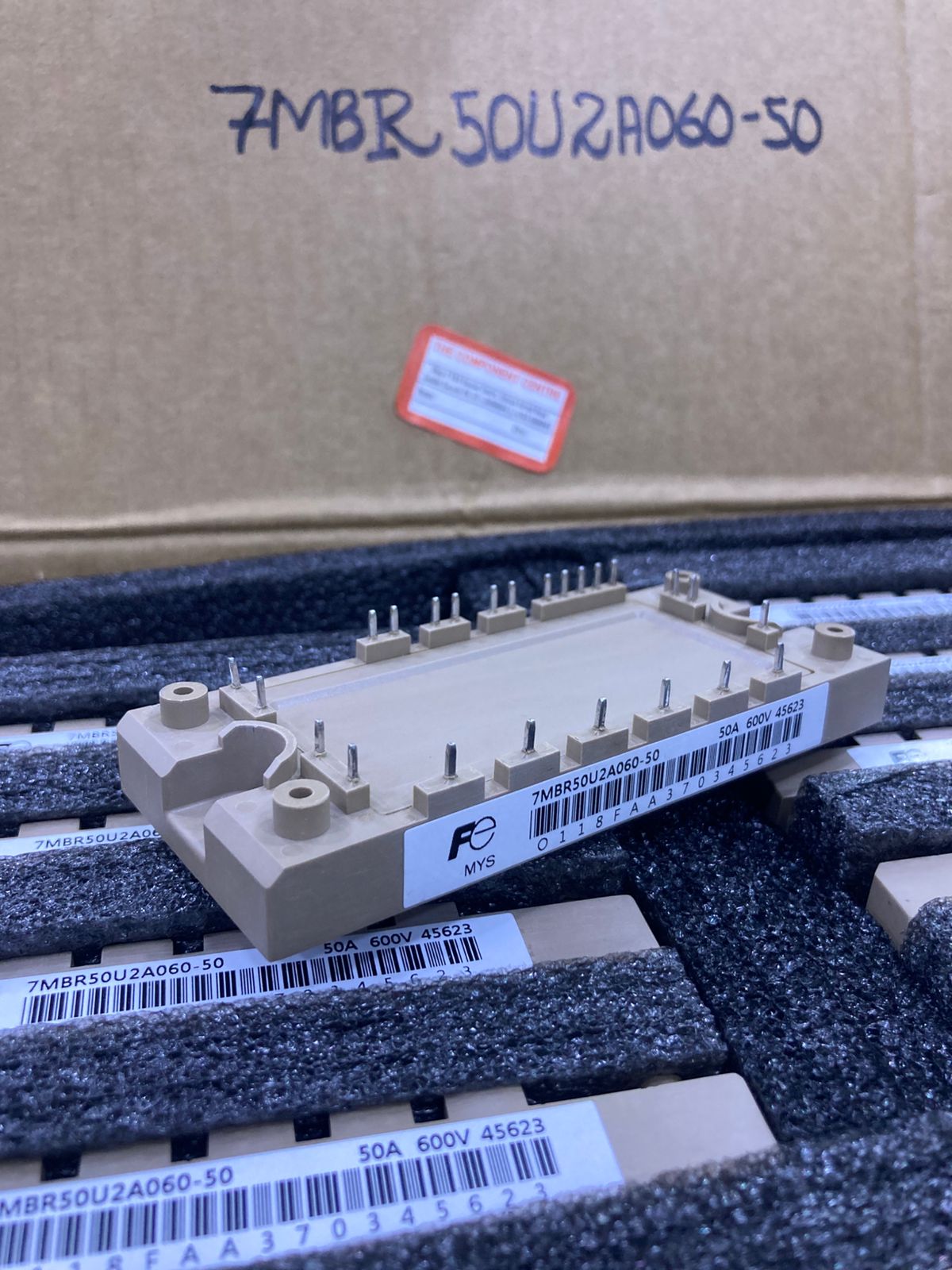

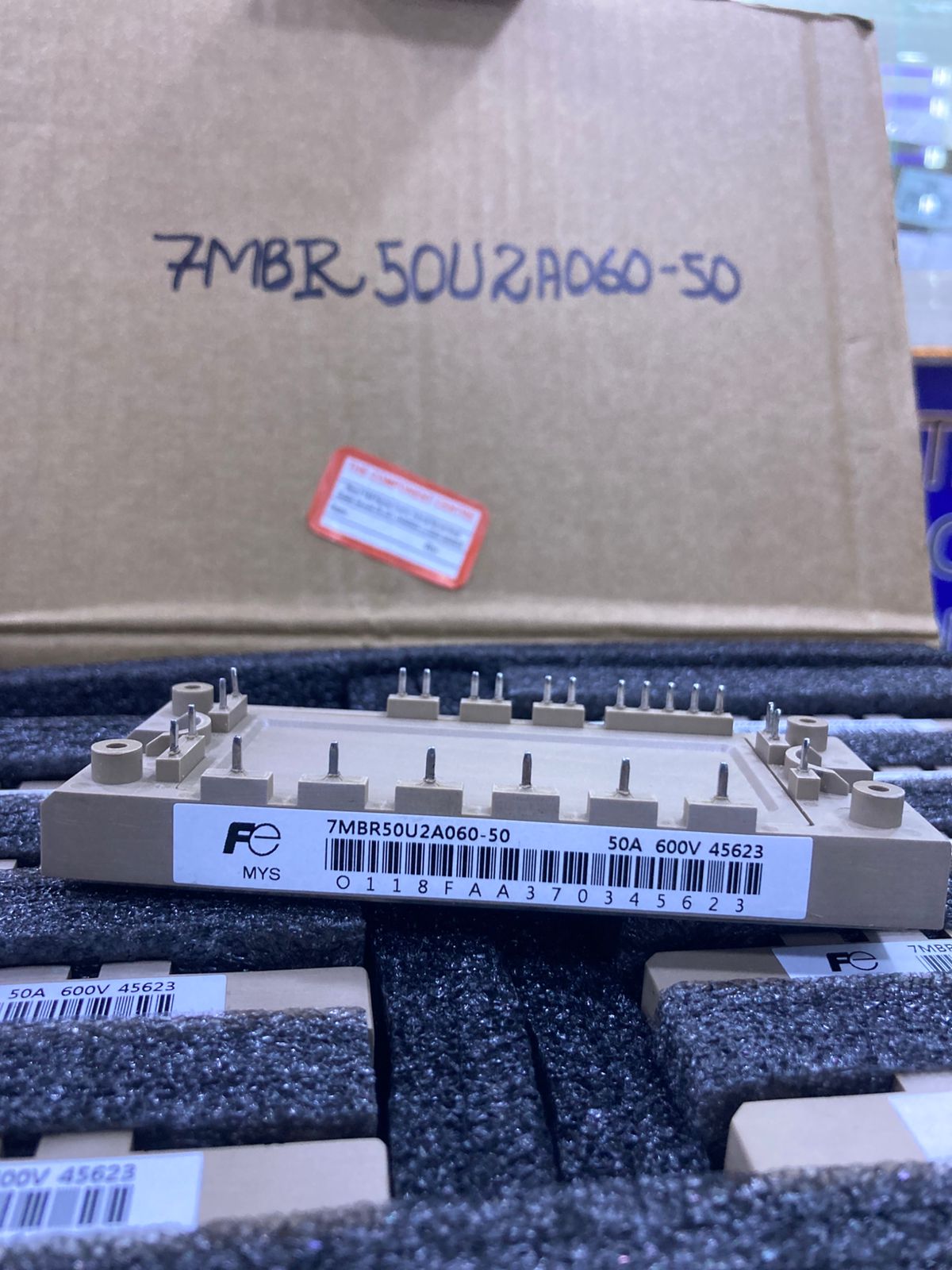

7MBR50U2A060-50 Power Module with Multiple Terminals on Foam Padding for Secure Shipping
Fuji Electric 7MBR50U2A060-50 600V 50A IGBT Module
Regular price Rs.10,500.00
Sale price Rs.11,500.00

Fuji 7MBR50U2A060-50 — 600 V / 50 A IGBT Power Module

The Fuji 7MBR50U2A060-50 is a 600 V, 50 A IGBT power module designed for consistent switching performance and stable operation in industrial power electronics. Based on Fuji’s U-series PIM structure, it integrates an IGBT and a free-wheeling diode in an insulated package, helping reduce conduction losses and support efficient power conversion. Its characteristics make it suitable for inverters, motor drives, UPS systems, and servo applications where reliable electrical performance is required.

The module supports a maximum junction temperature of +150 °C and offers a low junction-to-case thermal resistance, enabling effective heat transfer when used with proper cooling interfaces. With ±20 V gate-emitter limits, a typical VCE(sat) near 2.25 V under rated conditions, and a surge current capability around 350 A (10 ms, half-sine), it maintains stable operation in continuous-duty environments. Electrical insulation of AC 2500 V between terminals and the base further supports secure integration in industrial systems.

Mechanically, the 7MBR50U2A060-50 includes an insulated baseplate suitable for standard chassis mounting and follows recommended torque levels of 2.5–3.5 N·m using M5 hardware. Its storage range of –40 °C to +125 °C, rugged design, and consistent switching behaviour allow use in varied industrial and commercial environments. For complete electrical curves, thermal details, and mechanical drawings, refer to the official Fuji Electric datasheet.


Key Specs

Parameter Specification
Manufacturer Fuji Electric
Part Number 7MBR50U2A060-50
Module Type IGBT Module (U-series PIM, insulated)
VCES 600 V
VGES ±20 V
Continuous Collector Current (IC) 50 A
Surge Current (IFSM) ~350 A (10 ms, half-sine)
Typical VCE(sat) ~2.25 V
Thermal Resistance Rth(j-c) ~0.67 °C/W (with thermal compound)
Max Junction Temperature +150 °C
Storage Temperature –40 °C to +125 °C
Isolation Voltage AC 2500 V
Mounting Torque 2.5–3.5 N·m (M5 screws)
Applications Inverters, motor drives, UPS, servo amplifiers
