FQD50N06 60V 50A N-Channel MOSFET TO-252

FQD50N06 60V 50A N-Channel MOSFET – TO-252 Package by Fairchild Semiconductor

FQD50N06 is a high-current N-Channel MOSFET rated at 60V and 50A, designed by Fairchild Semiconductor for high-efficiency power switching. With a low RDS(on) of just 0.023Ω and fast switching characteristics, it reduces conduction losses and heat generation—ideal for automotive systems, power supplies, and DC motor control applications.

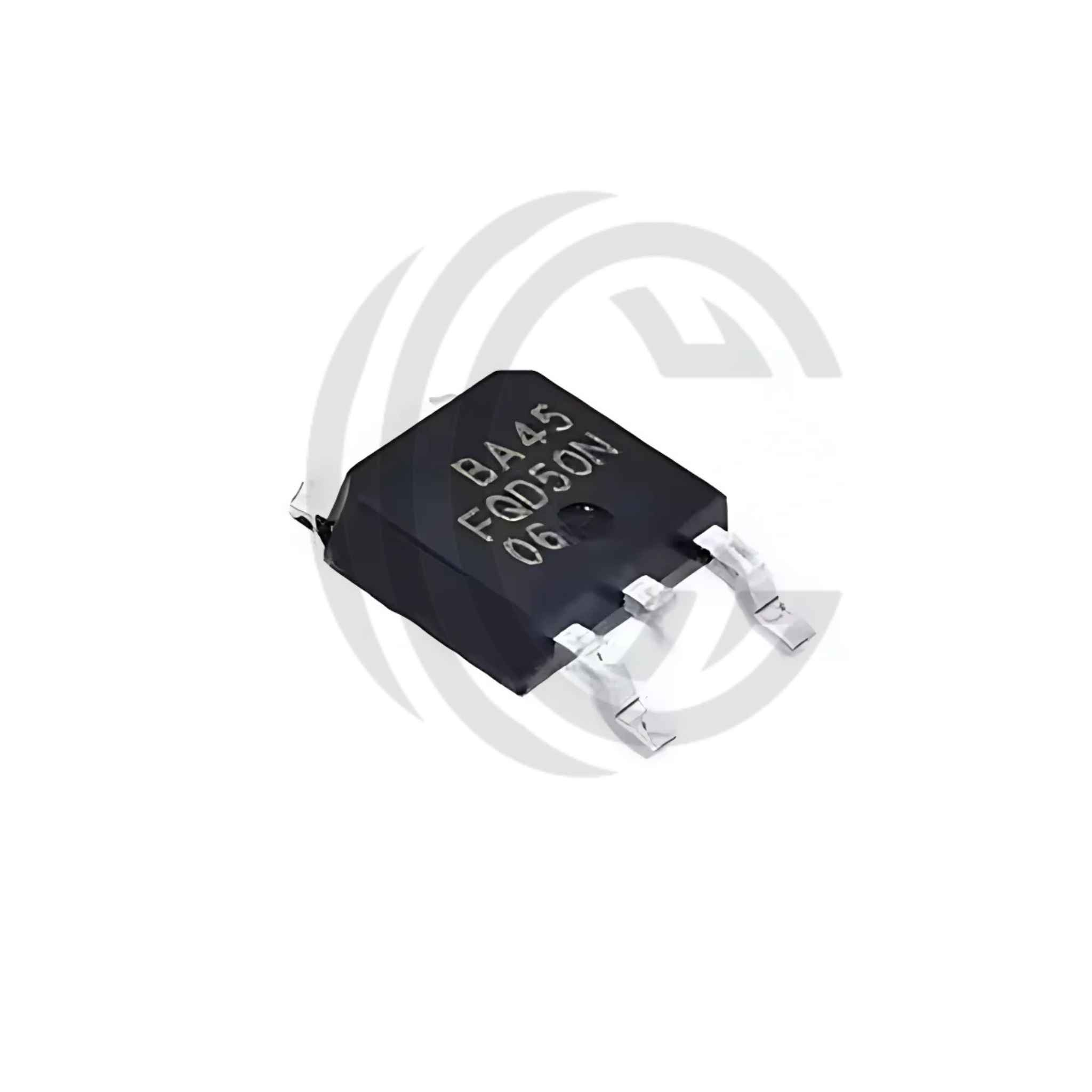

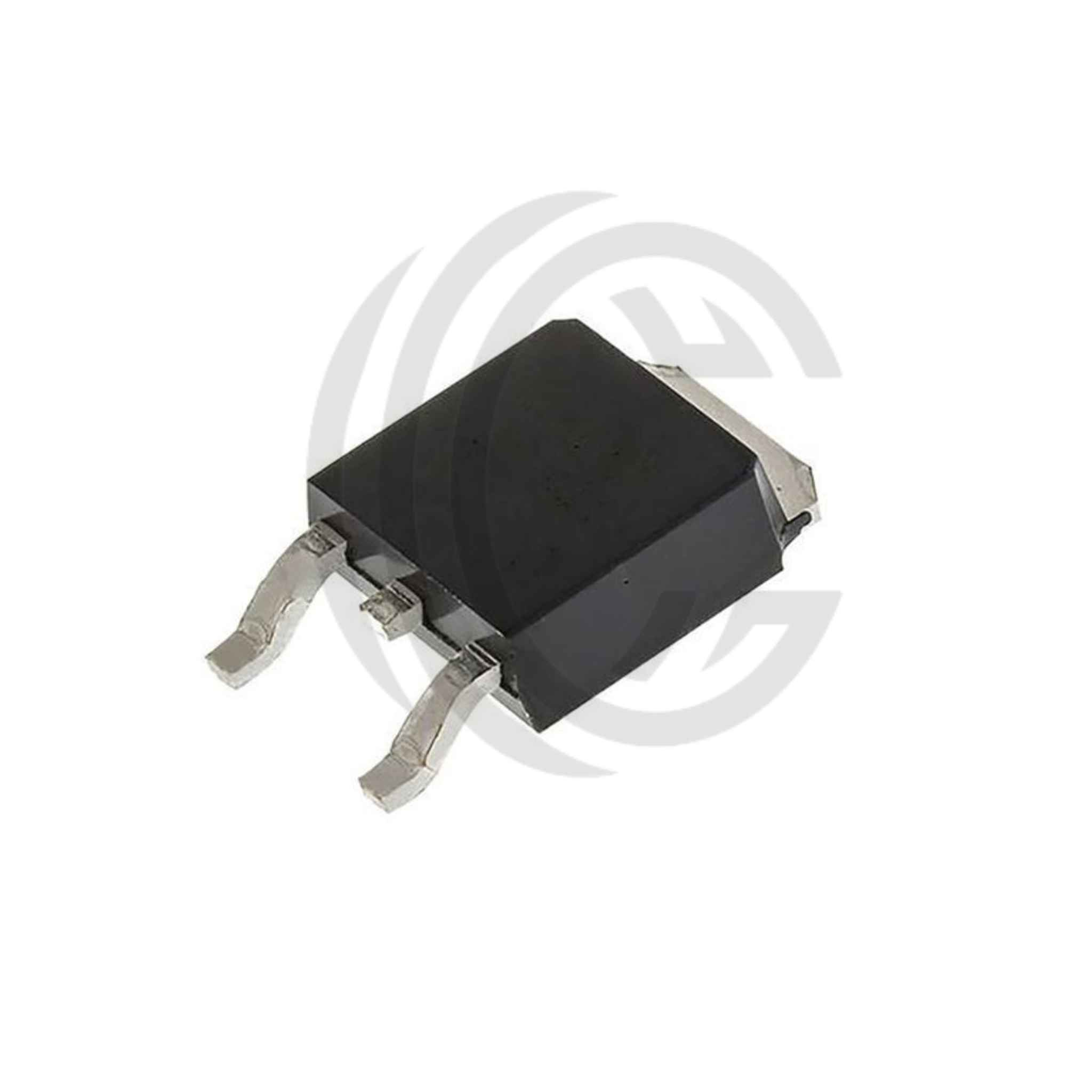

Encased in a compact TO-252 (DPAK) package, this transistor is well-suited for space-sensitive PCB designs. It supports efficient thermal dissipation and ensures reliable performance under high-load conditions, making it an excellent choice for industrial electronics, telecom systems, and solar inverters.

The FQD50N06 is frequently used in electric vehicles, UPS systems, and other high-efficiency DC circuits requiring rugged and durable components. Its combination of high current handling, low gate charge, and robust construction makes it a go-to option for engineers and system integrators in Pakistan’s B2B electronics sector.

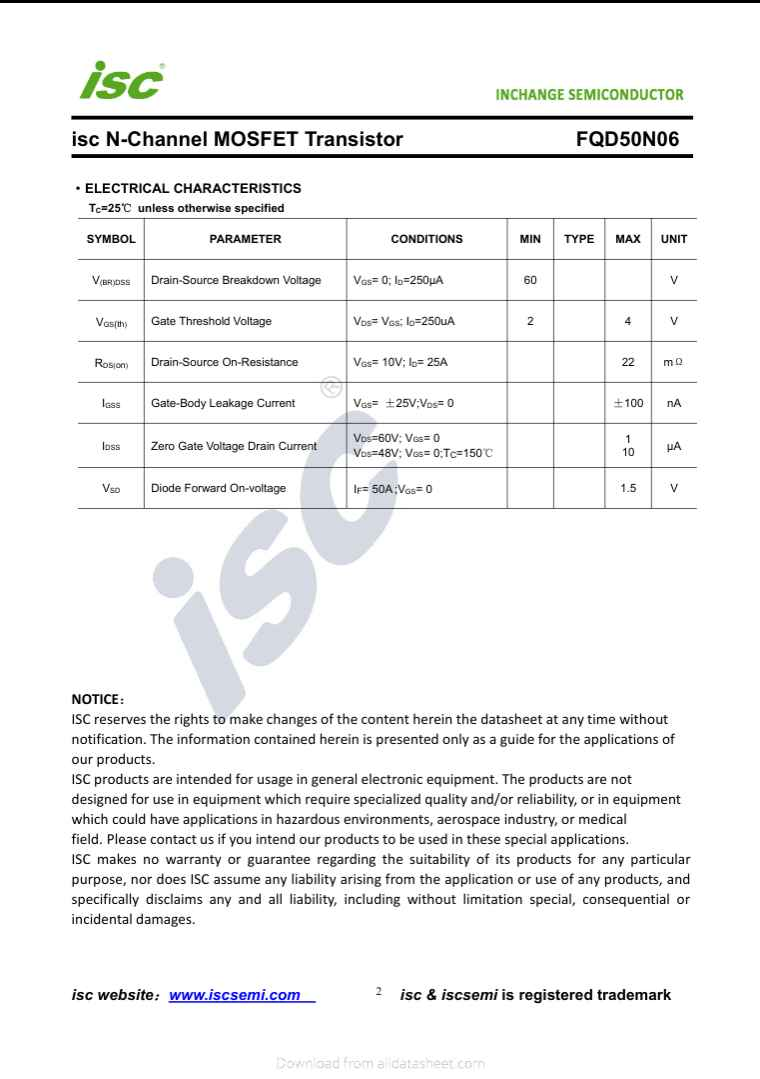

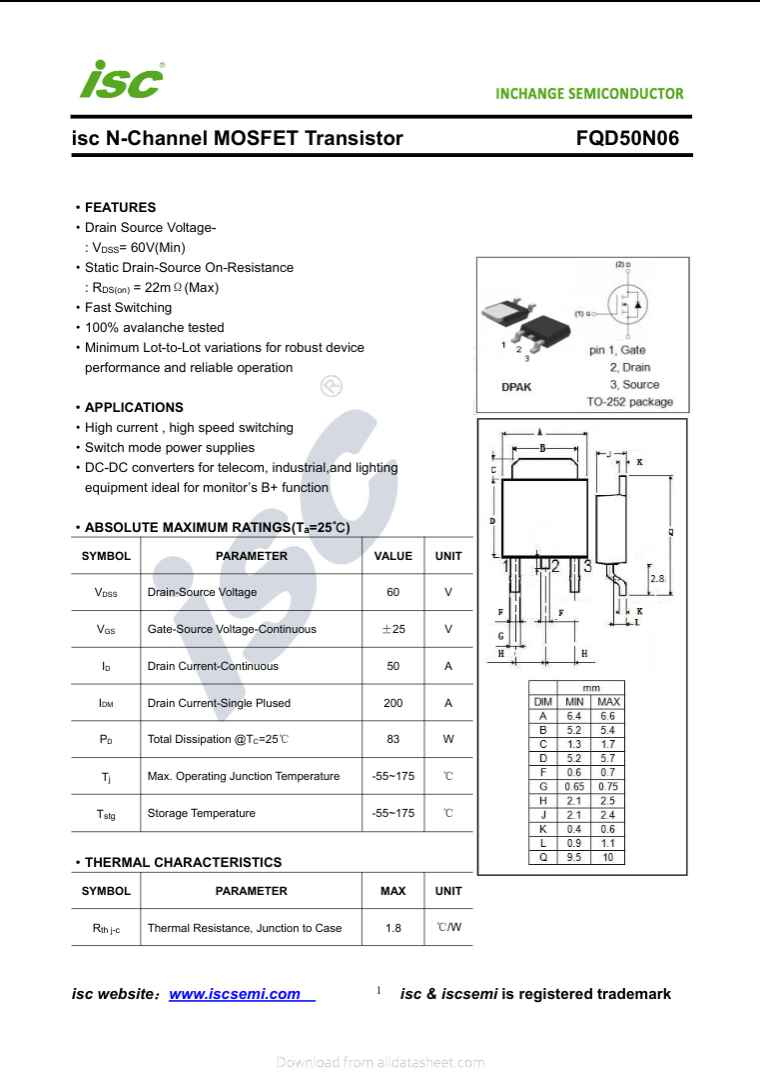

Key Specs Voltage Rating: 60V Current Rating: 50A Continuous Technology: N-Channel, Standard MOSFET Package: TO-252 (DPAK) On-Resistance: 0.023Ω Switching: Fast Switching Capability Thermal Performance: High Power Dissipation Applications: Motor Drives, Power Supplies, Inverters, Battery-Powered Equipment Brand: Fairchild Semiconductor Compliance: RoHS
