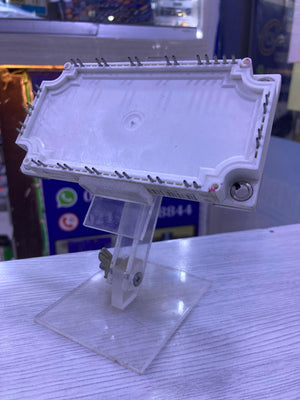

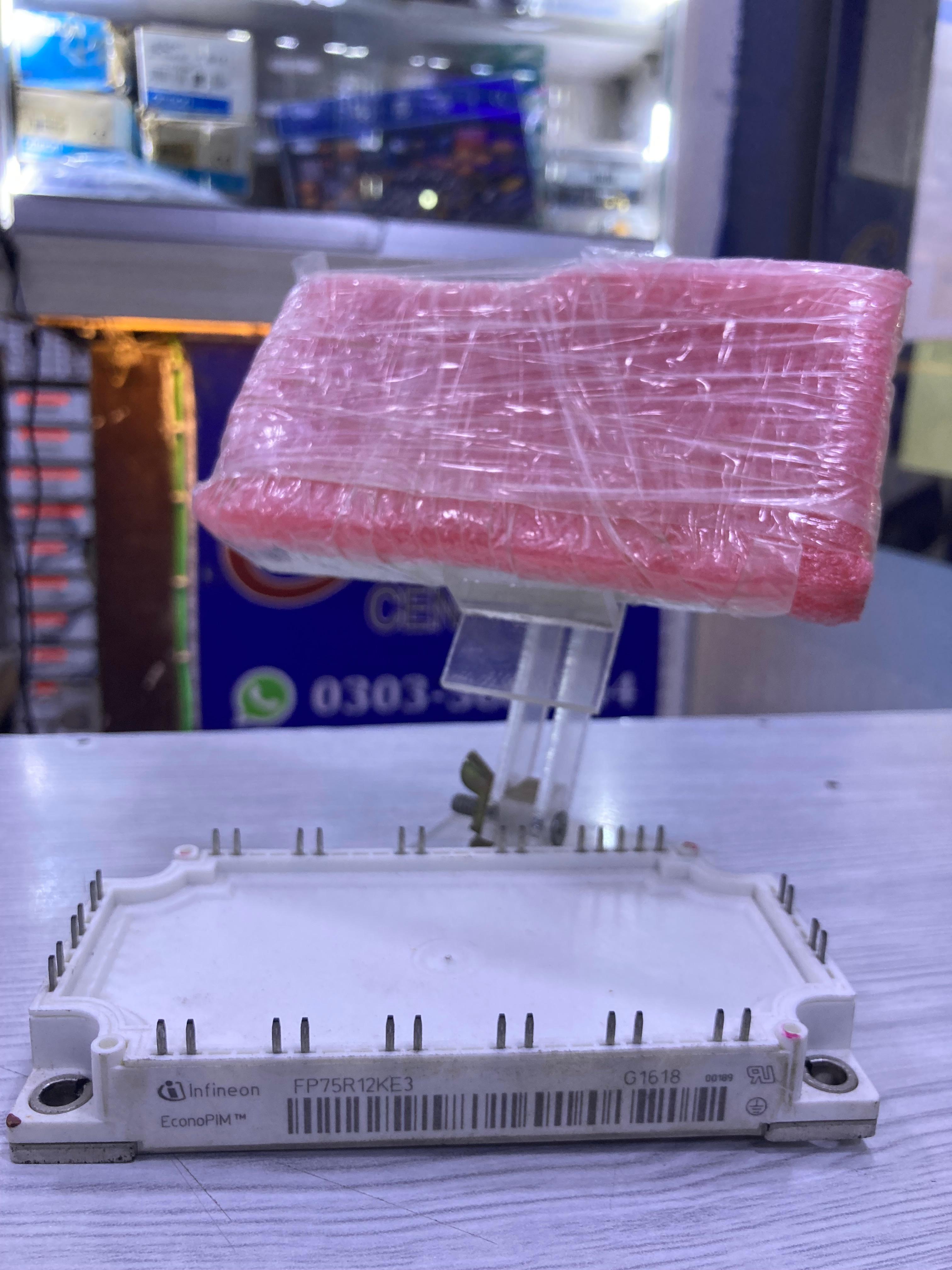

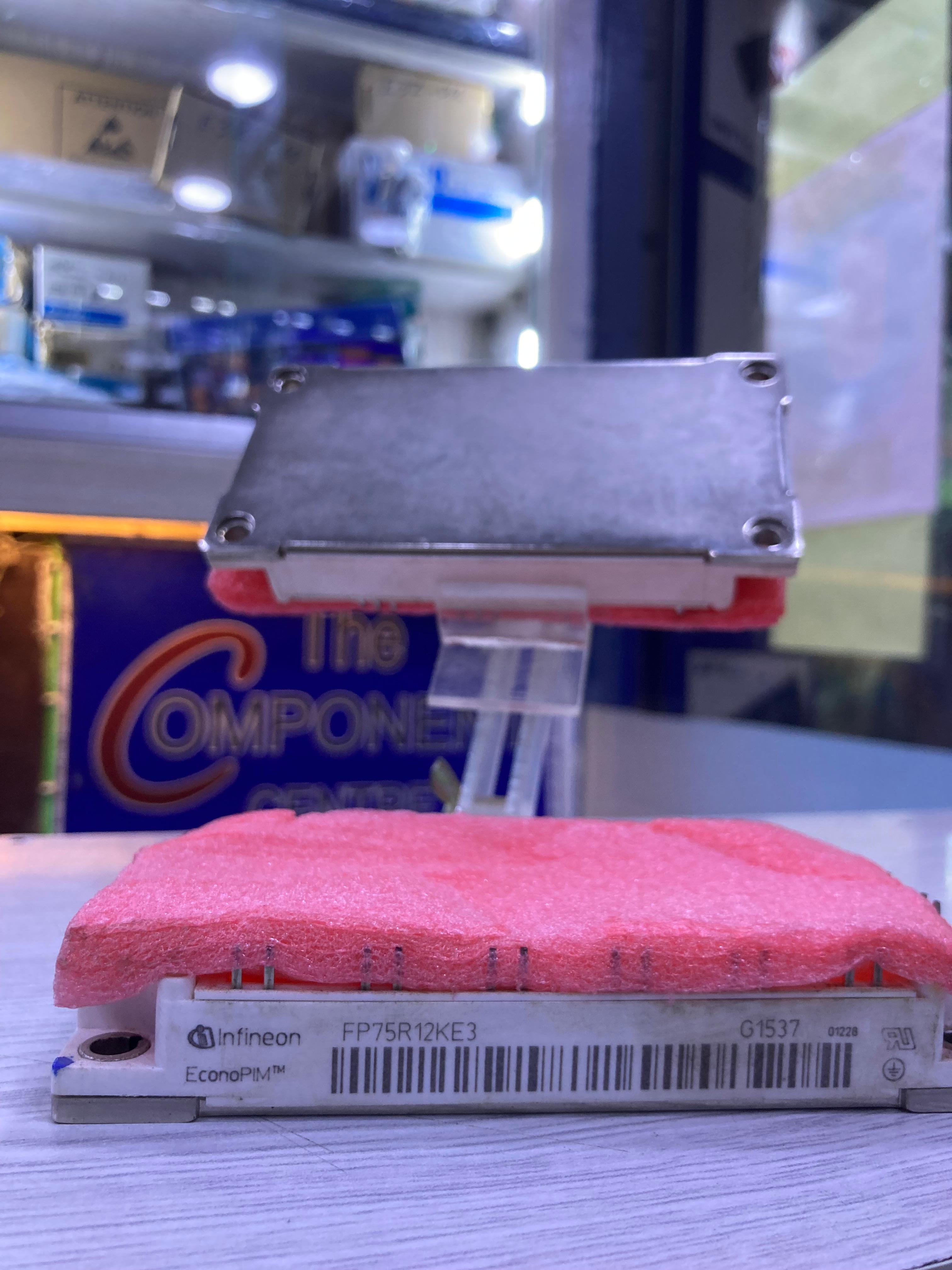

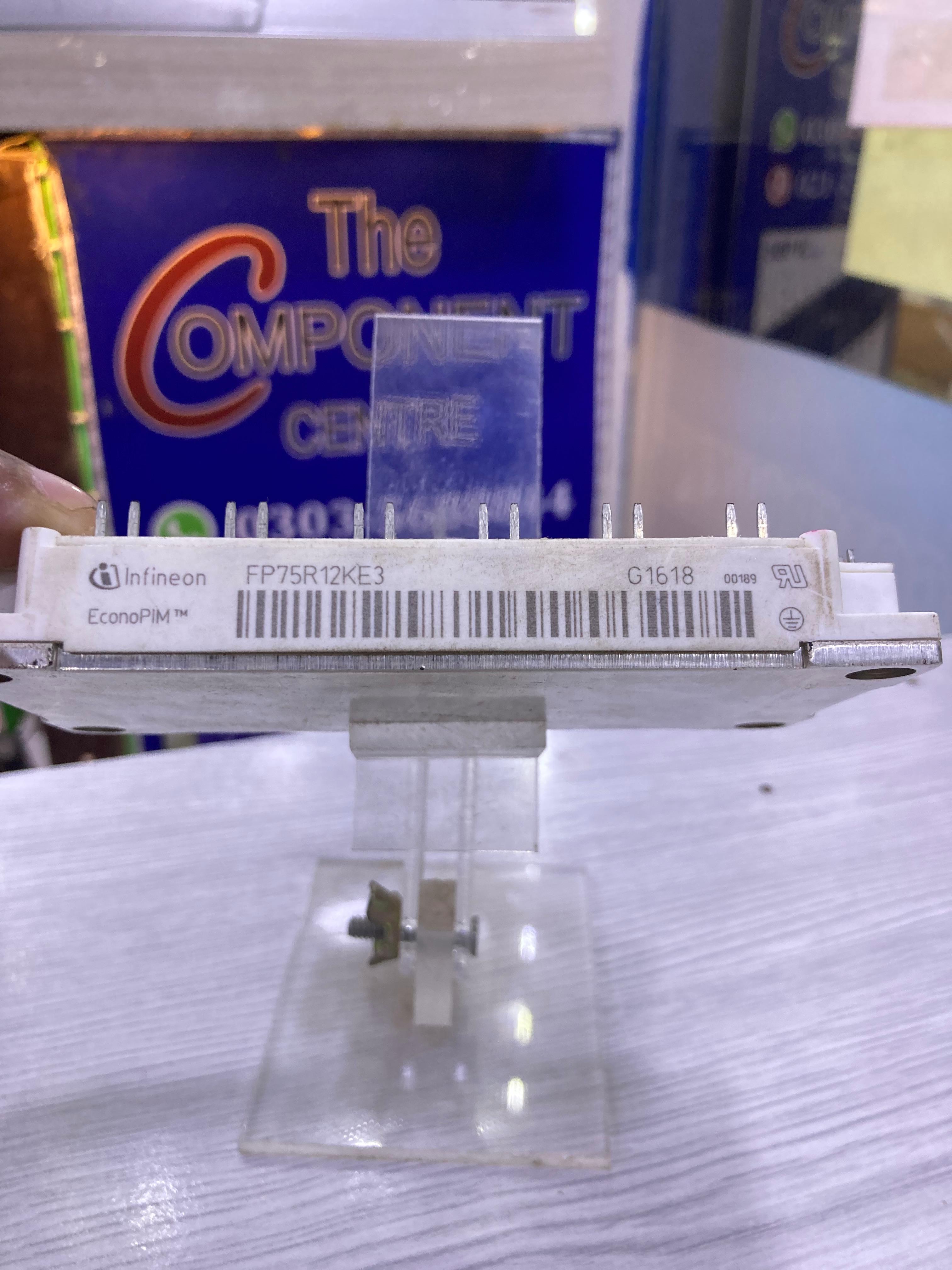

Infineon FP75R12KE3 1200V 75A IGBT Module
Regular price
Rs.0.00
FP75R12KE3 Infineon IGBT Module – 1200V 75A EconoPIM3 for Industrial Inverters
The FP75R12KE3 is a high-efficiency 1200V IGBT module from Infineon Technologies, designed for 3-phase inverter applications in industrial motor drives, UPS systems, power supplies, and renewable energy equipment. Built with advanced IGBT3 silicon technology, this module provides superior switching performance, low conduction losses, and high thermal stability—making it a reliable choice for demanding industrial environments.
Rated for a continuous collector current of 105A and a collector-emitter voltage of 1200V, the FP75R12KE3 module ensures stable power output and efficient energy conversion. It features a low saturation voltage of just 1.7V, minimizing energy loss during operation. The module is housed in a compact EconoPIM3 case and supports screw mounting, ensuring easy integration into compact power systems and cooling solutions.
The FP75R12KE3 includes integrated rectifier and brake IGBT functionality, offering space and cost savings for 3-phase inverter topologies. It operates across a wide temperature range from -40°C to +125°C, and supports a maximum power dissipation of 355W, making it suitable for continuous high-load applications. With a gate-emitter voltage rating of ±20V and gate leakage current as low as 400nA, it ensures precise gate control and system safety.
Whether used in industrial automation, electric drives, or solar inverters, the FP75R12KE3 IGBT module delivers robust, long-term performance in critical power switching applications.
Key Specifications
Product: FP75R12KE3 IGBT Module
Brand: Infineon Technologies
Technology: IGBT3 – Silicon
Voltage Rating: 1200V (Collector-Emitter)
Current Rating: 105A Continuous (at 25°C)
Saturation Voltage (V<sub>CE(sat)</sub>): 1.7V
Power Dissipation: 355W
Configuration: 3-Phase Inverter
Package Type: EconoPIM3
Mounting: Screw Mount
Gate-Emitter Voltage Max: ±20V
Gate Leakage Current: 400nA
Operating Temp Range: -40°C to +125°C
Dimensions: 122mm x 62mm x 17mm
Weight: 300g
