dsPIC30F2010
The dsPIC30F2010 from Microchip is a high-performance 16-bit digital signal controller that combines the functionality of a microcontroller with a digital signal processor core. Built on a modified Harvard architecture with up to 30 MIPs at 40 MHz external clock input, it is suitable for motor control, power conversion, inverters, and other real-time control systems. (Microchip Datasheet)
The controller features on-chip Flash memory with a minimum of 10,000 erase/write cycles and EEPROM memory with a minimum of 100,000 cycles in industrial temperature ranges. It includes power-on reset (POR), oscillator-start-up timer (OST), watchdog timer (WDT), and fail-safe clock monitor (FSCM) to ensure stable operation in industrial and commercial environments.
Designed for efficient control of motors and drives, the dsPIC30F2010 includes six PWM output channels, a quadrature-encoder interface, six 10-bit ADC channels at 1 Msps, and multiple communication interfaces including SPI, I²C, and UART. Its features support compact system design and reliable operation in power electronics applications.

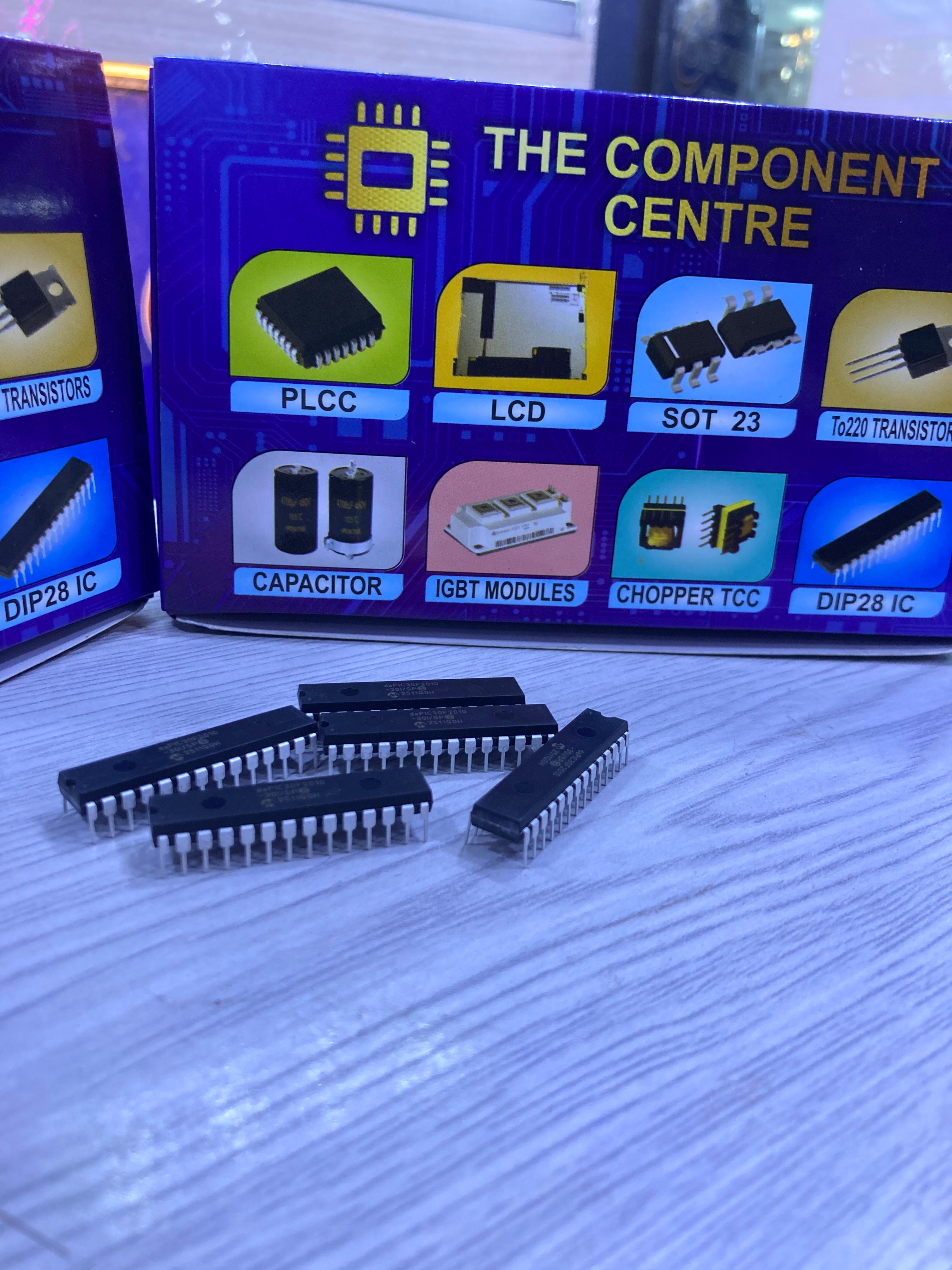

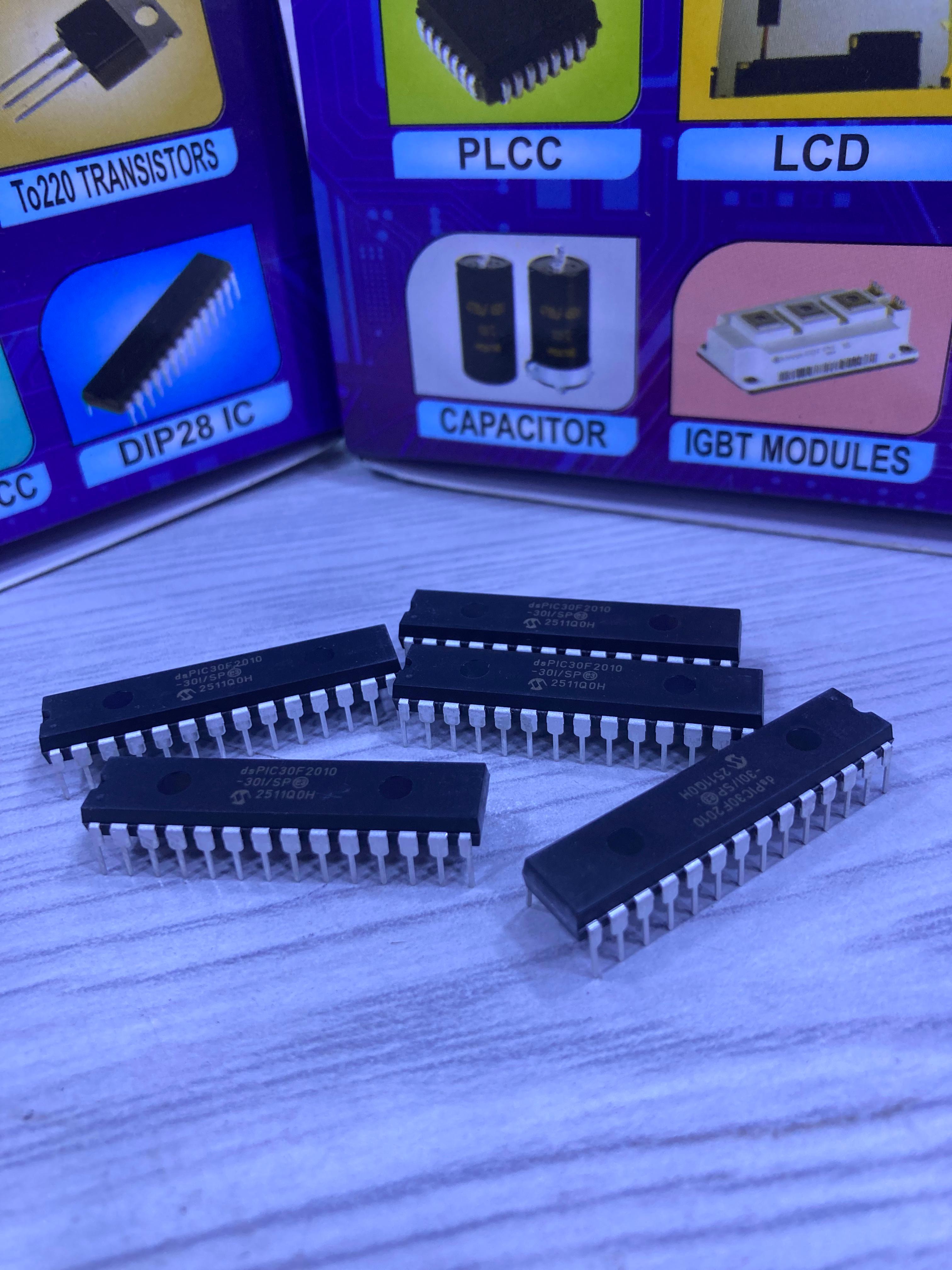

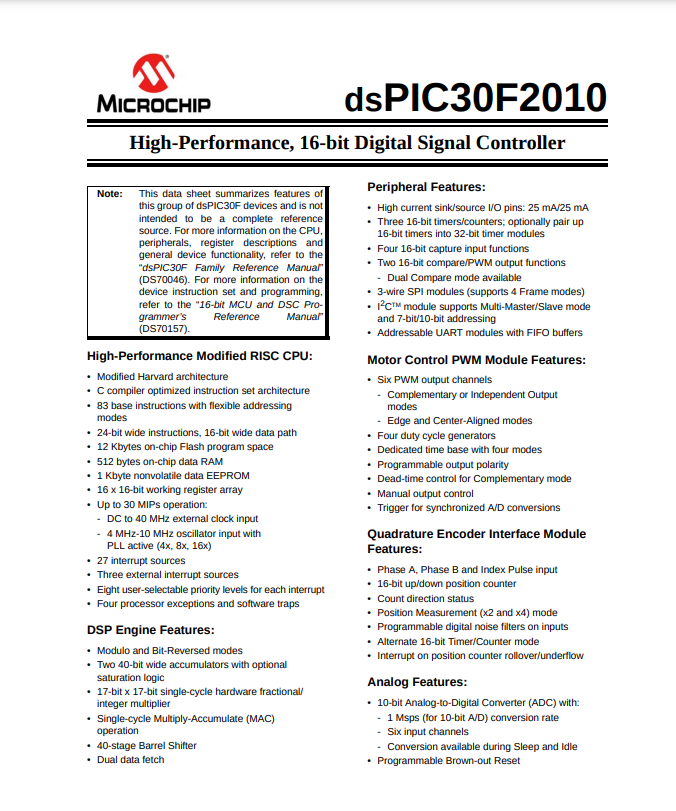

For more detailed information, please refer to the Microchip datasheet: dsPIC30F2010 Data Sheet (DS70118J)
Key Specifications
| Specification | Value |
|---|---|
| CPU Architecture | Modified Harvard, C-compiler optimized ISA, 83 base instructions |
| Maximum Speed | Up to 30 MIPs operation (40 MHz external clock) |
| Program Flash Memory | 12 Kbytes on-chip Flash program space |
| Data RAM | 512 bytes on-chip data RAM |
| Non-volatile EEPROM | 1 Kbyte data EEPROM |
| Working Registers | 16 × 16-bit working register array |
| DSP Engine: Multiplier/Accumulator | 17 × 17-bit single-cycle hardware multiplier; two 40-bit wide accumulators with optional saturation logic |
| Peripheral I/O | High-current sink/source I/O pins: 25 mA/25 mA |
| PWM Outputs | Six PWM output channels; edge & center-aligned modes, dead-time control |
| Analog-to-Digital Converter (ADC) | 10-bit ADC, up to 1 Msps conversion rate, six input channels |
| Operating Voltage | 2.5 V to 5.5 V |
| Endurance – Flash Program Memory | Minimum 10,000 erase/write cycles (industrial temperature) |
| Endurance – EEPROM Data Memory | Minimum 100,000 erase/write cycles (industrial temperature) |
