BAT54 L4P SOT-23 Diode 30V 200mA

BAT54 L4P SOT-23 Diode – 30V 200mA Schottky

The BAT54 L4P SOT-23 Diode is a surface-mount Schottky diode used for fast switching and power control in compact electronic circuits. It has a reverse voltage rating of 30V and supports a forward current of 200mA, making it useful in low-voltage applications. The forward voltage drop ranges from 0.3V to 0.8V, helping reduce energy loss in circuits that need efficient power handling. The BAT54 L4P SOT-23 Diode comes in a small SOT-23 package, making it suitable for high-density PCB layouts in mobile, industrial, and automotive designs.

This diode is widely used in signal lines, DC-DC converters, ESD protection, voltage clamping, and switching regulators. It features fast switching performance with a quick reverse recovery time, which is important in high-speed circuits. The BAT54 L4P SOT-23 Diode includes a guard ring that provides protection against electrostatic discharge and improves reliability in harsh operating conditions. It is compliant with RoHS and AEC-Q101 standards, meeting basic quality requirements for electronics used in various B2B applications across Pakistan.

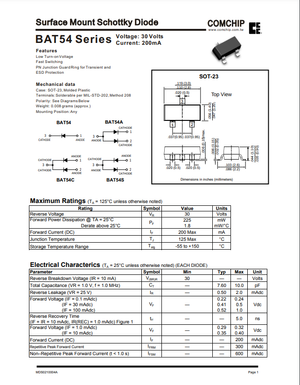

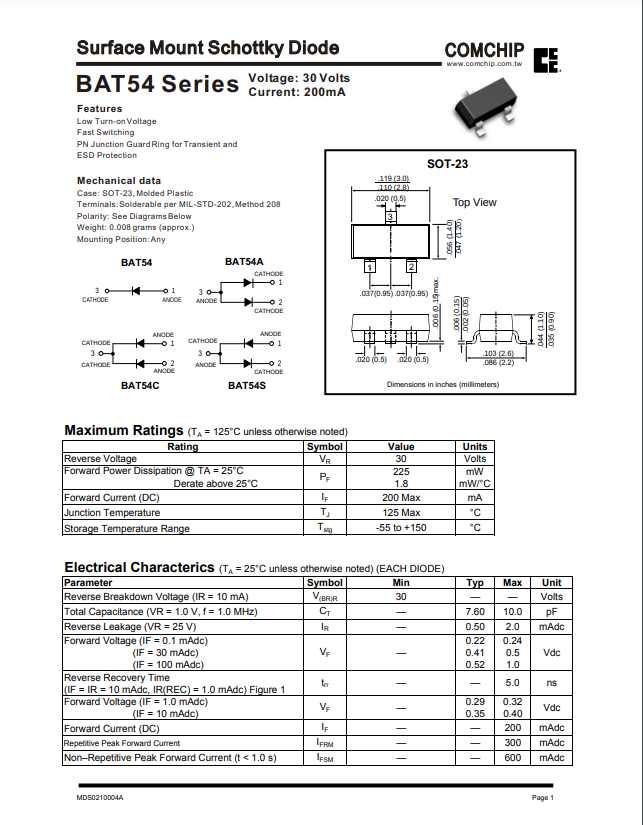

Key Specs Product: BAT54 L4P SOT-23 Diode Type: Schottky Diode Reverse Voltage: 30V Forward Current: 200mA Forward Voltage Drop: 0.3V – 0.8V Package: SOT-23 Applications: Signal routing, voltage clamping, DC-DC conversion Standards: RoHS, AEC-Q101
