330uF 500V Aluminum Electrolytic Capacitor
Regular price
Rs.10.00
Sale price
Rs.20.00

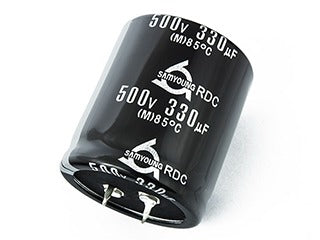

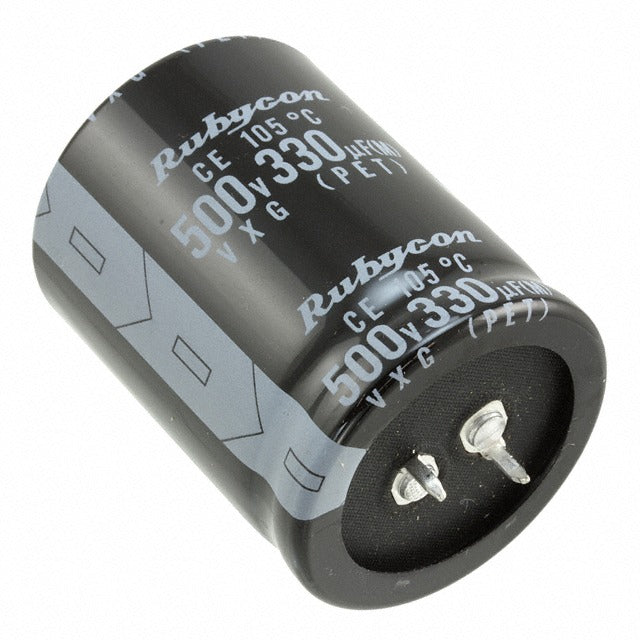

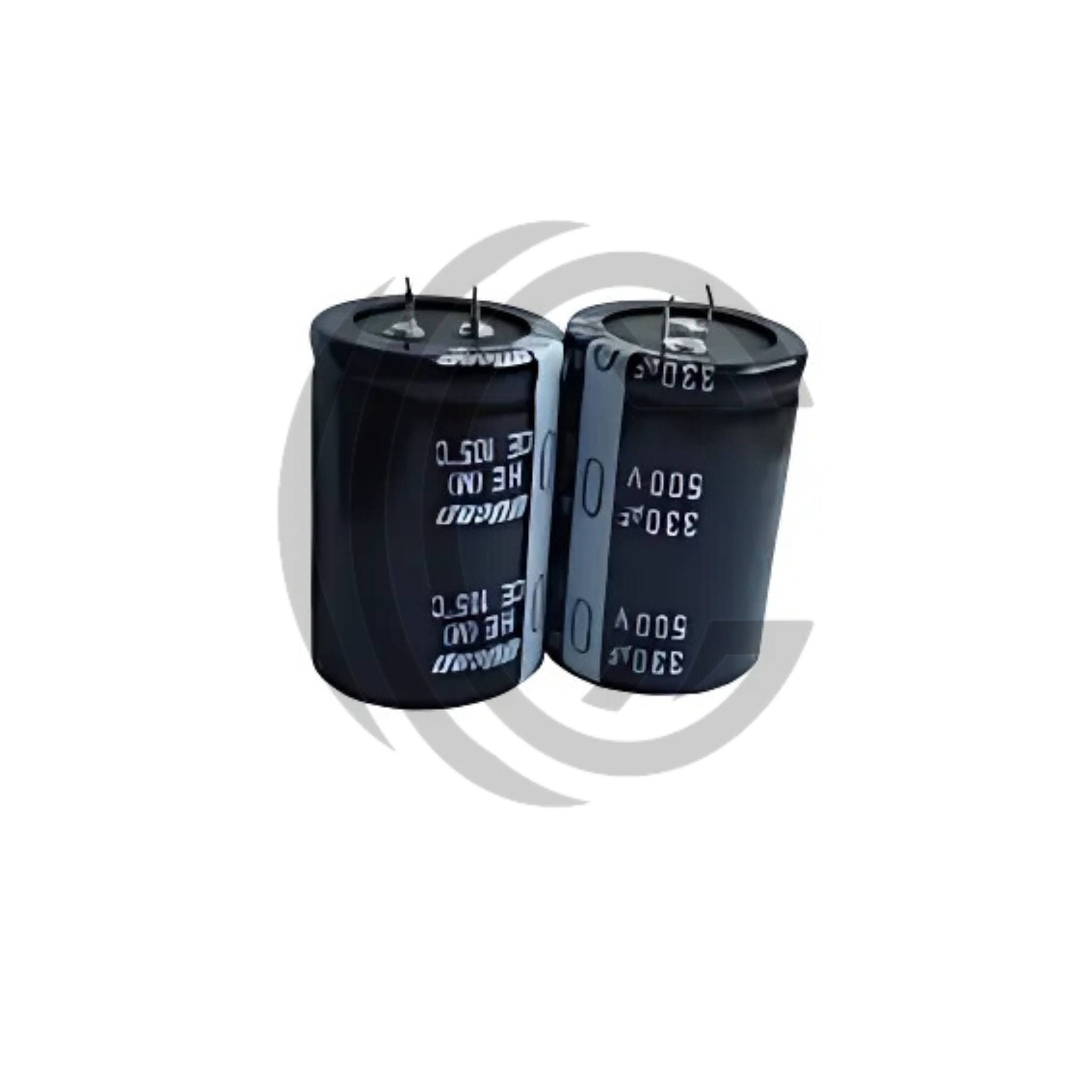

330µF 500V Aluminum Electrolytic Capacitor
The 330µF 500V aluminum electrolytic snap-in capacitor is designed for high-voltage power electronics where stable energy storage and consistent electrical behavior are required. It is suitable for systems such as power supplies, inverters, motor drives, welding equipment, and renewable-energy converters. The snap-in terminal structure supports secure PCB mounting and straightforward assembly in production environments.
This capacitor is manufactured for operation up to 105°C in accordance with typical high-voltage snap-in series specifications. It meets CE and RoHS compliance requirements and maintains a capacitance tolerance of ±20% at 120Hz and 20°C. Datasheet parameters such as tan δ limits, impedance ratio specifications, and endurance testing at 105°C for 3000 hours define its performance in high-voltage circuits.
Selection of the 330µF/500V snap-in type depends on verifying the exact series and part number for measurements such as ESR, ripple-current rating, and case dimensions, as these vary across manufacturers. The capacitor is commonly used in industrial and commercial applications where stable DC-bus performance and elevated temperature capability are necessary. For detailed limits and dimensional information, refer to the manufacturer datasheet.
Key Specs
| Parameter | Value |
|---|---|
| Capacitance | 330 µF |
| Rated Voltage | 500 V DC |
| Capacitance Tolerance | ±20% (120 Hz, 20°C) |
| Category Temperature Range | −25°C to +105°C |
| Endurance | 3000 hours at 105°C (rated conditions per datasheet) |
| Dissipation Factor (tan δ) | Max 0.20 (for 450–500V classes) |
| Impedance Ratio ZT/Z20 | Max 8 |
| Mounting Type | Snap-In |
| Compliance | CE, RoHS |
| Notes | ESR, ripple current, and mechanical dimensions depend on the specific series and manufacturer |
