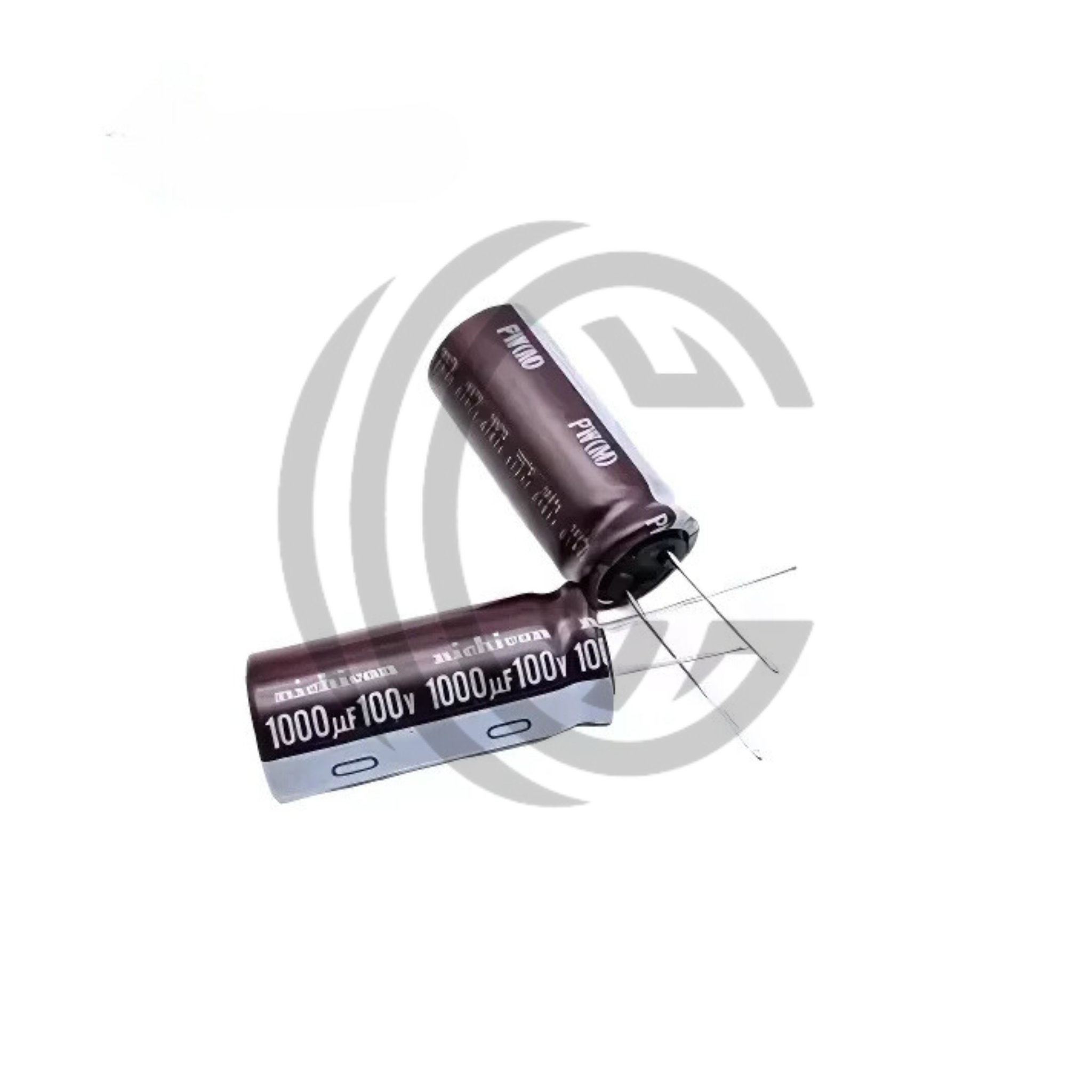

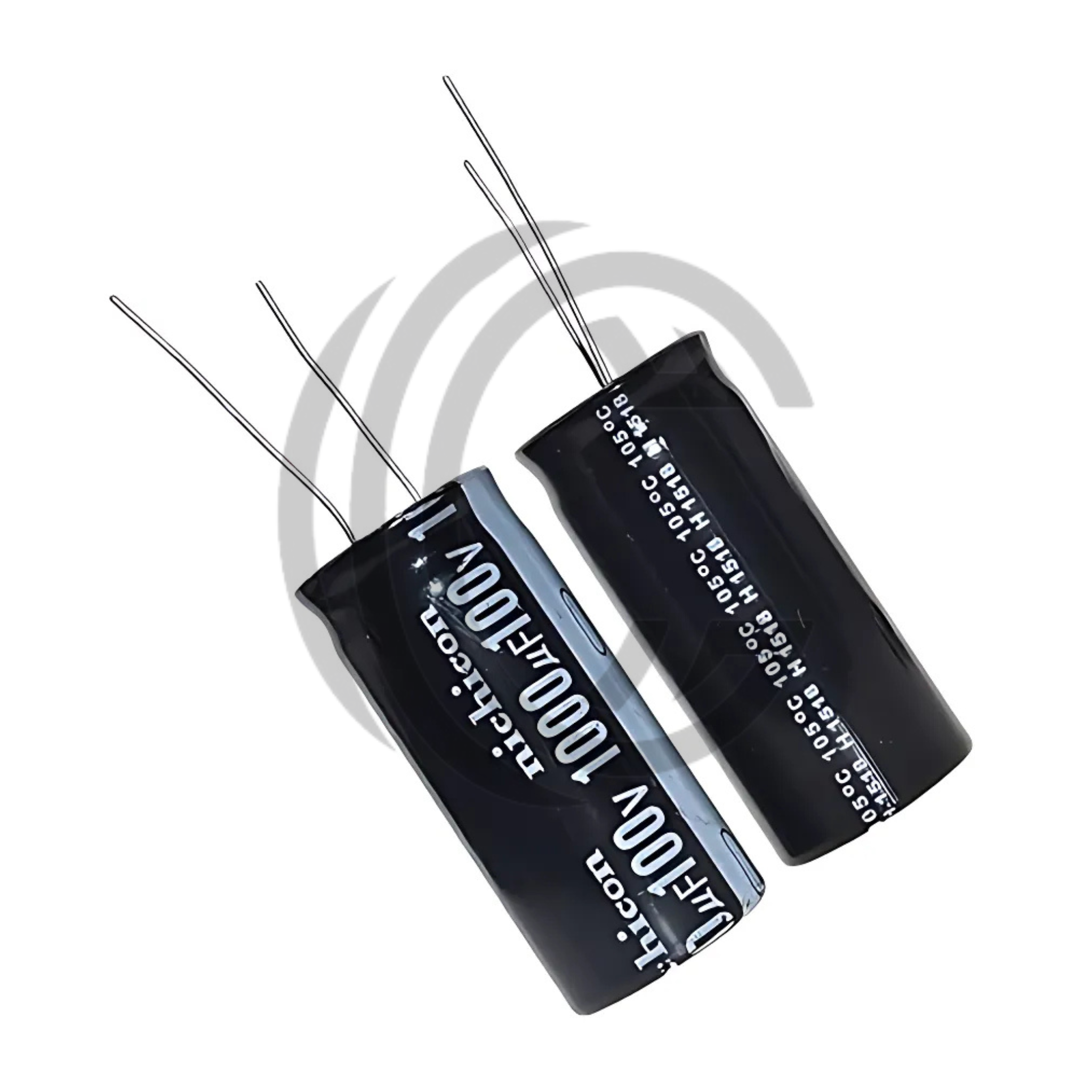

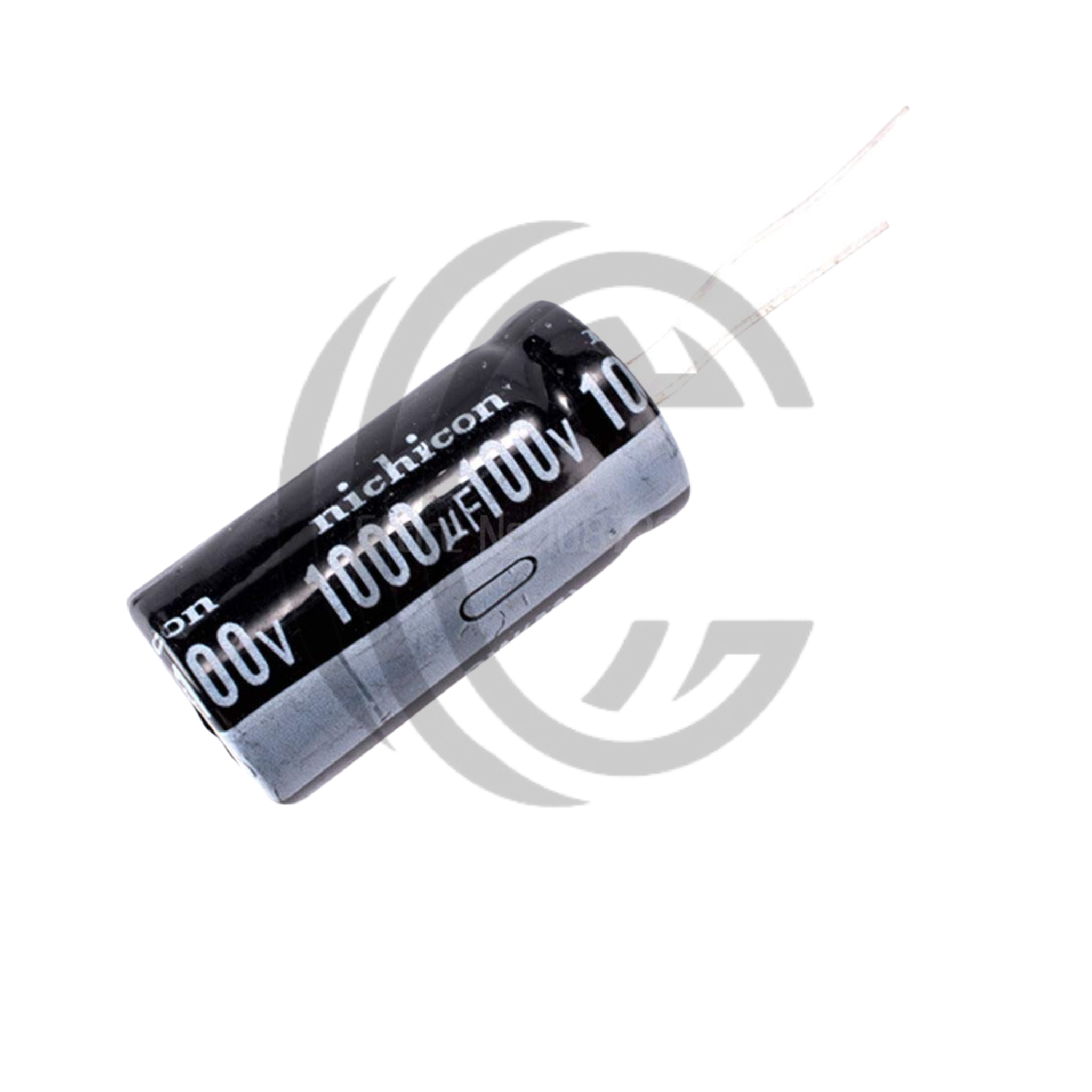

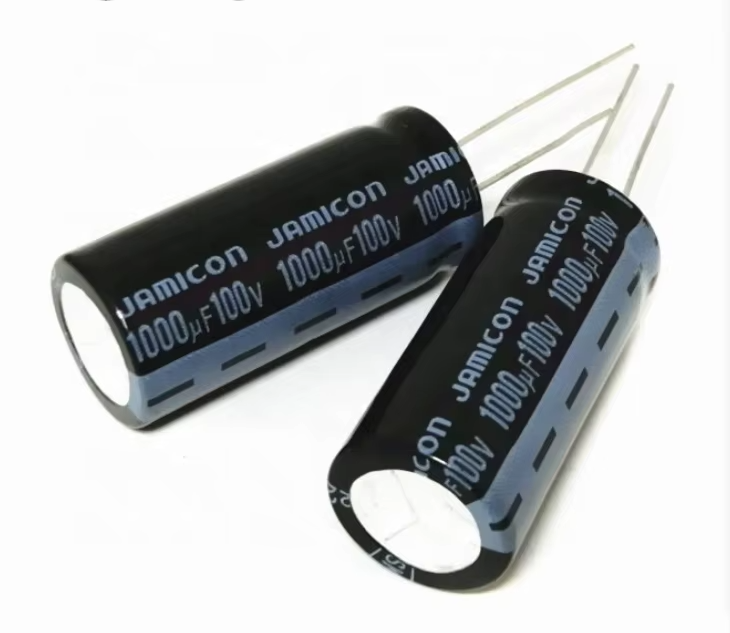

100 V 1000 uF Electrolytic Capacitor
The 100 V 1000 µF Electrolytic Capacitor is a high-capacitance radial capacitor designed for use in power electronics and industrial equipment. With a capacitance of 1000 µF and a rated voltage of 100 V, it provides stable filtering and energy storage for DC power circuits, EV charging stations, audio amplifiers, and industrial control systems. Its radial-lead, through-hole design allows compact PCB mounting while supporting operation in temperatures up to 105 °C.
This capacitor can handle high ripple currents and frequent load changes, making it suitable for motor drives, inverters, automation controllers, renewable energy inverters, and audio amplifier power supplies. Its aluminum-electrolytic construction ensures stable performance across a wide temperature range and maintains reliability under continuous operation.
The capacitor has low leakage current and ±20% capacitance tolerance, meeting standard industrial requirements. It is suitable for applications where stable performance under varying loads and temperatures is essential.
Key Specs
| Parameter | Specification |
|---|---|
| Capacitance | 1000 µF |
| Rated Voltage | 100 V DC |
| Type | Aluminum Electrolytic, Radial Lead (Through-Hole) |
| Capacitance Tolerance | ±20% (120 Hz, 20 °C) |
| Operating Temperature | –40 °C to +105 °C |
| Ripple Current (typical) | ≈ 1.2 – 1.5 A RMS |
| Leakage Current | ≤ 0.01 CI or ≤ 3 µA after 1 min |
| Mounting Type | Radial / Through‑Hole |
| Lead Spacing | ~7.5 mm |
| Dimensions (typical) | Diameter: 18 mm, Height: ~40–41 mm |
| Polarization | Polarized (Observe correct polarity) |
