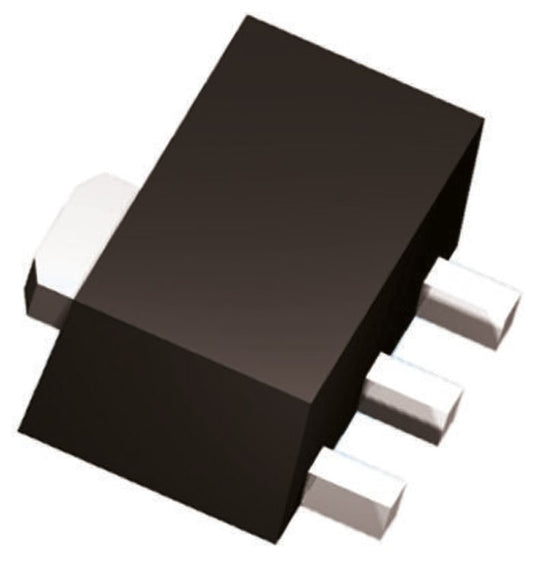

2SA1213 50 V, 1 A PNP Transistor SOT‑89
Regular price
Rs.25.00
2SA1213
The 2SA1213 is a PNP bipolar transistor designed for fast-switching and power amplification in electronic circuits. Encased in a SOT-89 surface-mount package, it supports a collector-emitter voltage of –50 V and a collector current of 1 A, with a low saturation voltage of –0.5 V at 1 A. Its typical switching time of 1.0 µs allows reliable operation in high-frequency and power-sensitive applications such as LED drivers, audio amplifiers, automotive modules, and industrial control circuits.

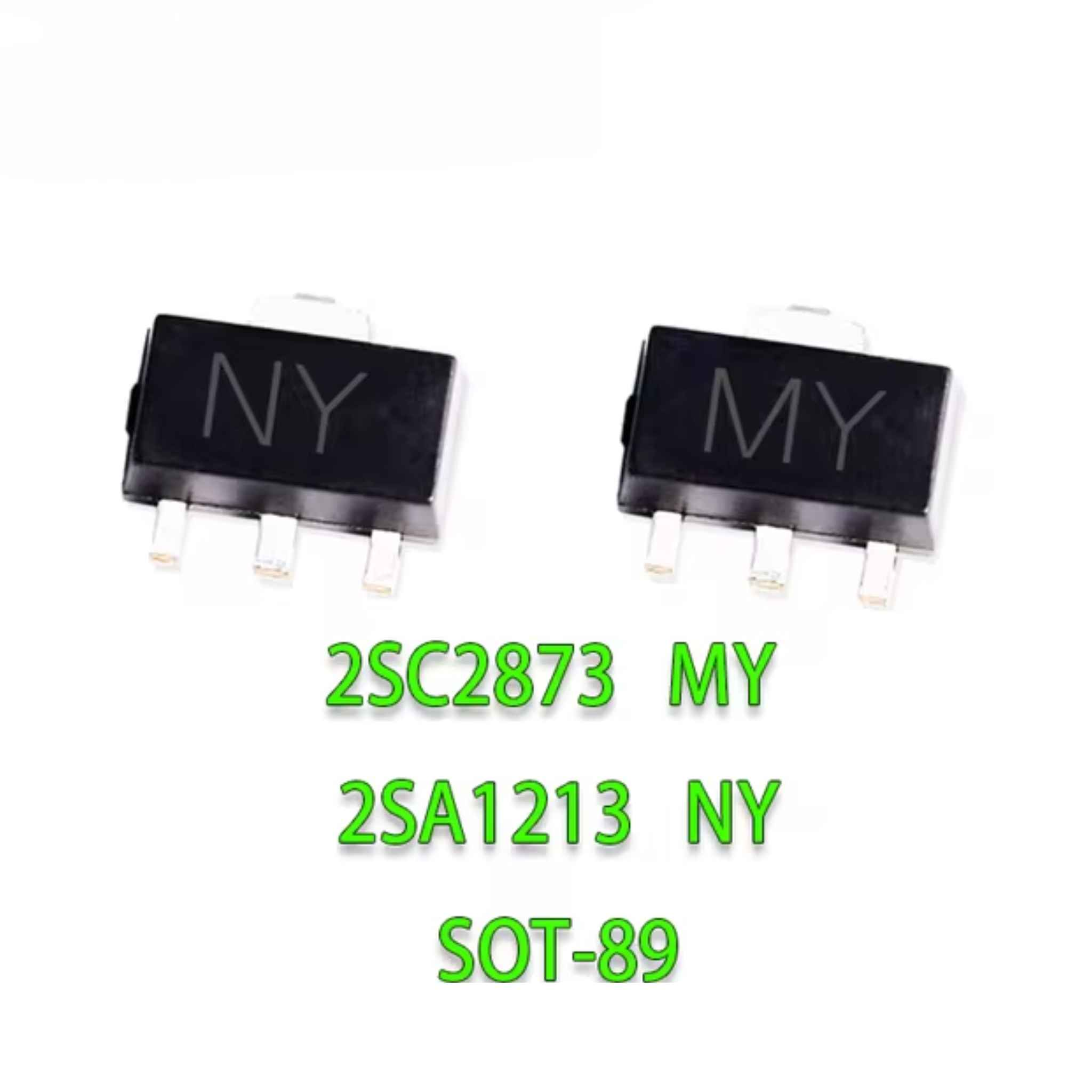

The transistor offers efficient performance with a low collector-emitter saturation voltage and sufficient current handling for standard power circuits. Its fast switching capability makes it suitable for pulse-width modulation and power supply applications. The 2SA1213 can be paired with its complementary 2SC2873 NPN transistor for balanced circuit designs.
The device is RoHS-compliant and fits on compact PCBs thanks to its SOT-89 package. Its thermal characteristics allow up to 2 W of power dissipation depending on mounting conditions, supporting applications in industrial and commercial electronics.

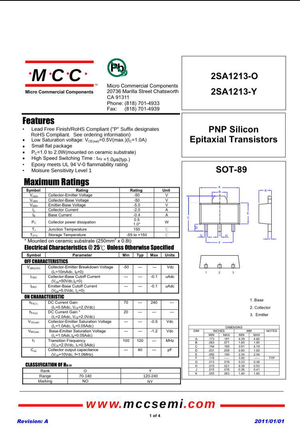

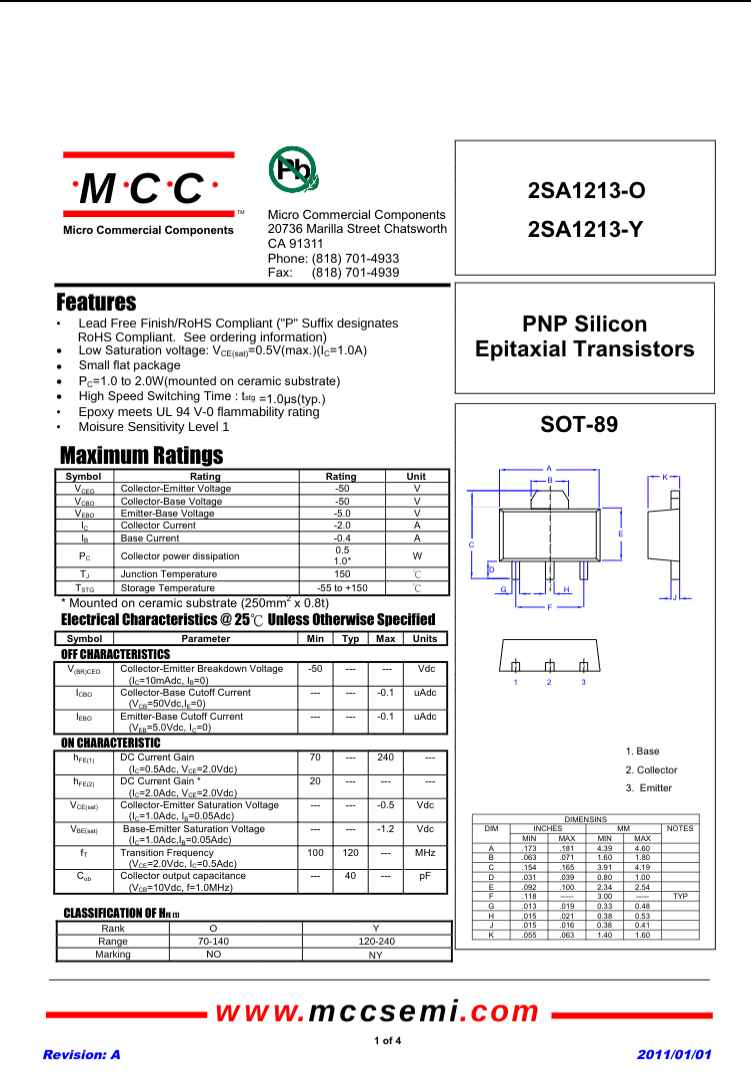

Key Specs
| Parameter | Value |
|---|---|
| Polarity | PNP |
| Package | SOT-89 (PW‑Mini / JEITA SC‑62) |
| Collector‑Emitter Voltage (V<sub>CEO</sub>) | –50 V |
| Collector‑Base Voltage (V<sub>CBO</sub>) | –50 V |
| Emitter‑Base Voltage (V<sub>EBO</sub>) | –5 V |
| Collector Current (I<sub>C</sub>) | 1 A |
| Collector Power Dissipation (P<sub>C</sub>) | Up to 2 W (depending on mounting) |
| Collector‑Emitter Saturation Voltage V<sub>CE(sat)</sub> | –0.5 V max (I<sub>C</sub> = 1 A) |
| Switching Time | 1.0 µs (typical) |
| DC Current Gain (h<sub>FE</sub>) | 70 – 240 |
| Operating / Storage Temperature | –55°C to +150°C |
| Compliance | RoHS |
| Complementary Pair | 2SC2873 (NPN) |
