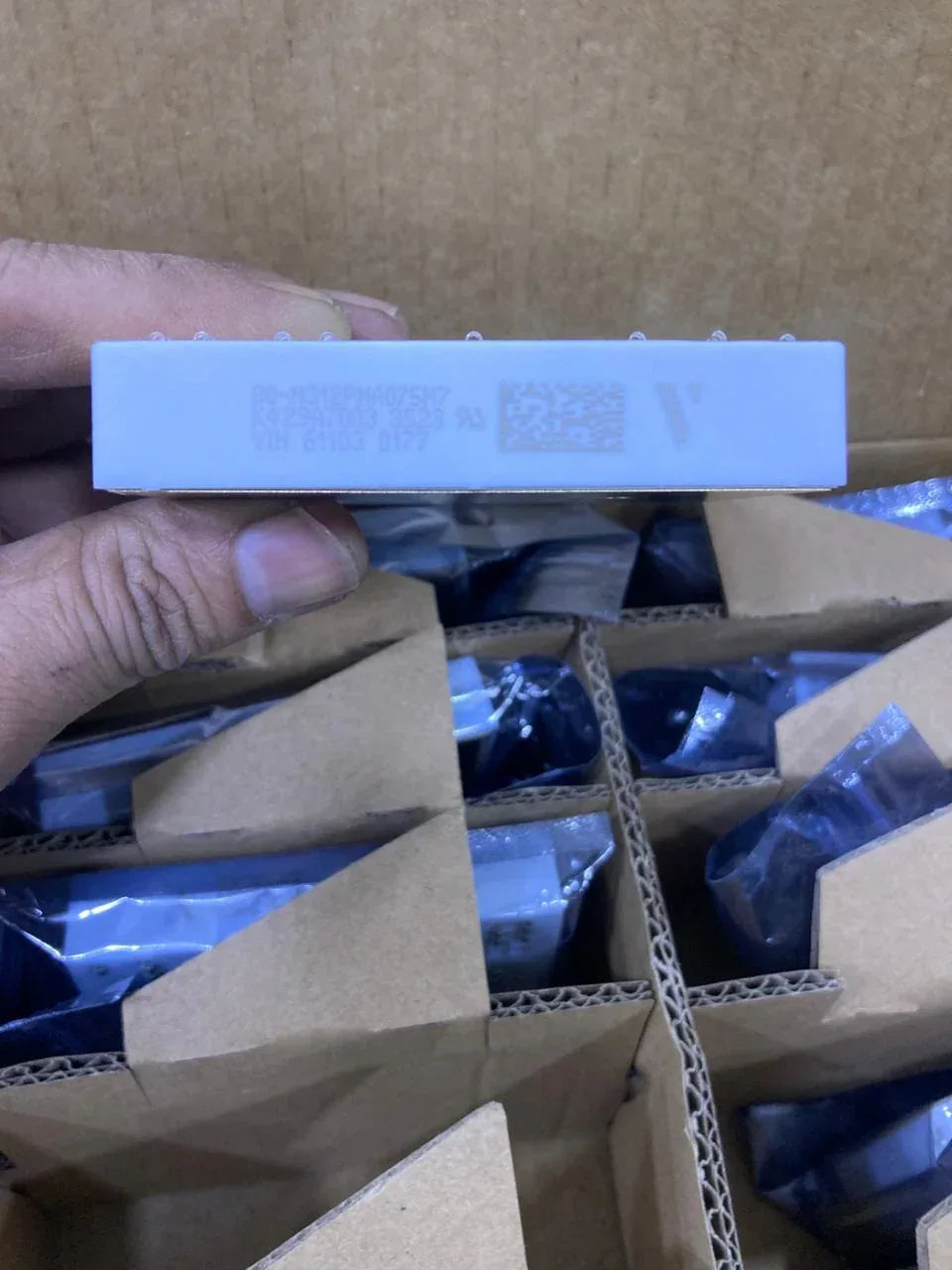

Vincotech 80‑M312PMA075M7‑K429A70
Regular price
Rs.29,000.00
Sale price
Rs.32,000.00
Vincotech 80‑M312PMA075M7‑K429A70
The Vincotech 80‑M312PMA075M7‑K429A70 power module delivers industry‑leading performance and unwavering reliability for advanced power electronics applications. Designed within Vincotech’s MiniSKiiP® PIM 3 product family, this highly integrated module combines a Converter, Brake, and Inverter (CIB) configuration to streamline complex system designs and optimize energy conversion. Engineered for demanding industrial environments, the 1200 V / 75 A ratings make it ideal for variable frequency drives, motor control, renewable energy inverters, and other commercial power systems requiring high efficiency and robust operation.
Incorporating IGBT M7 chip technology with Kelvin emitter connection, this module improves switching performance, reduces turn‑off losses, and lowers collector–emitter saturation voltage — all contributing to superior electrical efficiency and reduced thermal stress. With temperature sensing included and easy paralleling capability, it provides designers with enhanced diagnostic capability and higher system uptime. Rugged spring contact interconnections and a compact MiniSKiiP® 3 housing allow for simplified assembly and flexible PCB layouts without the need for drilled mounting holes.
Vincotech’s quality‑tested design ensures long‑term durability and reliable performance in industrial and commercial environments. The module’s robust isolation properties with up to 5500 V DC test voltage and wide operating temperature range support critical power conversion applications under tough thermal and electrical conditions. Whether upgrading existing systems or developing new power electronics solutions, the 80‑M312PMA075M7‑K429A70 stands out for efficiency, resilience, and ease of integration.
Key Specs
| Specification | Value |
|---|---|
| Product Line | MiniSKiiP® PIM 3 |
| Configuration | Converter + Brake + Inverter (CIB) |
| Chip Technology | IGBT M7 |
| Collector‑Emitter Voltage (VCES) | 1200 V |
| Nominal Current Rating | 75 A |
| Total Module Power Dissipation | Up to 196 W (Tj = max) |
| Inverter Diode Forward Current | 81 A |
| Rectifier Diode Peak Reverse Voltage | 1600 V |
| Maximum Junction Temperature | 175 °C |
| Isolation Voltage (DC) | 5500 V |
| Housing | MiniSKiiP® 3 Spring Contact |
| Thermal Interface Options | Multiple lid/thickness variants |
| Typical Applications | Motor Drives, Power Inverters, Industrial Controls |
