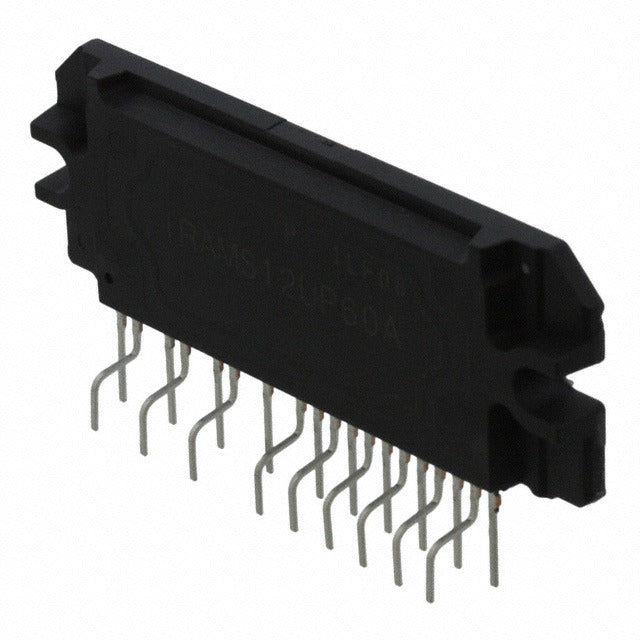

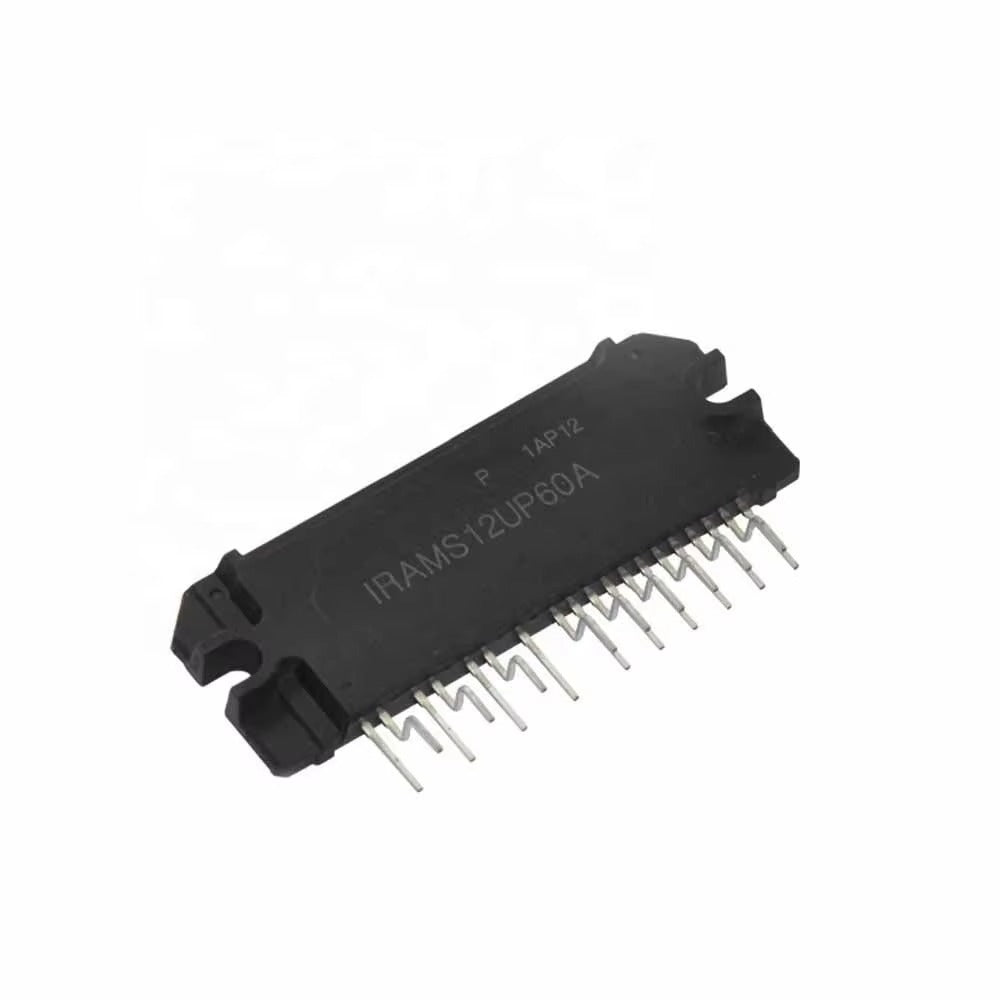

IRAMS12UP60A Integrated Power Module
The IRAMS12UP60A is a 600V, 12A Integrated Power Module (IPM) from Infineon Technologies, designed for efficient and reliable motor control applications. This compact module integrates a 3-phase IGBT inverter with a high-speed driver IC, providing a complete solution for driving motors in various industrial and commercial applications.
With a maximum junction temperature of 150°C, the IRAMS12UP60A is built to withstand demanding operating conditions. Its low saturation voltage and fast switching capabilities contribute to reduced power losses, enhancing overall system efficiency. The module's design includes built-in protection features such as overcurrent protection and under-voltage lockout, ensuring safe and reliable operation.
The IRAMS12UP60A is suitable for applications requiring compact, high-performance motor control solutions. Its integrated design simplifies system layout and reduces component count, making it an ideal choice for applications like motor drives, inverters, and uninterruptible power supplies (UPS).
Key Specifications
Specification
Value
Collector-Emitter Voltage (Vce)
600 V
Continuous Collector Current (Ic)
12 A
Package Type
23-PowerSIP Module, 19 Leads
Isolation Voltage
2000 Vrms
Operating Frequency
20 kHz
Power Dissipation
26 W
Operating Temperature Range
-40°C to +125°C
Mounting Type
Through Hole
Protection Features
Overcurrent, Under-voltage Lockout
Compliance Standards
RoHS
For more detailed information, refer to the datasheet: IRAMS12UP60A Datasheet.
