FP100R12KT4 IGBT Module – 1200V 100A EconoPACK 3 by Infineon
FP100R12KT4 is a 1200V 100A IGBT module from Infineon Technologies, designed for 3-phase inverter systems in industrial drives, motor control, power supplies, and renewable energy applications. Built on Trenchstop IGBT4 technology, this silicon-based power module delivers fast switching, high thermal efficiency, and low conduction losses.
With a collector-emitter voltage rating of 1.2kV and a low saturation voltage of just 1.75V, the FP100R12KT4 ensures optimized performance in high-frequency, high-load environments. It supports a continuous collector current of 100A at 25°C and features a power dissipation capability of 515W. Its gate-emitter leakage current is as low as 100nA, and it supports a maximum gate-emitter voltage of ±20V for enhanced gate control and system reliability.

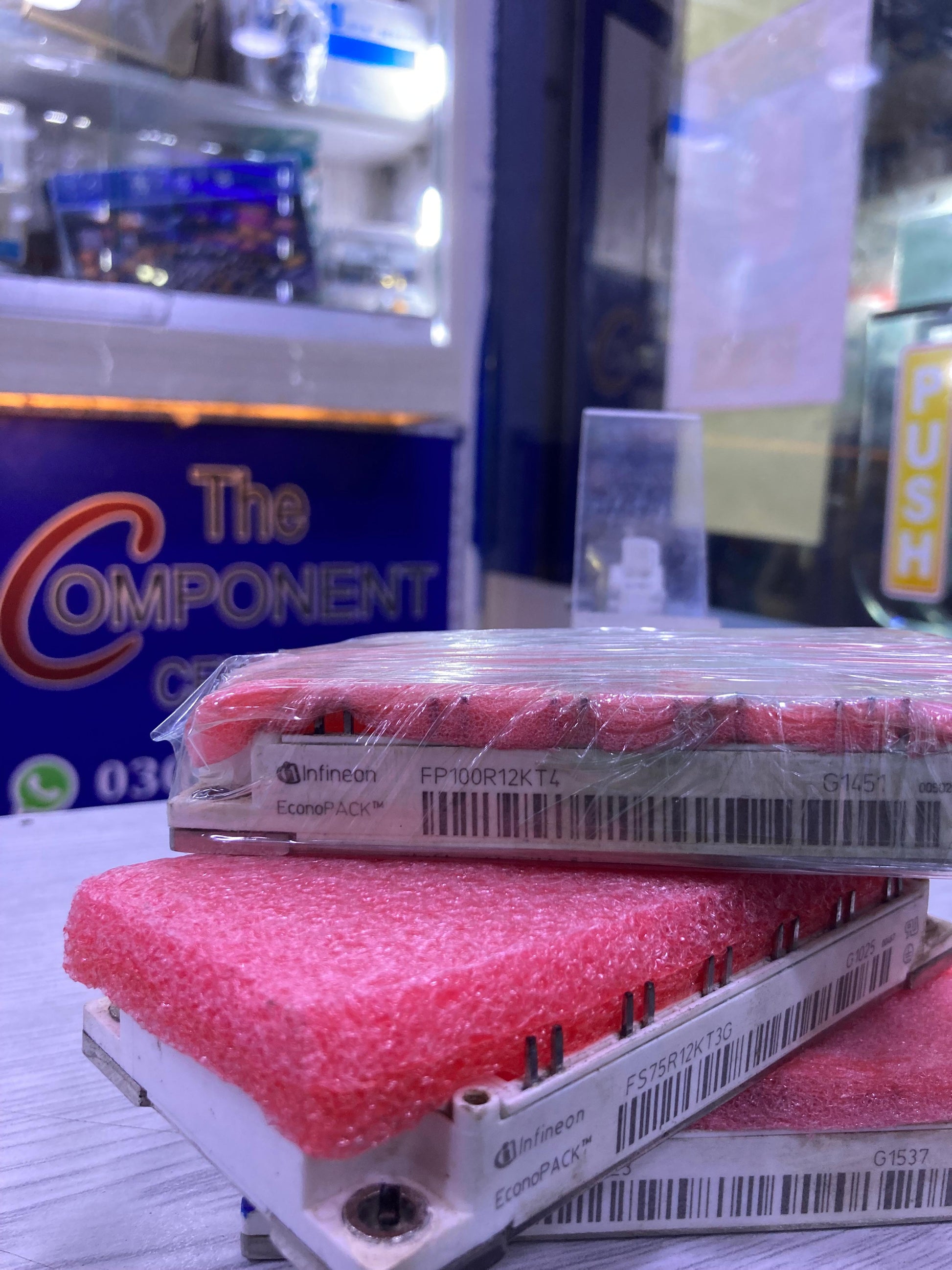

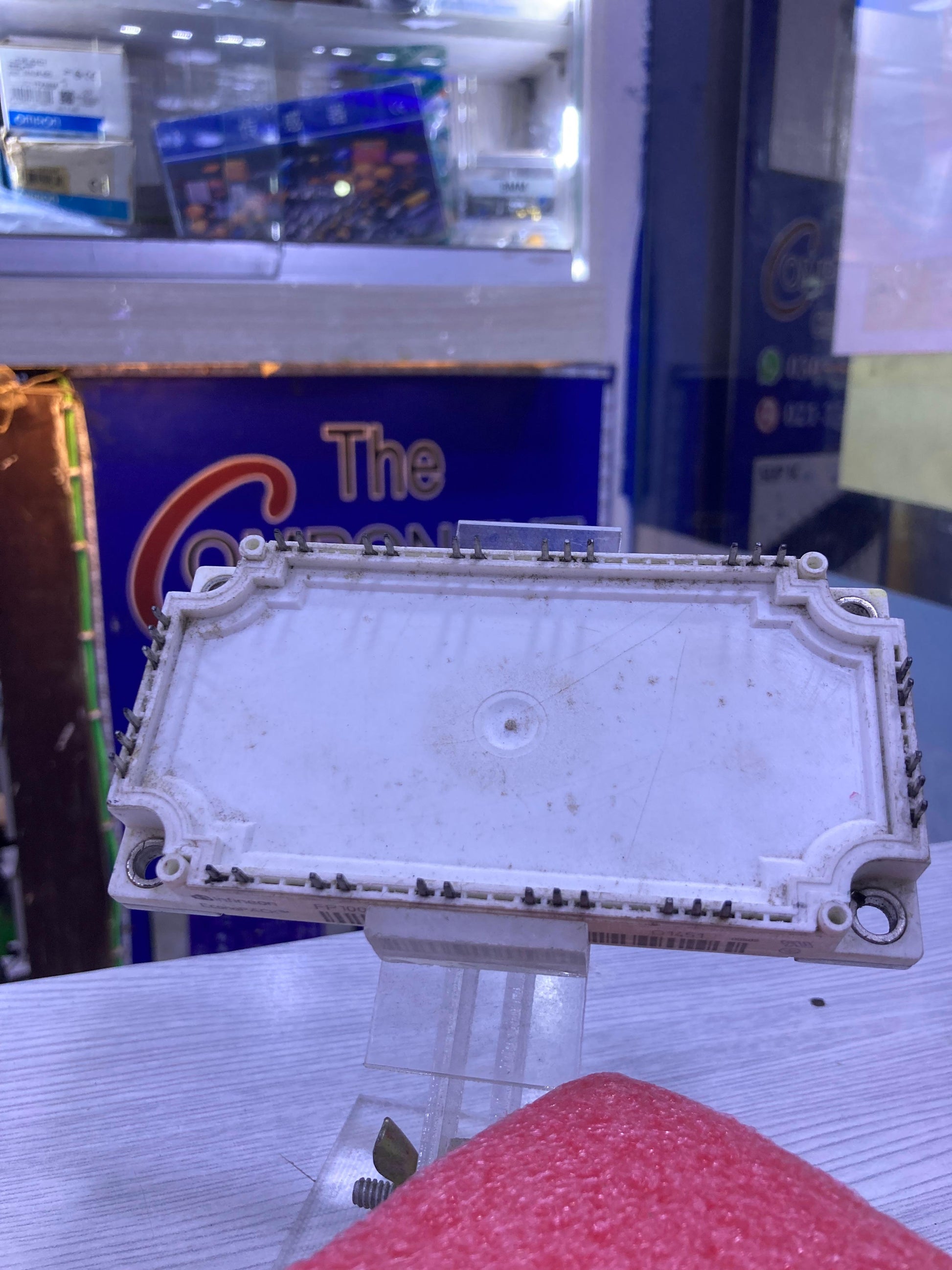

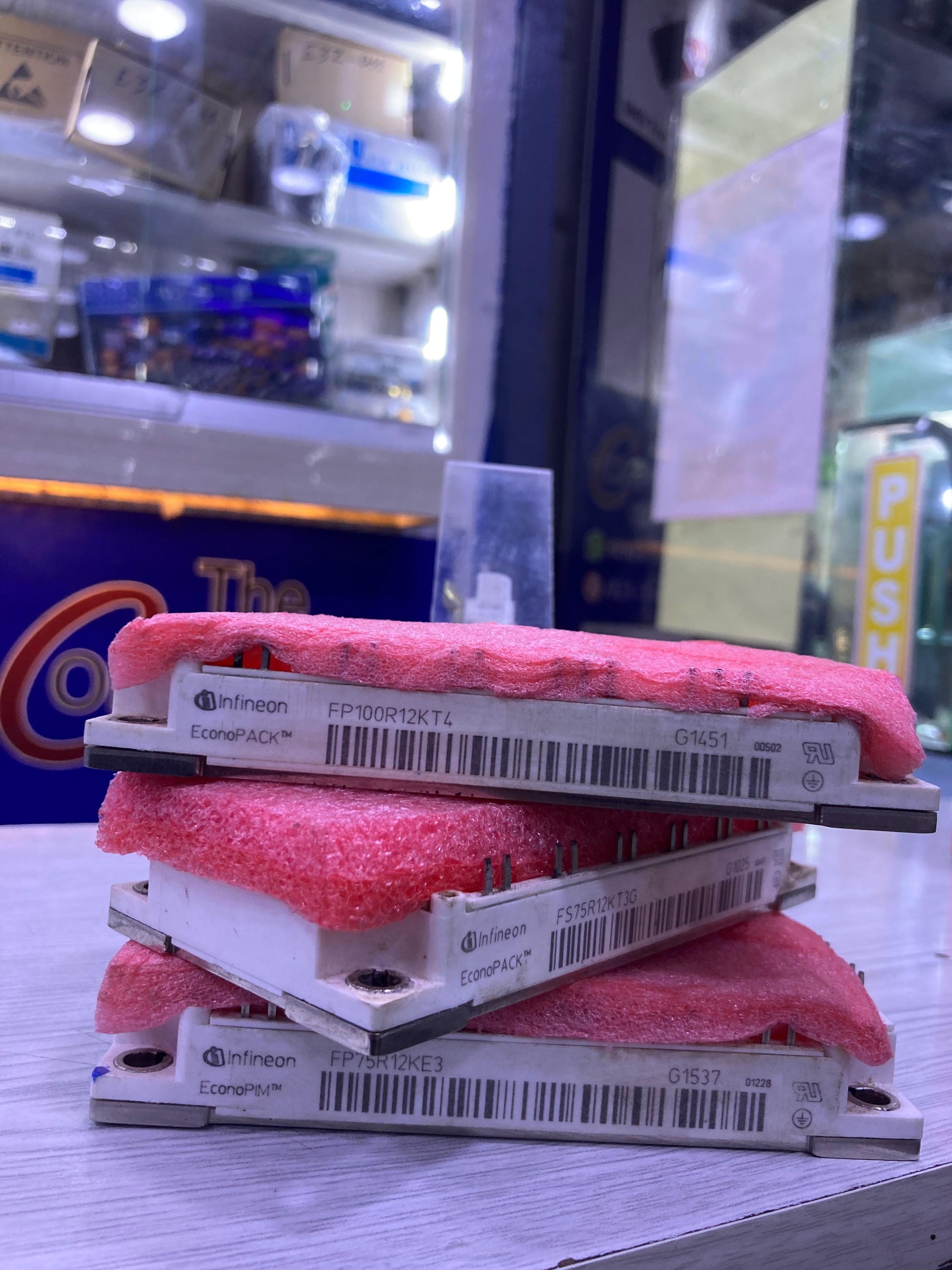

This module comes in a robust EconoPACK 3 housing and supports screw-mount installation for secure electrical contact. With compact dimensions of 122mm x 62mm x 17mm, the FP100R12KT4 is ideal for space-constrained industrial environments, offering reliable operation across a wide temperature range from -40°C to +150°C.
Engineered for energy-efficient and long-lasting power switching, the FP100R12KT4 is widely used in Pakistan’s power electronics sector — including solar inverters, UPS systems, and advanced motor control units.
Key Specs
Voltage: 1200V
Current: 100A continuous at 25°C
Power Dissipation: 515W
Saturation Voltage (V<sub>CE(sat)</sub>): 1.75V
Gate Leakage Current: 100nA
Technology: Trenchstop IGBT4 (Silicon)
Configuration: 3-Phase Inverter
Package: EconoPACK 3
Mounting: Screw Mount
Temperature Range: -40°C to +150°C
Dimensions: 122mm x 62mm x 17mm
Manufacturer: Infineon Technologies
Series: TRENCHSTOP EconoPIM
