Innolux G104AGE‑L02 10.4-Inch TFT LCD Panel

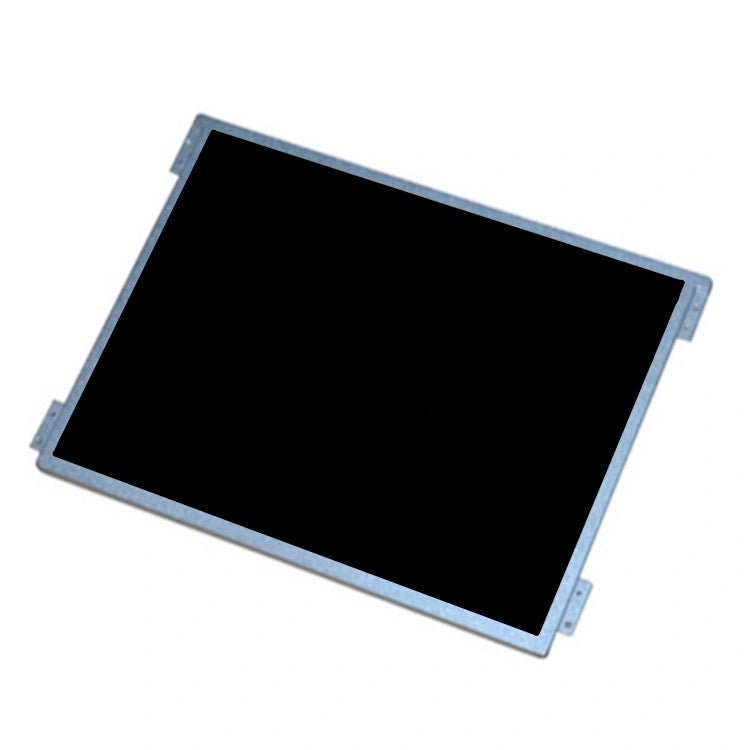

G104AGE‑L02 10.4‑Inch Industrial TFT LCD Panel – Innolux

The G104AGE‑L02 is a rugged 10.4‑inch TFT LCD panel by Innolux, purpose-built for industrial applications that demand durability and visual performance. With an 800 × 600 (SVGA) resolution, 400 cd/m² brightness, and a TN + FILM anti-glare surface, the panel delivers clear, sharp visuals even in challenging light conditions. Its wide viewing angles of 80°/80°/70°/70° (L/R/U/D) and 700:1 contrast ratio ensure dependable readability across diverse operating environments.

Designed for reliability, the G104AGE‑L02 integrates a white WLED backlight with an LED driver, rated for ≥ 50,000 hours of life. It operates across a broad temperature range of −30 ° C to +85 ° C, making it ideal for applications in industrial automation, outdoor kiosks, marine controls, and rugged field displays. Communication is handled via a 1‑channel LVDS interface (20 pins, 6/8‑bit) with a typical 3.3 V supply, supporting stable signal transmission in EMI-prone environments. All units comply with RoHS standards and incorporate a 3H hard‑coated anti‑glare front for enhanced durability.

Key Specs Screen Size: 10.4 Inches Resolution: 800 × 600 (SVGA) Panel Type: A‑Si TFT LCD, TN + FILM (Anti‑glare, 3H hard coating) Brightness: 400 cd/m² (Typ.) Contrast Ratio: 700 :1 (Typ.) Viewing Angle: 80°/80°/70°/70° (L/R/U/D) Colors: 262K / 16.2M (6‑bit + FRC) Backlight: White LED w/ Driver, ≥ 50K h life Interface: 1‑ch LVDS, 20‑pin, 6/8‑bit Input Voltage: 3.3 V (Typ.) Operating Temp: −30 °C to +85 °C Storage Temp: −30 °C to +85 °C Dimensions: 243 × 184 × 8.0–8.5 mm (Typ.) Active Area: 211.2 × 158.4 mm Weight: ~505–540 g Mounting: Face‑mounting holes (2‑Φ3.5, 2‑R1.75) Compliance: RoHS
