Hitachi KOE TX26D12VM0AAA 10.4-Inch IPS-Pro TFT LCD Panel

TX26D12VM0AAA 10.4-Inch IPS-Pro Industrial TFT LCD Panel – Hitachi / KOE

The TX26D12VM0AAA is a 10.4-inch IPS-Pro a‑Si TFT-LCD panel manufactured by Hitachi / KOE. It offers a native resolution of 800 × 600 (SVGA), with 450 cd/m² brightness and a normally black transmissive mode. The display supports 85° viewing angles in all directions (L/R/U/D) and provides a contrast ratio of 800:1. This configuration allows for consistent image quality across wide viewing positions.

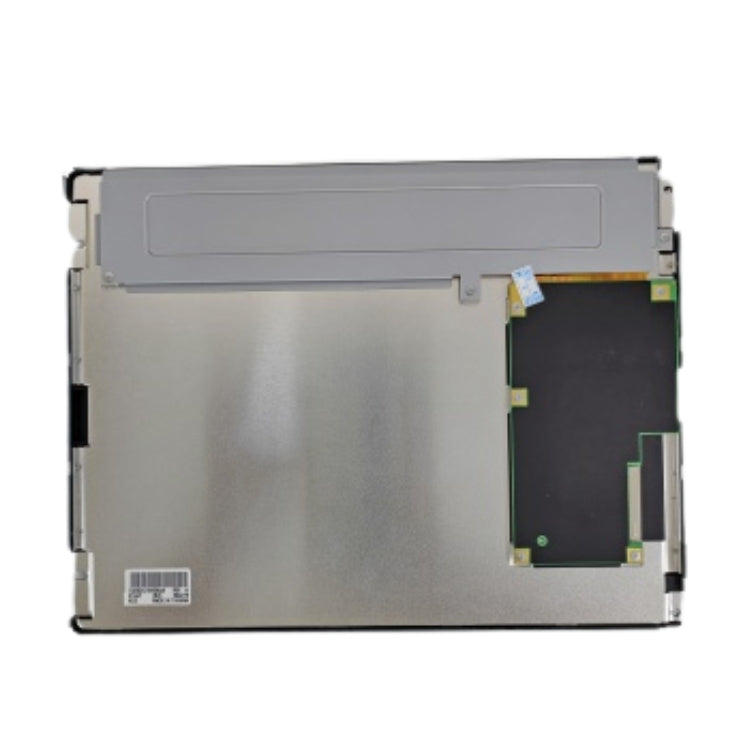

The module includes a 3S8P WLED backlight system with an integrated LED driver, with a rated service life of up to 70,000 hours. The display supports 262K to 16.7 million colors via 6-bit + Hi-FRC and has a typical response time of 25 ms. Its LVDS interface uses a 1-channel, 20-pin connection at 3.3 V input, supporting both 6-bit and 8-bit signal formats.

The TX26D12VM0AAA is rated for operation between –20 °C and +70 °C, and storage between –30 °C and +80 °C. This panel is used in applications requiring a stable display in a compact form factor, including medical systems, industrial control, and embedded interfaces.

Key Specs
Screen Size: 10.4 Inches
Resolution: 800 × 600 (SVGA)
Panel Type: IPS-Pro a‑Si TFT-LCD (Normally Black, Transmissive)
Brightness: 450 cd/m² (Typ.)
Contrast Ratio: 800 : 1 (Typ.)
Viewing Angle: 85°/85°/85°/85° (L/R/U/D)
Colors: 262K–16.7M (6-bit + Hi-FRC)
Response Time: 25 ms (Typ.)
Backlight: WLED (3S8P) with LED Driver, ~70,000 hours
Interface: 1-channel LVDS, 20-pin, 6/8-bit
Input Voltage: 3.3 V (Typ.)
Operating Temp: –20 °C to +70 °C
Storage Temp: –30 °C to +80 °C
Active Area: 211.2 × 158.4 mm
Outline Dimensions: ~243 × 185 mm
Applications: Industrial PC, Medical Displays, Kiosks, Embedded Systems
Brand: Hitachi / KOE
Compliance: RoHS
