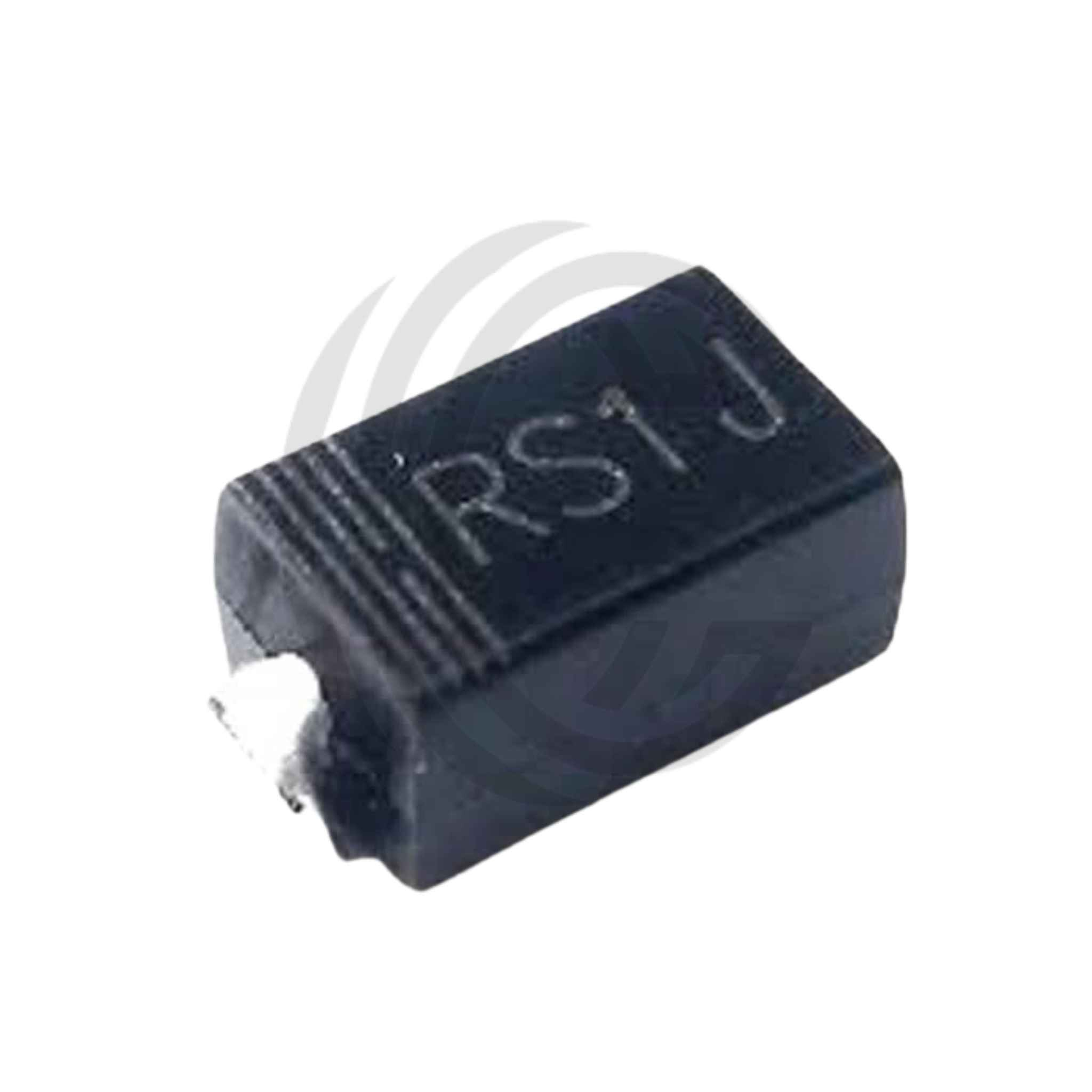

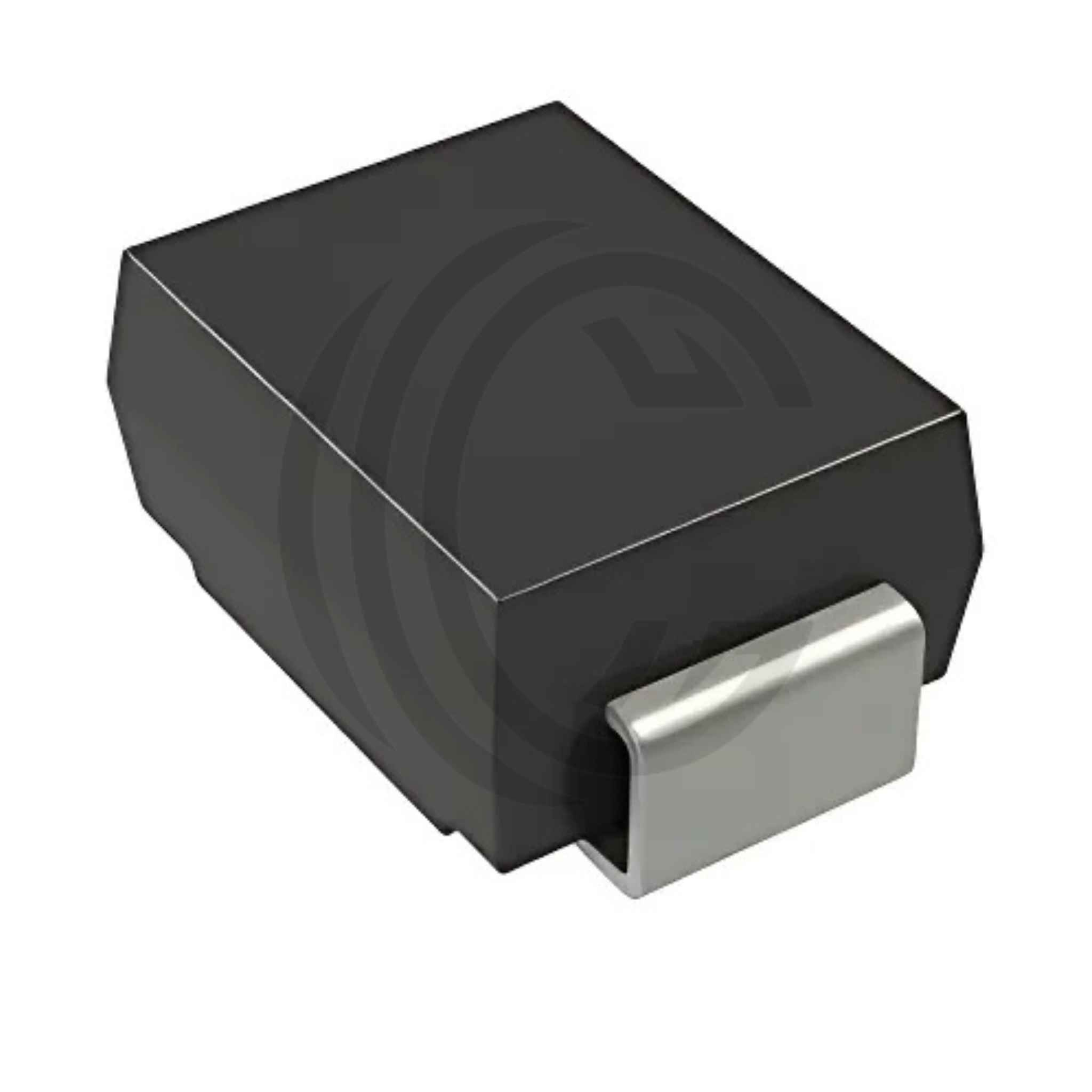

RS1J Fast Recovery Diode – 600V 1A SMD Rectifier for High-Speed Circuits
RS1J Fast Recovery Diode is a high-efficiency rectifier rated for 600V reverse voltage and 1A forward current, designed to support fast-switching performance in power electronics. This surface-mount diode features a rapid reverse recovery time, low forward voltage drop, and strong surge capability, making it ideal for use in inverters, switching power supplies, motor drives, and automotive circuits. Its compact DO-214AC (SMA) package allows seamless integration into high-density PCBs used in industrial and commercial applications.
Engineered for reduced energy loss and improved thermal stability, the RS1J diode is commonly selected for high-frequency rectification tasks in communication systems, AC/DC converters, and fast recovery snubber networks. Electronics manufacturers and engineers trust the RS1J for its consistent performance, cost-effectiveness, and wide availability for mass production needs.
Key Specs Voltage Rating: 600V Current Rating: 1A Recovery Time: Fast (typ. 150ns) Package: SMA (DO-214AC) Mounting Type: Surface Mount Forward Voltage Drop: Low Applications: Inverters, Power Supplies, Motor Drives, Communication Equipment, Automotive Compliance: RoHS
